OWNER'S MANUAL

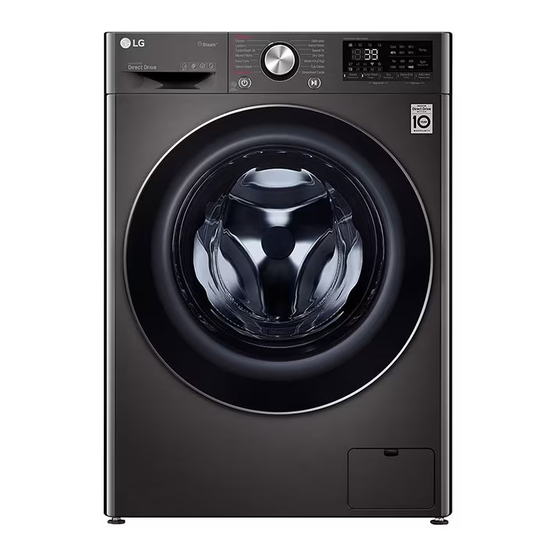

WASHING MACHINE
Before beginning installation, read these instructions carefully. This will simplify
installation and ensure that the product is installed correctly and safely. Leave
these instructions near the product after installation for future reference.
EN
ENGLISH
F4R5TGG**
F4R5VGG**
MFL71682805
Rev.02_031620
Copyright © 2019 LG Electronics Inc. All Rights Reserved
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG F4R5TGG Series
Summary of Contents for LG F4R5TGG Series
- Page 1 Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH F4R5TGG** F4R5VGG** www.lg.com MFL71682805 Rev.02_031620 Copyright © 2019 LG Electronics Inc. All Rights Reserved...
-
Page 2: Table Of Contents
Adding Detergents and Softeners ..............16 Control Panel ....................18 Programme Table ....................20 Extra Options and Functions ................25 SMART FUNCTIONS ..............28 Using LG ThinQ Application ................28 Using Smart Diagnosis..................30 MAINTENANCE ................31 Cleaning After Every Wash ................31 Cleaning the Appliance Periodically ..............32 TROUBLESHOOTING ..............34... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 4 Technical Safety • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 5 Installation • Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug. • This appliance should only be transported by two or more people holding the appliance securely. •...
- Page 6 • Never reach into the appliance while it is operating. Wait until the drum has completely stopped. • In case of flood, disconnect the power plug and contact the LG Electronics customer information centre. • Do not push down the door excessively, when the appliance door is open.
- Page 7 • Do not touch the power plug or the appliance controls with wet hands. • Do not bend the power cable excessively or place a heavy object on • Do not wash rugs, mats, shoes or pet blankets, or any other items other than clothes or sheets, in this machine.
- Page 8 Maintenance • Securely plug the power plug in the socket outlet after completely removing any moisture and dust. • Disconnect the appliance from the power supply before cleaning the appliance. Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply.
-
Page 9: Installation
INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View a Control panel a Power plug b Detergent dispenser drawer b Transit bolts c Drum c Drain hose d Door e Cover cap f Drain pump filter... -
Page 10: Installation Place Requirements
Specifications Model F4R5TGG** F4R5VGG** Power Supply 220 - 240 V~, 50 Hz Dimension 600 mm X 560 mm X 850 mm (Width x Depth x Height) Product Weight 68 kg • No further backflow protection required for connection to the water inlet. Installation Place Requirements Before installing the appliance, check the following... - Page 11 • If the appliance is installed on the unstable or serious malfunctioning. Contact your LG floor (e.g. wooden floor), the warranty does not Electronics service centre. cover any damages and cost occured due to the •...
-
Page 12: Unpacking The Appliance
Unpacking the Appliance Remove the bolt assemblies by wiggling them slightly while pulling them out. Lifting the Appliance Off the Foam Install the hole caps. Base • Locate the hole caps b included in the accessory pack or attached on the back. * This feature is only available on some models. -
Page 13: Connecting The Water Inlet Hose
NOTE Turn the adjustable feet as required if the floor is uneven. • Proper placement and levelling of the appliance • Do not insert pieces of wood etc. under the will ensure long, regular, and reliable operation. feet. • The appliance must be level and stand firmly in position. -
Page 14: Installing The Drain Hose
Installing the Drain Hose Connecting Hose to Water Tap Screw - Type Hose to Tap with Thread For Model with Drain Pump Screw the hose connector to the water supply, The drain hose should not be placed higher than which has ¾” threaded union. 100 cm above the floor. -
Page 15: Operation
OPERATION Operation Overview Preparing the Laundry Sort laundry for best washing results, and then Using the Appliance prepare laundry according to the symbols on the care labels. Before the first wash, select the Cotton wash programme and add a half amount of the detergent. Sorting the Clothes Start the appliance without laundry. -
Page 16: Adding Detergents And Softeners
Checking the Clothes before • Remove items from the flexible gasket to prevent clothing and door seal damage. Loading • Combine large and small items in a load. Load large items first. Large items should not be more than half of total load. •... - Page 17 NOTE Load the laundry into the drum and close the door. • Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or odour. NOTE • Full load: According to manufacturer’s • Do not put tablets into the drawer. recommendation •...
-
Page 18: Control Panel
Control Panel Control Panel Features a Power Button • Press the Power button to turn on or off the appliance. b Programme Knob • Programmes are available according to the laundry type. • The lamp will light up to indicate the selected programme. c Start/Pause Button •... - Page 19 g Display • The display shows the settings, remaining estimated time, options, and status messages. When the appliance is turned on, the default settings in the display will light up. − 18:88: When a programme is selected, the default time for that programme is displayed. The default time can be changed according to the selected option.
-
Page 20: Programme Table
Programme Table Washing Programme Programme Cotton Max. Load Rating Description Washes the laundry by combining various drum motions. Use for coloured fast items (shirts, nightdresses, pajamas, etc.) and normally soiled cotton load (underwear). Proper Temperature 40 °C (Cold to 95 °C) Max. - Page 21 Programme Silent Wash Max. Load 4.5 kg Description Provides less noise and vibration than the Cotton programme. Use for coloured fast garments (shirts, nightdresses, pajamas, etc.) and lightly soiled white cotton (underwear). Proper Temperature 40 °C (Cold to 60 °C) Max.
- Page 22 Programme Dry Only Max. Load Rating (Dry) Description Uses the automatic programmes to dry most loads. For most drying, make sure all laundry are similar in material and thickness. Proper Temperature Max. Spin Speed 1400 rpm Programme Wash+Dry Max. Load Rating (Dry) Description Provides a nonstop process of washing and drying in the same cycle.
- Page 23 Drying Programme Programme Normal Description Reduces the drying time and energy usage during dry cycle for cottons. Use for cotton or linen fabrics such as cotton towels, T-shirts. Max. Load Rating Programme Iron Description Suitable for ironing to dry clothes easily in damp condition. Use for cotton or linen fabrics which is ready to get ironing at the end of programme.
- Page 24 Extra Options Programme Pre Wash Delay End Add Item Rinse+ Intensive Cotton Cotton+ Mixed Fabric Easy Care Silent Wash Allergy Care Baby Steam Care Delicates Hand/Wool Quick 30 Dry Only Wash+Dry Tub Clean Download Cycle...
-
Page 25: Extra Options And Functions
Extra Options and Delay End Functions Use this function to automatically start and finish the appliance after a specified time interval. You can use the extra options and functions to customize the programmes. Press the Power button. Select a washing programme. Rinse l Press the Delay End button to set a required Use this option to select the number of rinse... - Page 26 Temp. Child Lock i Use this option to select the wash and rinse Use this function to disable the controls. This temperature in combination for the selected function can prevent children from changing cycles programme. Press this button until the desired or operating this appliance.
- Page 27 Dry % Baby Clothes and Night Gowns Always check the manufacturer’s instructions. Use the automatic programmes to dry most loads. Electronic sensors measure the temperature Rubber and Plastics of the exhaust to increase or decrease drying temperatures for faster reaction time and tighter Do not dry any items made from or containing temperature control.
-
Page 28: Smart Functions
Tub Clean cycle. your internet service provider or refer to your wireless router manual. • LG ThinQ is not responsible for any network Energy Monitoring connection problems or any faults, malfunctions, Check the energy consumption of the recently used or errors caused by network connection. - Page 29 When this function is activated, press and hold that the user can recognize the appliance status. Remote Start button for 3 seconds to disable this The notifications are triggered even if the LG ThinQ function. This function must be turned off, so that application is off.
-
Page 30: Using Smart Diagnosis
Use this function if you need an accurate diagnosis by an LG Electronics customer information centre NOTE when the appliance malfunctions or fails. • This function depends on the local call quality. -
Page 31: Maintenance
MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish. -
Page 32: Cleaning The Appliance Periodically
Cleaning the Appliance WARNING Periodically • Leave the door open to dry inside of the appliance only if the children are supervised at home. Tub Clean Use this function to clean inside of the appliance. Cleaning the Water Inlet Filter A higher water level is used in this programme at higher spin speed. - Page 33 Cleaning the Drain Pump Filter Cleaning the Dispenser Drawer The drain filter collects threads and small objects Detergent and fabric softener may build up in the left in the laundry. Check regularly that the filter is dispenser drawer. Remove the drawer and the clean to ensure smooth running of your appliance.
-
Page 34: Troubleshooting
You can remedy most of the problems by yourself, consequently save time and money, since you do not need to call LG Electronics service centre. The following table should assist you by troubleshooting. - Page 35 Possible Cause & Solution Door sensor malfunctions. dE dE1 dEz dE4 DOOR ERROR • Please call LG Electronics service centre. You can find your local LG Electronics service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
- Page 36 Symptoms Possible Cause & Solution Vibrating noise Package materials are not removed. • Remove package materials. The laundry may be unevenly distributed in the drum. • Pause the cycle and redistribute the laundry after the door unlocks. Not all leveling feet are resting firmly and evenly on the floor. •...
- Page 37 Symptoms Possible Cause & Solution Appliance does not Controls are not set properly. operate. • Make sure that the cycle should be correctly set. Close the door and press the Start/Pause button. Door is open. • Close the door and make sure that nothing should be caught under the door preventing it from closing completely.
- Page 38 Symptoms Possible Cause & Solution Appliance does not Kinked drain hose. drain water. • Ensure that the drain hose is not kinked. Drain located higher than 1.2 m above the floor. • Make sure that the drain hose should not be higher than 1.2 m above the bottom of the appliance.
- Page 39 Symptoms Possible Cause & Solution Wrinkling Appliance is not unloaded promptly. • Always remove items from the appliance as soon as the cycle is complete. Appliance is overloaded. • The appliance can be fully loaded, but the drum should not be tightly packed with items.
- Page 40 Drying Symptoms Possible Cause & Solution Not drying Depending on the type and thickness of fabric, drying time and performance may be different. • Dry again with Time Dry cycle. After drying cycle, warm clothes may be wet a little to prevent damage or wrinkle.
- Page 41 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
