Page 3
(e) A Microwave leakage check to verify compliance with the Federal performance standard should be performed on each oven prior to release to the owner. Samsung Electronics...
CENTRAL SERVICE CENTER 16. Always connect a test instrument's ground 10. Service technicians should remove their lead to the instrument chassis ground before watches while repairing an MWO. connecting the positive lead; always remove the instrument's ground lead last. Samsung Electronics...
Page 5
(Use a screwdriver.) 3. High voltage is maintained within specified limits by close-tolerance, safety-related components and adjustments. If the high voltage exceeds the specified limits, check each of the special components. Fig. 1-1. Discharging the High Voltage Capacitor Samsung Electronics...
2. Specifications 2-1 Table of Specifications TIMER 99 MINUTES 90 SECONDS POWER LEVEL ON TIME OFF TIME POWER SOURCE 230V 50Hz, AC M745 POWER CONSUMPTION MICROWAVE : 1,300W 4 sec 26 sec 160W 7 sec 23 sec OUTPUT POWER FROM 80 TO 800W (10 LEVEL POWER)

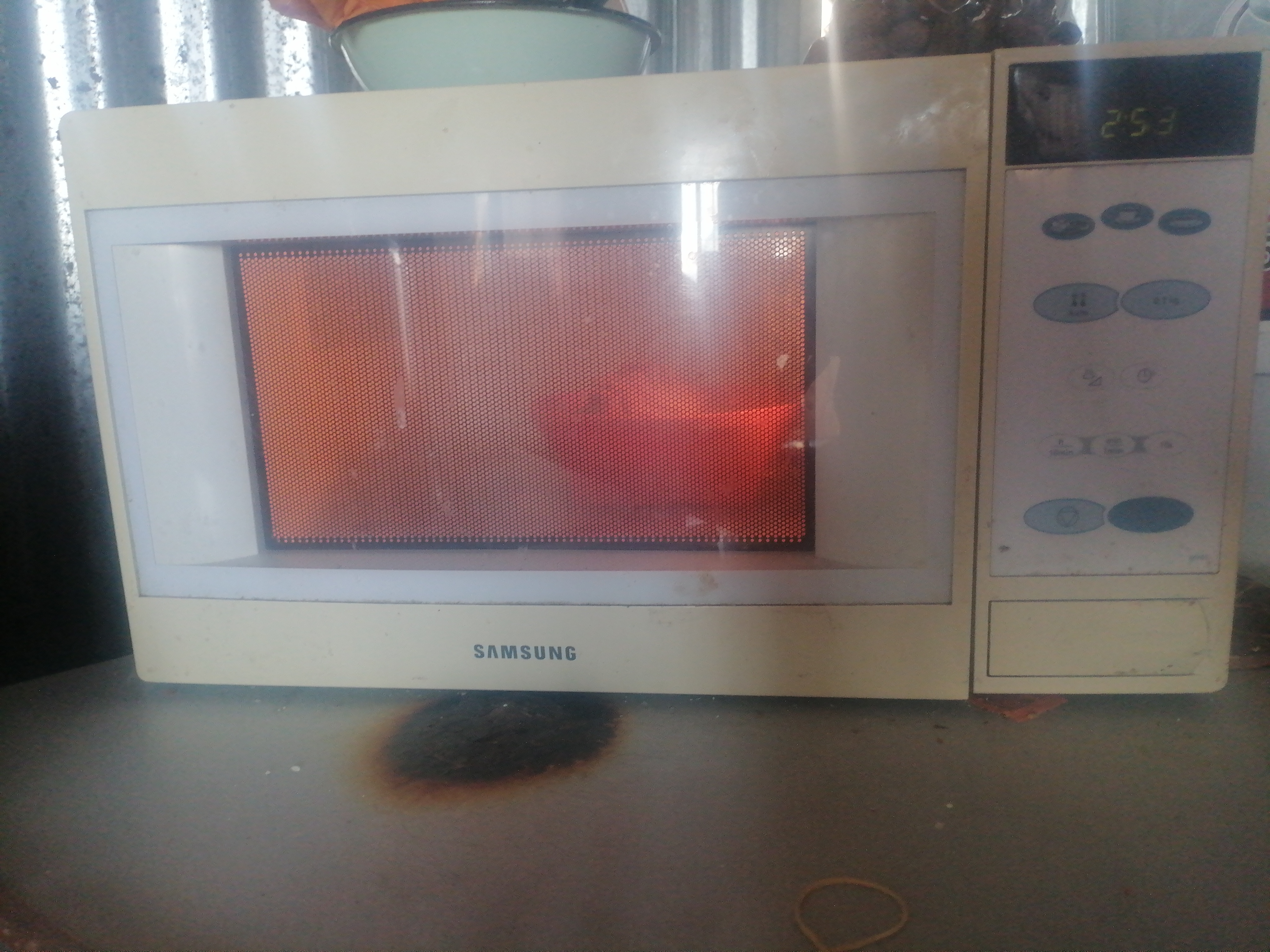

Auto Power Level Selection Button Clock Setting Button Timer Setting Button 10s. 1min 10min Cancel Button Standard Boost Button 1min+ M745 3-2 Features & External Views Ventilation Slot Light Door Safety Interlock Holes 0.1 kg Auto Control Panel Door Latches 10s.
4-2 Replacement of High Voltage Transformer 1. Discharge the high voltage capacitor. 2. Disconnect all the leads. 3. Remove the mounting bolts. 4. Reconnect the leads correctly and firmly. H. V. Trans Screws Samsung Electronics...
Page 9
1. Insertion depth of the thin metal plate should be 0.5mm or less. 4-3-4 Removal of Key Door & Spring Door "E" Remove pin hinge from Door "E" Detach spring from Door "E" and key door. Key Door Spring Samsung Electronics...
Page 10
Base Plate Drive Motor Cover 8. Connect all the leads to the drive motor. 9. Screw the deive motor cover to the base plate with a screw driver. 10. Remount the coupler in the correct position. Samsung Electronics...
Page 11
3. When installing new membrane key board, make sure that the surface of escutcheon base is cleaned sufficiently so that any problems Membrane (shorted contacts or uneven surface) can be Panel avoided. Samsung Electronics...
3. Before touching any oven components or wiring, always unplug the oven from its power source and discharge the high voltage capacitor. 5-1 High Voltage Transformer 1. Remove connectors from the transformer terminals Filament Terminals and check continuity. 2. Normal resistance readings are as follows: MODEL M745 Secondary Approx. 130W Filament Approx.0W Primary Approx.1.700W...
Page 13
¥ Primary switch ¥ Monitor switch (COM-NC) 5. Confirm that the gap between the switch ¥ Monitor switch (COM-NO) housing and the switch actuator is no more than ¥ Door Sensing S/W 0.5mm when door is closed. Samsung Electronics...
Page 14
5. After heating for 2 minutes, measure the water temperature in each beaker. 6. Microwave heat distribution rate can be calculated as follows: Minimum Temperature Rise Beaker Heat Distribution = X 100(%) Maximum Temperature Rise The result should exceed 65%. Cooking Tray Samsung Electronics...
Page 15
10min 1min inch spacer cone with the probe. Hold the probe 1min+ M745 perpendicular to the cabinet door. Place the spacer cone of the probe on the door and/or cabinet door seam and move along the seam, the door viewing window and the exhaust openings moving the probe in a clockwise direction at a rate of 1 inch/sec.
H.V.Transformer component test procedure and replace if it is H.V.Capacitor defective. H.V.Diode, H.V.Fuse Magnetron 4. Open or loose wiring of power relay 5. Defective primary latch switch 6. Defective power relay or Ass'y PCB Replace PCB main. Samsung Electronics...
Page 17
Use plastic wrap or cover with a lid. Stir once or twice while cooking foods such as soup, cocoa, or milk. Noise from the turntable motor Noise may result from the motor. Replace turntable motor. when it starts to operate. Samsung Electronics...
: P.C.B IN/OUT ORANGE POINT ASSY MAIN P.C.B WHITE BLACK YELLOW DOOR MONITOR PRIMARY GREEN SENSING SWITCH LATCH YELLOW/GREEN SWITCH SWITCH MAGNETRON HIGH VOLTAGE DIODE TO CHASSIS HIGH VOLTAGE CAPACITOR H.V.FUSE SYMBOL COLOR ORANGE BROWN BLUE HIGH VOLTAGE TRANSFORMER Samsung Electronics...
