FULL MANUAL

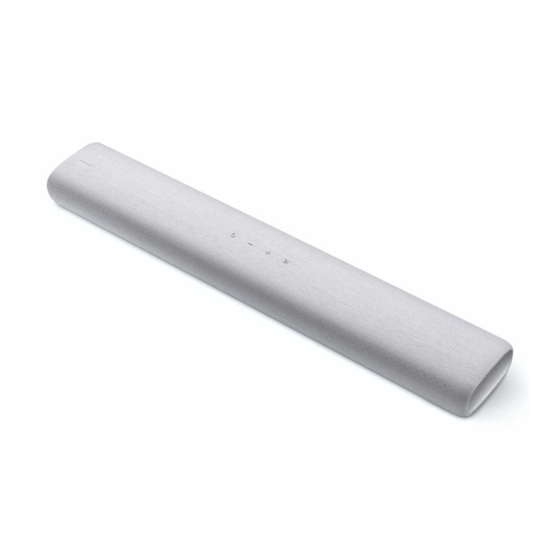

HW-S60A / S61A
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at www.samsung.com/register

Advertisement

Table of Contents
loading

Related Manuals for Samsung HW-S61A

Summary of Contents for Samsung HW-S61A

  • Page 1 FULL MANUAL HW-S60A / S61A Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register...
  • Page 2 • This product contains chemicals known to the Refer to the table below for an explanation of State of California to cause cancer and birth symbols which may be on your Samsung product. defects or other reproductive harm. CAUTION CAUTION •...
  • Page 3 This equipment generates, uses and approved recycler. To find the nearest recycling can radiate radio frequency energy and, if not location, go to our website:www.samsung.com/ installed and used in accordance with the recycling Or call, 1‐800‐SAMSUNG instructions, may cause harmful interference to WARNING: Cancer and Reproductive Harm radio communications.
  • Page 4 7. Do not block any ventilation openings. 14. Refer all servicing to qualified service Install in accordance with the manufacturer’s personnel. Servicing is required when the instructions. apparatus has been damaged in any way, 8. Do not install near any heat sources such as such as power-supply cord or plug is radiators, heat registers, stoves, or other damaged, liquid has been spilled or objects...
  • Page 5 Fabric cleaning 4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or Remove any dirt or stain on the product surface equipment creating strong magnetic or immediately. electric fields. Unplug the power cable from Removing and cleaning can be less effective for the AC wall socket if the unit malfunctions.

  • Page 6: Table Of Contents

    CONTENTS Checking the Components Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- Product Overview Top Panel of the Soundbar ------------------------- Bottom Panel of the Soundbar ------------------------- Using the Remote Control How to Use the Remote Control ------------------------- Using the Hidden Buttons (Buttons with more than one function) -------------------------...
  • Page 7 Connecting a Mobile Device Method 1. Connecting via Bluetooth ------------------------- Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- Getting Started with Amazon Alexa (Built-in Alexa) ------------------------- Getting Started with Alexa on Amazon Product (Works with Alexa) ------------------------- Using the Tap Sound ------------------------- Connecting To Apple AirPlay 2 Installing the Wall Mount...

  • Page 8: Checking The Components

    • For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care.

  • Page 9: Product Overview

    02 PRODUCT OVERVIEW Top Panel of the Soundbar Position the product so that the SAMSUNG logo is Top Panel located on the top. The LED Indicator flashes, glows, or changes color depending on the Soundbar's current mode or status. The color of the LED indicator and the number of lights indicate the active mode as described below.
  • Page 10 Press the (Mic On/Off) button to turn on or off the microphone. Red On LED Indicator On/Off Button “ “ Mic Off” Mic On” • When you plug in the AC cord, the power button will begin working in 4 to 6 seconds. •...

  • Page 11: Bottom Panel Of The Soundbar

    DIGITAL AUDIO IN HDMI (OPTICAL) (ARC) Bottom Panel of the Soundbar ID SET NETWORK DIGITAL AUDIO IN HDMI (OPTICAL) (ARC) ID SET NETWORK DIGITAL AUDIO IN HDMI (OPTICAL) (ARC) SERVICE DC 19V ID SET NETWORK SERVICE DC 19V SERVICE DC 19V DIGITAL AUDIO IN HDMI OUT (OPTICAL)

  • Page 12: Using The Remote Control

    03 USING THE REMOTE CONTROL How to Use the Remote Control Power Turns the Soundbar on and off. Cyan Blinks X1 Red Blinks X3 Indicator PAIR • Auto Power Down Function The unit turns off automatically in the following situations: –...
  • Page 13 SOUND MODE By pressing the button, you can select the desired audio mode. Each time the mode changes, the Multicolor LED blinks in white. White Blinks X1 Indicator   “Standard” “Music” “Adaptive Sound” • Standard Outputs the original sound. •...
  • Page 14 (Sound Control) By pressing the button, you can select the desired audio mode. The desired item can be adjusted using the Up/Down buttons. Each time the mode changes, the Multicolor LED blinks in white. White Blinks X1 Indicator “Treble”  “Bass”...

  • Page 15: Using The Hidden Buttons (Buttons With More Than One Function)

    7.1 ch Adaptive Sound 5.1 ch 5.1 ch 7.1 ch • The Samsung Wireless Rear Speaker Kit, and Subwoofer can be purchased separately. To purchase a Kit or the Subwoofer, contact the vendor you purchased the Soundbar from. ENG - 15...

  • Page 16: Adjusting The Soundbar Volume With A Tv Remote Control

    Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order: “Off-TV Remote” (Default mode), “Samsung-TV Remote”, “All-TV Remote”. The LED indicator status changes each time the mode is changed, as shown below.

  • Page 17: Connecting The Soundbar

    SERVICE DC 19V Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9100S, sold separately) and Wireless Subwoofer (SWA-W500, sold separately) to your Soundbar. For detailed information on connections, see the Samsung Wireless Rear Speaker Kit and Wireless Subwoofer manual.

  • Page 18: Using A Wired Connection To The Tv

    05 USING A WIRED CONNECTION TO THE TV Method 1. Connecting with HDMI CAUTION • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • To connect the HDMI cable between the TV and Soundbar, be sure to connect the terminals marked ARC.
  • Page 19 • When the TV sound is not output, press the (Multi Function) at the top of the button Soundbar or the (Source) button on the remote control to select the “Digital Audio In” mode. • When the sound is not output, check the HDMI Cable connection again. •...

  • Page 20: Method 2. Connecting Using An Optical Cable

    Method 2. Connecting using an Optical Cable Pre-connection Checklist • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • When you use an optical cable and the terminals have covers, be sure to remove the covers. Bottom of the Soundbar DIGITAL AUDIO IN HDMI OUT...

  • Page 21: Using A Wireless Connection To The Tv

    )  Sound  Sound Output  Bluetooth Speaker List  [AV] Samsung Soundbar S60A / [AV] Samsung Soundbar S61A (Bluetooth)) 3. Select “[AV] Samsung Soundbar S60A / [AV] Samsung Soundbar S61A” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV’s Bluetooth device list.
  • Page 22 If the device fails to connect • If you have an existing Soundbar (e.g., [AV] Samsung Soundbar S60A / [AV] Samsung Soundbar S61A) on the list of speakers on the Samsung TV, delete it. • Then repeat steps 1 through 3.

  • Page 23: Method 2. Connecting Via Wi-Fi

    2. Change the input source of the TV by using the Audio menu to Soundbar. • Samsung TVs released in 2017 or later Home ( )  Settings ( )  Sound  Sound Output  [AV] Samsung Soundbar S60A / [AV] Samsung Soundbar S61A (Wi-Fi) ENG - 23...

  • Page 24: Connecting An External Device

    07 CONNECTING AN EXTERNAL DEVICE Connecting using an Optical Cable Bottom of the Soundbar DIGITAL AUDIO IN HDMI OUT (OPTICAL) (TV-ARC) Optical Cable BD / DVD player / Set-top (not supplied) box / Game console SERVICE DC 19V Top of the Soundbar OPTICAL OUT - AUDIO - White On ->...

  • Page 25: Connecting A Mobile Device

    → Blue in turn. 5 Sec “Ready to connect via Bluetooth.” 2. On your device, select “[AV] Samsung Soundbar S60A / [AV] Samsung Soundbar S61A” from the list that appears. 3. Play music files from the device connected via Bluetooth through the Soundbar.
  • Page 26 Notes on Bluetooth connection • Locate a new device within 3.28 ft (1 m) to connect via Bluetooth communication. • If asked for a PIN code when connecting a Bluetooth device, enter <0000>. • The Soundbar automatically turns off after 18 minutes in the Ready state. •...
  • Page 27 Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual. • The Soundbar will be disconnected. • If the Soundbar is disconnected from the Bluetooth device, the multicolor LED indicator on the Soundbar blinks "Red”...

  • Page 28: Method 2. Connecting Via Wi-Fi (Wireless Network)

    Method 2. Connecting via Wi-Fi (Wireless Network) To connect a Soundbar to a mobile device via a wireless network (Wi-Fi), the SmartThings app is required. The initial connection 1. Install and launch the SmartThings app from your mobile device (smartphone or tablet). 2.

  • Page 29: Getting Started With Amazon Alexa (Built-In Alexa)

    • This function only supports some languages, and the supported functions may differ depending on the geographical area. • For product specification or compatibility, refer to the Samsung website (www.samsung.com). Using Alexa, you can play music, listen to news, see weather forecasts, and control home appliances. To use Amazon Alexa, an Amazon account is required to connect the Soundbar over the network.
  • Page 30 Use voice commands to control the Soundbar Trigger + Command Things to try Example of what to say "Alexa, turn up the volume." Volume control “Alexa, turn down the volume” Listening to streaming content from "Alexa, play some jazz music" Amazon Music "Alexa, play next...

  • Page 31: Getting Started With Alexa On Amazon Product (Works With Alexa)

    • This function only supports some languages, and the supported functions may differ depending on the geographical area. • For product specification or compatibility, refer to the Samsung website (www.samsung.com). • This service is provided by Amazon and can be terminated at any time. Samsung does not assume responsibility for service availability. • Amazon Alexa app screen is subject to change without prior notice.
  • Page 32 Alexa indicator status The LED indicator status on the Soundbar changes depending on the Alexa status, as shown below. Alexa status LED indicator on Soundbar Idle Cyan On Listening Thinking Cyan Blinks X1 Speaking Cyan Blinks X2 Blue Blinks X2 Timer Alarms and Reminders Yellow Blinks X2...

  • Page 33: Using The Tap Sound

    Tap the Soundbar with your mobile device to play audio from the mobile device through the Soundbar. • This function may not be supported, depending on the mobile device. • This function is only compatible with Samsung mobile devices with Android 8.1 or later. SmartThings App...

  • Page 34: Connecting To Apple Airplay

    • With AirPlay 2, you can control your home’s audio system from your iPhone, iPad, HomePod, or Apple TV. • This Samsung Soundbar supports AirPlay 2 and requires iOS 11.4 or later. NOTE • Confirm that the Soundbar is connected to Wi-Fi. (Refer to “Method 2. Connecting via Wi-Fi (Wireless Network)”.)

  • Page 35: Installing The Wall Mount

    10 INSTALLING THE Wallmount Components WALL MOUNT Installation Precautions Wall Mount Guide (AH63-04369B) • Install on a vertical wall only. • Do not install in a place with high (M4 x L10) temperature or humidity. • Verify whether the wall is strong enough to Holder-Screw Screw support the product’s weight.
  • Page 36 2. Align the Wall Mount Guide’s Center Line 5. Push a screw (not supplied) through each with the center of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.

  • Page 37: Installing The Soundbar In Front Of Tv

    11 INSTALLING THE 7. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the SOUNDBAR IN Bracket-Wall Mounts on the Holder-Screws on the wall. FRONT OF TV 8. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

  • Page 38: Software Update

    12 SOFTWARE 1. Go to (www.samsung.com) → search for the model name from the customer support UPDATE menu option. • For more information about update, refer to Upgrade Guide. 2. Download the upgrade file (USB type). 3. Unzip the file to create a folder with the file Auto Update name.

  • Page 39: Reset

    Reset 5 Sec With the Soundbar on, press the (Volume) buttons on the body at the same time for at least 5 seconds. The LED display changes as shown below and then the Soundbar is reset. White moves from left to right and right to left Cyan Blinks X3 Indicator...

  • Page 40: Troubleshooting

    Refer to the instructions below if this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact Samsung Electronics at 1-800-SAMSUNG (1-800-726-7864). Soundbar does not turn on.
  • Page 41 ; Reconnect it after removing the Bluetooth to reconfigure the speaker’s network speaker list on the device to connect. settings. (Samsung TV: Home ( ) → Settings ( → Sound → Sound Output → Bluetooth The Soundbar does not turn on automatically Speaker List) with the TV.

  • Page 42: License

    United States and other countries. © 2020 DTS, To send inquiries and requests for questions Inc. ALL RIGHTS RESERVED. regarding open sources, contact Samsung Open Source (http://opensource.samsung.com) The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

  • Page 43: Important Notes About Service

    • If you have a problem with this product, we strongly recommend you read the appropriate section of this manual, visit the Support page for your product at www.samsung.com, or call Samsung Product Support (1-800-726-7864) to find an answer before you contact a service center for a repair.

  • Page 44: Specifications And Guide

    Supported play formats (supporting Dolby® Digital), DTS NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. Precaution : The Soundbar will restart automatically if you turn on/turn off Wi-Fi.
  • Page 45 LIMITED WARRANTY TO ORIGINAL PURCHASER This SAMSUNG brand product, as supplied and distributed by SAMSUNG and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited...
  • Page 46 QUESTIONS OR COMMENTS? Country Samsung Service Center  Web Site Address Samsung Electronics America, Inc. IN THE US 1-800-SAMSUNG (726-7864) www.samsung.com/us/support 85 Challenger Road Ridgefi eld Park, NJ 07660 © 2021 Samsung Electronics Co., Ltd. All rights reserved.
