Sealey APMS58 Instructions

thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
instructions
1. Safety
warninG! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this product.
‰
do not open more than one drawer at a time.
8
do not step on the drawers.
8
ensure all drawers are fully closed before moving the cabinet.
9
secure the brakes when cabinet is in the desired position.
9
Keep the work area clean, uncluttered and ensure there is adequate lighting.
9
do not use in damp work areas.
8
do not use the cabinet for any purpose other than that for which it was designed.
8
do not use the cabinet outdoors.
8
do not clean the cabinet with any solvents which may damage the surfaces or the protective coating.
8
warninG! the warnings, cautions and instructions referred to in this instruction manual cannot cover all possible conditions and situations
‰
that may occur. it must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator
2. introduction
i
modular storage system ideal for any garage/workshop. Durable construction that will last for years. Easily adjusts to specific needs. Purchase a
simple base cabinet or create a full workshop storage system.
3. SPecification
Model no: ................................................................aPMS58
size (W x d x H):.....................................650 x 458 x 732mm
small drawer (x2): .....................................565 x 400 x 58mm
medium drawer (x3): ...............................565 x 400 x 135mm
4. aSSeMbly
4.1. fit castors
4.1.1. carefully lay the cabinet onto its back,
(use the outer packaging to prevent damage).
4.1.2. Use screws from underneath to fix castors on.
fit braked castor on front corner of unit.
4.2. remove drawers
4.2.1. Push tab down on left side and push tab up on right
side, pull drawer from slides.
© Jack sealey limited
instructions for

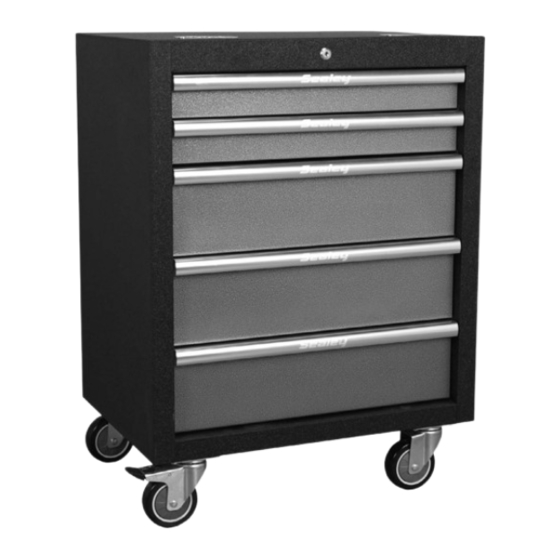

Modular 5 drawer Mobile cabinet 650MM
aPMS58
model no:
fig.1
Original Language Version APMS58| Issue1- 15/04/16
