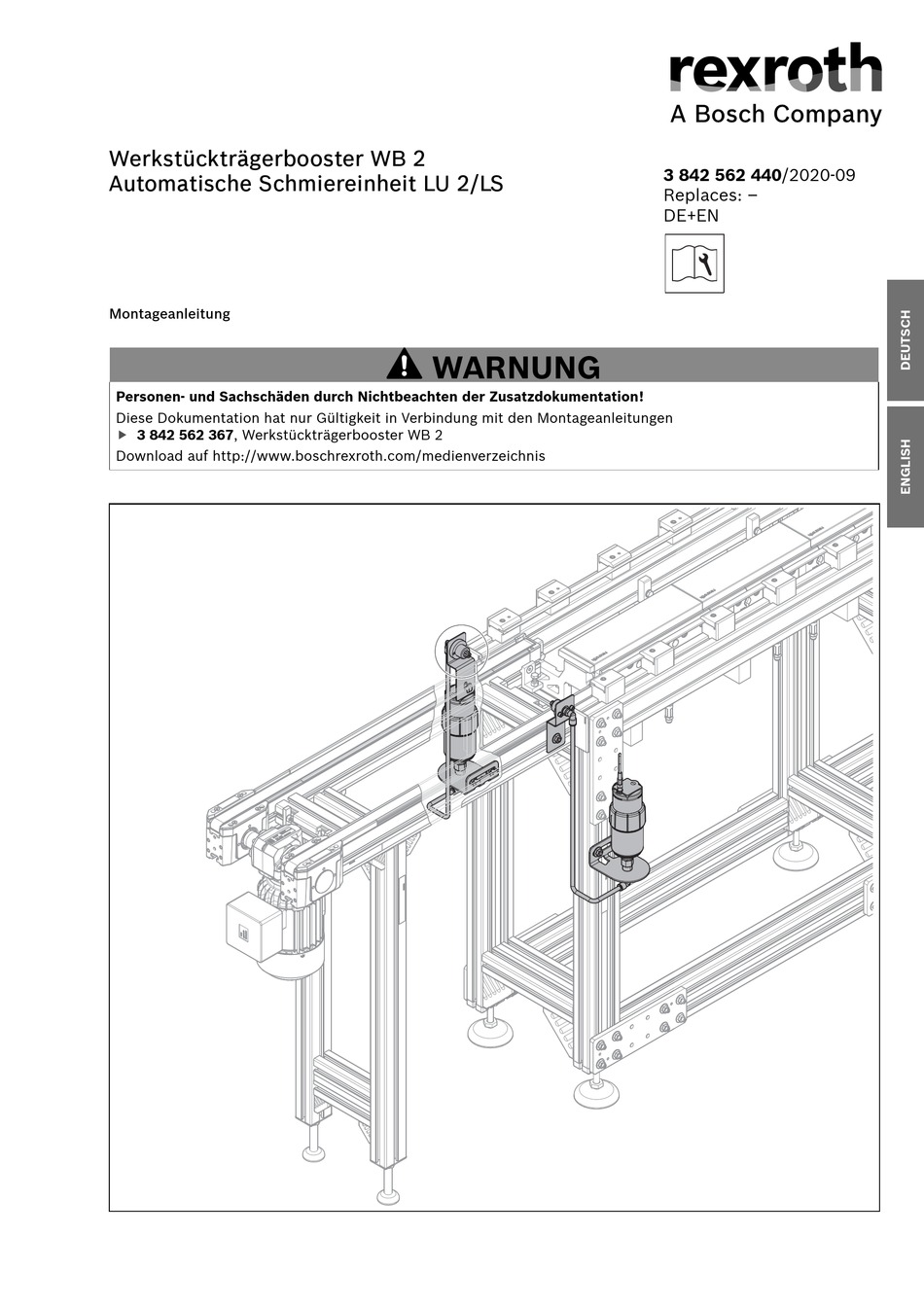

Werkstückträgerbooster WB 2 3 842 562 440/2020-09 Automatische Schmiereinheit LU 2/LS Replaces: – DE+EN Montageanleitung WARNUNG Personen- und Sachschäden durch Nichtbeachten der Zusatzdokumentation! Diese Dokumentation hat nur Gültigkeit in Verbindung mit den Montageanleitungen 3 842 562 367, Werkstückträgerbooster WB 2 Download auf http://www.boschrexroth.com/medienverzeichnis...
• Vor der nächsten Spende muss die Versorgungsspannung für > 1 Sekunde abgeschaltet und wieder eingeschaltet werden. • Die Signalisierung/Anzeige von Systemzuständen und Fehlern erfolgt nur bei anliegender Versorgungsspannung. 562 440-05 Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
Der Betriebsmodus, die verwendete Fettpatrone LC 2/LS ( LC120) und die benötigte Spendemenge pro Impuls (Spende) werden über das Display mit der Taste SET eingegeben. Die daraus resultierende Anzahl von Impulsen (Spenden) entnehmen Sie bitte der Tabelle 2. 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
Page 8
Schalten Sie die Spannungsversorgung der Schmiereinheit ein. Im Display wird das Steckersymbol angezeigt. und das Pfeilsymbol blinkt im Display. Die LEDs des Antriebs blinken grün im 5s-Takt. 562 440-14 Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
… ist die Bedienung der Schmiereinheit gesperrt und es Nummer vergessen wurde: erfolgt die Abfrage dieser PIN-Nummer zum Entsperren. Bei Eingabe von wird die Bedienung der Schmiereinheit immer entsperrt (Reset). 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
Schmierbürsten. Bitte beachten Sie: • Die Verschlauchungen von den Schmiereinheiten zu den Schmierbürsten sollten möglichst kurz gehalten werden. SW13 =25 Nm 562 440-02 Abb. 2: Montage Halterungen und Schmierbürsten Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
Page 11
Die Überwurfmutter muss soweit auf die Fettpatrone aufgeschraubt werden können, das die Pfeile auf dem Antrieb komplett sichtbar sind (Y). 562 440-03 Abb. 3: Antrieb auf Fettpatrone LC 2/LS montieren 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
Page 12
Antrieb mit Fettpatrone LC 2/LS in Stützkonsole montieren Bitte beachten Sie: Nach dem Anlegen der Versorgungsspannung fi ndet ein Spendevorgang statt. Während der Spende läuft der Antrieb und die LED-Anzeigen blinken im 1s-Takt. Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
Initialschmierung der Führungsschienen der Linearstrecke Fetten Sie die Führungsschienen der Linearstrecke vor der Erstinbetriebnahme manuell mit wälzlagertauglichem Fett der NLGI-Konsistenzklasse 2. Dies ist auch bei Verwendung der optionalen Schmiereinheiten LU 2/LS durchzuführen. 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
Page 15
WT 2 workpiece pallet booster 3 842 562 440/2020-09 LU 2/LS automatic lubrication unit Replaces: – Assembly instructions WARNING Risk of injury or damage to property by failing to observe additional documentation! This documentation is valid only in connection with the assembly instructions ...
Page 17
Recommended delivery volume Recommended lubricant delivery frequency Special delivery PURGE PIN number Installation Electrical connection Initial commissioning Bleeding the lubrication lines Initial lubrication of the guide rail of the linear section 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
– LC 2/LS grease cartridge, 3 842 562 441 (120 cm³ grease compatible with the roller bearing, NLGI consistency class 2, maximum service life 2 years) 1) Not included in the scope of delivery, please order separately. Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
G1: Connection set G2: Sealing agent for screwed connections 1) Not included in the scope of delivery, please order separately. 562 440-01 Fig. 1: Automatic lubrication unit LU 2/LS 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
• Before the following delivery the supply voltage must be shut down for > 1 second. • The signaling/display of system states and errors is only possible when the supply voltage is present. 562 440-05 Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
The operating mode, the grease cartridge used LC 2/LS ( LC120) and the required delivery volume per impulse (delivery) are entered via the display using the SET button. The number of impulses (deliveries) can be taken from Table 2. 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
Page 22
Turn on the power to the lubrication unit. The display shows the plug symbol, and the arrow symbol flashes in the display. The drive LEDs flash green at 5 s intervals. 562 440-14 Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
PIN If the PIN number number will be requested to unlock. was forgotten: When entering the operation of the lubrication unit is always locked (Reset). 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
• The hoses from the lubrication units to the lubricating brushes should be kept as short as possible. SW13 =25 Nm 562 440-02 Fig. 2: Installing the holders and lubricating brushes Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
Page 25
(Y). 562 440-03 Fig. 3: Installing the drive on the LC 2/LS grease cartridge 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
Page 26
Installing the drive with LC 2/LS grease cartridge in support bracket Please note: After re-establishing the supply voltage a delivery process is carried out. During the delivery the drive and the LED indicators fl ash at 1s intervals. Bosch Rexroth AG, MIT: LU 2/LS, 3 842 562 440/2020-09...
Before initial commissioning, manually grease the guide rails of the linear section with grease of NLGI consistency class 2 suitable for rolling bearings. This is also required if the operational lubrication units LU 2/LS are used. 3 842 562 440/2020-09, MIT: LU 2/LS, Bosch Rexroth AG...
