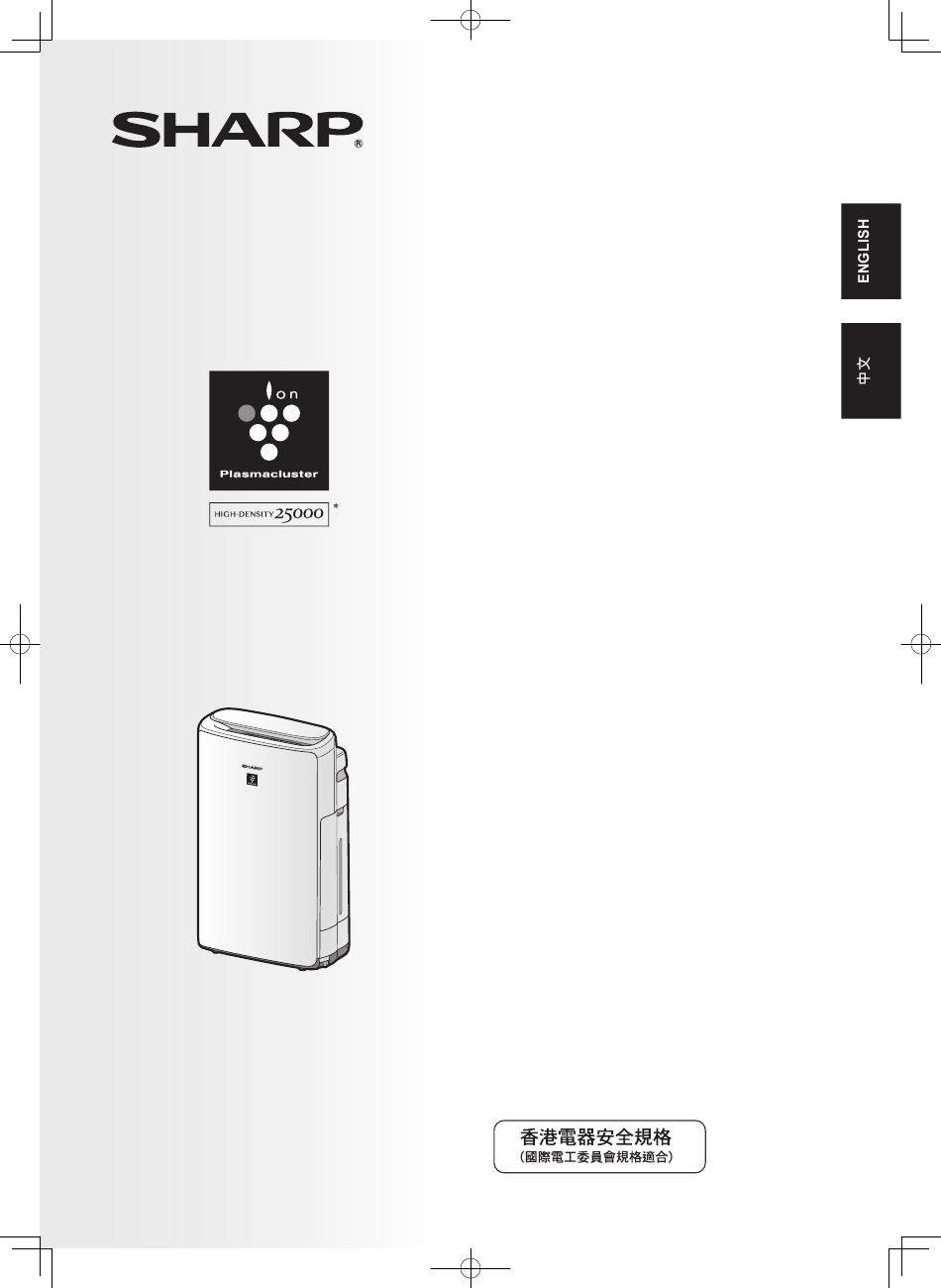

OPERATION MANUAL 加濕型空氣清淨機 使用説明書 “Plasmacluster” and “Device of a cluster of grapes” are trademarks of Sharp Corporation. * The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm , which is measured around the center of a room applicable floor area (at 1.2 m height above...
ENGLISH Thank you for purchasing this SHARP Air Purifier. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference. CONTENTS FEATURES ........................1 IMPORTANT SAFETY INSTRUCTIONS ..............2 PART NAMES ......................4 PREPARATION ......................
FEATURES A unique Combination of Air Treatment Technologies Triple Filteration System + Humidification + Plasmacluster Plasmacluster High Density Plasmacluster 25000 The higher the PCI density is, the more effective PCI has. By emitting a balance of positive and negative ions, Plasmacluster air treatment is a natural process.
• If the power cord is damaged, it must • Be cautions when cleaning the product. be replaced by the manufacturer, its Strong corrosive cleansers can damage service agent, a Sharp authorized the exterior. Service Center or similarly qualified persons in order to avoid a hazard.
Page 5
• Adjust or reposition the receiving • When refilling the Water Tank, make sure antenna. of no water leaking from the Water Tank. • Increase the distance between the • Be sure to wipe off any excess water on product and the radio or TV. the outside of the Water Tank.
• The dust collecting ability of the product FILTER GUIDELINES is effective even when the product is • Follow the instructions in this manual for as close to 3 cm from the wall, the proper filter care and maintenance. surrounding walls and floor may get dirty. Please place the product at a distance from the wall.
Page 7
Sensor PM2.5 Indicator (Internal) (White) Odor / Temperature / Humidity Indicates the Sensitive Dust Sensor detects microscopic dust. Light Sensor Dust Indicator (White) Power ON/OFF Button Indicates the Sensitive Dust Sensor detects usual dust. AUTO Button, Lamp (White) Odor Indicator (White) Mode Button, Lamps (White)
Page 8
MAIN BODY Operation Panel / Display Air Outlet (Front) Main Body Caster (4 Locations) Caster Stopper (Right & Left) Unit* Holder (Plasmacluster Ion Generating Unit) Unit* Cleaning Brush Unit* Cover Tank Handle 10 Water Tank 11 Tank Cap 12 Humidifying Filter 13 Humidifying Tray 14 Tray Panel 15 Float...
PREPARATION Always be sure to remove the power plug from the wall outlet. FILTER INSTALLATION REFILLING THE WATER TANK Remove the Back Panel. Remove the Water Tank. Back Panel Tank Handle Remove the plastic bag from the Water Tank each filter. HEPA Filter Deodorizing Filter Fill the Water Tank with the tap water.
OPERATION START/STOP AUTO MODE START STOP ♪ ♪ ♪ ~ The fan speed is automatically controlled depending NOTE on the six detection. (PM2.5 / Usual dust / Odor / • When the product starts operation, the Temperature / Humidity / Light) operation starts in the previous mode it was operated in.
Page 11
CLEAN ION SHOWER ON/OFF TIMER MODE ON TIMER: Select the length of time you want. The product The product releases Plasmacluster ions with automatically starts once the selected time is strong airflow and collects dusts while decreasing passed. static electricity for 10 minutes. After that, the Sensitive dust sensor sensitivity is automatically OFF TIMER: increased and quickly detects impurities and clean...
Page 12
HOW TO CHANGE VARIOUS SETTING You can change the functions in the table on Select “Setting number”. page 10, 11. Forward Reverse ♪ ♪ (with the product OFF) ♪ Press for 3 sec. Select “Function number”. Forward Reverse ♪ ~ ♪...
Page 13
Function Setting Plasmacluster Ion ON/OFF (default) Cancellation Auto restart If the product is unplugged or if there is a power failure, the product will resume operation with the (default) previous settings after power is restored. Adjusting sensor sensitivity (F4 - F6) Light Sensor Sensitive Dust Sensor Standard...
CARE AND MAINTENANCE Always be sure to remove the power plug from the wall outlet. FILTER MAINTENANCE CARE INDEX LAMP When the cumulative operation period or the water containing period is more than approximately 720 hours, the Filter Maintenance Lamp will turn on. •...
Page 15
HUMIDIFYING FILTER / HUMIDIFYING TRAY Remove the Humidifying Filter and Tray. Rinse with plenty of water. • Do not remove the Float and the Tray Panel Rollers. If they come off, refer to Float below. Roller Attach the Humidifying Filter and Tray.
Page 16
BACK PANEL / HEPA FILTER / SENSORS DEODORIZING FILTER Remove the dust gently with a cleaning Remove the dust on the filters. tool such as a vacuum cleaner. HEPA Filter Sensors Sensors Clean only the tagged surface. Do not clean up the opposite surface.
Page 17
PLASMACLUSTER ION NOTE GENERATING UNIT • Do not clean with anything other than the Unit Cleaning Brush. Doing so could lead to failures (Electrode Section) in the Unit. • A bent electrode could be cut off and dropped Remove the Unit Cover, and pull out during the cleaning process, but it will not the Unit Holder.
REPLACEMENT Always be sure to remove the power plug from the wall outlet. FILTERS DISPOSING OF FILTERS Dispose of used filters according to local laws and LIFE OF FILTERS regulations. Filter life varies depending on the room Material: environment, usage conditions, and location of the product.
TROUBLESHOOTING REPLACEMENT PLASMACLUSTER ION GENERATING UNIT MODEL Consult your dealer when purchasing a replacement Before calling for service, please review the Plasmacluster Ion Generating Unit. Troubleshooting list below, since the problem IZ-C90ME may not be the product malfunction. Remove the claw of Unit Holder ( 1 ), and Odor and smoke persists.
Page 20
The Cleanliness Indicator changes color ERROR DISPLAY frequently. • The concentration of • The Cleanliness Indicator automatically changes Plasmacluster ion is descending. color when the Sensitive Dust Sensor and Odor Maintain the Plasmacluster Sensor detect impurities. If you are concerned Ion Generating Unit (Electrode about the change, you can change sensor Section).
SPECIFICATIONS Model KI-N50A Power supply 220 V ~ 50 Hz Fan Speed Adjustment Fan Speed (m / hour) CLEAN AIR Rated Power (W) Noise Level (dBA) * Fan Speed (m / hour) CLEAN AIR Rated Power (W) & Noise Level (dBA) *...
