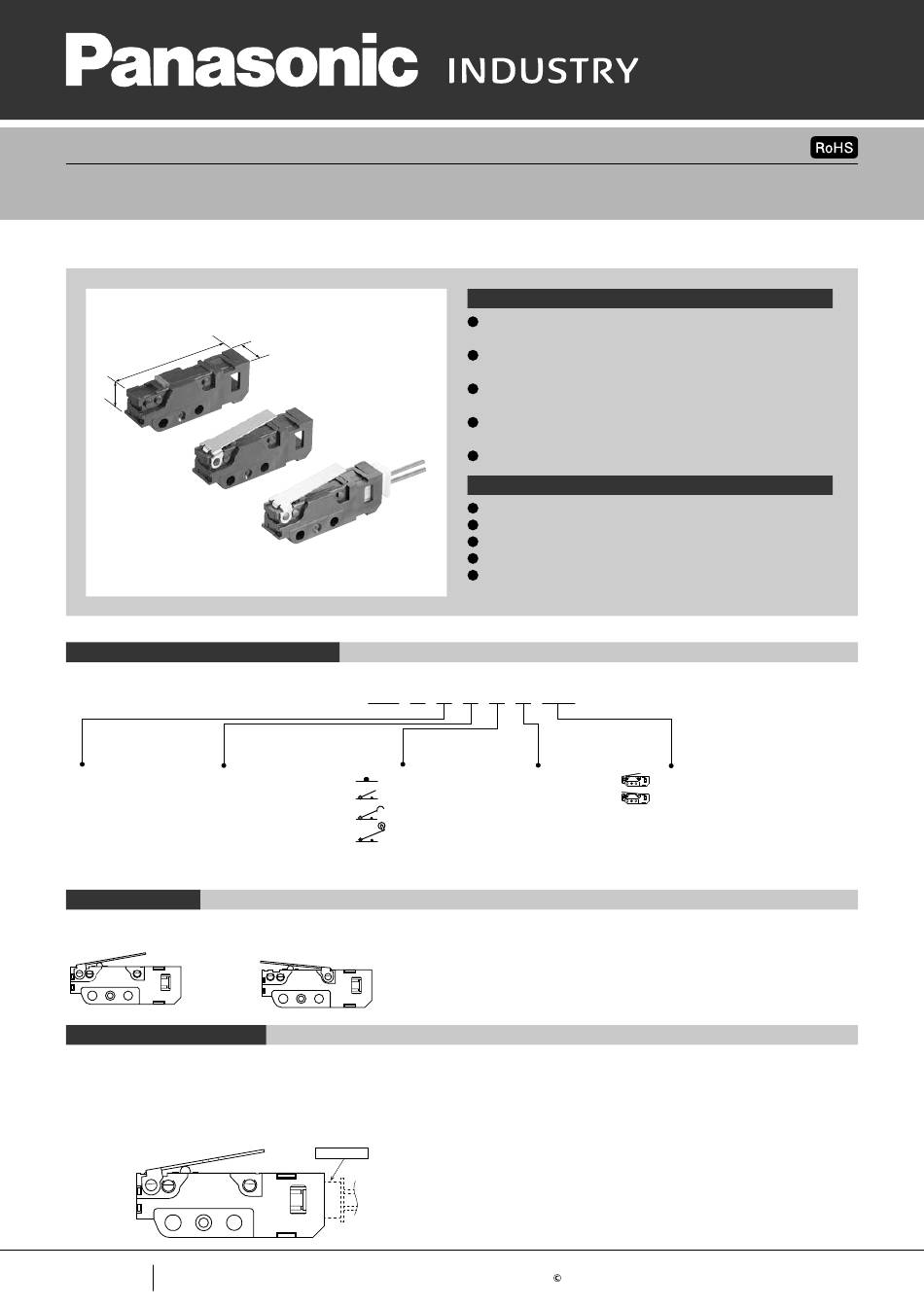

For detection: Non Seal Type Switches
AV6 (CS) Switches
Subminiature Size Connector Integrated Type
29.2
10
ORDERING INFORMATION (PART NO.)
Contact form Actuators
2: SPST-NC
0: Pin plunger
(Plunger color: Red)
2: Hinge lever
3: SPST-NO
4: Simulated roller lever
(Plunger color: Yellow)
5: Roller lever
Note) When ordering, please add "-A" at the end of the part number.
LEVER POSITION
1) Standard
APPLICABLE CONNECTOR
Greatly improved assembling due to connector connection.
• Applicable connector: XA connector produced by JST Mfg. Co., Ltd.
Contact: SXA-001T-P0.6
Housing: XAP-02V-1
2021.10
industrial.panasonic.com/ac/e/
7
(Unit ： mm)
AV 6
Operating Force (OP)
by pin plunger, Max.
2: 0.50 N
5: 1.50 N
2) Backward
Connector
FEATURES
Easy assembling as this switch is connector
integrated
High contact reliability by simple dust prevension
guard and Au-clad double layer contacts
Two types of contact form are available, the SPST-
NC and the SPST-NO.
The lever position can be changed. the standard
lever position and the backward lever position
Protection grade: IP40
TYPICAL APPLICATIONS
Vending machine sold-out detection
Pachinko ball presence detection
Copying machine
Printer
Also for all types of equipment required for
maintenance and inspections.
64
Lever position
Nil: Standard
12: Backward
ー 1 ー Panasonic Corporation 2021
Contact material
64: CuNi alloy＋Au-clad contact
AECTB60E 202110
