D-Link DIR-LX1870 Quick Installation Manual

Quick Installation Guide
DIR-LX1870

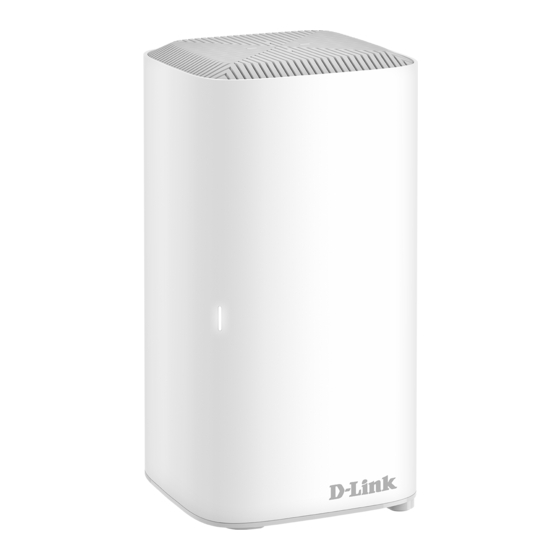

AX1800 Mesh Wi-Fi 6 Router
INSTALLATION
OPTION 1
D-LINK WI-FI APP SETUP
1
Download the D-Link Wi-Fi app and launch it.
/
D-Link Wi-Fi
2 Tap Install New Device. Scan the QR code on the Quick
Installation Card. Follow the on-screen instructions to complete
/
the setup.
TECH TIP: Consider using the same Wi-Fi name and password as your old router. This will allow your existing Wi-Fi devices to automatically connect to your new router.
You're all good to go! Once the setup is complete, you can connect your devices using the Wi-Fi name (SSID) and password that you created during
the setup. Enjoy the Internet!
?
FREQUENTLY ASKED QUESTIONS
Wi-Fi Name: dlink-XXXX
Model Name: DEVICE
Wi-Fi Name: d-link-XXXX
Wi-Fi Password: XXXXXXXX
Password: XXXXXXXX
S/N: 123456789
Why can't I access the web-based configuration utility?
Verify that http://dlinkrouter.local./ or http://192.168.0.1 has been
correctly entered into your Web browser. Make sure that you are connected
to the correct Wi-Fi Name/SSID and password printed on the Quick
Installation Card. Alternatively, you can use http://dlinkrouterXXXX.local./
where XXXX represents the last 4 characters of the MAC address. The device
specific URL and MAC address are both located on the device label attached
to the device.
Why can't I access the Internet?
Ensure that your modem/gateway is powered on. Also ensure that the
Ethernet cable is securely connected to both the router and modem. Verify
that the Internet LED is illuminated on your router. If you still cannot access
the Internet, power off your modem and router and power them back on,
wait until all the LED's are lit and try again.
What do I do if I forgot my Wi-Fi password?
If you forgot your password, you must reset your router. This process will
revert all of your settings back to the factory defaults.
How do I restore the router to its factory default settings?
Locate the reset button on the bottom of the router. With the router
powered on, use a paper clip to hold the button down for 10 seconds.
Release the button and the router will go through the reset procedure.
GPL CODE STATEMENT
i
This D-Link product includes software code de-
veloped by third parties, including software code
subject to the GNU General Public License ("GPL")
or GNU Lesser General Public License ("LGPL"). As
applicable, the terms of the GPL and LGPL, and
information on obtaining access to the GPL code
and LGPL code used in this product, are available
to view the full GPL Code Statement at:
https://tsd.dlink.com.tw/GPL
The GPL code and LGPL code used in this product
is distributed WITHOUT ANY WARRANTY and is
subject to the copyrights of one or more authors.
For details, see the GPL code and the LGPL code
for this product and the terms of the GPL and
LGPL.
D-Link Wi-Fi
Model Name: DEVICE
Wi-Fi Name: dlink-XXXX
SETUP QR CODE
Password: XXXXXXXX
S/N: 123456789
Written Offer for GPL and LGPL Source Code
Where such specific license terms entitle you
to the source code of such software, D-Link will
provide upon written request via email and/or
traditional paper mail the applicable GPL and LG-
PLsource code files via CD-ROM for a nominal cost
to cover shipping and media charges as allowed
under the GPL and LGPL.
Please direct all inquiries to:
Snail Mail: Email:
Attn: GPLSOURCE REQUEST GPLCODE@dlink.com
D-Link Systems, Inc.
17595 Mt. Herrmann Street
Fountain Valley, CA 92708
PACKAGE CONTENTS
• DIR-LX1870 || AX1800 Mesh Wi-Fi 6 Router
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
• Quick Installation Card
OPTION 2
WEB BROWSER SETUP
1
Plug the router into a power source. Make sure that the power button
is on. Wait for the status LED to either flash orange or turn
/
solid white.
2
Connect your computer to the Wi-Fi details printed on the
/ Quick Installation Card. Type http://dlinkrouter.local./ or
http://192.168.0.1 into a web browser. You will be asked
for your Device/Admin Password. By default this password is
"password". Type that in and follow the on-screen instructions
to complete the setup.
Wi-Fi Name: dlink-XXXX
Model Name: DEVICE
Wi-Fi Password: XXXXXXXX Wi-Fi Name: d-link-XXXX
Password: XXXXXXXX
S/N: 123456789
http://dlinkrouter.local./
http://192.168.0.1
dlink-xxxx
Connect
xxxxxxxxx
xxxxxxxxx
VOICE ASSISTANTS
Amazon Alexa Setup for D-Link Wi-Fi
https://www.dlink.com/en/alexa
The Google Assistant Setup for D-Link Wi-Fi
https://www.dlink.com/en/google-assistant
TECHNICAL SUPPORT
Having trouble installing your new product? D-Link's website
contains the latest user documentation and software updates for
D-Link products. Customers can contact D-Link Technical Support
through our website by choosing the relevant region.
United States
Website: http://support.dlink.com
Telephone: (877) 453-5465
Canada
Website: http://support.dlink.ca
Telephone: (800) 361-5265
FCC WARNING
i
This device is complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) The device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
or
Admin Password = password
Admin Password:
