Page 1
3/24/09 5:15 PM Page 1 ENGLISH FRANÇAIS DV482 As an E ® Partner, NERGY LG has determined that this product or product models meet the E ® guidelines for NERGY energy efficiency. ® is a U.S. registered mark. NERGY P/No. : MFL61967018...
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 2 CAUTION: The apparatus shall not be exposed to water (dripping or splashing) Safety Precaution and no objects filled with liquids, such as vases, shall be placed on the appara- tus. CAUTION CAUTION concerning the Power Cord RISK OF ELECTRIC SHOCK Most appliances recommend they be placed upon a dedicated circuit;...
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 4 Hooking up the unit Hooking up the unit - more you can do SCART connection Audio and Video Connection The unit Audio/Video jacks are color coded (yellow for video, red for right audio Connect the TO TV jack on the unit and your TV using the SCART cable.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 5 Remote Control OPEN/CLOSE POWER (1) Opens and closes the disc tray. Switches the unit ON or OFF. CLEAR Removes a track number on the Program SCAN (m / M) List. Search backward or forward.

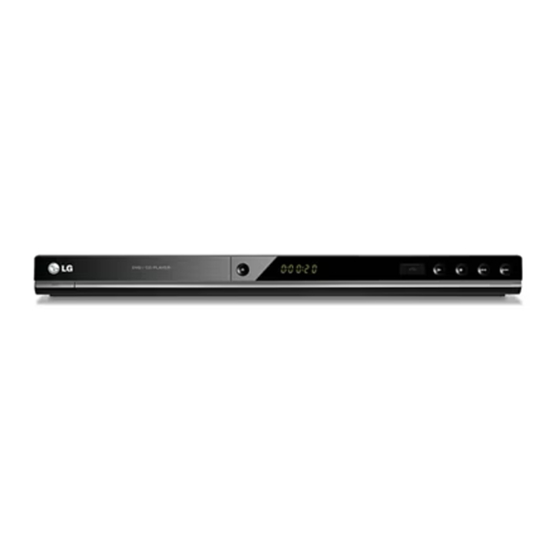

DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 6 Main Unit a 1/I (Power) f USB Port Turn the unit ON or OFF. Connect an USB Flash Drive. b Disc Tray • N (Play) Insert a disc here. Starts playback. c Z (Open / Close) •...
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 7 Display Mode – If you selected 4:3, you’ll need to define how you would like Adjust the settings widescreen programs and films to be displayed on your TV screen. [Letterbox]: This displays a widescreen picture with black bands at the top ON REMOTE and bottom of the screen.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 8 Adjust the lock settings Displaying Disc Information You must set the [Area Code] option to use the lock options. Select [Area Code] option then press B. Enter a 4-digit password then press ENTER. Enter it again ON REMOTE then press ENTER to verify.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 9 Pause a playback Playing a Disc Press PAUSE/STEP (X) to pause playback. Press PLAY ( ) to continue playback. ON REMOTE 1 Open the disc tray: OPEN/CLOSE Frame-by-Frame playback DivX Press PAUSE/STEP (X) repeatedly to play Frame-by-Frame playback.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 10 Watching a enlarged video image DivX Playing a DivX movie file During playback or pause mode, press ZOOM repeatedly to select zoom mode. You can move through the zoomed picture using vVb B buttons.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 11 Displaying file information (ID3 TAG) Listening to Music Disc or files While playing a MP3 file containing file information, you can display the ON REMOTE information by pressing DISPLAY repeatedly. 1 Open the disc tray:...
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 12 Watching an enlarged photo image Viewing photo files While viewing a photo in full screen, press ZOOM repeatedly to select zoom mode. You can move through the zoomed photo using vVb B buttons. Press ON REMOTE CLEAR to exit.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 13 The making of unauthorized copies of copy-protected material, including computer USB Direct Recording programs, files, broadcasts and sound recording, may be an infringement of copyrights and constitute a criminal offence. Connect USB Flash Drive to the unit before recording.
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 14 Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Language Code Language Code Afar...
DV482-SE.AMARLLK_7018_ENG(TCL) 3/24/09 5:15 PM Page 15 Specifications Troubleshooting Cause Symptom General Correction Power requirements AC 200-240V, 50/60 Hz No power. The power cord is disconnected. Plug the power cord into the wall Power consumption 10 W outlet securely. Dimensions (Approx.)
