Microwave Oven
INSTRUCTION MANUAL
MODEL:
MCA20KGCWD
*
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading

Related Manuals for Frigidaire MCA20KGCWD

Summary of Contents for Frigidaire MCA20KGCWD

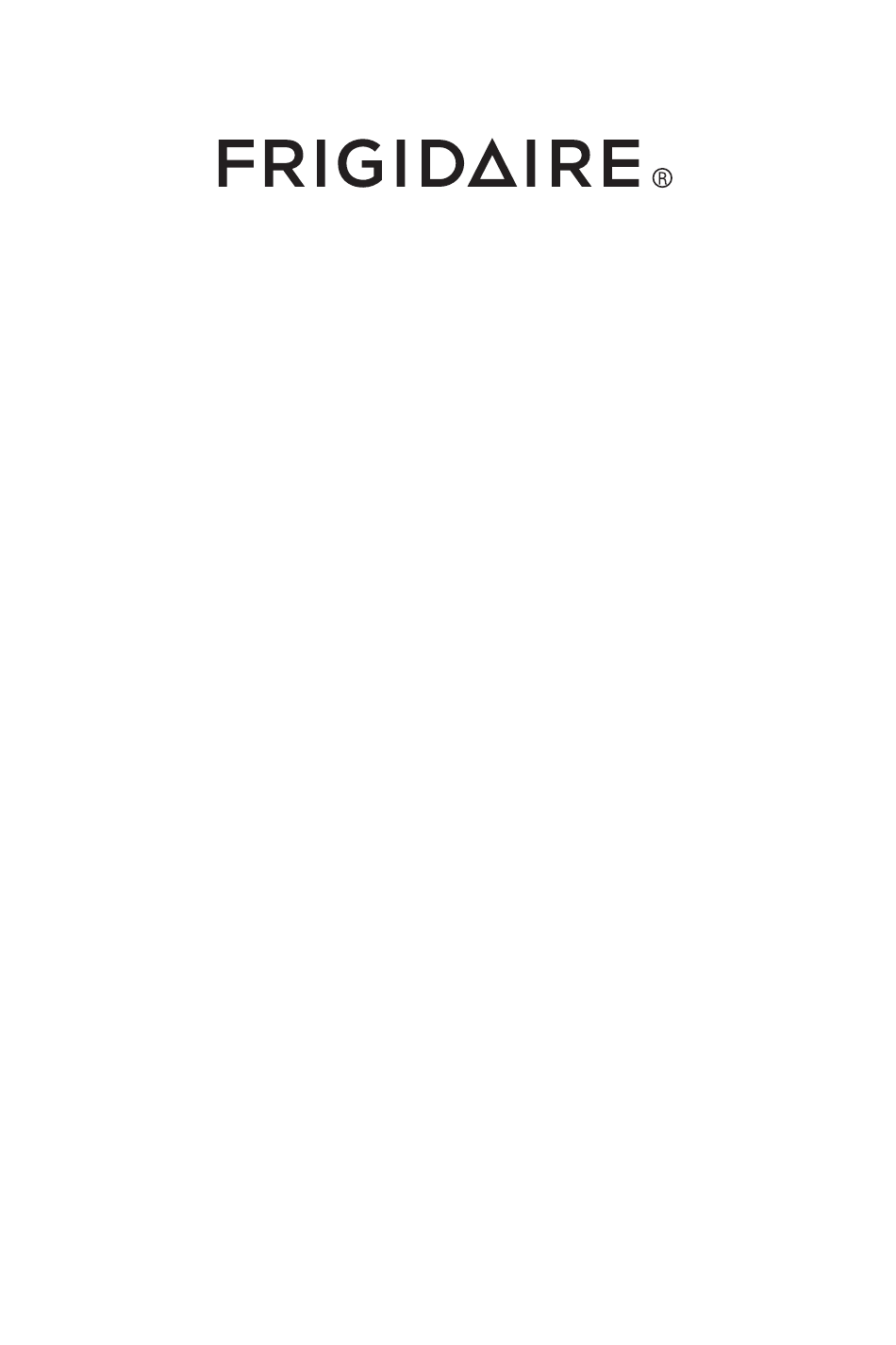

  • Page 1 Microwave Oven INSTRUCTION MANUAL MODEL: MCA20KGCWD Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: MCA20KGCWD Rated Voltage: 220V~50Hz Rated Input Power(Microwave): 1050W...

  • Page 3: Important Safety Instructions Warning

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons WARNING or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Warning: Liquids and other foods must 15. Use this appliance only for its intended not be heated in sealed containers since uses as described in manual.

  • Page 4: To Reduce The Risk Of Injury To Persons Grounding Installation

    26.The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet. 27.Appliances are not intended to be operated by means of an external timer or separate remote-control system. 28.The door or the outer surface may get hot when the appliance is operating. To Reduce the Risk of Injury to Persons Grounding Installation DANGER...

  • Page 5: Materials You Can Use In Microwave Oven

    UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not CAUTION safe to use for microwaving. If in doubt, you can test the Personal Injury Hazard utensil in question following the procedure below.

  • Page 6: Materials To Be Avoided In Microwave Oven

    Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe dish. metal handle Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing.

  • Page 7: Turntable Installation

    Turntable Installation a. Never place the glass tray upside down. The glass Hub (underside) tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. Glass tray c. All food and containers of food are always placed on the glass tray for cooking.
  • Page 8 OPERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1.Clock Setting When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once. 1) Press " CLOCK/PRE-SET ", the hour figure flash; 2) Turn "...
  • Page 9 3. Speedy Cooking 1) In waiting state, press " START/+30SEC./CONFIRM " key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes. 2) During the microwave cooking and time defrost process, press "START/+30SEC./CONFIRM"...

  • Page 10: Child Lock

    7. Pre-set Function 1) Set the clock first. (Consult the instruction of clock setting.) 2) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function. Example: if you want to cook with 80% microwave power for 7 minutes. a.
  • Page 11 Auto Menu Weight(g) Power Menu Display 100% REHEAT 100% VEGETABLE FISH 100% MEAT 50(with water 450 g) PASTA 100(with water 800 g) 100% POTATO 100% PIZZA SOUP...
  • Page 12 10. Inquiring Function 1) In cooking states of microwave , press " MICROWAVE " ,the current power will be displayed for 2-3 seconds. 2) In pre-set state, press " CLOCK/PRE-SET " to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display. 3) During cooking state, press "CLOCK/PRE-SET"...

  • Page 13: Troubleshooting

    Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.
