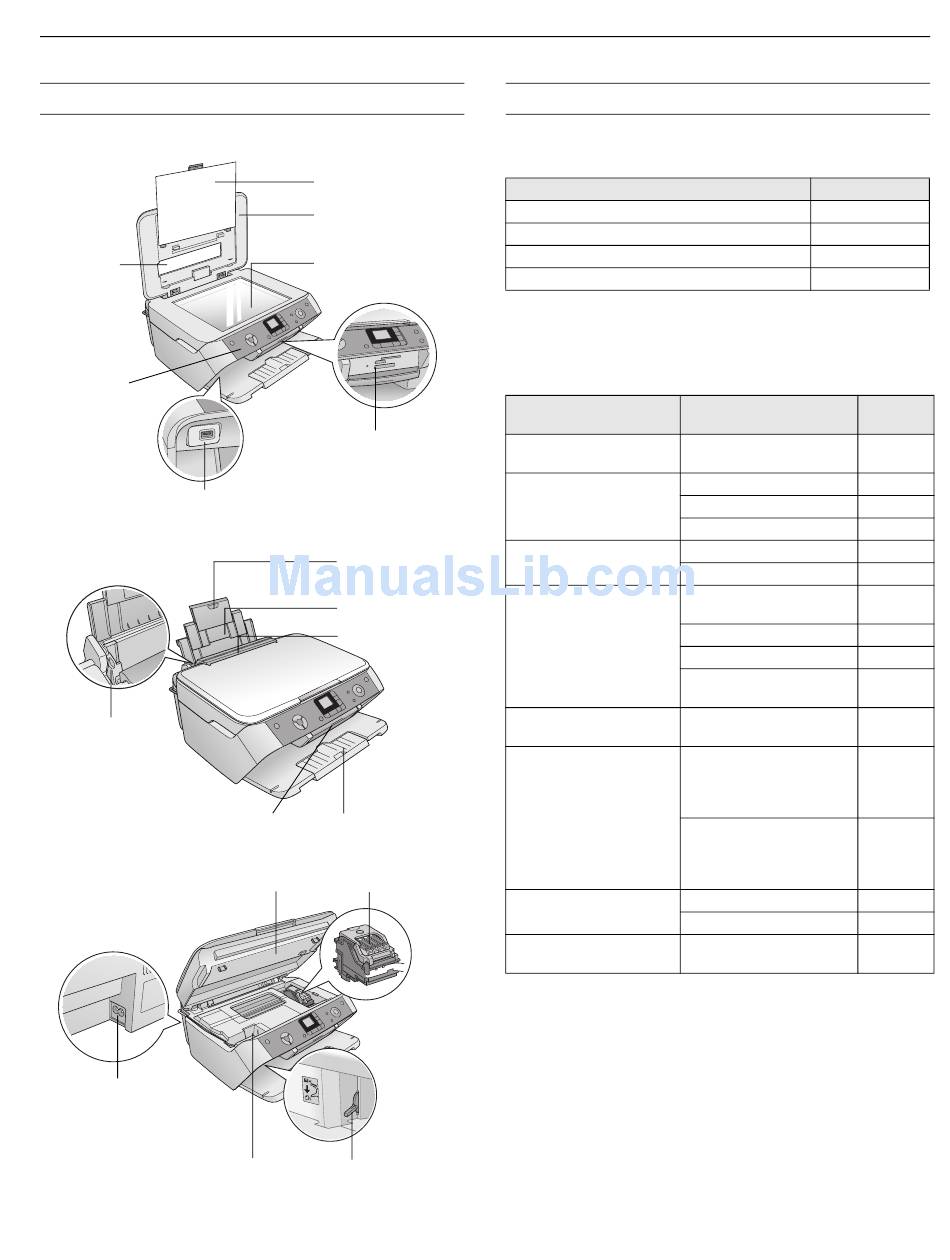

Printer Parts

Fluorescent
lamp
Control panel
(buttons,
lights, and
LCD screen)
USB external device
connector
Left edge
guide
Memory card cover
AC inlet
USB port
Document mat
Document cover
Document table
Memory card
slots
Paper support
extension
Paper support
Feeder guard
Output tray and
extension
Scanner
Ink cartridges
Paper thickness lever
Accessories
Ink Cartridges
Cartridge
Black
Cyan
Magenta
Yellow
Media
Epson
®
offers the following special papers for the Epson
Stylus
CX7800:
®
Paper name
Epson Premium Bright
White Paper
Epson Photo Quality Ink Jet
Paper
Epson Ultra Premium
Glossy Photo Paper
Epson Premium Glossy
Photo Paper
Epson Premium Semigloss
Photo Paper
Epson Glossy Photo Paper
Epson Matte Paper
Heavyweight
Epson Double-Sided Matte
Paper
You can purchase genuine Epson ink and paper from an
authorized Epson reseller. To find the nearest reseller, please
call 800-GO-EPSON (800-463-7766). To purchase online,
visit www.epsonstore.com (U.S. sales only). In Canada, please
call (800) 463-7766 for reseller referral.
8/05
Epson Stylus CX7800
Part number
T060120
T060220
T060320
T060420
Part
Size
number
Letter (8.5 × 11 inches)
S041586
Letter (8.5 × 11 inches)
S041062
Legal (8.5 × 14 inches)
S041067
A4 (8.3 × 11.7 inches)
S041061
Borderless 4 × 6 inches
S041934
Letter (8.5 × 11 inches)
S041935
Borderless 4 × 6 inches
S041808
S041727
Borderless 5 × 7 inches
S041464
Borderless 8 × 10 inches
S041465
Letter (8.5 × 11 inches)
S041286
S041667
Letter (8.5 × 11 inches)
S041331
4 × 6 inches
S041134
S041671
S041458
S041809
Letter (8.5 × 11 inches)
S041141
S041649
S041271
S041272
Letter (8.5 × 11 inches)
S041257
Borderless 8 × 10 inches
S041467
Letter (8.5 × 11 inches)
S041568
Epson Stylus CX7800
1
-
