Page 1: Table Of Contents

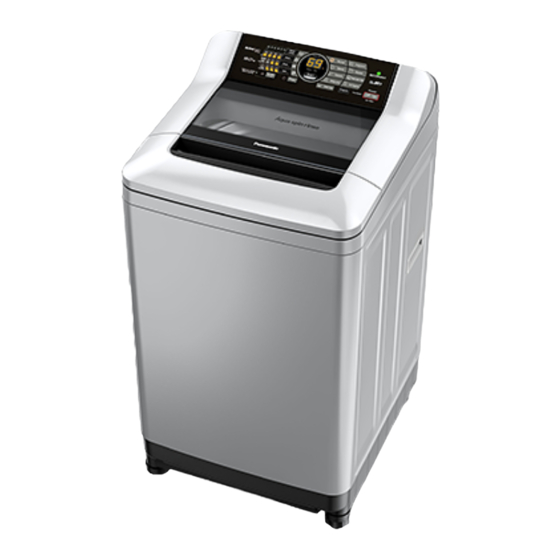

Operating & Installation Instructions Fully Automatic Washing Machine (Domestic use) NA-F100X1 Model No. NA-F90X1 NA-F85G1 Contents Safety Precautions Part Names Operation Panel Variety of Programs Detergent Washing Washing Options • Delicate • Blanket • Air Dry • Wash / Rinse / Spin... -
Page 2: Safety Precautions
Safety Precautions Read and follow these safety precautions. WARNING Do not allow children to use on their own. ● This appliance is not intended for use by persons May cause serious (including children) with reduced physical, sensory injury or death. or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a... -
Page 3: Part Names
Part Names Detergent inlet Operation (P. 6) Panel (P. 4) CAUTION Lint filter (P. 10) Power cord May cause injury or and plug property damage. (P. 13) Do not wash, rinse, or spin waterproof sheets or clothes. (To prevent injury, damage to the main unit, walls, floor or laundry, or water leakage if the appliance falls over or oscillates extremely while spinning) Softener... -
Page 4: Operation Panel
● When the remaining time is displayed, indicates the water level : 1 scoop of detergent press “Water Level” to check the water according to the amount 2) NA-F100X1: 72 L level. of laundry. NA-F90X1: 69 L NA-F85G1: 66 L After approx. -
Page 5: Variety Of Programs
Variety of Programs Maximum capacity Purpose Program NA-F100X1 NA-F90X1 NA-F85G1 Everyday Normal Daily washing 10.0 kg 9.0 kg 8.5 kg (P. 7) clothes Speedy washing Speedy 10.0 kg 9.0 kg 8.5 kg (P. 7) for light soil Washing Delicates Delicate 4.2 kg... -
Page 6: Detergent
Detergent Putting in detergent Put in detergent, bleach and softener according to the water Do not put detergent directly into the tub. level displayed. Detergent may remain undissolved. ● Follow the instructions on each package. ■ Softener inlet Softener ● The level of foaming depends on conditions such as load size, degree of soiling, detergent type, and water hardness. -
Page 7: Washing
Washing Preparation: ● Check if the washing machine is properly installed. (P. 12) ● Turn on the water faucet. Timer preset After loading laundry Set how many hours later to finish Turn the power on. operation. (P. 4) ● The Normal program is selected when the power is turned on. -
Page 8: Washing Options
Washing Options Delicate ECONAVI Use this program to gently wash delicate Available in the Normal program, this function clothes and stylish garments. automatically adjusts the operation time and water level according to the detected amount of laundry and water temperature. Load laundry evenly. -
Page 9: Air Dry
Air Dry Wash / Rinse / Spin Water is removed from clothes by the air Preparation: Turn on the water faucet. blown from the tub rotation. After loading laundry Turn the power on. ■ Clothes that can be dried • Material: Synthetic fibre •... -
Page 10: Convenient Functions
● If the filter is broken, purchase a new one at nearest NOTE Panasonic Service Centre. ● If there is water in the tub or “Start” is pressed, the ● Separate clothes following instructions (P.5) before tub cannot be turned. - Page 11 Water supply filter If water does not flow smoothly Once a week <Air Dry> After operation ends NOTE Run the Air Dry program without ● Do not throw away or puncture the filter loading laundry. (P. 9) to avoid damaging feeding valve. ●...
-
Page 12: Installation
Installation 1. Check the location. ■ Avoid the following locations for installation. • Locations with a possibility of freezing • Damp locations or locations where it may be Water supply exposed to rain, etc. valve screw (To prevent electric shock or fire) Water tap •... - Page 13 ■ If the installation, test run and inspection of the washing machine are not carried out following this installation method, Panasonic will not be liable for any accident or damage caused. 4. Connect the water tap adaptor and water supply hose.
-
Page 14: Troubleshooting
Troubleshooting Symptoms Points to be checked Time indication ● Time indication is approximate. Remaining time is corrected during increases or does not operation and displayed. change Operation time is longer ● The operation time may be longer if laundry is concentrated on one than the time indication. -
Page 15: Error Display
Error Display ● The buzzer sounds and “U”/“H” and a number are alternately displayed. ● Cancel Child Lock (P. 10) if it is set. Error display Points to be checked Water cannot drain. Check the drain water hose for the following abnormalities: ●... -
Page 16: Specifications
Product weight 36 kg 35 kg Pressure of tap water 0.01 - 1 MPa * Operation is guaranteed with the voltage fluctuation from 195 V to 245 V, but not for performance. http://www.panasonic.com © Panasonic Appliances Vietnam Co., Ltd. 2016...
