進行連線 DVI 至 HDMI 連接 將數字視頻信號從外部裝置傳輸至電視。 使用 DVI-HDMI 線連接外部裝置與電視,如下圖所示。 如需傳輸音頻訊號, 連接選購的音頻纜線。 注意 使用 HDMI/DVI 纜線時,僅支援單一連接。 (*不提供) 白 (*不提供) AUDIO OUT DVI OUT 紅 DVD / Blu-Ray / HD 收費電視機頂盒...
Page 25
進行連線 連接耳機 可使用耳機收聽聲音。 注意 當連接耳機後音效功能表選項將會被停用。 使用連接的耳機變更 AV 模式時,變更只會套用在視訊上,而不會套用在音訊上。 當連接耳機後光學數碼音效輸出便不能提供。 耳機阻抗:16 Ω 耳機最大音效輸出:10 mW 至 15 mW 耳機插頭尺寸:0.35 厘米 0.35 cm(0.13 英吋) 耳機 H/P OUT (*不提供) 連接 USB 設備 將 USB 儲存裝置,如 USB 快閃記憶體、外置硬碟、或 USB 記憶卡讀取器連接至電視,然後進入 Smart Share 功能表即可使 用各種多媒體檔案。 注意 某些...
Page 26
遙控器 遙控器 本手冊的描述基於遙控器的按鍵而定。 請仔細閱讀本手冊並正確使用電視。 如需安裝電池,打開 電池蓋, 更換電池 (1.5 V AAA) 時配對電池格內的 及 端標籤,然後關上電池蓋。 如要移除 電池,以相反步驟執行動作。 注意 請勿混合使用新舊電池,否則遙控器可能受損。 某些遙控器按鍵於某些國家的類比模式電視有可能不能運作。 遙控器使用紅外線運作。 使用時應對準電視遙控感應器的方向。 (電源) 開啟或關閉電視。 (使用指南) 參閱使用指南。 RATIO INPUT RATIO TV / 重新調整圖像的大小。 INPUT 選擇外部輸入模式。亦可將電視從待機狀狀態切換至開啟狀態。 TV/RAD 選擇電視頻道或廣播頻道。 數字按鈕 輸入數字。 LIST Q.VIEW LIST 進入已儲存頻道列表。 Q.VIEW 轉到上次觀看的頻道。...
Page 27
遙控器 RATIO INPUT TV / INFO 查看當前節目和屏幕信息。 SMART 進入 Smart Home 功能表。 LIST MY APPS Q.VIEW 顯示應用程式清單。 導航按鍵 (上/下/左/右) 滾動閱覽菜單或選項。 OK ꔉ SETTINGS 選擇菜單或選項並確認輸入。 MUTE ꕣ BACK 返回至上一層。 GUIDE INFO SMART MY APPS 節目播放時間將根據預定時間顯示。 EXIT 清除所有畫面顯示並返回觀看電視。 顏色按鈕 訪問某些菜單中的特殊功能。 GUIDE EXIT BACK (...
Page 28
To set TV lock options PROGRAMME Setting PICTURE, SOUND Setting To set language OPTION To set subtitle LG SMART Function Advanced Function Disabled Assistance Information Index Online User Guide (視乎國家而定) 顯示正觀看的視訊。 節目指南類別。 在目前類別中的一系列標題。 您可以使用導航鍵 鍵在頁面之間移動。 關鍵字索引列於使用指南中。 於已連接互聯網後可提供 LG Smart TV 功能的詳細 資訊。 (可能因應國家/語言而未能提供。)...
Page 29
0 °C ~ 40 °C 操作濕度 低於 80% 環境條件 儲存溫度 -20°C ~ 60 °C 儲存濕度 低於 85% 關於電源供應及耗電量,參閱於產品上的標籤。 32LN5700 型號 (32LN5700-CB) 含底座 738 x 497 x 207(毫米) 尺寸(寬 x 高 x 深) 不含底座 738 x 449 x 86.9(毫米) 含底座 7.0 千克...
Page 30
31.469 70.08 640 x 480 31.469 59.94 800 x 600 37.879 60.31 1024 x 768 48.363 60.00 1152 x 864 54.348 60.053 1280 x 1024 63.981 60.020 1360 x 768 47.712 60.015 1920 x 1080 67.5 60.00 外置控制裝置設置 要獲取有關外置控制裝置的設置資訊,請瀏覽 「www.lg.com」。...
Page 33

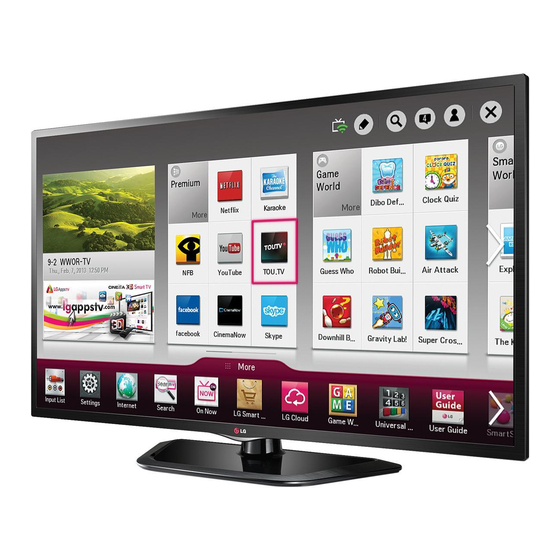

OWNER’S MANUAL LED TV * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 32LN5700 39LN5700 www.lg.com...
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product. WARNING Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may Do not place the TV and remote result in fire due to over-heating. control in the following environments: - A location exposed to direct sunlight - An area with high humidity such as...
Page 35
SAFETY INSTRUCTIONS Never touch this product or antenna If you intend to mount the product to a wall, attach VESA during a thunder or lighting storm. standard mounting interface (optional parts) to the back You may be electrocuted. of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
Page 36
SAFETY INSTRUCTIONS Periodically examine the cord of your appliance, and if its Refer all servicing to qualified service appearance indicates damage or deterioration, unplug it, personnel. Servicing is required when discontinue use of the appliance, and have the cord replaced the apparatus has been damaged in with an exact replacement part by an authorized servicer.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to ‘opensource@lge.com’. This offer...
TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INSTRUCTIONS REMOTE CONTROL LICENSES USING THE USER GUIDE OPEN SOURCE SOFTWARE NOTICE SPECIFICATIONS TABLE OF CONTENTS EXTERNAL CONTROL DEVICE SETUP INSTALLATION PROCEDURE MAINTENANCE Cleaning Your TV - Screen, frame, cabinet and stand ASSEMBLING AND PREPARING - Power cord Unpacking Optional Extras...
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING INSTALLATION PROCEDURE Open the package and make sure all the accessories are included. Attach the stand to the TV set. Connect an external device to the TV set. Make sure the network connection is available. You can use the TV network functions only when the network connection is made.
Page 40
ASSEMBLING AND PREPARING Remote Control, Batteries (AAA) Owner’s Manual Power Cord (See p. 26) Stand Screws Stand Body, Stand Base Desk-mount Screw (See p. 12) 3 EA, P5 x 25 (See p. 13) 4 EA, M4 x 14 (See p. 12) Cable Holder (See p.
Contact your dealer for buying these items. These devices only work with certain models. The model name or design may be changed due to the manufacturer’s circumstances or policies. AN-MR400 AN-VC4** LG Audio Device Magic Remote Video Call Camera Tag On Tag On...
ASSEMBLING AND PREPARING Parts and Buttons Screen SETTINGS INPUT Speakers Buttons Power Indicator Remote control Sensor Button Description (^ / v) Scrolls through the saved channels. Adjusts the volume level. (+ / -) Selects the highlighted menu option or confirms an input. (OK ⊙...
ASSEMBLING AND PREPARING Lifting and moving the TV When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION Avoid touching the screen at all times, as this may result in damage to the screen.
ASSEMBLING AND PREPARING Setting up the TV You can mount your TV to a wall or attach the stand if you wish to place the TV on an entertainment center or other furniture. Attaching the stand If you are not mounting the TV to a wall, use the following instructions to attach the stand. CAUTION When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
ASSEMBLING AND PREPARING Mounting on a table Using the Kensington security system (optional) (Depending on model) Lift and tilt the TV into its upright position on a table. The Kensington security system connector is located at 10 cm (4 inch) (minimum) - Leave a space from the rear of the TV.
ASSEMBLING AND PREPARING Tidying cables Securing the TV to a wall (optional) (Depending on model) Gather and bind the cables with the cable holder on the back of the TV. Cable holder Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
ASSEMBLING AND PREPARING Mounting on a wall CAUTION An optional wall mount can be used with your LG Disconnect the power before moving or installing Television. Consult with your local dealer for a wall the TV. Otherwise electric shock may occur.
MAKING CONNECTIONS MAKING CONNECTIONS You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. NOTE If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR.
MAKING CONNECTIONS Connecting to a HD receiver, DVD Player, or VCR Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode. HDMI Connection HDMI is the best way to connect a device. Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown in the following illustration.
MAKING CONNECTIONS DVI to HDMI Connection Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable. NOTE When using the HDMI/DVI cable, Single link is only supported.
MAKING CONNECTIONS Connecting to a mobile phone Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets. NOTE Connect the mobile phone to the HDMI IN 3 (MHL) port to view the phone screen on the TV. This only works for the MHL-enabled phone.
MAKING CONNECTIONS Component Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown in the following illustration. NOTE If cables are installed incorrectly, it could cause the image to display in black and white or with distorted color. Check to ensure the cables are matched with the corresponding color connection.
MAKING CONNECTIONS Composite Connection Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown in the following illustration. NOTE Check to ensure the cables are matched with the corresponding color connection. YELLOW WHITE AUDIO...
MAKING CONNECTIONS Connecting to a PC NOTE It is recommended to use an HDMI connection for the best image quality. Depending on the graphics card, DOS mode video may not work if a HDMI to DVI Cable is in use. In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness.
Page 55
MAKING CONNECTIONS Method B: DVI to HDMI Connection Choose any HDMI input port to connect. It does not matter which port you use. (*Not Provided) WHITE (*Not Provided) AUDIO OUT DVI OUT...
MAKING CONNECTIONS Connecting to an Audio System You may use an optional external audio system instead of the built-in speaker. Digital Optical Audio Connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown in the following illustration.
MAKING CONNECTIONS Connecting Headphones You listen to the sound using headphones. NOTE AUDIO menu options are disabled when headphones are connected. When changing AV MODE with headphones connected, the change is applied to video but not to audio. Optical Digital Audio Out is not available when headphones are connected. Headphone impedance: 16 Ω...
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover.
Page 59
REMOTE CONTROL RATIO INPUT TV / INFO Views the information of the current program and screen. SMART Accesses the Smart Home menu. LIST MY APPS Q.VIEW Shows the list of Apps. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK ꔉ SETTINGS Selects menus or options and confirms your input.
An index of key words present in the User Guide. Provides the detailed information on the functions of LG Smart TV when the Internet is connected. (It may not be available depending on the country/ language.)
Storage Temperature -20°C to 60 °C Storage Humidity Less than 85 % For the power supply and power consumption, refer to the label attached to the product. 32LN5700 MODELS (32LN5700-CB) With stand 738 x 497 x 207 (mm) Dimensions (Width x...
1024 x 768 48.363 60.00 1152 x 864 54.348 60.053 1280 x 1024 63.981 60.020 1360 x 768 47.712 60.015 1920 x 1080 67.5 60.00 EXTERNAL CONTROL DEVICE SETUP To obtain the external control device setup information, please visit ‘www.lg.com’.
MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning Your TV Clean your TV regularly to keep it at peak performance and to extend the product lifespan. CAUTION Before Cleaning, turn the power off and disconnect the power cord and all other cables. When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.
Page 64
The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service. MODEL SERIAL...
