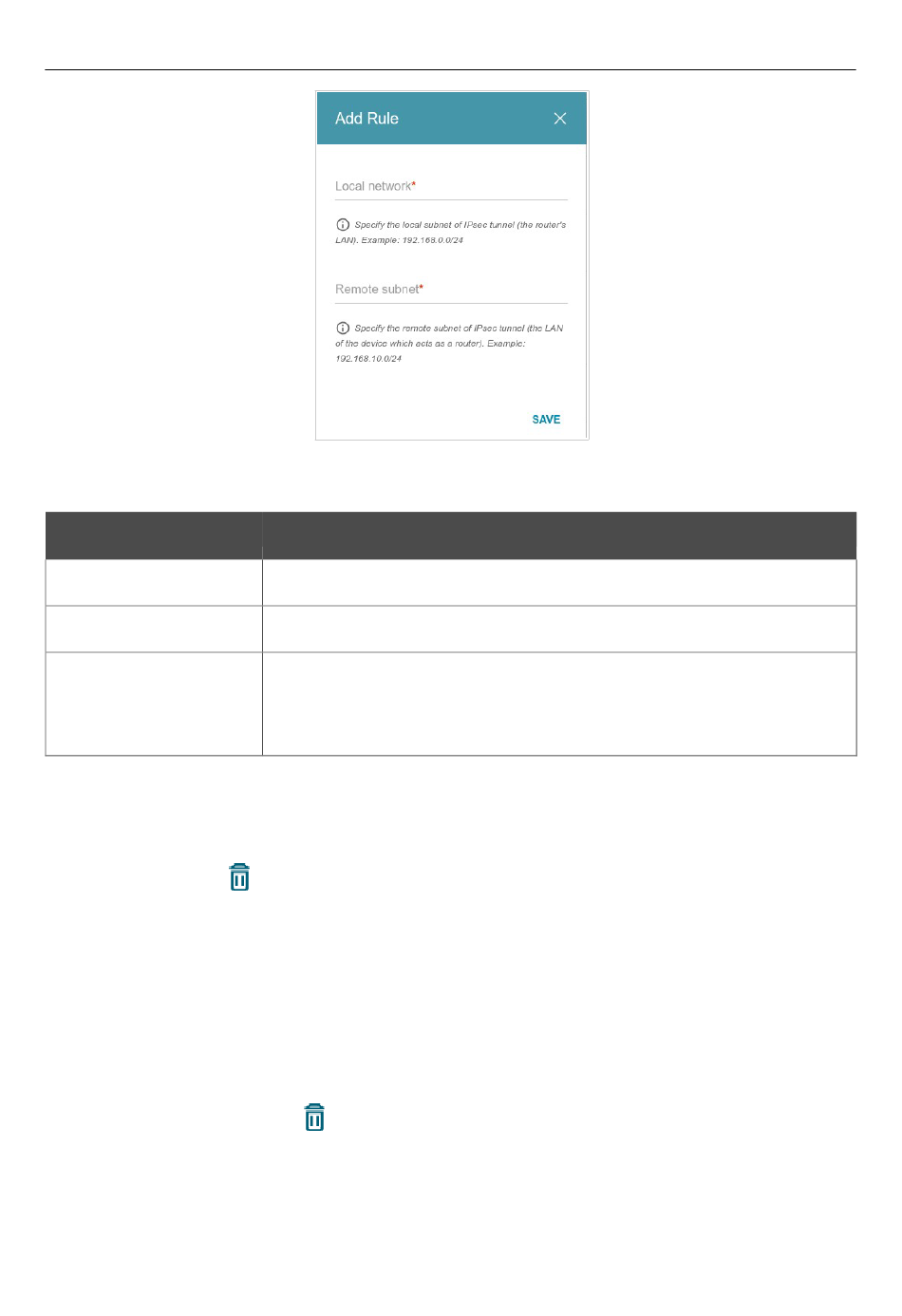

Figure 159. The page for adding an IPsec tunnel. The window for adding a tunneled network.
In the opened window, you can specify the following parameters:
Parameter
Local network
Remote subnet
MTU
To edit fields in the Tunneled Networks
In the opened window, change the needed parameters and click the SAVE button.
To remove a subnet, select the checkbox located to the left of the relevant line in the table and click
the DELETE button (
After configuring all needed settings for the IPsec tunnel, click the APPLY button.
To edit the parameters of an existing tunnel, in the Tunnels section, select the relevant tunnel in the
table. On the opened page, change the needed parameters and click the APPLY button.
To disconnect an existing tunnel and establish it again, select the checkbox located to the left of the
relevant line in the table and click the RECONNECT button.
To remove an existing tunnel, select the checkbox located to the left of the relevant line in the table
and click the DELETE button (
To disable VPN tunnels based on IPsec protocol, move the Enable switch to the left.
A local subnet IP address and mask.
A remote subnet IP address and mask.
The maximum size (in bytes) of a non-fragmented packet. The field is
displayed when the Manual value is selected from the TCP MSS
drop-down list in the General Settings section.
). Also you can remove a subnet in the editing window.
). Also you can remove a tunnel on the editing page.
