ENERVISTA DGT-UTILITY SETUP SOFTWARE
NOTE:
NOTE
4–38
•

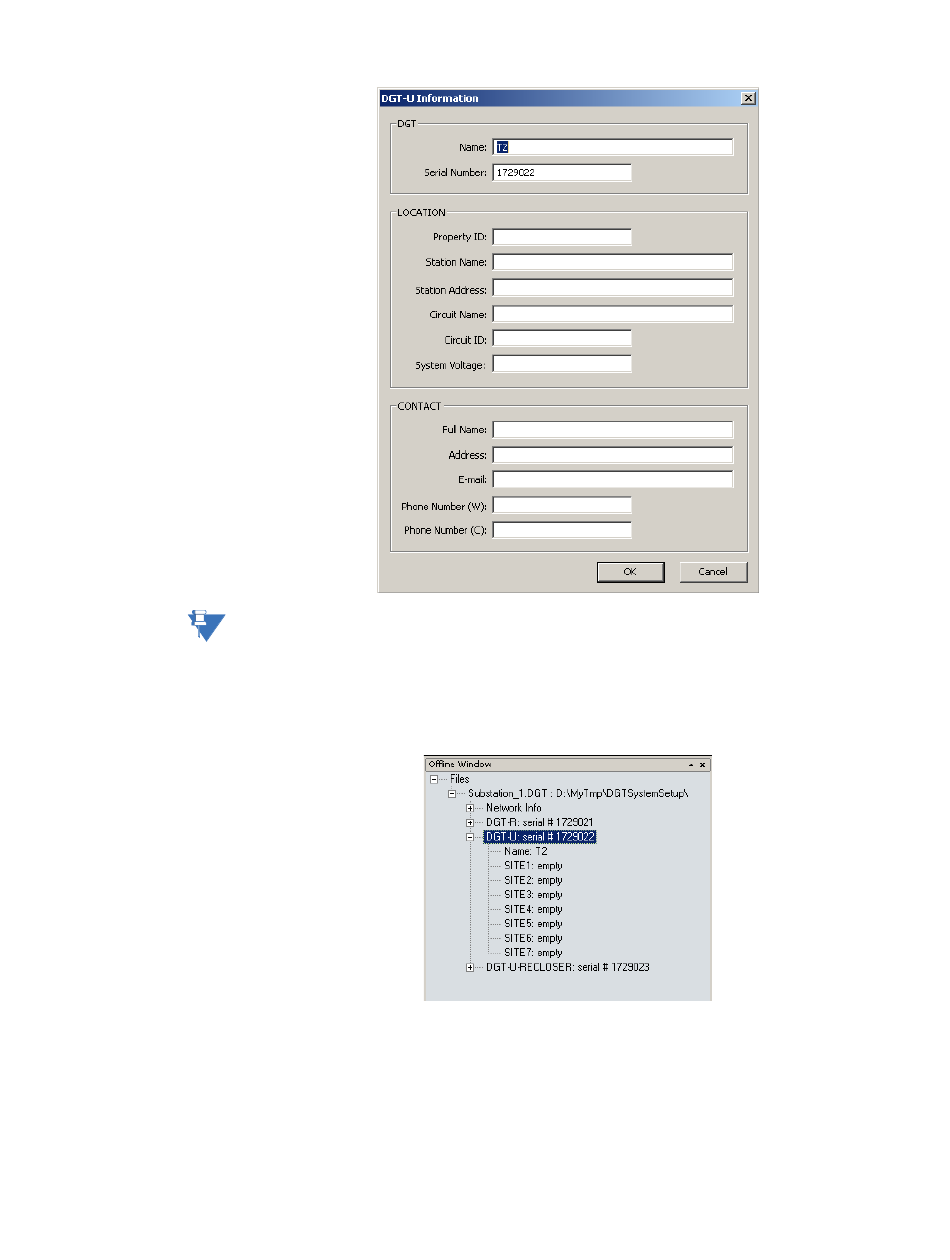

The top two fields Name and Serial Number are mandatory and should be filled up in
order to be able to store changes.
•
Only the content of these two fields can be uploaded to the device. The rest of the
information should be considered as reference data for users only.
9.
Click on the "+" sign on the DGT-U node in the Offline window. This will bring up the
following:
10. Initially all the DGT-D sites are empty. You can assign the appropriate DGT-D device to
each site by double clicking upon the empty site node – then the DGT-D device dialog
will appear.
11. Following is an example of the completed DGT-D device dialog box:
DGT DISTRIBUTED GENERATION TRIP CONTROL SYSTEM – INSTRUCTION MANUAL
CHAPTER 4: SOFTWARE
