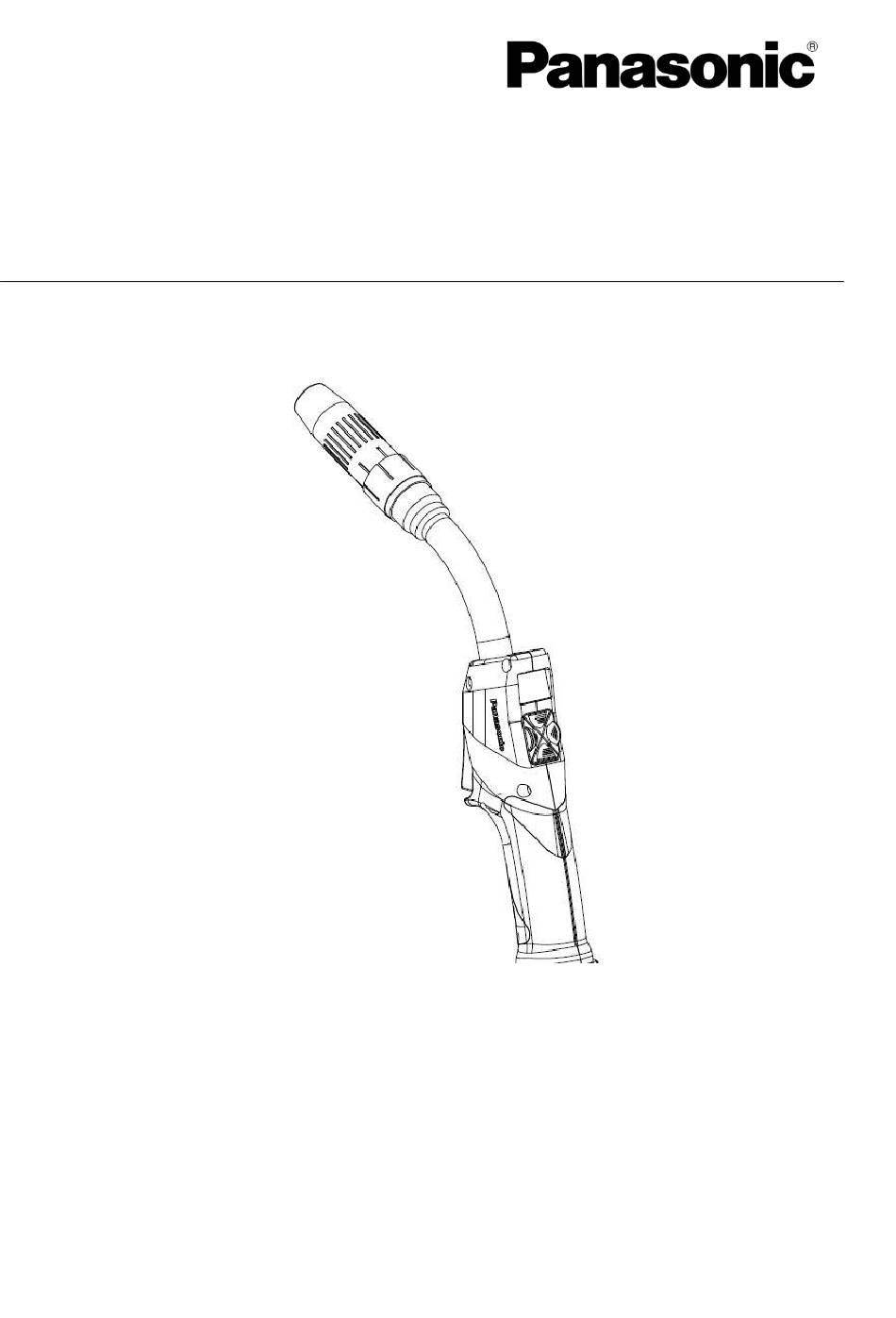

Operating Instructions
MIG/MAG Welding Gun
YT-40MFW
Model No.
● Thank you for your purchase of Panasonic welding power source.
● Before operating this product, please read the instructions carefully and save this manual for
future use.First of all, please read "Safety precautions" or "Safety manual".
● SPEC. No.：YT-40MFW2HTF
Panasonic Welding Systems (Tangshan) Co., Ltd.
WTT012TC0PAA01
Advertisement
Table of Contents
Related Manuals for Panasonic YT-40MFW
Summary of Contents for Panasonic YT-40MFW
- Page 1 YT-40MFW Model No. ● Thank you for your purchase of Panasonic welding power source. ● Before operating this product, please read the instructions carefully and save this manual for future use.First of all, please read “Safety precautions” or “Safety manual”.
-
Page 2: Table Of Contents
CONTENTS Before using Ⅰ Warning symbols for safe usage ..............I Ⅱ Safety precautions ..................... II Using 1 Caution for using ....................1 2 Preparation for using ..................2 3 connection method ....................3 Technical Specifications 4 Parts installation method ................... 4 5 Parts list ......................... -
Page 3: Ⅰ Warning Symbols For Safe Usage
Disclaimer： ◆ Panasonic Welding Systems （ Tangshan ） Co., Ltd., (hereinafter called “PWST”) and its affiliates (including any subcontractor, sales company or agent) shall not assume or undertake any responsibility or liability of the followings: •Any problem arising out of, or directly or indirectly attributable to,the failure of user to carry out those normal maintenance, normal adjustment and periodical check of this product. -
Page 4: Ⅱ Safety Precautions
Ⅱ Safety precautions (10)Perform periodic checks without fail and repair or Welding power source replace any damaged parts before using the power Observe the following instructions to source. prevent the hazard. Ventilation and protective equipment (1)Never use the welding power source for other than Oxygen deficit, fume... - Page 5 Installing shielding (curtain etc.) performing maintenance work or repair work, provide fence or the like around the welding machine so that unauthorized Arc flash, flying spatter, slugs, and noise person can not come close carelessly. generated during welding can damage your eyes, skin and hearing.
-
Page 6: Caution For Using
● After turn off the power supply, exchange the torch parts when temperature is lower. For safety and good welding, exchange any damaged parts for new. ● Be sure to use the parts marked “Panasonic”. Wear protective glasses to protect the eyes when grinding electrode. -
Page 7: Preparation For Using
2 Preparation for using 1. Surrounding environment conditions: Temperature: When in use: -10℃～+40℃; During transportation and storage: -25℃～+55℃; Humidity: no more than 90% at 20° C; The welding torch (gun) should not be used in rain, snow or similar weather conditions. 2. -
Page 8: Connection Method
connection method Figure2 3.1 Connection of welding gun cable 1. Please install a long wire feed tube, see 5.1 for the installation method; 2. Connect the lock nut on the welding torch to the connection part on the side of the wire feeder, and tighten it securely to prevent loosening ductor 1.Before connecting, use an air gun or other tools to... -
Page 9: Parts Installation Method
4 Parts installation method 4.1 Installation method of wire feeding tube 4.1.1 Resin wire feed tube for welding aluminum 1.Please straighten the cable; Wire feed tube 2. Insert the long wire feed tube into the guide Clamp wire tube, remove the contact tip, and confirm O-ring whether the wire feed tube is fully inserted. - Page 10 Please turn off the welding power switch when replacing the tip, nozzle and other parts. 4.3 How to use the current and voltage adjustment buttons 1. Each time you press the current increase or decrease button, the current will increase or decrease by 2A. Press and hold the current ""...
-
Page 11: Parts List
5 Parts list When replacing parts, please use our genuine parts. If the company’s genuine parts are not used, the performance of the welding torch will not be fully utilized. Serial Serial Part Name Part number Part Name Part number number number Gun handle lock... -
Page 12: Part Drawing
6 Part Drawing... -
Page 13: Specifications
7 Specifications Product number YT-40MFW Product Serial Number YT-40MFW2HTF Welding current 400A 310A-100% 400A-60% Rated load 358A-100% duration 400A-80% 400A-100% Welding method MIG/MAG（Including CO2 welding） Applicable welding wire Aluminum, stainless steel (carbon steel) （1.0mm） 1.2mm (1.4mm） 1.6mm Applicable welding wire diameter ＋80％Ar... -
Page 14: Packing Details
8 Packing Details Item Serial number Quantity Welding gun YT-40MFW2HTF Wire feed tube TSM0L520 Wire feed tube installation TSM80324 instructions Attachment Tip 1.6 TET91614 Manual TSM50472... - Page 15 In case of disposal of the product, please sign the assignment agreement on disposal treatment with the authorized organization and then assign the organization to dispose the product. Panasonic Welding Systems (Tangshan) Co., Ltd. Add：No.9 Qingnan Road, New & Hi-Tech Development Zone, Tangshan,Hebei, China Post Code：063020 Tel：400-612-5816...
