Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions
08/2002 – 2007 5 SPEED AUTOMATIC
Automatic Low Speed Lock Up and Automatic High Speed Lock Up
TORQUE CONVERTER LOCK UP KIT
AUTOMATIC LOCK UP CONTROLER
Page | 1
TOYOTA
100 Series LANDCRUISER
HDJ100 and UZJ100
ON OFF ON Switch
Advertisement
Related Manuals for Toyota 100 Series
Summary of Contents for Toyota 100 Series
- Page 1 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions TOYOTA 100 Series LANDCRUISER HDJ100 and UZJ100 08/2002 – 2007 5 SPEED AUTOMATIC ON OFF ON Switch Automatic Low Speed Lock Up and Automatic High Speed Lock Up TORQUE CONVERTER LOCK UP KIT...

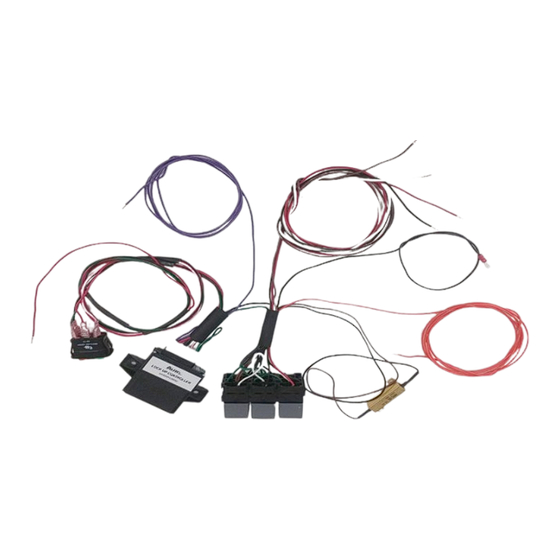

- Page 2 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions Check supplied components against list and pictures. • Relay block including 3x relays • Wiring harness supplied with wire ends bared or pre-terminated • 3 way switch with green and amber illumination.
- Page 3 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions ECU Connectors and relevant pins Turbo Diesel 100 Series – HDJ100 SLU+ E17-15 (pink/green) OIL E16-30 (green/yellow) SLU- E17-14 (black) OIL2 E16-32 (blue) SP1 E18-30 (violet) SP1 E19-9 (some Euro models) (violet)
- Page 4 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions V8 Petrol 100 Series – UZJ100 SLU+ E9-16 (pink/green) SLU- E9-15 (black) SPD E10-17 (violet) Page | 4...
- Page 5 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions Installation of automatic and manual torque converter lock up controller. Step 1: Run Wiring • Remove glove box (2 screws at lower hinge). • Unclip SRS connector panel by pulling forward and then passing back through the hole.
- Page 6 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions Attach the fuse holder eyelet to the battery positive + terminal. Ensure orange wire and fuse holder is secured in such a way that it won’t chaff or abrade. Connect Grey wire to Battery Negative with eyelet supplied Do NOT install the supplied fuse into the fuse holder at this time.
- Page 7 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions • SOLDER all wire joins to ensure a secure connection. • INSULATE all wire joins with heat shrink and/or electrical tape. • Double check WIRING COLOURS with location details in diagram to ensure correct installation.
- Page 8 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions (HDJ100 connector shown above with factory wire-tap for factory SATNAV unit) Kit PURPLE wire solder SPD or SP1 Factory VIOLET wire connection • Access the Speed signal wire and about 80mm from the connector bare the insulation from the wire and solder the purple kit wire to the bared wire.
- Page 9 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions • The controller and relays can be located behind the carpet lining the transmission tunnel in the passenger foot well. Take care to ensure the carpet is massaged back into place to leave a neat appearance.
-
Page 10: Operation
Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions Operation To activate the lock up in High speed Auto Mode; press the bottom down on the 3 way switch. This will illuminate Green Led light to show the Auto mode is active. When the vehicle is driven and the lock up speed is... - Page 11 Toyota Land Cruiser 100 Series HDJ100/UZJ100 Lock Up kit instructions HOW TO USE THE AUTOMATIC LOCKUP KIT DUAL SWITCH AUTOMATIC MODE To activate the lock up in High Speed Auto Mode; press the top switch called AUTO. This will illuminate the Green Led light to show the Auto mode is active.
