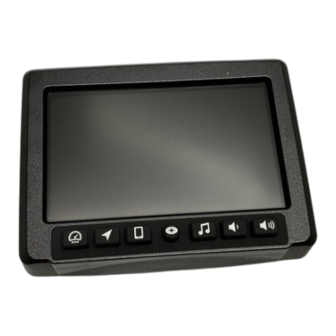

Polaris RIDE COMMAND User Manual

Polaris RIDE COMMAND User Manual

Hide thumbs Also See for RIDE COMMAND:

Advertisement

Quick Links

Download this manual
RIDE COMMAND®
Owner's Manual
For Maintenance and Safety

Advertisement

loading

Related Manuals for Polaris RIDE COMMAND

Summary of Contents for Polaris RIDE COMMAND

  • Page 1 RIDE COMMAND® Owner's Manual For Maintenance and Safety...
  • Page 2 For more information go to www.P65Warnings.ca.gov/passenger-vehicle. For videos and more information about a safe riding experience with your Polaris vehicle, scan this QR code with your smartphone.
  • Page 3 User’s Guide 2020...
  • Page 4 POLARIS®, RZR®, RANGER®, and POLARIS GENERAL®, RIDE COMMAND®, and SLINGSHOT® are trademarks of POLARIS Industries Inc. Copyright 2019 Polaris Industries, Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to constant improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information presented in this publication.
  • Page 5 WELCOME Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more. Here at POLARIS we proudly produce an exciting line of utility and recreational products.
  • Page 6 SAFETY SYMBOLS AND SIGNAL WORDS The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual. DANGER DANGER indicates a hazardous situation which, if not avoided, WILL result in death or serious injury.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Introduction ....7 Features and Controls ....15 Operation .

  • Page 9: Introduction

    INTRODUCTION INTRODUCTION OVERVIEW Thank you for purchasing a RIDE COMMAND® Display, and welcome to the Polaris RIDE COMMAND® App. This intuitive display gives you access to your vehicle’s custom information and a variety of features. For a safe and enjoyable riding experience with your new Display, please read your vehicle’s owner’s manual and this Display owner’s manual.
  • Page 10 INTRODUCTION Per 47 CFR 15.21, the user’s manual for instruction or an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION This equipment complies with part 15 of the Federal Communications Commission (FCC) rules.
  • Page 11 • Familiarize yourself with the features and operations of the Display while the vehicle is stationary. • Download the Polaris RIDE COMMAND™ App from the Apple/Google Play store and create your personalized account. • Check your display to ensure you have the appropriate maps and trails visible for your area.
  • Page 12 INTRODUCTION QUICK START GUIDE Ride Command Buttons Fuel Gauge Drive Mode Icon Bar Gear Status Settings Battery/Temperature/Turbo (if Speedometer/Odometer equipped) NOTE For the latest software and more information go to https://ridecommand. polaris.com/en-us/update.
  • Page 13 INTRODUCTION RIDE COMMAND BUTTONS BUTTON DESCRIPTION FUNCTION Menu/Power Press the Menu/Power button to access Button the settings. To reboot the display, press and hold for 5 seconds. Gauge Screen Press the Gauge Screen button to select Button from available screens.
  • Page 14 INTRODUCTION DRIVE MODE INDICATOR DESCRIPTION FUNCTION When the switch is on 2X4, the ATV is in two-wheel drive at all times. When in All-Wheel Drive, the demand drive unit will automatically engage any time the rear wheels lose traction. When the rear wheels regain traction, the demand drive unit will automatically disengage.
  • Page 15 INTRODUCTION BATTERY/TEMPERATURE/TURBO Press the Battery/Temperature/Turbo icon to toggle between battery voltage, engine temperature, and turbo meter. INDICATOR DESCRIPTION FUNCTION Battery Voltage The meter displays battery’s current voltage. Engine The meter displays the vehicle’s current Temperature engine temperature. Turbo (if If your vehicle is equipped with turbo, equipped) The meter will display the proportional amount of boost pressure (intake...
  • Page 16 INTRODUCTION ICON BAR ICON DESCRIPTION FUNCTION Signal Strength Displays current cell signal strength. Headset Displays icon if headset is connected. Vehicle Direction Displays vehicle direction Ambient Displays ambient temperature. Temperature Clock Displays current time.

  • Page 17: Features And Controls

    FEATURES AND CONTROLS FEATURES AND CONTROLS BUTTONS Menu/Power Button Audio Button Gauge Screen Button Volume Decrease Button Map Button Volume Increase Button Phone Button...
  • Page 18 Press the Menu/Power Button to access the Control Panel, or to reboot the display. CONTROL PANEL To access the settings menu, do the following: 1. Press the Polaris logo at the top of the display screen, or press the Polaris Menu/ Power hard button.
  • Page 19 FEATURES AND CONTROLS 4. Press the Notifications tab to view and manage notifications. 5. Press the Settings icon to access additional settings options. DISPLAY REBOOT To perform a hard reboot of your display, press and hold the menu/power button for 5 seconds. If the display gets into a locked up state a reboot may correct the issue.
  • Page 20 FEATURES AND CONTROLS GAUGE SCREEN OVERVIEW Settings Tachometer Drive Mode Status Screen Select Button Gear Status Digital / Analog Display Speedometer Fuel Level Battery/Engine Temp/Turbo (if Ride Information equipped)
  • Page 21 FEATURES AND CONTROLS DISPLAY THEMES The display screen can be set to Day or Night mode. To change the display, tap the Polaris icon at the top of the display screen. Day Theme Night Theme GEAR SELECTION The vehicle’s current gear is displayed in the upper left-hand corner.
  • Page 22 FEATURES AND CONTROLS DRIVE MODE The vehicle’s current drive mode is displayed in the upper-left hand corner. DRIVE DESCRIPTION INDICATOR MODE Two Wheel When the switch is on 2X4, the ATV is in two- Drive wheel drive at all times. All-Wheel When in All-Wheel Drive, the demand drive Drive...
  • Page 23 FEATURES AND CONTROLS BATTERY / TEMPERATURE Press the Battery / Temperature icon on the touchscreen display to switch between the battery voltage meter and the engine temperature meter. METER INDICATOR Battery Voltage Engine Temperature TURBO (IF EQUIPPED) If your vehicle is equipped with Turbo, the Turbo icon will appear on the left side of the display screen.
  • Page 24 FEATURES AND CONTROLS SCREEN SELECT Press on the Screen Select Icon to see a list of available gauge screens. Available Screens include: • Front/Rear Cameras (if equipped) • Gauge Screens • Dynamix (if equipped) • Plow Mode (if equipped) ANALOG / DIGITAL Press the icon to toggle between the analog and digital display screens.
  • Page 25 FEATURES AND CONTROLS MAP SCREEN Press the MAP SCREEN button shown above to display the map screen. The map will center you based on the location of the GPS. NOTE Controls on the map surface disappear after 10 seconds of inactivity, return with a tap anywhere on the map.
  • Page 26 FEATURES AND CONTROLS MAP ORIENTATION The COMPASS icon on the right side of the screen toggles north up and course up. It will also re-center your vehicle if not already centered. MAP ORIENTATION MAP ICON North Up view locks the maps orientation so that North is always at the top of the screen, regardless of your vehicle’s position or direction.
  • Page 27 Connect a smart phone and headset to listen to audio, make and receive calls and text messages, access a phone’s contact list, and call history. CONNECT YOUR PHONE TO THE DISPLAY The Ride Command display is compatible with Android and iOS. Go to https:// ridecommand.polaris.com/en-us/supported-devices for latest operating system compatibility.
  • Page 28 FEATURES AND CONTROLS 1. In your iPhone settings turn on Bluetooth. If available, make your phone discoverable to other devices in your iPhone’s Bluetooth settings. When your phone appears on the display press the “+” button next to it. 2. A prompt will appear on your iPhone requesting permission to pair with your phone.
  • Page 29 3 MPH. CONNECTING YOUR BLUETOOTH HEADSET WITH THE DISPLAY The Display can connect with Polaris approved Bluetooth headsets to listen to music, take phone calls, and talk with other riders. To connect your Bluetooth Heaset to your display, do the following: 1.
  • Page 30 FEATURES AND CONTROLS AUDIO SCREEN 1. Press the audio screen button shown above to display the audio screen. 2. Use the source button in the top left corner to change between FM, AM, Weather, Bluetooth, and USB Audio. 3. Press the tune up or down icons to change the radio station by small increments or press the scan up or down icon to search for the next quality signal station.
  • Page 31 FEATURES AND CONTROLS USB / IPOD AUDIO • Show currently playing song and album art, if available • Show song duration and current progress • Browse available music by artist, album, song title and playlist, if available • Show play queue of upcoming songs, add and remove music from queue •...
  • Page 32 The icon bar at the top of the screen displays cell phone related information, ambient temperature, clock, and the GPS information. Some of these built-in features are only functional with the addition of Polaris Accessories. Your Polaris dealer can assist.
  • Page 33 GROUP RIDE Invite your friends to a group to see their live location on the map of your smartphone, tablet, or in vehicle Ride Command Display. For information on how Group Ride works and for instructions on how to set...
  • Page 34 FEATURES AND CONTROLS GROUP RIDE SETUP VEHICLE TO VEHICLE (V2V) ANTENNA If your vehicle is equipped with a V2V antenna, use the following procedure to setup Group Ride: 1. From the map menu, tap the Group Ride button. 2. Tap Setup V2V Group Ride button on the display screen.
  • Page 35 • Connect your phone via Bluetooth. If you phone is currently connected you MUST disconnect and reconnect it. • Press the login button to login to your Ride Command account. If you do not have a ride command account, sign up at ridecommand.polaris.com...
  • Page 36 FEATURES AND CONTROLS NOTE Once you've completed all three steps above, your information will be stored (unless cleared manually) and you will not need to login again into your Ride Command account for future group rides. 4. Press the back button to go back to the group ride screen and join your Group Ride.
  • Page 37 FEATURES AND CONTROLS RIDING WITH A GROUP 1. Tap the handle by the group name to minimize the panel and show more map. 2. After 10 seconds of not interacting with the screen, the map controls will disappear. Tap the screen to make them visible again.
  • Page 38 NOTE Plow Mode is a feature available for use with RANGER XP 1000 vehicles that have a factory installed Ride Command System with a winch and auto stop winch fairlead as part of the factory wiring harness. To enable Plow Mode, do the following: 1.
  • Page 39 FEATURES AND CONTROLS MANUAL PLOW MODE Manual Plow Mode allows you to use the Ride Command touchscreen display to raise and lower the plow. To raise and lower the plow, do the following: 1. To raise the plow, press the up arrow on the touchscreen display and slide it to the left.
  • Page 40 Back Drag Mode reverses the normal mode operation. When Back Drag Mode is selected, shifting to REVERSE will lower the plow and shifting to LOW will raise the plow automatically. To engage Back Drag Mode, press the “Back Drag Mode” button on the Ride Command display.
  • Page 41 FEATURES AND CONTROLS PLOWING IN HIGH RANGE Polaris does not recommend plowing in High Range. Excessive belt wear and belt failure, plow damage, and vehicle damage can occur. The system by default will not allow automatic operation when the vehicle is in High Range. This lockout can be beneficial while plowing as it allows the operator to shift to High Range to move the vehicle forward without lowering the plow automatically.

  • Page 43: Operation

    OPERATION SETTINGS To access the Setting menu, press the Menu/Power button, or tap the POLARIS logo at the top of the display screen. This will open the control panel. From the Control Panel, select the settings tab, and then tap the All Settings button located in the lower right corner of the display screen.
  • Page 44 OPERATION AUDIO Select the Audio tab to do the following: • Access Equalizer • Access Balance and Fader • Clear Radio Presets • Set Radio Tuner Region VEHICLE Select the Vehicle tab to do the following: • View Diagnostics • View Oil Life Status •...
  • Page 45 OPERATION ENGINE OVERHEAT INDICATORS TEMPERATURE SCALE The engine temperature scale on the left-side of the display screen changes to RED and the check engine temperature indicator on the right-side of the screen illuminates when the engine is overheating. Take action to cool the engine. NOTE Please see your vehicle owner’s manual for more information.

  • Page 47: Dynamix™ Active Suspension

    Polaris-designed Suspension Control Module (SCM). The suspension control algorithms and software were designed and developed by Polaris’ engineering team, leveraging our expertise and deep knowledge of off-road vehicle dynamics. DYNAMIX™ Active Suspension proactively makes split-second decisions based on operator inputs, controlling the shocks to achieve optimum performance, control, and stability under varying riding conditions and driving styles.
  • Page 48 DYNAMIX™ ACTIVE SUSPENSION DYNAMIX™ SYSTEM COMPONENTS SUSPENSION CONTROL MODULE (SCM) The Suspension Control Module (SCM) contains the logic for suspension con- trol, including communications, operator inputs, and shock drivers. The SCM al- so has an internal 6-axis inertial measurement unit which is used to monitor the performance of the vehicle by the suspension control algorithms.
  • Page 49 DYNAMIX™ ACTIVE SUSPENSION ACCELERATION The system continuously monitors vehicle speed, and accelerator pedal position to increase damping of the rear shocks under high straight line acceleration conditions to keep the vehicle level. AIRBORNE DETECTION The system continuously monitors the state of the vehicle using its 6-axis inertial measurement unit.
  • Page 50 DYNAMIX™ ACTIVE SUSPENSION DYNAMIX MODE SWITCH This RZR is equipped with a suspension control mode switch that allows you to change the suspension control mode of your DYNAMIX™ Active Suspension system on-the-fly. There are 3 available drive modes to select from: Comfort, Sport, and Firm.
  • Page 51 DYNAMIX™ ACTIVE SUSPENSION FIRM In Firm mode, the suspension reverts to its most firm compression damping setting. This mode is recommended for challenging terrain where large suspension travel events and complex terrain are encountered. If your vehicle is equipped with Instantaneous Compression the suspension compression damping reverts to a firm base-damping setting with aggressive...
  • Page 52 Read your User Guide. Always ride with the latest maps and trails data from polaris.com/ ridecommand. Your vehicle is equipped with an advanced Ride Command™ display. The suspension control screen provides additional information about the operation of your DYNAMIX™ Active Suspension system.
  • Page 53 DYNAMIX™ ACTIVE SUSPENSION DEMONSTRATION MODE When the vehicle is first keyed on, and the shift lever is in the Park (P) position with the engine not running, the SCM will enter a demonstration mode. The suspension will react to the operator inputs as if the vehicle was being driven. After a period of time (5 minutes), the SCM will exit demonstration mode and stop driving the shocks to conserve vehicle power.

  • Page 55: Maintenance

    ON YOUR VEHICLE 1. Connect the USB flash drive to the USB cable and power up your vehicle. 2. On the RIDE COMMAND® display, select the Settings menu on your display by pressing the POLARIS icon at the top of the screen.
  • Page 56 4. Try using a different USB flash drive. UPDATE MAPS To update the maps on your display, do the following: 1. Go to polaris.com/ridecommand and download the map update to a USB flash drive. 2. Insert USB flash drive into the USB port on your vehicle.
  • Page 57 Group Ride ......31 Group Ride Setup ..... . 32 Acceleration .
  • Page 58 Safety Symbols ......4 Screen Select ......22 Settings .
  • Page 60 For your nearest Polaris dealer, call 1-800-POLARIS (765-2747) or visit www.polaris.com Polaris Industries Inc. 2100 Highway 55 Medina, MN 55340 Part No. 9930905 Rev 02 Printed in USA...
