Summary of Contents for Bosch TouchOne

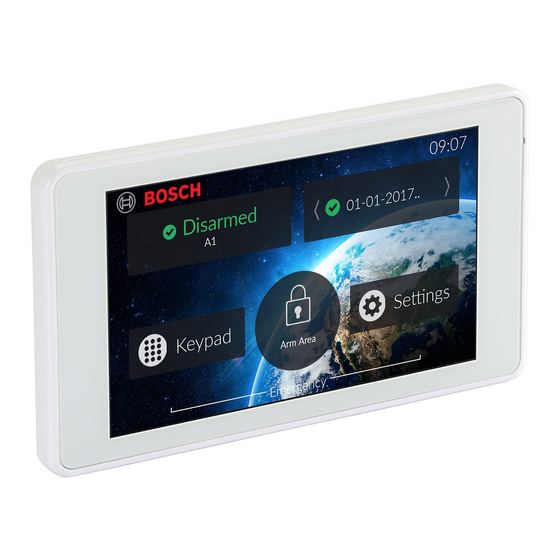

- Page 1 TouchOne Installation Manual...
-
Page 2: Table Of Contents
Contents “1. Overview” “2. Wiring” “3. Mounting” “4. Addressing” “5. Setup Wizard” “6. Internet Connectivity” “7. Troubleshooting” “8. Specifications”... -
Page 3: Overview
Generation 2 builds on the powerful foundation of the TouchOne with an all new Processor, Notice on Power Consumption SmartColor display system, new touch panel and improved mounting design. -
Page 4: Mounting
The Wall Mount should be screwed onto have a unique address between 1 and 4. When the TouchOne is powered on for the first the wall first using the included 6G x 20mm pan head screws in time, it defaults to address 1. -
Page 5: Setup Wizard
5. Setup Wizard 6. Internet Connectivity When the TouchOne is powered on for the first time, it will display a setup wizard, allowing During the setup wizard, you will be requested to connect the TouchOne to a local WiFi you to configure the device. -
Page 6: Troubleshooting" 10
• Ensure the TouchOne is wired correctly and there is a steady 11V to 13V on the PWR and COM (Red and Black) wires (meter at the TouchOne side of the cable). Maximum screw... - Page 7 8IM-TO2A-041601...
