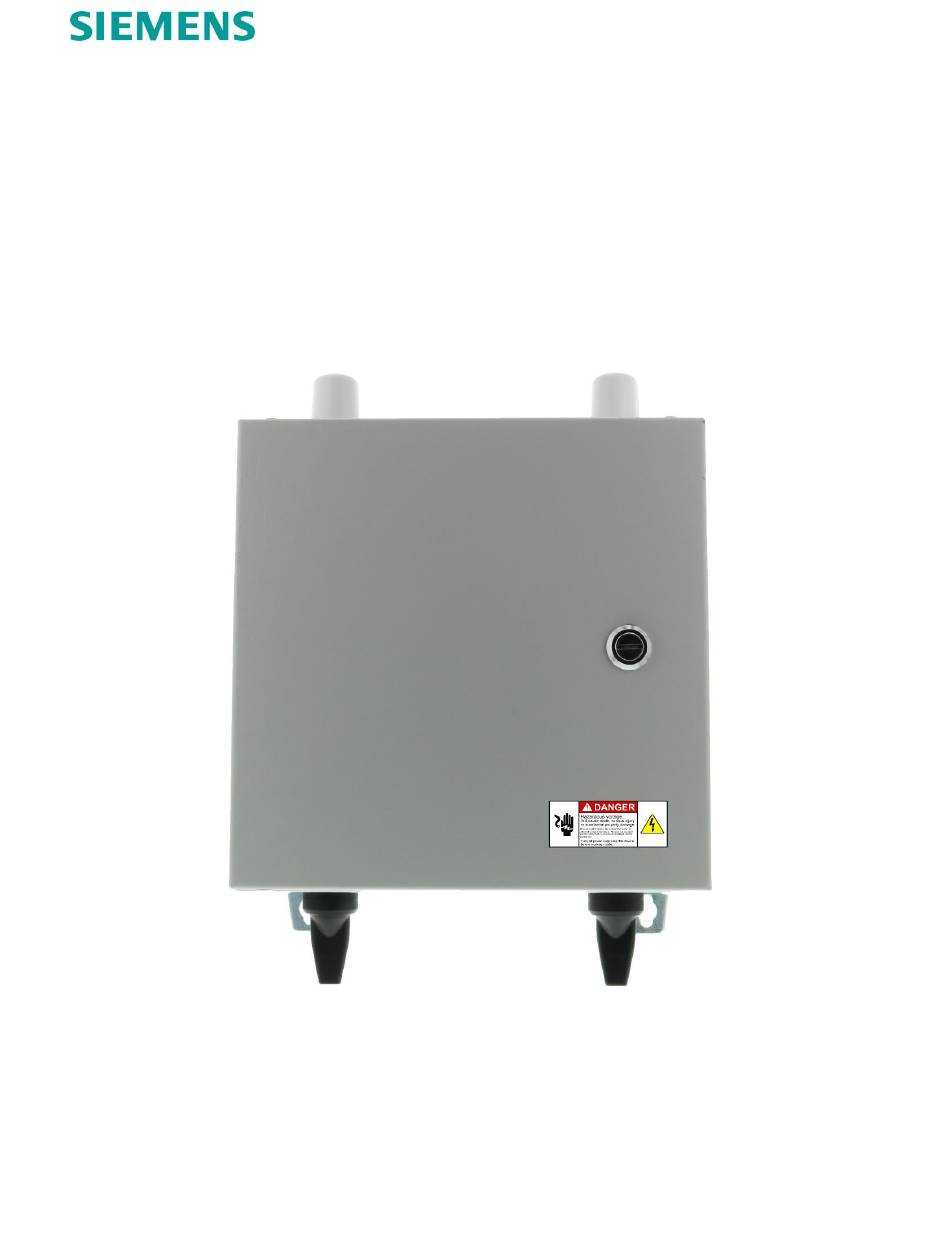

1. Product Overview The Siemens VersiComm is an all-in-one, multiprotocol intelligent node solution for both Wi-Fi and cellular networks, and is built for large scale EVSE (Electric Vehicle Supply Equipment) implementations handling up to 25 charging stations. VersiComm is capable of handling large network traffic at stellar speeds by integrating a combined, premium Wi-Fi and cellular access point, while implementing maximum network security measures .
1.1 Quick Facts Table Siemens VersiComm Solution System Attribute Description Single Phase: VC1COMMA Part Number Two Phase: VC2COMMA Single Phase: 120V AC (L1, N, G) Minimum of 2-amp dedicated circuit is required for the VersiComm. Circuit Requirements Two Phase: 220/240V AC (L1, L2, G) Minimum of 2-amp dedicated circuit is required for the VersiComm.
Page 6
Enclosure: --NEMA 4 Operating Temperature -25°C to +70°C Operating Humidity 5% ~ 95% relative humidity (noncondensing) Able to connect up to 25 Siemens VersiCharge SmartGrid units Scalability (VCSG30GRYUW or VCSG30GCPUW) to one VersiComm (4G/3G) GSM/GPRS/EDGE Quad band Cell Capabilities UMTS/HSDPA+ 850/900/1800/1900MHz...
Siemens VersiComm. 2.2 Symbol Legend To reduce the risk of electrical shock, and to ensure the safe installation and operation of the Siemens VersiComm, the following safety symbols appear throughout this document to indicate dangerous conditions and important safety instructions. DANGER Hazardous voltage.
• Read this Installation and Operations Manual in its entirety before installing, maintaining, servicing, or replacing a Siemens VersiComm. • Permits: Be aware that many areas require special permits and/or utility approvals to install EV charging equipment. Contact your local electrical inspector’s office and your local utility before beginning work to understand local requirements.
Available voltage, current, and frequency: • The Siemens VersiComm can be powered with either 1 phase 120VAC (VC1COMMA) or 220-240VAC (VC2COMMA), depending on the variant purchased. The rated line range is 47-63 Hz. The input current varies from 0.15 – 0.6A. The complete electrical structure of the building must be of adequate size to handle peak-load conditions for the entire building.
Section 4. 5.2 Initial Power On The IR915L Wi-Fi/Cellular access point is preconfigured to act as your Siemens VersiCharge SG Hub. The IR915L will come with a preloaded AT&T SIM card. Once power is supplied to the VersiComm, the IR915L access point will become active. After a few minutes, the following LED’s will be solid: Red Power LED, Green SIM LED #1, Green...
Page 16
“Rating Label” as seen in the picture below) 2. Address of installation for VersiComm(s) 3. Company name of purchaser 4. Siemens account number (if available) 5. Email, phone number, and contact name for future data plan billing purposes.
SSID that was given on the VersiComm included document. If the document is lost, call technical support (1-800-333-7421), provide the VersiComm serial number and, once owner’s identity is verified, Siemens will provide credentials. • After at least one charger is commissioned to the VersiComm, verify the cellular network is active by entering the IP address assigned to the IR915L into any web browser of a device that is connected to the VersiComm.
(ii) each Product materially conforms to Siemens's specifications that are attached to, or expressly incorporated into this Agreement; and (iii) at the time of delivery, Siemens has title to each Product free and clear of liens and encumbrances (collectively, the “Warranties"). The Warranties do not apply to software furnished by Siemens.
Page 21
The warranty on repaired or replaced parts is limited to the remainder of the original warranty period. Unless Siemens agrees otherwise in writing, Buyer will be responsible for any costs associated with: (i) gaining access to the Product; (ii) removal, disassembly, replacement, installation, or reinstallation of any equipment, materials or structures to permit Siemens to perform its warranty obligations;...
Page 22
• All Defective Product must be returned with a Return Merchandise Authorization Number (RMA) which the customer must request from Siemens. • RMA request must include the following information: • Proof-of-purchase of the Defective Product in the form of (1) the dated purchase...
