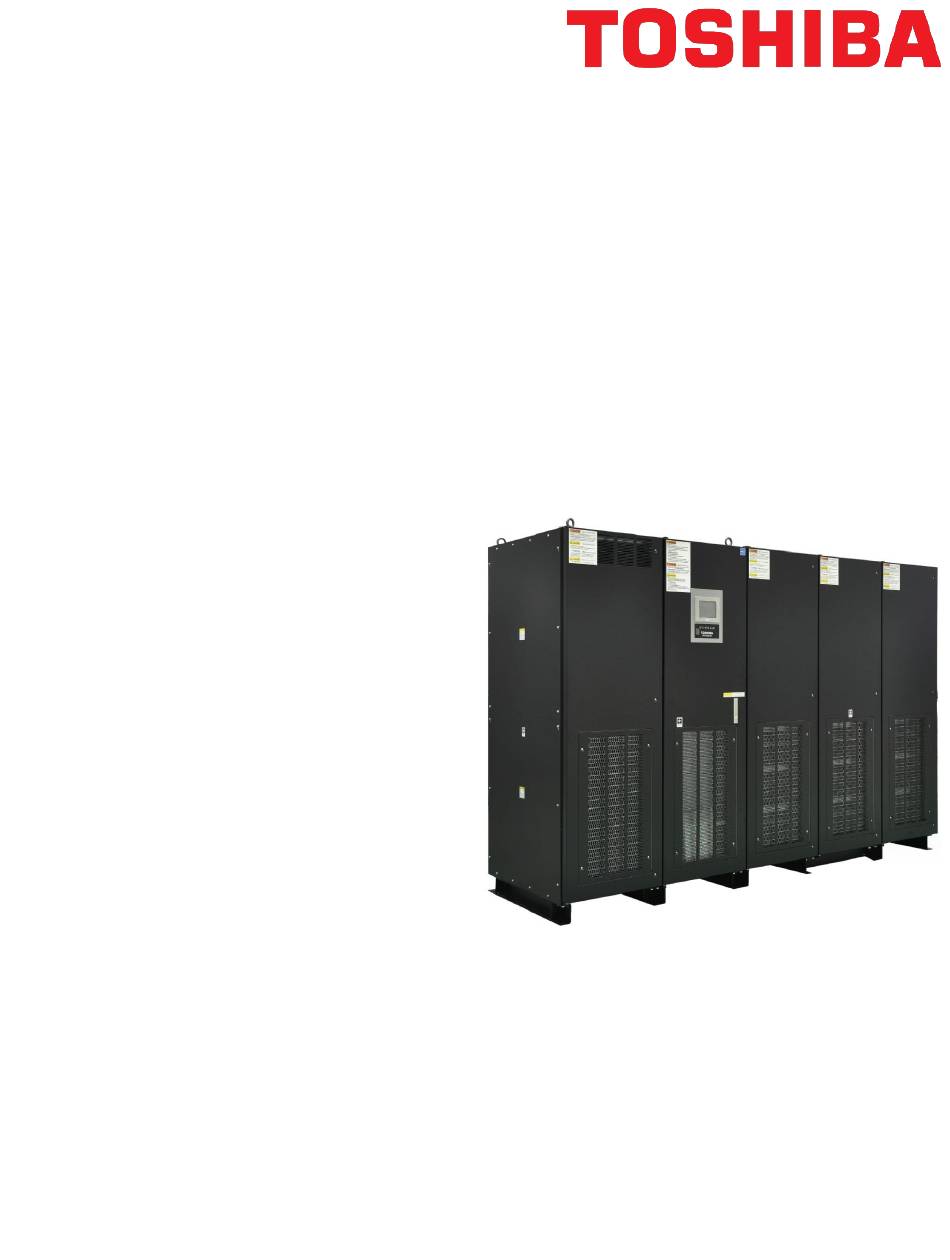

- Page 1 G9000 SERIES TOSHIBA SYNC KIT INSTALLATION MANUAL 480/480 V 1000 kVA Document No:94471-001 Document Ref: 4GBH0088 Rev. B March 2020...
- Page 3 UNINTERRUPTIBLE POWER SYSTEM If additional information or technical assistance is required call TOSHIBA Customer Support Center toll free at 1- 800-231-1412, or write to: Toshiba International Corporation, 13131 West Little York Road, Houston, TX 77041-9990 Attn: UPS Product Manager.
- Page 4 TOSHIBA shall not be liable for technical or editorial omissions or mistakes in this manual. Nor shall it be liable for incidental or consequential damages resulting from the use of information contained in this manual.
-
Page 5: Table Of Contents
Figure 5-1 Installation procedure for SLAVE UPS ......................7 Figure 5-2 Installation of jumper wiring on IOAU-19* ....................... 8 Figure 6-1 SLAVE UPS Setting Procedure........................10 Figure 7-1 Example of TOSHIBA SYNC operation display .................... 11 G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... - Page 6 This Page Left Intentionally Blank G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001...
-
Page 7: How To Use This Manual
Prohibit: A prohibit symbol shows the act the user or the service personnel should NEVER perform during the UPS installation, operation or service work. PROHIBIT Safety Recommendations: If any problems are encountered while following this manual, Toshiba field service group assistance and correspondence is recommended. G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 8: 1.2 Qualified Personnel
Be trained in the proper care and use of protective equipment such as rubber gloves, hard hat, safety glasses, face shield, flash clothing, etc. in accordance with established practices Be trained in rendering first aid. G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 9: Overview
Each TOSHIBA SYNC KIT contains all hardware necessary for one pair of master and slave UPS to operate in a synchronous configuration. Each additional UPS unit will require another sync kit, if applicable. This manual contains kit installation and startup information specifically for 1000kVA capacity models of the G9000 Series UPS. -
Page 10: Toshiba Sync Kit Parts List
Part No. 2: Fuses holder Part No. 3A: Wire Part No. 4: Cable tie mount Part No. 5: Screws (M4) Part No. 6: Fuse label Figure 3-1 Toshiba Sync KIT (Main) Parts Appearance G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 11: Master Ups Installation Procedure
Color of wirings A-phase: Yellow B-phase: Blue C-phase: White To Output busbars Secondary side of 52SU, 52SV, 52SW Figure 4-1 Installation Procedure for MASTER UPS G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 12: Figure 4-2 Wirings Connection Of Output Busbars For Master Ups
Screw(M4) Color of wirings A-phase: Yellow B-phase: Blue C-phase: White 52SU Screw(M4) 52SV Screw(M4) 52SW Lower part of bypass cabinet Figure 4-2 Wirings Connection of Output Busbars for MASTER UPS G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 13: Slave Ups Installation Procedure
MASTER UPS Cable tie Mount 3xFuses, Fuse holder Wirings between VSAU-48*(CN54) and fuse holder(M5) Color of wirings A-phase: Yellow B-phase: Blue C-phase: White VSAU-4 Figure 5-1 Installation procedure for SLAVE UPS G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 14: Figure 5-2 Installation Of Jumper Wiring On Ioau-19
A jumper wiring connection will vary based on input port setting. See chapter “5 SLAVE UPS Setting Procedure” and also refer to “G9000 SERIES INSTALLATION AND OPERATION MANUAL 480/480V 1000kVA” for details of input contacts. NOTE G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 15: Slave Ups Setting Procedure
2. Before making a change of the “IN3” setting, make sure that the BATTERY TEMP. HIGH function is defunct. (Contact Toshiba International Corporation, if BATTERY TEMP. HIGH function is under service.) ATTENTION 5-5. Press the "OK" button, and confirm that "9: ANOTHER BUS. SYNC." is lay out. -
Page 16: Figure 6-1 Slave Ups Setting Procedure
Confirm "9: ANOTHER BUS. SYNC." Press the "INPUT PORT" button then return to "MAINTENANCE" screen Select item "9: ANOTHER BUS. SYNC.", then press “OK” Press the "IN3" button Figure 6-1 SLAVE UPS Setting Procedure G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001... -
Page 17: Verify Proper Setup
Verify Proper Setup To confirm that the TOSHIBA SYNC circuit is functioning properly, during TOSHIBA SYNC operation, “Ath Bus Sync.” is displayed at the bottom of LCD screen as shown in Figure 7-1. Figure 7-1 Example of TOSHIBA SYNC operation display... - Page 18 This Page Left Intentionally Blank G9000 Series 1000kVA TOSHIBA SYNC KIT Installation Manual – 94471-001...
