& INSTALLATION INSTRUCTIONS

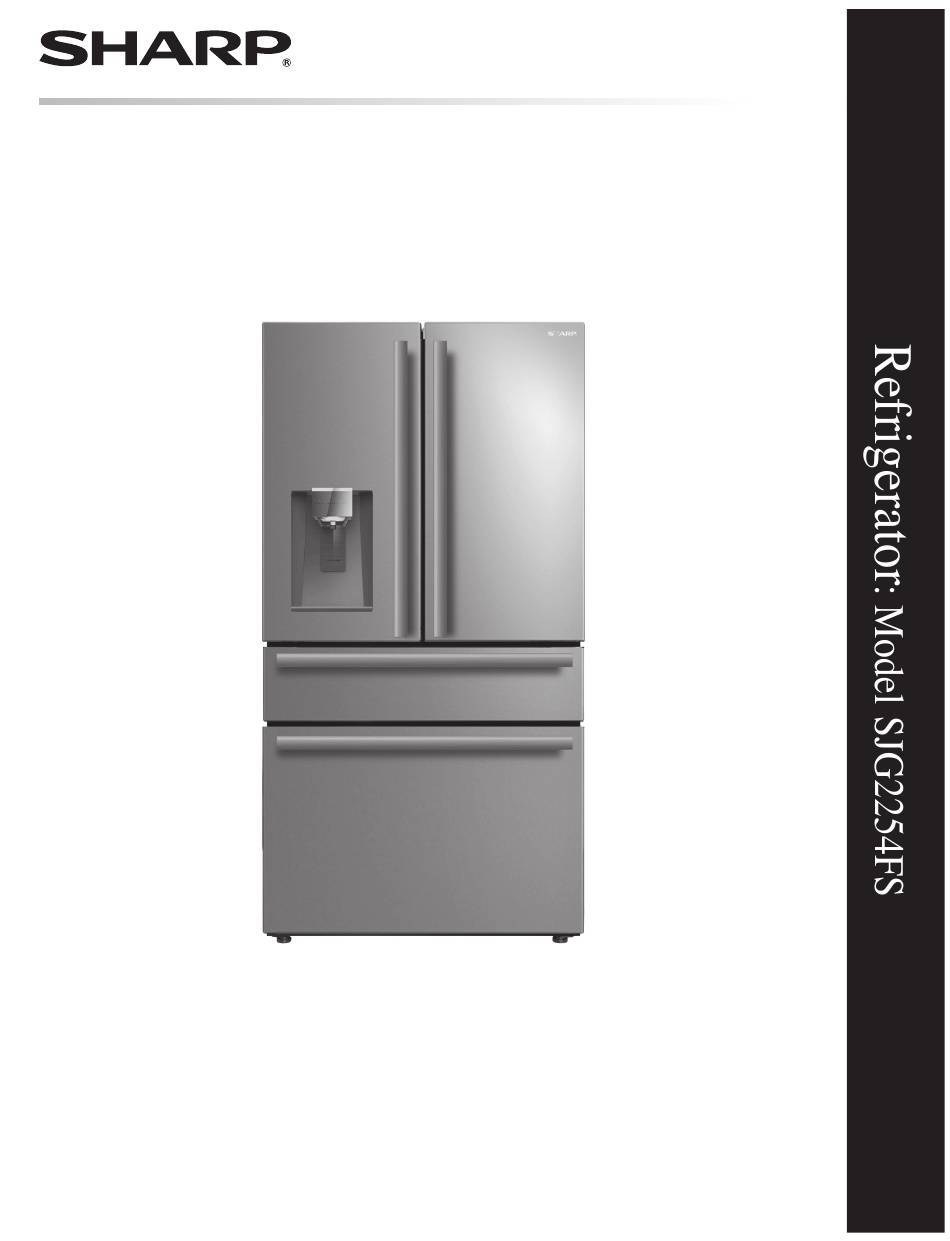

REFRIGERATOR
MODEL : SJG2254FS
.......................... 3
...................... 4
............................. 7
OPERATION MANUAL
...............................17
......................................19
.......................................21
...........................16
Advertisement
Table of Contents
Related Manuals for Sharp SJG2254FS
Summary of Contents for Sharp SJG2254FS
-
Page 1: Table Of Contents
OPERATION MANUAL & INSTALLATION INSTRUCTIONS REFRIGERATOR MODEL : SJG2254FS ........2 ......16 CUSTOMER ASSISTANCE CONTROL AND DISPLAY PANEL ......3 .......17 CONSUMER LIMITED WARRANTY OPERATING REFRIGERATOR ...... 4 ........19 IMPORTANT SAFETY INSTRUCTIONS CARE AND CLEANING ......7 ........21 INSTALLATION INSTRUCTIONS TROUBLESHOOTING ........14... -
Page 2: Customer Assistance
Æ Downloads including the Installation Guide, Spec Sheet, and Owner’s Manual CONTACT US If at any time you have questions or comments concerning your SHARP product, please contact the SHARP Customer Assistance Center. We are available to assist you through multiple contact methods for your convenience:... -
Page 3: Consumer Limited Warranty
In no event should Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS MEANING OF SAFETY WARNING WARNING SYMBOLS • Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. • Do not use mechanical devices or other means such as PROHIBIT blow dryers, portable heaters, heat guns, hot water, etc. This is a prohibition symbol. - Page 5 IMPORTANT SAFETY INSTRUCTIONS WARNINGS FOR USING • Flush the water system connected to a water supply if water has not been used for 5 days. PROHIBIT • Store raw meat and fish in suitable containers in the • Do not arbitrarily disassemble or reconstruct the refrigerator, so that they do not come in contact with or drip refrigerator, nor damage the refrigerant circuit;...
- Page 6 IMPORTANT SAFETY INSTRUCTIONS WARNINGS FOR DISPOSAL WARNINGS FOR PLACEMENT OF ITEMS PROHIBIT Refrigerant and cyclopentane foaming material used for the WARNING refrigerator are flammable. Therefore, when the refrigerator • Do not put flammable, explosive, volatile and highly is recycled, it shall be kept away from any fire source and be corrosive items in the refrigerator to prevent damage to the recovered by a qualified recovering company with proper appliance and to avoid causing fire.
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS APPLIANCE/INSTALLATION DIMENSIONS FRONT VIEW SIDE VIEW FRONT VIEW SIDE VIEW TOP VIEW DIMENSIONS SIZE (INCHES) Height 69.9 Width 35.8 Depth without Doors 24.4 Depth without Handles 29.0 Depth with Handles 30.9 Door open 90° Depth 43.2 Door open 90° Width 44.2 Door open 135°... - Page 8 INSTALLATION INSTRUCTIONS 3. Use the screwdriver to loosen the 3 screws and 1 earth screw WARNING fixing the upper hinge, then remove the plug terminal and Precautions before installation: then remove the left door. See Figure 3. Before installation or adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.
- Page 9 INSTALLATION INSTRUCTIONS 6. Remove harness clamp with a screwdriver and unplug the DISASSEMBLY OF PULLOUT DRAWER connecting terminal. See Figure 6. 1. Open the freezer drawer to the maximum opening. 2. Lift the tail of the pullout drawer by holding both sides of the drawer with both hands.
- Page 10 INSTALLATION INSTRUCTIONS LEVELING THE REFRIGERATOR Diagram of adjusting the door. Precautions before operation 1. Before operation of accessories, it shall be ensured that Not level the refrigerator is disconnected from power source. Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury.
- Page 11 5. The filter is recommended to be replaced every six months. For the replacement water filter (part# SJWF200), please Figure 15 call 1-800-BE-SHARP. CONNECTING THE WATER LINE WATER CONNECTION WARNING Risk of electric shock and damage to the appliance: Water line •...
- Page 12 INSTALLATION INSTRUCTIONS 3. Attach the handle by rotating the handle screw 3 clockwise CONNECTING THE WATER LINE until it stops to the end, gently shake the handle to ensure it Water line installation kits are available as an additional has been attached securely. accessory from your dealer or at a local hardware store.
- Page 13 INSTALLATION INSTRUCTIONS Notes: • Before putting any fresh or frozen foods, the refrigerator should have run for 2-3 hours or for about 4 hours in summer 1 Bolt 3 Handle screw when the ambient temperature is high. 2 Bolt hole 4 Screw hole cap ENERGY SAVING TIPS ADJUSTING THE SHELVES...
-
Page 14: Appearance Overview
APPEARANCE OVERVIEW LED Lighting Water Filter Ice Maker Box Door Bin Slide-in Door Bin Shelf Turnover Box Shelf Humidity Controlled Crispers Door Bin Flex Drawer Freezer Drawer Humidity Control for Crispers... - Page 15 APPEARANCE OVERVIEW Control Panel Stainless Steel Cooling Plate Flex Drawer Pullout Drawer Freezer Drawer REFRIGERATOR FLEX DRAWER • The refrigerator is suitable for storage of a variety of fruits, • The Flex Drawer temperature setting can be selected vegetables, beverages, and other foods consumed in the short among -1°C/30°F, 1°C/34°F, 3°C/37°F and 5°C/41°F, and the term.
-
Page 16: Control And Display Panel
CONTROL AND DISPLAY PANEL DISPLAY DISPLAY SCREEN Main display control (display control on drawer door) 1 Temperature Zone Display When the power is connected for the first time, the icons will 2 Flex Drawer Preset Temperature Modes be illuminated and the start-up chime will sound, and then the display will enter normal operation. -
Page 17: Operating Refrigerator
OPERATING REFRIGERATOR LOCK/UNLOCK BOOST MODE SETTINGS To unlock the display panel keys, press the LOCK/UNLOCK CHILL BOOST key and hold for 3 seconds until an audible chime sounds Press and hold the FRIDGE TEMP key for 3 seconds to enter indicating the appliance controls are unlocked. - Page 18 OPERATING REFRIGERATOR ERROR CODE FOR CRUSHED ICE 1. Press the CRUSHED key until the indicator light turns on. When there is an error, the digital temperature display zone will See Figure 23. display an error code in locked mode. When it detects multiple errors, those error codes are displayed cyclically and an alarm 2.
-
Page 19: Care And Cleaning
CARE AND CLEANING CLEANING OF DOOR BINS OVERALL CLEANING • Use both hands to hold and squeeze the bin, push it upward • Regularly clean the dust and debris behind the refrigerator then remove. See Figure 27. appliance and the floor to improve cooling performance and energy savings. - Page 20 WATER-FILTER key for 3 seconds to reset the alarm and re-time it. The buzzer rings for 3 times at the same time. For the replacement water filter (part# SJWF200), please call 1-800-BE-SHARP. CHANGING THE LIGHT Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.
-
Page 21: Troubleshooting
TROUBLESHOOTING Before calling for service, the following information may help determine potential cause of appliance concern. Please contact your local dealer or 1-800-BE-SHARP for further assistance. Appliance has no power • Confirm the appliance is connected to a power source and securely plugged into electrical outlet. - Page 22 TROUBLESHOOTING Ice dispenser does not • Confirm there is ice in the ice storage box. work • If ice dispenser has not been used for an extended period of time, ice will melt and stick together. Turn off ice maker, empty ice storage box and replace. Turn on ice maker. •...
