Epson EasyFlow WorkForce 30 Quick Start Manual

EasyFlow
EPSON WorkForce 30
BEFOrE yOu BEgiN...
Before you install the ArTainium EasyFlow Bulk Ink System, you should setup the Epson printer with the Epson supplied inks
and driver. This will allow you to conduct a nozzle check to ensure the printer is working properly. Record the alpha-numeric
value from the nozzle check (located on the far right side of the page). This is your Firmware Number which will be needed
during the ArTainium ICC Profile Registration. Once completed, you can begin the bulk ink system installation process.
NOTE: Quick Start Guide for WorkForce 30 only

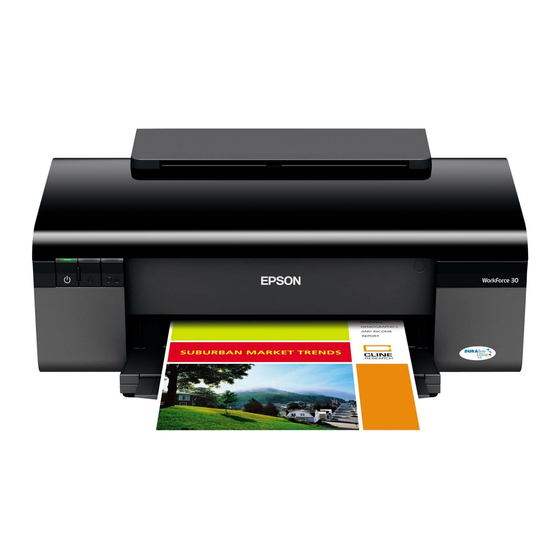

Epson WorkForce 30 Printer

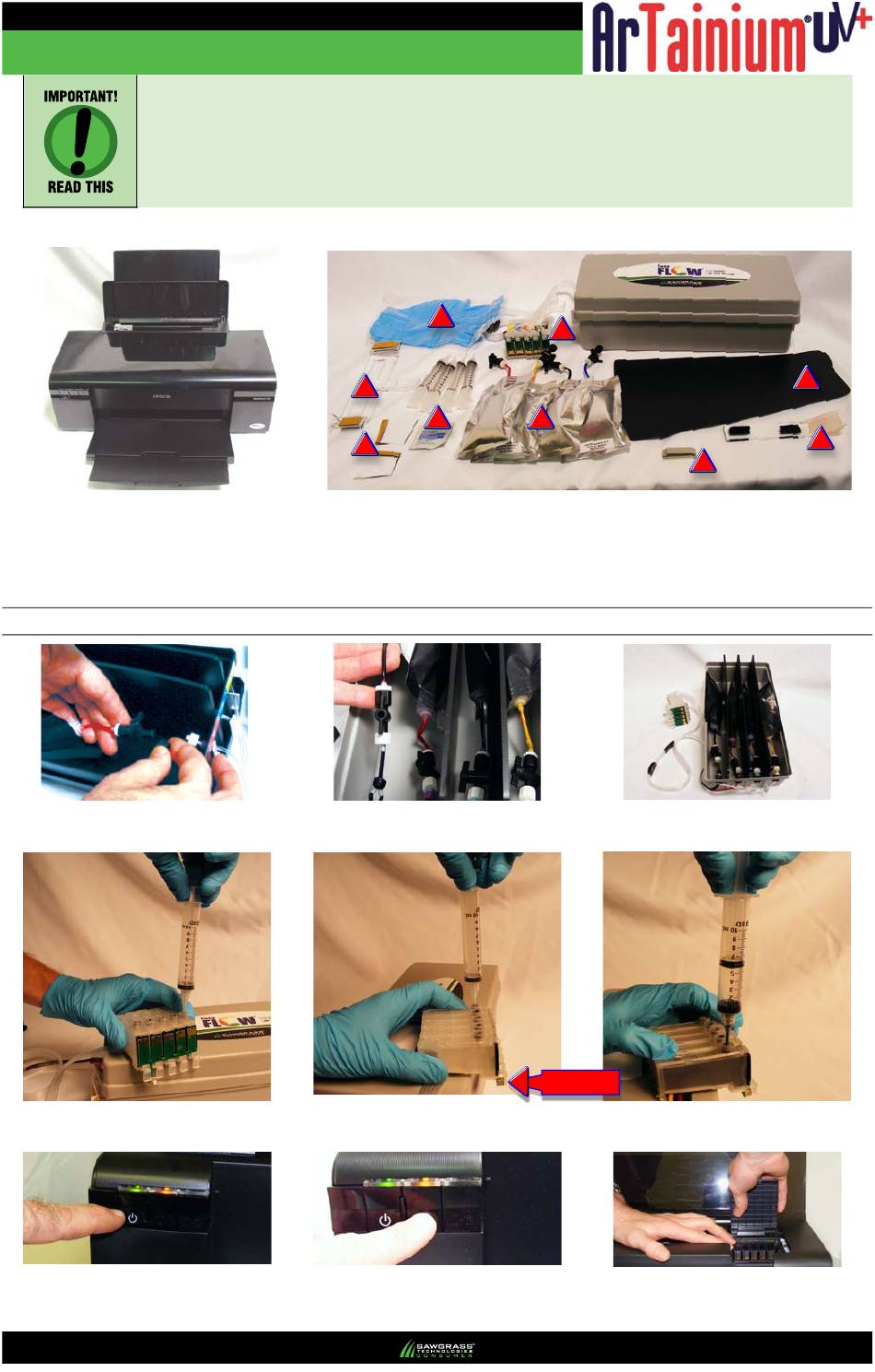

Check to ensure you have all components shown in the pictures:
1.
ink Box with ink Multi-Cartridge & Tubes
2.
Large Tube Support (WF 1100
3. (3)
Plastic Dividers
EasyFlow BULK INK SYSTEM: WF 30 Installation Instructions: Setup
®
1.) Before installing the ink bag, check that the ink bag valve
is perpendicular to the ink tube as shown in the picture.
Next, remove plastic cap from the ink bag valve.
3.) Place the bulk ink dampers face down on top of the bulk ink box. Use care to avoid damaging the bulk ink dampers reset button. Notice how the reset button is not making contact with the bulk
ink box. With the syringe plunger pressed down, insert the syringe tip into the septum of the damper. Next, slowly extract the plunger. Ink will start to flow through the tubing and into the damper.
Remove the syringe from the septum when a small amount of ink has filled the syringe tip. Repeat the process for the remaining four channels.
4.) Lift the lid and power on the printer.
R-3_19,Feb'10-jcr
BULK INK SYSTEM Quick Start Guide
®
Note: Please remove the Epson cartridges before proceeding to step 1.)
4.
Small Tube Support
5.
only). (4) individual ink Bags.
6.
(2) Lid Holders
2.) Match each ink bag with the appropriate color bead found in the ink box. Fasten the ink bag valve with the ink box connector
by pushing the connections together and twisting the cap to lock them into place. Once the ink bag has been installed, turn the
ink bag valve parallel to the ink tube. Finally, insert the dividers between each bag.
5.) Once the printer has completed initializing, press the ink
out button.
7
2
8
6
ArTainium EasyFlow Bulk ink System Contents
(WF 1100 only).
(WF 1100 only).
1
5
4
7.
rubber gloves.
8.
(4) Syringes and Alcohol Prep for Priming.
9.
Plastic Arm (WF 30 only)
Bulk ink dampers
Reset Button
6.) Raise the lid of the ink cartridge bay. Firmly grasp the lid
and twist it sideways until it becomes dislodged. The lid
will not be needed for proper functioning of the printer with
either the bulk ink system or individual ink cartridges.
ARTAINIUM EASYFLOW BULK INK SYSTEM FOR EPSON WF 30 QSG
3
9
— Page 1 of 2
