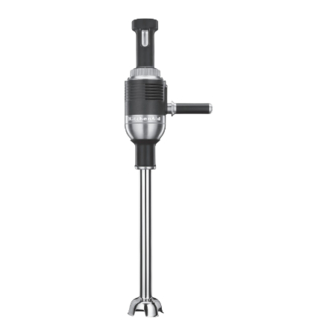

- Page 1 5KHBC412EXX 5KHBC412BXX • 5KHBC414EXX 5KHBC414BXX • 5KHBC416EXX 5KHBC416BXX • 5KHBC418EXX 5KHBC418BXX • 5KHBC420EXX 5KHBC420BXX •...
-
Page 2: Table Of Contents
COMMERCIAL IMMERSION BLENDER INSTRUCTIONS TABLE OF CONTENTS COMMERCIAL IMMERSION BLENDER SAFETY Important safeguards ...................6 Electrical requirements ................8 Electrical equipment waste disposal ............8 Electrical data for Immersion Blender and attachments ......9 PARTS AND FEATURES GUIDE Commercial Immersion Blender parts ............10 Optional accessories ..................11 Commercial Immersion Blender features ..........12 OPERATING THE COMMERCIAL IMMERSION BLENDER Before first use ..................13... -
Page 3: Commercial Immersion Blender Safety
COMMERCIAL IMMERSION BLENDER SAFETY CMD + SHIFT CLICK TO CHANGE COPY IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. Misuse of appliance may result in personal injury. 2. To protect against risk of electrical shock do not put motor body, cord, or electrical plug of this Commercial Immersion Blender in water or other liquid. - Page 4 COMMERCIAL IMMERSION BLENDER SAFETY 6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest Authorised Service Centre for examination, repair or electrical or mechanical adjustment.
-
Page 5: Electrical Requirements
CMD + SHIFT CLICK TO CHANGE COPY COMMERCIAL IMMERSION BLENDER SAFETY Electrical Requirements Voltage: 220-240 V Frequency: 50-60 Hz Wattage: 750 W To reduce the risk of electrical shock, this plug will fit in an outlet only one way. If it does not fit, contact a qualified electrician. Do not modify the plug in any way. If a long extension cord is used: •... -
Page 6: Electrical Data For Immersion Blender And Attachments
The output horsepower to the blending vessel will be slightly less than 1.0 HP . Unit comes with serviceable motor brushes. Caps are visible on the sides of the unit allowing for access to these brushes. All service should be completed by a qualified service technician and follow the KitchenAid Commercial Hand Blender Service / Repair Manual. -
Page 7: Parts And Features Guide
Bowl clamp Stainless steel blending arm (5KHBC120 shown) Secondary handle Whisk attachment* Hub cap *Accessory sold separately. MODEL COMPARISON 5KHBC412 (305 mm) 5KHBC414 (356 mm) 5KHBC416 (406 mm) 5KHBC418 (457 mm) Storage case 5KHBC420 (508 mm) -
Page 8: Optional Accessories
PARTS AND FEATURES GUIDE Optional accessories Accessory Model # Style Length Whisk 5KHBC110WSS 254 mm attachment* *Accessory sold separately Multipurpose 5KHBC112MSS 305 mm S-blade 5KHBC114MSS 356 mm (5KHB112SS shown) 5KHBC116MSS 406 mm 5KHBC118MSS 457 mm 5KHBC120MSS 508 mm Recommended 5KHBC412OB 22.7 litres bowl (maximum) bowl size 5KHBC414OB... -
Page 9: Commercial Immersion Blender Features
PARTS AND FEATURES GUIDE CMD + SHIFT CLICK TO CHANGE COPY Commercial Immersion Blender features Speed control dial Continuous run Provides easy adjustment of speed with When used with the bowl clamp, this a turn of the dial, located at the base feature allows for continuous operation. -
Page 10: Before First Use
Intended use This KitchenAid Commercial Immersion Blender is intended for use in restaurants, professional kitchens, and other food service locations. The Commercial Immersion Blender can be used directly in a pot or bowl to mix a variety of ingredients. -
Page 11: Using The Commercial Immersion Blender With Blade Attachments
OPERATING THE COMMERCIAL IMMERSION BLENDER CMD + SHIFT CLICK TO CHANGE COPY Using the Commercial Immersion Blender with blade attachment 1. Insert blending arm attachment into 3. Set Commercial Immersion Blender the motor body, twist to lock. The to your desired speed on the speed attachment mark on the blending arm control dial. - Page 12 OPERATING THE COMMERCIAL IMMERSION BLENDER 5. Press the LOCK switch to unlock the Using a light circular motion from your Commercial Immersion Blender, then wrist, draw the Commercial Immersion press and hold the Power/pulse trigger Blender up slightly and let it fall again to activate.
-
Page 13: Using The Commercial Immersion Blender With The Whisk Attachment
OPERATING THE COMMERCIAL IMMERSION BLENDER CMD + SHIFT CLICK TO CHANGE COPY Using the Commercial Immersion Blender with the whisk attachment 1. Insert the whisk attachment into the motor body and twist to lock. The attachment mark on the whisk should line up with the bottom of the motor bell when fully attached. - Page 14 OPERATING THE COMMERCIAL IMMERSION BLENDER 4. Insert the whisk into the mixture. For best results, insert the Commercial Immersion Blender with the whisk attached into the pot or bowl containing ingredients at an angle. Use your free hand to hold the pot or bowl or hold the Commercial Immersion Blender near the base of the motor unit for better stability.
-
Page 15: Using The Bowl Clamp And The Continuous Run Feature
OPERATING THE COMMERCIAL IMMERSION BLENDER CMD + SHIFT CLICK TO CHANGE COPY Using the bowl clamp and the continuous run feature 1. Slide the notched latch into the bowl clamp at the slot in the top of the clamp; then, use the adjustment wheel to tighten into place at the correct spot for the bowl you are using to mix. -
Page 16: Care And Cleaning
CARE AND CLEANING Washing the motor body Always clean the Commercial Immersion Blender prior to initial use, after each use, and before storing. 1. Unplug the Commercial Immersion Blender before cleaning. 2. Remove the attachments by twisting (see "Operating the Commercial Immersion Blender"... -
Page 17: Troubleshooting
TROUBLESHOOTING CMD + SHIFT CLICK TO CHANGE COPY If the Commercial Immersion Blender has stopped working, check for the following: Unit has been unplugged • Release the Power/pulse trigger. • Restart the Commercial Immersion Blender as instructed in “Operating • Check the power supply. the Commercial Immersion Blender”. -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS (mm) (mm) (mm) (mm) (mm) (mm) (kgs) 5KHBC112 73.4 723.4 383.9 101.5 5KHBC114 73.4 774.2 434.7 101.5 5KHBC116 73.4 485.5 101.5 5KHBC118 73.4 875.8 536.3 101.5 5KHBC120 73.4 926.6 587.1 101.5... - Page 19 EN61000-3-3:2013 11 November 2016 Mark Dahmer / Engineering Director Authorised to compile technical file KitchenAid Portable Appliances Division Saint Joseph, MI USA Noise/Vibration Data Measured values determined according to EN12853 Total vibration values (vector sum of three axes) determined according to EN12853...
-
Page 20: Warranty And Service
KITCHENAID DOES NOT ASSUME ANY RESPONSIBILITY FOR INDIRECT DAMAGES. Customer Service In U.K. and Ireland: For any questions, or to find the nearest KitchenAid Authorised Service Centre, please find our contact details below. NOTE: All service should be handled locally by an Authorised KitchenAid Service Centre. - Page 21 ©2017. All rights reserved. Specifications subject to change without notice. W10859533A 02/17...
