Installation Instructions
Model SRC-8
Addressable 8-Output Relay Module
OPERATION
The Model SRC-8 module from Siemens
Industry, Inc., used with the SXL-EX System is
an 8-Output Programmable Relay Module that
provides eight Form C relays. Terminal Block 9
(See Figure 1 below) provides a connection to
TB3 on the Main Board for a 24V regulated and
filtered power supply. Terminal blocks 1-8
provide the eight Form C relays.
If the green LED (labeled DS1) on the right-
hand side of the module is on, it indicates that
the module is active.
The SRC-8 causes a trouble on the display
panel when any of the following three conditions
occurs:
1. There is a short on the data line.
2. No SRC-8 module is connected to the
System, though there is an address for the
module in the System.
3. An SRC-8 module is connected to the
system, but there is no address for it in the
System.
TB1
TB2
TB3
TB4
C
C
C
C
C
C
C
C
N
N
N
N
N
N
N
O
C
O
C
O
C
C
RELAY 1
RELAY 2
RELAY 3
RELAY 4
-V
+24V
ER
Data
SRC-8
TB9

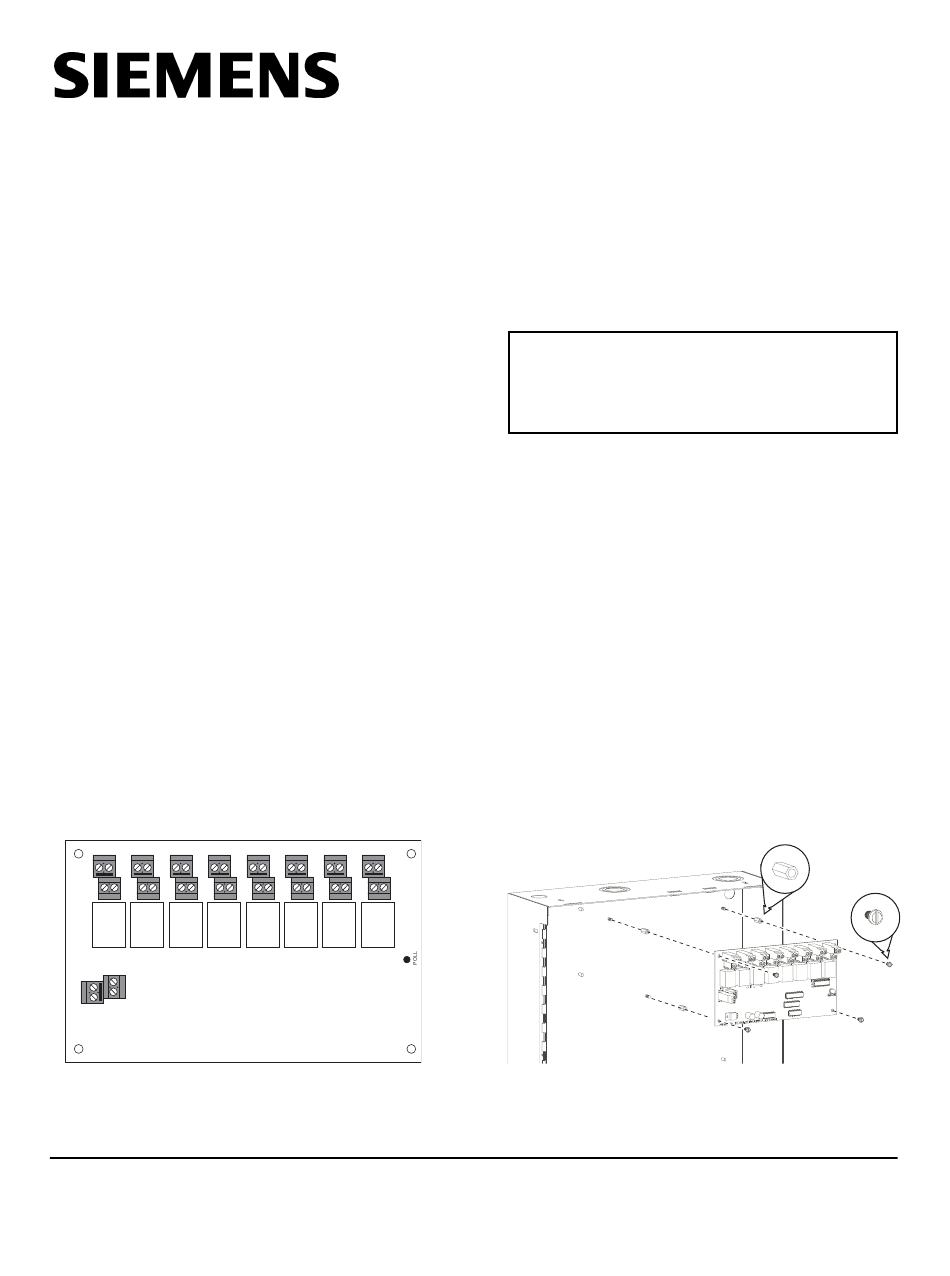

Figure 1
SRC-8 Module
Siemens Industry, Inc.
Building Technologies Division
Florham Park, NJ
P/N 315-092968-10
TB5
TB6
TB7
TB8
C
C
C
C
C
C
C
C
N
N
N
N
N
N
N
N
N
O
C
O
C
O
C
O
C
O
RELAY 5
RELAY 6
RELAY 7
RELAY 8
DS1
INSTALLATION
Remove all System power before
installation, first battery and then AC.
(To power up, connect the AC first
and then the battery.)
In a New SXL-EX System
(Refer to Figure 2):
Install the SRC-8 in the upper right-hand
portion of the EN-SX enclosure by following the
steps listed below.
1. Insert the four 6-32 x
four studs in the upper right-hand corner of
the SXL-EX enclosure as shown in Figure 2.
2. Place the SRC-8 board over the four
standoffs in the upper right-hand portion of
the EN-SX enclosure. Using the four 6-32
screws provided, fasten the SRC-8 board to
the standoffs.
Figure 2
Installing an SRC-8
Siemens Building Technologies, Ltd.
Fire Safety & Security Products
2 Kenview Boulevard
Brampton, Ontario
L6T 5E4 Canada
1
/
standoffs over the
2
4X
4X
