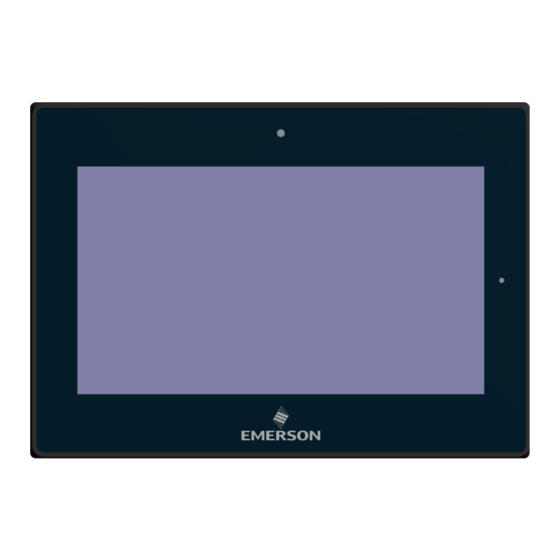

RXi – Panel PC

Advertisement

Table of Contents
loading

Related Manuals for Emerson RXi

Summary of Contents for Emerson RXi

  • Page 1 User Manual GFK-3066 May 2019 RXi – Panel PC...
  • Page 2 User Manual Contents GFK-3066 Rev. A May 2019 Contents...

  • Page 3: Table Of Contents

    Section 1: Getting Started ..............7 Features .......................... 7 Specifications ........................7 Technical Drawings & Dimensions ................10 Brief Description of RXi - Panel PC ................16 Section 2: Hardware ............... 23 Key Features ......................... 23 Motherboard Specifications ..................24 2.2.1 Specifications .....................
  • Page 4 User Manual Contents GFK-3066 Rev. A May 2019 2.3.10.1.1 BIOS Setting..................28 2.3.11 AIO/DIO Connector.................... 29 2.3.12 Battery ....................... 29 LED Indicators ....................... 29 2.4.1 Operation Status LEDs (Screen) ................. 29 2.4.2 Ethernet Port Operation LEDs ................30 Section 3: BIOS Setup ..............
  • Page 5 User Manual Contents GFK-3066 Rev. A May 2019 3.2.13.1.2 Disabled ....................39 3.2.13.1.3 Auto..................... 39 3.2.14 USB Mass Storage Driver Support ..............39 3.2.15 NCT61120 Super IO Configuration ..............40 3.2.15.1 Serial Port ....................41 3.2.15.2 RS485 Auto Flow Support ................. 41 3.2.16 NCT 6112D HW Monitor ..................
  • Page 6 User Manual Contents GFK-3066 Rev. A May 2019 3.3.13 Boot ........................49 3.3.13.1 Setup Prompt Timeout ................49 3.3.13.2 Bootup NumLock State ................50 3.3.13.3 Quiet Boot ....................50 3.3.13.4 Boot Option #1/#2 ..................50 3.3.14 Hard Drive BBS Priorities ................... 50 3.3.14.1 Launch CSM ....................
  • Page 7 User Manual Contents GFK-3066 Rev. A May 2019 Section 4: Installation of Drivers ............ 56 Drivers Installation Instruction ..................56 Section 5: Mounting Information ........... 60 Panel Mount ......................... 60 5.1.1 Panel Cutout Dimensions .................. 60 5.1.2 Installation Steps ....................61 Mounting to Modular Display ..................

  • Page 8: Getting Started

    User Manual Section 1 GFK-3066 Rev. A May 2019 Section 1: Getting Started Features Primary technical features: • 7”/ 10”/ 12”/ 15”/ 19”/ 24” Industrial Widescreens • 7”/ 10”/ 12”/ 15” Industrial Widescreen Outdoor Sunlight Readable Screens • Modular Design •...
  • Page 9 User Manual Section 1 GFK-3066 Rev. A May 2019 Display Size 7" 10" 12" 15" 19" 24" AMD Embedded Chipset G-Series SOC Processor GX-210HL GX-412GC Processor # of cores/TDP 2/7W 4/15W CPU frequency/L2 Cache 1.0Ghz/1MB 1.2Ghz/2MB GPU frequency 267Mhz 300Mhz 4GB or 8GB DDR3L Memory Capacity...
  • Page 10 User Manual Section 1 GFK-3066 Rev. A May 2019 Display Size 7" 10" 12" 15" 19" 24" Protection-Class Front-Side IP66 (When Installed to a Wall/Panel) Back-Side IP20 Operating System Installed Standard Windows 10 IOT Enterprise LTSB Tool 1 Secure & Trusted Boot Capability Software Tools Tool 2 DHCP-Client, Web Browser (IE or FireFox), Java JRE Capability...

  • Page 11: Technical Drawings & Dimensions

    User Manual Section 1 GFK-3066 Rev. A May 2019 Technical Drawings & Dimensions Figure 1.1 Dimensions of 7” Getting Started...
  • Page 12 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.2 Dimensions of 10” Getting Started...
  • Page 13 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.3 Dimensions of 12” Getting Started...
  • Page 14 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.4 Dimensions of 15” Getting Started...
  • Page 15 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.5 Dimensions of 19” Getting Started...
  • Page 16 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.6 Dimensions of 24” Getting Started...

  • Page 17: Brief Description Of Rxi - Panel Pc

    The RXi – Panel PC comes with either a Dual Core 1.0 GHz processor or a Quad Core 1.2GHz Processor with 4GB or 8GB of available DDR3 RAM with Windows 10 IOT Enterprise LTSB OS installed standard. The high resolution, multitouch, projective capacitive screens can be used with personal protective equipment and feature quick response times.
  • Page 18 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.8 Front View of 10” Figure 1.9 Front View of 12” Getting Started...
  • Page 19 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.10 Front View of 15” Figure 1.11 Front View of 19” Getting Started...
  • Page 20 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.12 Front View of 24” Figure 1.13 Rear View of 7” Getting Started...
  • Page 21 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.14 Rear View of 10” Figure 1.15 Rear View of 12” Getting Started...
  • Page 22 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.16 Rear View of 15” Figure 1.17 Rear View of 19” Getting Started...
  • Page 23 User Manual Section 1 GFK-3066 Rev. A May 2019 Figure 1.18 Rear View of 24” Getting Started...

  • Page 24: Hardware

    User Manual Section 1 GFK-3066 Rev. A May 2019 Section 2: Hardware Key Features • Watchdog Timer • DDR3 • Graphics • Serial ATA • Gigabit LAN • Power Failure Recovery • • Wake-On-LAN • Wake-On-USB • ACPI-STR • RTC Timer BIOS Setup...

  • Page 25: Motherboard Specifications

    User Manual Section 1 GFK-3066 Rev. A May 2019 Motherboard Specifications 2.2.1 Specifications Board Size 170mm x 113mm AMD® Embedded G-Series CPU Support AMD® GX-210HL, Dual Core, 1M Cache, 1.0GHz, 7W AMD® GX-412GC, Quad Core, 2M Cache, 1.2GHz, 15W On board 4GB/8GB DDR3L Memory with ECC Memory Support Supports Single Channel DDR3 1066/1333MHz AMD Radeon...

  • Page 26: I/O And Connectors

    0.3 Nm (2.26 in-lb). 5. Apply dc power to the unit. During normal startup and operation, the LED status indicator displays as follows: • Solid amber while the RXi - Industrial Display unit is starting up BIOS Setup...

  • Page 27: Graphics Interface

    User Manual Section 1 GFK-3066 Rev. A May 2019 • Solid green during normal operation 6. Once power is applied, the unit begins initializing. The first thing to display is the splash screen. Be sure to connect a DC power cord to this 3-pin power connector. Using a voltage out of the range may fail to boot the system or cause damage to the system board.

  • Page 28: Usb Ports

    The USB ports allow for data exchange between your computer and a wide range of simultaneously accessible external Plug and Play peripherals. The RXi – Panel PC is equipped with 2 onboard USB 3.0 ports (USB 0-1) in the small configuration with an additional 2 USB 2.0 ports (USB 4-5) in the large box configuration.

  • Page 29: Bios Setting

    User Manual Section 1 GFK-3066 Rev. A May 2019 • Mic-in Jack (Pink) This jack is used to connect an external microphone. 2.3.7.2 BIOS Setting Configure the onboard Audio device in the Chipset menu (“SB HD Azalia Configuration” submenu) of the BIOS.

  • Page 30: Aio/Dio Connector

    Dispose of used batteries according to local ordinances. LED Indicators 2.4.1 Operation Status LEDs (Screen) All RXi Industrial Displays have a tri-color LED built into the screen that provides visual indication of the operation status. LED State System State Amber, Solid...

  • Page 31: Ethernet Port Operation Leds

    User Manual Section 1 GFK-3066 Rev. A May 2019 2.4.2 Ethernet Port Operation LEDs LED State Operating State Speed Yellow, ON 10/100/1000 Link Activity Green, ON Link Status BIOS Setup...

  • Page 32: Bios Setup

    User Manual Section 1 GFK-3066 Rev. A May 2019 Section 3: BIOS Setup BIOS Setup The BIOS is a program that handles of the basic levels of communication between the CPU and peripherals. It contains codes for various advanced features found in this system board. The BIOS allows you to configure the system and save the configuration in a battery-backed CMOS so that the data is retained even when the power is off.

  • Page 33: Ami Bios Setup Utility

    User Manual Section 1 GFK-3066 Rev. A May 2019 AMI BIOS Setup Utility 3.2.1 Accessing the BIOS To access the BIOS, you must attach a USB keyboard to the computing unit and repeatedly press F2 during the start up sequence until it brings you to the Main Menu 3.2.2 Main Menu The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

  • Page 34: System Language

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.5 System Language The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23.

  • Page 35: Enable Acpi Auto Configuration

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.7.1 Enable ACPI Auto Configuration This field is used to enable or disable BIOS ACPI auto configuration. 3.2.7.2 Enable Hibernation This field is used to enable or disable the system’s ability to hibernate (OS/S4 Sleep State). This option may be not be functional with all operating systems.

  • Page 36: Pending Operation

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.8.2 Pending Operation Schedule an operation for the security device. Your computer will reboot during restart in order to change state of security device. 3.2.9 Wakeup Configuration This section is used to configure the Wakeup ACPI Power Management. 3.2.9.1 Resume by PME Enable or disable to resume by PME (PCI, PCIe, LAN, etc.)

  • Page 37: Cpu Configuration

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.10 CPU Configuration This section is used to configure the CPU. It will also display the detected CPU information. 3.2.10.1 SVM Mode Enable or disable CPU Virtualization. 3.2.10.2 Core Leveling Mode Select the number of cores in the system: Automatic mode, Three cores per processor, Two cores per processor or One core per processor.

  • Page 38: Node 0 Information

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.10.3 Node 0 Information View Memory Information related to Node 0. BIOS Setup...

  • Page 39: Ide Configuration

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.11 IDE Configuration This section is used to configure the IDE Devices. It will also display the detected information. 3.2.12 USB Configuration This section is used to configure the parameters of USB Device. BIOS Setup...

  • Page 40: Legacy Usb Support

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.13 Legacy USB Support 3.2.13.1.1 Enabled Enable Legacy USB 3.2.13.1.2 Disabled Keep USB devices available only for EFI applications. 3.2.13.1.3 Auto Disable support for legacy when no USB devices are connected. 3.2.14 USB Mass Storage Driver Support Enable or disable the support of the USB Mass Storage Driver.

  • Page 41: Nct61120 Super Io Configuration

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.15 NCT61120 Super IO Configuration This section is used to configure the parameters of the system super IO chip. BIOS Setup...

  • Page 42: Serial Port

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.15.1 Serial Port Enable or disable the serial COM port. 3.2.15.2 RS485 Auto Flow Support Enable or disable the RS485 auto flow support. 3.2.16 NCT 6112D HW Monitor This section is used to monitor the hardware status. 3.2.17 NCT 6112D Super IO Features This section is used to configure some control functions of the system super IO chip.

  • Page 43: Watchdog Count Mode

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.17.1 WatchDog Count Mode A WatchDog timer (WDT) is a hardware timer that automatically generates a system reset if the main program neglects to periodically service it. It is often used to automatically reset an embedded device that hangs because of a software or hardware fault.

  • Page 44: Network Stack

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.2.18.1 Network Stack Enable or disable UEFI network stack. When Network Stack is set to enabled, the screen will be displayed as below. 3.2.18.2 Ipv4 PXE Support When enabled, Ipv4 PXE boot supports. When disabled, Ipv4 PXE boot option will not be available. 3.2.18.3 Ipv6 PXE Support When enabled, Ipv6 PXE boot supports.

  • Page 45: Chipset

    User Manual Section 1 GFK-3066 Rev. A May 2019 Chipset This section configures relevant chipset functions. BIOS Setup...

  • Page 46: Onchip Sata Channel

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.1 OnChip SATA Channel Enable or disable Serial ATA. 3.3.2 OnChip SATA Type Select OnChip SATA Type: Native IDE, AHCI, or Legacy IDE. 3.3.3 SD Mode Enable or disable Secure Digital (SD) Mode configuration. BIOS Setup...

  • Page 47: Sd Host Controller Version

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.4 SD Host Controller Version Select Secure Digital (SD) host controller version: SD2.0 or SD3.0. 3.3.5 SD Host Controller Version Control the detection of the Azalia device. 3.3.5.1 Auto HD Audio will be enabled if present, disabled otherwise. 3.3.5.2 Disabled HD Audio will be fully disabled.

  • Page 48: Enabled

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.5.3 Enabled HD Audio will be fully enabled. 3.3.6 Restore on AC power loss 3.3.6.1 Power On When power returns after an AC power failure, the system will automatically power-on. 3.3.6.2 Power Off When power returns after an AC power failure, the system will remain off.

  • Page 49: Gpp3 Hotplug Mode Control

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.8 GPP3 Hotplug Mode Control Enable or disable GPP3 hotplug mode control. BIOS Setup...

  • Page 50: Dp0 Output Mode

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.9 DP0 Output Mode Select NB PCIe connect type (display device):eDP or Disabled. 3.3.10 DP1 Output Mode Select NB PCIe connect type (display device): DP or Disabled. 3.3.11 Auto Backlight Dimming Enable or disable dimming backlight by TB573D.

  • Page 51: Bootup Numlock State

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.13.2 Bootup NumLock State This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

  • Page 52: Launch Csm

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.3.14.1 Launch CSM This field is used to enable or disable to launch CSM. 3.3.14.2 Boot option filter This option controls what device(s) the system will boot to. 3.3.14.3 Launch PXE OpROM policy This field controls the execution of UEFI and Legacy PXE OpROM.

  • Page 53: Security

    User Manual Section 1 GFK-3066 Rev. A May 2019 Security 3.4.1 Administrator Password Set the administrator password. 3.4.2 User Password Set the user password. 3.4.3 Secure Boot Menu This section is used to configure customizable secure boot settings. BIOS Setup...

  • Page 54: Secure Boot

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.4.3.1 Secure Boot Enable or disable secure boot. Secure Boot can be enabled if: 1. System running in user mode with enrolled platform key (PK); 2. CSM function is disabled. 3.4.3.2 Secure Boot Mode Select secure boot mode: standard or custom.

  • Page 55: Set New Pk

    User Manual Section 1 GFK-3066 Rev. A May 2019 3.4.4.3 Set new PK Select “Yes” and press <Enter> to set a new PK or select “No” and press <Enter> to load it from a file on external media. 3.4.4.4 Set new KEK Select “Yes”...

  • Page 56: Save & Exit

    User Manual Section 1 GFK-3066 Rev. A May 2019 Save & Exit 3.5.1 Menu Options 3.5.1.1 Save Changes and Reset To save the changes, select this field and then press <Enter>. A dialog box will appear. Select Yes to reset the system after saving all changes made.

  • Page 57: Installation Of Drivers

    User Manual Section 4 GFK-3066 Rev. A May 2019 Section 4: Installation of Drivers Drivers Installation Instruction Read the End User License Agreement and accept to start installation Detecting hardware Installation of Drivers...
  • Page 58 User Manual Section 4 GFK-3066 Rev. A May 2019 Select Express Installation Installing now Installation of Drivers...
  • Page 59 User Manual Section 4 GFK-3066 Rev. A May 2019 Radeon Software (17.7) has been installed and restarts the computer now Select Custom Installation Select your requirements of this installation Installation of Drivers...
  • Page 60 User Manual Section 4 GFK-3066 Rev. A May 2019 Complete the whole installation and restart the computer again Installation of Drivers...

  • Page 61: Mounting Information

    User Manual Section 5 GFK-3066 Rev. A May 2019 Section 5: Mounting Information Panel Mount 5.1.1 Panel Cutout Dimensions Panel Thickness: 1.6 to 5mm All measurements within ±0.5mm Figure 5.1 Panel Cutout Dimension Definitions Width Display Size (in) Width (mm) Height (mm) 183.5 128.5...

  • Page 62: Installation Steps

    User Manual Section 5 GFK-3066 Rev. A May 2019 5.1.2 Installation Steps Verify that the gasket is present and properly seated in the bezel channel located on the sides of the unit Insert the Panel PC into the mounting panel cutout Figure 5.2 Panel Install View Insert the hook of the mounting bracket into the mounting hole as displayed in the following figure.

  • Page 63: Mounting To Modular Display

    User Manual Section 5 GFK-3066 Rev. A May 2019 4. Tighten the screws on the mounting bracket in a clock-wise direction. Figure 5.4 Tighten Mounting Bracket Mounting to Modular Display Figure 4.2 7” Mount Mounting Information...
  • Page 64 User Manual Section 5 GFK-3066 Rev. A May 2019 Figure 4.3 10” Mount Figure 4.4 12” Mount Mounting Information...
  • Page 65 User Manual Section 5 GFK-3066 Rev. A May 2019 Figure 4.5 15” Mount Figure 4.6 19”/24” Mount Mounting Information...

  • Page 66: Vesa Mount

    User Manual Section 5 GFK-3066 Rev. A May 2019 VESA Mount 5.3.1 VESA Mount Dimensions All 7 & 10”units include VESA Mount Dimensions of 75mm x 75mm. All 12” through 24” units include VESA Mount Dimensions of 100mm x 100mm. All units fastened with four M4x8 Screws Figure 5.5 7”...
  • Page 67 User Manual Section 5 GFK-3066 Rev. A May 2019 Figure 5.7 12” VESA Mount Figure 5.8 15” VESA Mount Mounting Information...
  • Page 68 User Manual Section 5 GFK-3066 Rev. A May 2019 Figure 5.9 19”/24” VESA Mount Mounting Information...
  • Page 69 All Rights Reserved. We reserve the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and maintenance of any Emerson product remains solely with the purchaser.
