1.7
Insert and Secure the AlphaServer DS15
1. Using both hands, place the AlphaServer DS15 onto the rails and push it back into the
cabinet (see Figure 1-5).
2. Push the AlphaServer DS15 back into the rack.
3. Secure the AlphaServer DS15 into the cabinet by fastening the right and left front
rackmount ears.

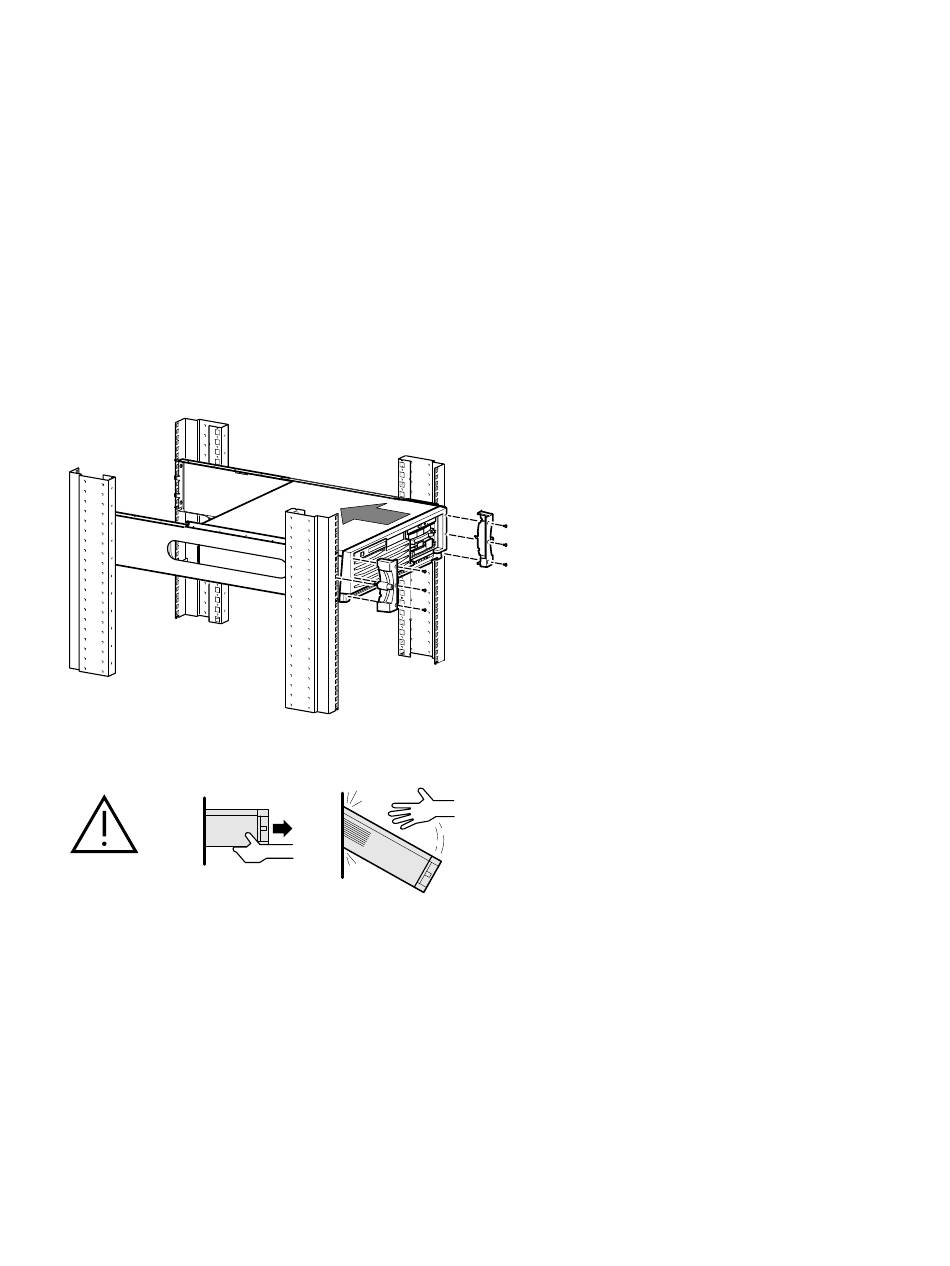

Figure 1-5 Inserting and Securing the Unit
Caution: During removal, system box not tethered.
Attention: Pendant le déplacement, le boîtier système n'est pas fixé.
Precaución: Durante el traslado, no debe atarse la caja del sistema.
Achtung: Beim Entfernen ist das Systemgehäuse nicht gesichert.
1-6 Series 10000 Rackmount Installation
MR0554A
PK1037-99
