Summary of Contents for Siemens SIMATIC IPC847D

Page 1 Detailed description of the BIOS setup and the setup parameters "SIMATIC IPC647D/847D Hardware RAID Configuration" Compact Operating Instructions: Detailed description of the Hardware RAID systems "SIMATIC IPC847D with Uninterruptible AC Power Supply (AC-UPS)" Compact Operating Instructions: Detailed description for systems with uninterruptible AC power supply 01/2014...
Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 3: Preface
General knowledge in the field automation control engineering is recommended. Validity of the Operating Instructions These operating instructions are valid for all supplied versions of the SIMATIC IPC847D. Scope of this documentation The documentation for the SIMATIC IPC847D includes the following sections: ●...
Page 4 Preface SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 5: Table Of Contents
COM, DP, DVI/VGA, PS/2 and audio cables ................51 3.3.7 Multi-monitoring..........................51 Commissioning the device ........................53 General information on commissioning ..................53 Switching on the device ....................... 54 Windows Action Center ........................ 55 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 6 Example for a RAID1 system during the boot phase of the system ........... 90 7.3.2 Example for a RAID5 system during the boot phase of the system ........... 90 7.3.3 RAID software ..........................91 7.3.4 Checking the status of the RAID system ..................91 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 7 Structure and functions of the motherboard ................131 8.5.1.2 Technical features of the motherboard ..................132 8.5.1.3 Position of the interfaces on the motherboard ................134 8.5.1.4 External interfaces ........................135 8.5.1.5 Internal ports ..........................146 8.5.2 Bus board ........................... 154 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 8 Technical support..........................193 Service and support ........................193 Troubleshooting ........................194 RAID system and device startup ....................197 Notes on the use of third-party modules ................... 198 Abbreviations ............................199 Glossary .............................. 205 Index ..............................217 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 9: Overview

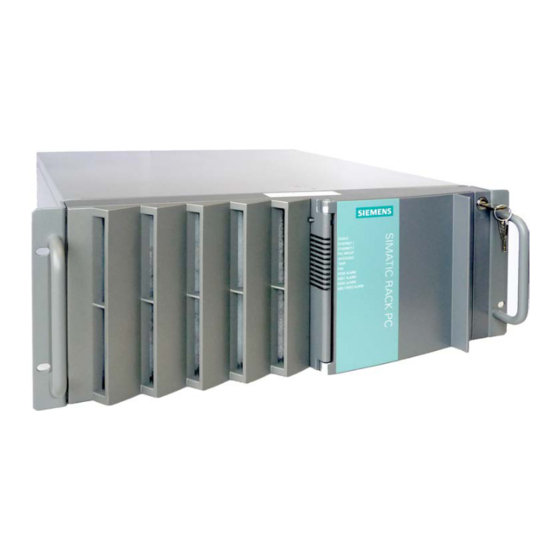

Overview Product description SIMATIC IPC847D is an industrial PC in 19" rack format (4 HU) with high-performance industrial functionality. ● Wide range of expansion options ● High degree of ruggedness ● Extensive product continuity 1.1.1 Scope of application The SIMATIC IPC offers system integrators, cabinet designers, system engineers and machine designers a 19"...
Page 10: Highlights
● RAID5 – striping with parity on three hard disks, "hot swap" in connection with removable drive bays Configuration hot-spare drive available for order. ● Optional ECC memory module ● Redundant power supply with status message SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 11: Function
● RAID1 (mirroring): For automatic data mirroring on two hard disks. Configurations with hot-spare drive available for order. ● RAID5 (striping with parity): For increased memory capacity and improved data security on three hard disks. Configurations with hot-spare drive available for order. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 12: Features
Hz / 32-bit color depth LCD via DVI-D: up to 2048 × 1152 at 60 Hz / 32-bit color • depth LCD via DisplayPort: up to 4096 × 1152 at 24Hz / 32- • bit color depth SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 13 TEMP (temperature status) • FAN (speed monitoring) • HDD0 Alarm, HDD1 Alarm, HDD2 Alarm, HDD | HDD3 • Alarm: Access to hard disk and with RAID option: RAID status message in conjunction with SIMATIC monitoring software SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 14 ** An additional hot-spare drive or additive SSD drive can be ordered as an option. Solid State Drive 2.5" (SATA) 240 GB MLC • Graphics cards PCIe x16 graphics card, dual head (2 × VGA or 2 × DVI-D) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 15 System / Ethernet monitoring (Heartbeat) • SIMATIC IPC Image & Partition Software tool for local data backup and setting up of the hard Creator V3.3.2 or higher disks. A hot-spare drive of a RAID system is not displayed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 16: Design Of The Device
Rear view of the device (example) Item Description ① Ventilation ② Bay for power supply (optional, e.g., redundant power supply) ③ Expansion card slots ④ Interfaces ⑤ Power supply mains connection SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 17: Operator Controls
Used to connect the device to the mains. Depending on the "After G3 On" BIOS setting, the device may turn on automatically. Otherwise, you may have to operate the on/off ① button on the front. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 18 PC may turn on automatically. Otherwise, ① you may have to operate the on/off button on the front. ④ Acknowledgment button (redundant power supply) The acoustic error signal is deactivated when the button is pressed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 19: Interfaces
Overview 1.2 Design of the device 1.2.3 Interfaces Layout of the interfaces on the rear of the device SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 20 Dual-head adapter for connection of two monitors to the optional graphics card ⑭ DMS59 connector DMS59 connection ⑮ DVI-I connector DVI-I connections ⑯ VGA connector VGA connections Not shown in figure SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 21 The permitted voltage range is 100 V AC to 240 V AC. ⑯ Power connection socket in case of redundant power supply of the device. The permitted voltage range is 100 V AC to 240 V AC. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 22: Status Displays
CP 1616 onboard No data traffic • CP 1616 onboard not equipped • CP disabled • No error, communication • established Charging in progress • CP 1616 driver not installed • CP in NDIS mode • SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 23 ** The HDD | HDD3 ALARM LED also displays the hard disk activity for all hard disks. *** A hot-spare drive of a RAID system is not displayed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 24 The two "virtual" CP 1616 LEDs are only visible in the SIMATIC software and can be read via SNMP. PROFINET Virtual LEDs CP is active STOP CP is in the stop state Flashes The states "flashes slowly" or "flashes rapidly" do not exist. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 25: Accessories
Accessories are available for your device. These are not included in the product package. Information on available accessories is listed in the table below and on the Internet at the following addresses: ● IPC expansion components (http://www.automation.siemens.com/mcms/pc-based- automation/en/industrial-pc/expansion_components_accessories) ● Industry Mall (http://mall.automation.siemens.com) Name Description IPC647D IPC847D Order number and figure...
Page 26 Simplified data backup by copying, for • example, to a backup hard drive. Simple transportation of backup data • Separate data storage and archiving • possible SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 27 Overview 1.3 Accessories SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 29: Safety Instructions
When you open the control cabinet, some areas or components may be carrying life- threatening voltages. If you touch these areas or components, you may be killed by electric shock. Switch off the power supply to the cabinet before opening it. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 30 • Do not throw lithium batteries into fire, do not solder on the cell body, do not recharge, do not open, do not short-circuit, do not reverse polarity, do not heat above 100°C and protect from direct sunlight, moisture and condensation. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 31 ESD directive in the technical specifications. IT Security Siemens offers automation and drive products with industrial security functions that support the secure operation of plants and machines. They are important components for an integrated industrial security concept. The products undergo continual development with this aspect in mind.
Page 32: Notes On Use
The device is tested and certified on the basis of the technical standards. In rare cases, functional restrictions can occur during plant operation. Validate the correct functioning of the plant to avoid functional restrictions. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 33 • Do not obstruct the venting slots of the device. Note Use in an industrial environment without additional protective measures This device was designed for use in a normal industrial environment according to IEC 60721-3-3. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 34 Safety Instructions 2.2 Notes on use SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 35: Installing And Connecting The Device
Death or serious injury could occur. Make sure that the damaged device is not inadvertently installed and put into operation. Label the damaged device and keep it locked away. Send off the device for immediate repair. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 36: Identification Data Of The Device
● Device Ethernet address: The Ethernet address is printed on the device and is stored in the BIOS Setup under "Main". ● Microsoft Windows "Product Key" on the "Certificate of Authenticity" (COA). The COA label is attached to the inside of the front door. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 37: Permitted Mounting Positions
The device can be mounted horizontally in control desks, switching cabinets and 19" rack systems. NOTICE Operation in closed rooms The device is approved for operation in closed rooms only. Pay attention to the ambient and environmental conditions. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 38: Mounting The Device
● Install the device in such a way that it does not pose a danger, for example, by falling over. Note For more details, consult the "Technical Data" in the "Ambient conditions" chapter. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 39 For vertical operation, install the device on a horizontal metal base and secure it against tilting. The following RITTAL module panels are available: Rittal type TE 7000.620, Rittal type VR 5501.655, Rittal type DK 5501.655. Note the information of the switch cabinet supplier. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 40: Connecting The Device
Note Ensure that the shockproof power outlet of the building installation is freely accessible and as close as possible to the device, especially if the power plug is secured by a power plug latch. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 41: Connection Of Equipotential Bonding
The minimum cross- section of the equipotential bonding cable may not be less than 2.5 mm SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 42: Connecting The Power Supply
Use a flexible cable with UL approval and CSA label which has the following features: Type SJT with three conductors, min. 18 AWG conductor cross-section, max. length 4.5 m, and tandem grounded connector 15 A, min. 250 V. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 43 You cancel the warning signal by ④ pressing button The status is also displayed and signaled by the SIMATIC monitoring software, if active. You can mute the acoustic alarm in the SIMATIC monitoring software. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 44: Connecting Peripherals
• The computer in question must be turned off and the power supply connector should be plugged in. • During the measurement, all cables from the plant to the computer should be connected. • All other components in the plant must be active. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 45: Connecting The Device To Networks
Kit DK-16xx PN IO. It must be installed in addition to the CP 16xx.sys device driver. This kit and the documentation are available free of charge at the following Internet address: Development Kit DK-16xx PN IO (http://www.automation.siemens.com/net/html_00/produkte/040_cp_1616_devlopkit.htm) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 46 Additional information Additional information is available in the catalog and the online ordering system Industry Mall (http://mall.automation.siemens.com). See also Technical Support (http://www.siemens.de/automation/csi_en_WW) CP 1616 onboard The basic characteristics of the PCS 1616 onboard are: ● Optimized for PROFINET IO ● With Ethernet realtime ASIC ERTEC 400 ●...
Page 47 Read this guide if you want to install the NDIS device Device Driver CP16xx.sys driver, CP16xx.sys. Further information You can find the information on specific products in the Internet at the address: Product- related Information SIMATIC NET (http://www.siemens.com/simatic-net) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 48: Securing The Lines
WARNING Fire hazard If the power supply plug is secured with a connector lock, the power outlet must be freely accessible to allow the device to be easily removed from the mains. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 49: Redundant Power Supply
The strain relief provided in the scope of delivery is used to prevent accidental loosening of the network cable from the device. One cable tie (not included in the package) is required for each interface. To fix the strain relief, you will need a TORX T10 screwdriver. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 50 Installing and connecting the device 3.3 Connecting the device Procedure 1. Remove the PROFINET interface plate. 2. Attach the PROFINET strain relief. 3. Attach the cable using the cable tie. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 51: Com, Dp, Dvi/Vga, Ps/2 And Audio Cables
● 1 × DisplayPort, 1 × VGA via DisplayPort-VGA adapter, 1 × DVI/VGA Note The motherboard supports up to one additional DVI monitor if it is connected by means of a passive DisplayPort-DVI adapter. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 52 Installing and connecting the device 3.3 Connecting the device SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 53: Commissioning The Device
● The power supply is connected. ● An operating system is installed. The device can be supplied without an operating system. Information on installation of the operating system is available in the section "Installing the software". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 54: Switching On The Device
The product key is located on the "Certificate of Authentication" in the "Product Key" line, see section "Identification data of the device (Page 36)". Result The interface of the operating system is displayed every time you turn on the device and after the startup routine. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 55: Windows Action Center
Opening the front door CAUTION Electrostatic-sensitive devices The device contains electronic components which may be destroyed by electrostatic charge. Before you open the front door, read the (ESD) guidelines for handling electrostatic- sensitive devices. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 56: Dvd Burner Drive
The interface type of the hard disk is displayed on the front door. Always replace the defective hard disk with a new one of the same interface type and capacity. ● A key for the hard disk lock SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 57 8. Slide the cover of the removable drive bay lock to the left. 9. Lock it with the appropriate key. Note Always lock the hard disk tray in the removable drive bay to ensure reliable operation of a device with removable drive bay. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 58: 2Hdd System (Optional)
You can find information about the Intel® RAID controller in the RAID documentation in the "Drivers\RAID\Intel" directory on the supplied "Documentation and Drivers" DVD. Additional information on RAID5 systems can be found in the section "Managing RAID systems (Page 90)". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 59: Raid System With Hot Spare Drive
For non-Windows operating systems: ● Briefly press the on/off button. The operating system is shut down. The "POWER" LED goes out. The device is switched off but not fully disconnected from the mains voltage. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 60 Data on the drive may be lost. The device may be damaged. Perform a hardware reset only in the case of an emergency. For all operating systems: ● Press the on/off button for more than 4 seconds. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 61: Extended Device Functions
SIMATIC IPC DiagMonitor is available on CD (not included in the scope of delivery). This monitoring software comprises: ● The software for the stations to be monitored. ● A library for creating user-specific applications. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 62: Temperature Monitoring/Display
The following reactions may be triggered if the watchdog is not retriggered within the set time: Reaction Option Switch watchdog LED to red None Trigger a PC reset Configurable Output of DiagBase alarm messages None Note For more information on the watchdog functions, contact Customer Support. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 63: Fan Monitoring
CMOS data and buffer memory is at least 1 month. 5.1.6 Drive monitoring Default: SMART messages of the hard drives are signaled. RAID system: The states "Normal", "Degraded", "Rebuild" are displayed. The status of an inactive hot swap drive is not displayed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 64: Active Management Technology (Amt)
SIMATIC IPC Remote Manager The "SIMATIC IPC Remote Manager" software is available for utilization of the AMT functions with SIMATIC IPCs. The software can be ordered from the Siemens online ordering system. For detailed information about "SIMATIC IPC Remote Manager", refer to the corresponding product documentation.
Page 65: Trusted Platform Module (Tpm)
The warranty does not cover a reset of the hardware in the event of a loss of a password. Please store the password carefully and make sure it is protected against unauthorized access. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 66 Extended device functions 5.3 Trusted Platform Module (TPM) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 67: Expanding And Assigning Parameters To The Device
The maximum permitted power loss of expansion cards is 80 W. Devices equipped with hard disks in removable drive bays must not be exposed to shock or vibration during operation. The restrictions do not apply for the use of SSD. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 68 The maximum permitted power loss of expansion cards is 80 W. Devices equipped with hard disks in removable drive bays must not be exposed to shock or vibration during operation. The restrictions do not apply for the use of SSD. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 69: Open The Device
Additional information is available in the (ESD) guidelines for handling electrostatic-sensitive devices. Requirement ● Device is disconnected from power supply. ● TORX T10, T20 screwdriver SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 70 All technical data and approvals apply only to expansion units which are released by SIEMENS. Siemens does not accept any liability for impairment of functions caused by the use of third- party devices or components. Observe the installation instructions for the components. UL approval of the device only applies when the UL-approved components are used according to their "Conditions of...
Page 71: Expanding Memory
Requirement ● The device is opened. ● Remove the bus board, if necessary, for easier access to the memory modules. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 72 The memory module latches in audibly. The memory module is inserted correctly if less than 1 mm of the gold contacts is visible evenly across the entire length of the module. 5. Close the device. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 73 3. Close the device. Display of the current memory configuration The new memory configuration is detected automatically. The allocation of the ”base memory and extended memory” is automatically displayed when you switch on the device. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 74: Expansion Cards
Note on PROFINET expansion cards The "CP 1616 onboard" option must be disabled in the BIOS for devices with CP 1616 onboard, before a PROFINET card, such as a CP 1616, can be installed in the system. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 75: Removing And Installing Expansion Cards
System resources (Page 163). Information on disabling motherboard functions is available in the BIOS description. See also Bus board (Page 154) Interrupt assignment of the slot connectors on the bus board (Page 161) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 76: Drives
Adapters for one or three removable drive bays are available for installation of removable racks in the front drive cage. In the rear drive cage (with vibration damping) Item Description ① Rear drive cage ② Two bays for hard disk drives (with shock and vibration damping) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 77 Equipped with adapter plate and 2.5" drive in the figure ③ Internal drive cage (fixed) You do not need to remove the drive cage to install / remove the hard disks. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 78: Removing And Installing Drive Fans
If necessary, remove the adapter plug, for example, when removing the drive cage. ① 1. To do so, press on the clips the side of the adapter plug and remove the plug by pulling it down. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 79: Removing And Installing Drives In The Front Drive Cage
1 cm toward the power supply. ⑤ Carefully lift the drive cage the top out of the device and put it down. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 80 Remove the removable drive bay by pulling it out toward the back (arrow). ③ Loosen the screws Remove the required removable drive bay with the drive. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 81 Remove the optical drive. Installing drives 1. Install the drives in the drive cage in reverse order. 2. Install the drive cage in the device in reverse order. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 82: Removing And Installing Drives In The Internal Drive Cage
Push the drive into the bay from the front. Secure the drive with four screws to the drive cage. Connect the power cable and the data cables to the drive. Install the drive cage again. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 83: Removing And Installing The Drive In The Fixed Hard Disk Bay
Removing drives Disconnect the power cable and the data cables from the drive. ③ ④ Loosen the four screws and remove the drive from the housing. See also Open the device. (Page 69) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 84: Replacing A Defective Hard Disk Drive In The Raid System
The new hard disk drive can be integrated into the RAID1 system at operating system level with the RAID software. Synchronization may take several hours, depending on system load. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 85 The new hard disk drive can be integrated into the RAID5 system at operating system level with the RAID software. Synchronization may take several hours, depending on system load. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 86 3. Replace the defective hard disk drive with a drive of the same type and capacity. Information about the recovery of the RAID system is available in the section "Integrating new hard disk into the RAID system". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 87: Device Maintenance And Repair
UL approval of the device only applies when the UL-approved components are used according to their "Conditions of Acceptability". We are not liable for functional limitations caused by the use of third-party devices or components. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 88: Maintenance
● T6 screwdriver for removing and installing the DVD drive ● T10 screwdriver for all of the remaining screws See also ESD guideline (Page 117) Spare parts and repairs (http://support.automation.siemens.com/WW/view/en/16611927) Maintenance 7.2.1 Maintenance intervals To maintain high system availability, we recommend the preventative replacement of those PC components that are subject to wear in accordance with the intervals for replacement indicated in the table below.
Page 89: Replacing Filters
Make absolutely certain that you do not fit the outer side of the filter pad on the inside. Generally, the outer side is clearly dirty after it has been in use for some time. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 90: Managing Raid Systems
"Documentation and Drivers" DVD. 7.3.2 Example for a RAID5 system during the boot phase of the system You can configure RAID hardware with <CTRL-I>. The associated description is available on the "Documentation and Drivers" DVD. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 91: Raid Software
Execution of keyboard, mouse or touch screen commands may be briefly delayed in extreme situations. This could result in operator errors on the machine or plant. Do not operate safety-critical functions when a hard disk has failed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 92: Displaying A Defective Hard Disk Of A Raid System In The Raid Software
To be able to boot from the RAID system, you must place it first in the list of bootable sources in the BIOS "Boot" setup menu. Otherwise, the system will boot from the hard disk you have just installed and the message "Operating system not found" will be displayed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 93: Integrating A New Hard Disk Drive In The Raid System
Sequence The following figure is an example for the automatic rebuilding process. A defective hard disk is still displayed during the rebuilding process. This display disappears when the rebuilding process is completed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 94 The new hard disk is then assigned to a SATA port and is integrated into the RAID system. A defective hard disk is still displayed during the rebuilding process. This display disappears when the rebuilding process is completed. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 95: Integrating A Hot Spare Hard Disk Drive In The Raid System
3. Select the new hard disk drive with the right mouse button and select the menu item "Mark Disk as Spare" in the shortcut menu. 4. Confirm the alarm in the "Mark Disk as Spare" window with "Yes". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 96: Installing And Removing Hardware
Open the front door until the ① latch releases the fan cover. Release the highlighted knurled screw of the fan bracket. Carefully lift the fan bracket out of the housing and put it down carefully. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 97 Ensure that the arrow on the device fan points away from the fan bracket. The device fan blows cooling air into the housing. Install the device fan in reverse order. The figure shows the proper device fan mounting position. Use the DiagBase software to check proper operation of the fan. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 98: Replacing The Backup Battery
The lithium battery may only be replaced with an identical battery or with a type recommended by the manufacturer (Order No.: A5E00047601). Information about the original spare parts for SIMATIC PCs is available in the Internet at SIMATIC IPC after-sales information system (http://www.siemens.com/asis). NOTICE Disposal of batteries Used batteries must be disposed of in accordance with local regulations.
Page 99 4. Close the device. New BIOS Setup Device configuration data may be deleted when you replace the backup battery, depending on the settings in BIOS Setup, and must be configured again in BIOS Setup. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 100: Removing Ac Power Supply
4. Loosen the cross-tip screw of the defective module. 5. Pull out the defective module at the handle. 6. Insert the new module and secure it with the screw. 7. Reconnect the power cable and reboot the device. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 101: Replacing The Redundant Power Supply Completely
7. Lift the power supply out of the housing. 8. To install the new power supply, carry out the same steps in the reverse order. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 102: Removing The Bus Board
4. Pull the bus board from the motherboard. 7.4.7 Removing the OP Requirement ● The device is opened. Procedure ① 1. Loosen the fixing screws ② 2. Disconnect the cables at the display module. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 103: Removing The Motherboard
The motherboard is supplied as spare part without processor, processor heat sink, memory modules and bus board. Principle To install the new motherboard, carry out the same steps in the reverse order. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 104: Replacing The Processor
If the processor type is changed, the BIOS must be updated so that the suitable microcode is loaded. Information about original spare parts for SIMATIC IPCs is available on the Internet at: – Contacts (http://www.siemens.com/automation/partner) – SIMATIC IPC after-sales information system (http://www.siemens.com/asis) Procedure 1. Remove the bus board. ①...
Page 105 If the installed processor is operated with a higher clock frequency than permitted, it can be destroyed or cause loss of data. Operate the processor only at a clock frequency that is equal to or less than the permitted clock frequency. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 106: Installing The Software
Note Before you install new drivers or operating system updates for Windows MUI versions, configure the regional menu and dialog settings and the default English (US) language. other operating systems Contact the corresponding manufacturer. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 107: Installing Drivers And Software
Installing the software ● You can find information about installing SIMATIC software packages in the corresponding documentation. ● You can obtain information about driver updates and installing application programs from the respective manufacturers. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 108: Installing Windows 7 Or Windows Server 2008 R2
Press any key to boot from CD or DVD .. After a few seconds, you will see the "Install Windows" installation program. 9. Now follow the instructions in the installation program. You can find additional information on this in the next section. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 109 Please read the information in the section "Information for systems with RAID or AHCI controller". Drive options For display of additional functions that you can use to set up the data medium, (advanced) see figure "Windows installation window "Drive options (advanced)"". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 110 Integrate this driver before you partition the data medium and before you install the operating system. For more information on integrating the storage controller, refer to the section "Information for systems with RAID or AHCI controller". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 111: Setting Up The Language Selection Using The Multilanguage User Interface (Mui)
For this purpose, you can either select one of the preinstalled languages or install a new language package. The following command sequences are described in English. Depending on the default setting, they can be displayed in another language. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 112 1. Choose: "Start > Control Panel > Clock, Language, and Region > Regional and Language Options" 2. Select the "Keyboards and Languages" tab. 3. Click the "Install/uninstall languages" button and make the required changes. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 113: Restoring The Delivery State
It is identified by a "P" in front of the SATA port number. Example: P5: DV-W28S-A 7. Follow the instructions on the screen. Note All existing data, programs, user settings, authorizations and license keys on the drives are deleted. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 114: Installing The Raid Controller Software
Read the information in the Device_driver_CP16xx.pdf document on the supplied "Documentation and Drivers" DVD. PROFINET IO Read the information regarding the SIMATIC devices and SIMATIC NET documentation listed in the "Connecting the device" section. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 115: Technical Specifications
Certificates and approvals ISO 9001 certificate The Siemens quality management system for our entire product creation process (development, production and sales) meets the requirements of ISO 9001:2008. This has been certified by DQS (the German society for the certification of quality management systems).
Page 116: Directives And Declarations
Residential and commercial areas EN 61000-6-3 : 2007 +A1:2011 EN 61000-6-1 : 2007 and small businesses The devices comply with the standards EN 61000-3-2:2006 +A1:2009 +A2:2009 (harmonic currents) and EN 61000-3-3:2008 (voltage fluctuations and flicker). SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 117: Esd Guideline
The material with which this person comes into contact is of particular significance. The figure shows the maximum electrostatic voltages with which a person is charged, depending on humidity and material. These values conform to the specifications of IEC 61000-4-2. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 118 This way, the discharge energy does not reach and damage the sensitive components. – Discharge your body electrostatically before you take a measurement at a module. Do so by touching grounded metallic parts. Always use grounded measuring instruments. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 119: Dimension Drawings
Technical specifications 8.3 Dimension drawings Dimension drawings 8.3.1 Dimensional drawing of the device SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 120: Dimension Drawing Of The Telescope Rails
Technical specifications 8.3 Dimension drawings 8.3.2 Dimension drawing of the telescope rails SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 121: Dimension Drawing Of The Expansion Cards
Lower edge of expansion card to lower edge of retainer DIM C 113.44 mm 117.9 mm Lower edge of expansion card to retainer DIM D 123.54 mm 128.0 mm Lower edge of expansion card to bottom of device cover SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 122: Technical Data
Filter class G2 EN 779, 99% of particles > 0.5 mm are filtered Safety Protection class Protection class I according to IEC 61140 Safety regulations IEC 60950-1 • EN 60950-1 • UL 60950-1 • CSA C22.2 No 60950-1-07 • SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 123 Tested to IEC 60068-2-6, 10 cycles - Operation 10 to 58 Hz: 0.0375 mm, 58 Hz to 500 Hz: 4.9 m/s 1, 2 Storage/shipping 5 to 9 Hz: 3.5 mm, 9 to 500 Hz: 9.8 m/s SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 124 Accumulated power loss (all voltages) may not exceed 25W. slot Maximum bandwidth of PCI slots 133 MB/s bandwidth Maximum bandwidth of PCIe slots Gen 2, 5 GT/s (500 MB/s) bandwidth per lane Gen 3, 8 GT/s (985MB/s) bandwidth per lane SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 125 2 × DisplayPort / DVI-D/VGA with Dual For connecting two digital or analog monitors DisplayPort, Head graphics card (optional) DVI-D or VGA via DMS59 cable adapter Keyboard PS/2 keyboard connection Mouse PS/2 mouse connection SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 126 For unique labeling, the LAN interfaces are numbered on the enclosure. The numbering by the operating system may deviate from this. Interfaces supplied as optional. AMT and teaming cannot be used simultaneously on the Ethernet interface. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 127: Ambient And Environmental Conditions
● The device meets requirements for fire protection housings to EN 60950-1 and can be installed without additional fire protection enclosure. ● The connected or built-in peripherals should not introduce a counter emf in excess of 0.5 V into the device. See also General specifications (Page 122) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 128: Current And Power Requirements
Hard disk drive 1 x 3.5" 0.06 A 13.6 W Hard disk drives 2 x 3.5" 0.12 A 27.2 W Hard disk drives 3 x 3.5" 0.18 A 40.9 W DVD burner drive 0.05 A 12.7 W SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 129: Ac Power Supply
SIMATIC PCs with an active PFC. UPS characteristics are described and classified in the standards EN 50091-3 and IEC 62040-3. Devices with sinusoidal output voltage in the normal and buffered mode are identified with the classification "VFI-SS-.." or "VI-SS-..". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 130: Ac Power Supply, Redundant
230 V AC: 30 A, 5 ms 8.4.6 Technical data of the telescopic rails Ultimate load per pair At least 23 kg Full extraction length At least 470 mm Rail thickness Maximum 9.7 mm Mounting screws M5 x 6 mm SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 131: Hardware Description
Core components of the motherboard: processor and chipset, three slots for memory modules, internal and external interfaces, Flash BIOS and the backup battery. ① ③ Slots for memory modules Slot for the bus board ② ④ Processor Backup battery SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 132: Technical Features Of The Motherboard
Single chipset 8 chipset DH82C226 Express Mobile Intel • ® (Platform Controller Hub) BIOS Update by means of Insyde modified by Siemens • software Intel Core™ i ® VT and multimedia support • Turbo Boost and AMT, depending on CPU •...
Page 133 Optional product variant Depends on the CPU type Depends on the selected device configuration A floppy disk drive cannot be ordered using the configurator AMT and teaming cannot be used simultaneously on the Ethernet interface SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 134: Position Of The Interfaces On The Motherboard
6 USB 2.0/LAN 1 SCSI LED USB 3.0 Memory modules 7 USB 3.0/LAN 2 SATA 4 USB 3.0/USB 2.0 COM 1, COM 2 8 PROFINET SATA 2 BIOS 9 PROFIBUS/MPI SATA 3 Power supply fan SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 135: External Interfaces
Ethernet 1 and 2 External X4, X2 RJ45 DVI-D External 24-pin DVI-D female connector External 20-pin DisplayPort connector External 20-pin DisplayPort connector Microphone External 6-pin 3.5 mm jack (bottom) Line out External 6-pin 3.5 mm jack (top) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 136 Data terminal ready Output GND (E2) Functional ground (reference potential) – DSR (M1) Ready for operation Input RTS (S2) Request to send Output CTS (M2) Clear to send Input RI (M3) Incoming call Input SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 137 /ACK Data acknowledge Input (4.7 kΩ pull up) BUSY Not ready Input (4.7 kΩ pull up) PE (PAPER END) Paper end Input (4.7 kΩ pull up) SELECT Device selection Input (4.7 kΩ pull up) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 138 PS/2 mouse interface, X25 7 to 12 Pin no. Short name Meaning Input output Data channel, mouse Input/output – Not used – Ground – P5VFK + 5 V (fused) Output Clock channel, mouse Input/output – Not used – SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 139 + 5 V (fused) Output – Data Data channel Input / output + Data Data channel Input / output Ground – The connectors are of type A. The ports are rated as high-current USB 2.0 (500 mA). SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 140 Signal line A of the MPI module Input/output RTS_PG RTS output signal of the MPI module. The Output control signal is "1" when the programming device is sending. Shield on connector casing Optional product variant SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 141 Input / output Shield – LED 1 Off: 10 Mbps – Lit in green color: 100 Mbps Lit in orange color: 1000 Mbit/s LED 2 Lit: Active connection – (to a hub, for example) Flashing: actvity SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 142 Meaning Input / output Ground – Ground – Output Green Output Blue Output HSYNC Horizontal synchronizing pulse Output Ground – Ground – TX2N TDMS data 2- Output TX2P TDMS data 2+ Output Ground – SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 143 Output Microphone interface, X60 bottom Pin no. Short name Meaning Input / output Right Right channel Input Analog ground Output Sense Switch contact for device identification Input Left Left channel Input Logic ground Output SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 144 + 5 V (fused) Output Data channel USB2 Input / output Data channel USB2 Input / output Ground – Data channel USB3 Input Data channel USB3 Input Ground – Data channel USB3 Output Data channel USB3 Output SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 145 Output Ground ML_Lane3- DP data 3- Output CONFIG1 CAD Cable Adapter Detect Input CONFIG2 Ground (PullDown) AUX_CH+ Auxiliary channel+ Bidirectional Ground AUX_CH- Auxiliary channel- Bidirectional Hot Plug Detect Input Ground DP_PWR +3.3V (fused) Output SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 146: Internal Ports
Connection for LPT on slot cover (see external interfaces) Assignment of the SCSI activity connector, X595 Type JST B2B-PH-SM3-TB Pin no. Short name Meaning Input / output SCSI HD_N 0-V level means that the SCSI Input interface is active SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 147 Data channel USB3 Input SSRX+ Data channel USB3 Input Ground SSTX- Data channel USB3 Output SSTX+ Data channel USB3 Output Ground – -Data Data channel USB2 Input / output +Data Data channel USB2 Input / output SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 148 Status of redundant power supply Input Reserved Reserved for fan error or redundant Input power supply Quittung_Status Acknowledgment of acoustic alarm Output signal of redundant power supply (signal is open when module is switched on) Ground SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 149 Pin no. Signal P12V P12V P12V P12V P12V P12V SMB_CLK2 n.c. SMB_DATA2 n.c. n.c. P3V3 n.c. n.c. P3V3 AUX_3V P3V3 WAKE2 PCIE_RESET_L n.c. PCIE0_ECLK PCIEX16_TX_P(15) PCIE0_ECLK_N PCIEX16_TX_N(15) PCIEX16_RX_P(15) SDVO_CTRLCLK PCIEX16_RX_N(15) PCIEX16_TX_P(14) n.c. PCIEX16_TX_N(14) PCIEX16_RX_P(14) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 150 PCIEX16_TX_P(11) n.c. PCIEX16_TX_N(11) PCIEX16_RX_P(11) PCIEX16_RX_N(11) PCIEX16_TX_P(10) PCIEX16_TX_N(10) PCIEX16_RX_P(10) PCIEX16_RX_N(10) PCIEX16_TX_P(9) PCIEX16_TX_N(9) PCIEX16_RX_P(9) PCIEX16_RX_N(9) PCIEX16_TX_P(8) PCIEX16_TX_N(8) PCIEX16_RX_P(8) MCH_CFG_20 PCIEX16_RX_N(8) PCIEX16_TX_P(7) n.c. PCIEX16_TX_N(7) PCIEX16_RX_P(7) PCIEX16_RX_N(7) PCIEX16_TX_P(6) PCIEX16_TX_N(6) PCIEX16_RX_P(6) PCIEX16_RX_N(6) PCIEX16_TX_P(5) PCIEX16_TX_N(5) PCIEX16_RX_P(5) PCIEX16_RX_N(5) PCIEX16_TX_P(4) PCIEX16_TX_N(4) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 151 Pin assignment of the PCI-PCIe interface (PCIe X16 socket), X10 Signal Pin no. Pin no. Signal N12V AUX_5V P12V P12V P12V P12V PCI_INT_N(7) PCI_INT_N(6) PCI_INT_N(5) PCI_INT_N(8) PCI_REQ_N(4) PCI_REQ_N(3) PCI_GNT_N(4) PCI_GNT_N(3) PCI0_PCLK AUX_3V PLT_RST_N_BUFF PCI1_PCLK PCI_GNT_N(1) PCI_REQ_N(1) PCI_GNT_N(2) PCI_REQ_N(2) PCI_AD(31) PCI_AD(30) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 152 PLOCK P3V3 PERR SMB_CLK1 P3V3 SMB_DAT1 SERR P3V3 PCI_CBE_N(1) PCI_AD(15) PCI_AD(14) P3V3 PCI_AD(13) PCI_AD(12) PCI_AD(11) PCI_AD(10) PCI_AD(9) PCI_AD(8) PCI_CBE_N(0) PCI_AD(7) P3V3 P3V3 PCI_AD(6) PCI_AD(5) PCI_AD(4) PCI_AD(3) PCI_AD(2) PCI_AD(1) PCI_AD(0) PCIE_1X4X AUX_5V WAKE1 PLT_RST_N_PCIE4X PS_ON SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 153 PCIe switch, but the display only shows that these IRQs would be used if modules were plugged in. The PCIe switch is displayed in Windows Device Management as "PCI standard PCI-to- PCI bridge". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 154: Bus Board
4, 5, 6 PCI-Bus primary ③ 1 × PCIe x16 direct plug socket slot 7 Assignment: PCIe x16 Gen3 Active lanes: 16 ④ 4 × PCI direct plug sockets slot 8, 9, 10, 11 PCI-Bus secondary SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 155 PCI-Bus primary Can host expansion cards conforming to PCI specification (Rev. 2.3) or PCI specification 2. All PCI slots support master mode. Power is directly supplied to the expansion cards via the bus board connection. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 156: Pin Assignment Of The Bus Board Connectors
AD[28] AD[27] AD[26] AD[25] Ground +3.3 V AD[24] C/BE[3]# IDSEL AD[23] +3.3 V Ground AD[22] AD[21] AD[20] AD[19] Ground +3.3 V AD[18] AD[17] AD[16] C/BE[2]# +3.3 V Ground FRAME# IRDY# Ground +3.3 V TRDY# SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 157 Pin assignment of the PEG interface (PCIe x16 socket) Signal Pin no. Pin no. Signal P12V P12V P12V P12V P12V P12V SMB_CLK2 n.c. SMB_DATA2 n.c. n.c. P3V3 n.c. n.c. P3V3 AUX_3V P3V3 WAKE2 PCIE_RESET_L n.c. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 158 PCIEX16_TX_N(13) PCIEX16_RX_P(13) PCIEX16_RX_N(13) PCIEX16_TX_P(12) PCIEX16_TX_N(12) PCIEX16_RX_P(12) n.c. PCIEX16_RX_N(12) SDVO_CTRLDATA n.c. PCIEX16_TX_P(11) n.c. PCIEX16_TX_N(11) PCIEX16_RX_P(11) PCIEX16_RX_N(11) PCIEX16_TX_P(10) PCIEX16_TX_N(10) PCIEX16_RX_P(10) PCIEX16_RX_N(10) PCIEX16_TX_P(9) PCIEX16_TX_N(9) PCIEX16_RX_P(9) PCIEX16_RX_N(9) PCIEX16_TX_P(8) PCIEX16_TX_N(8) PCIEX16_RX_P(8) MCH_CFG_20 PCIEX16_RX_N(8) PCIEX16_TX_P(7) n.c. PCIEX16_TX_N(7) PCIEX16_RX_P(7) PCIEX16_RX_N(7) PCIEX16_TX_P(6) SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 159 Pin no. Pin no. Signal PCIEX16_TX_N(6) PCIEX16_RX_P(6) PCIEX16_RX_N(6) PCIEX16_TX_P(5) PCIEX16_TX_N(5) PCIEX16_RX_P(5) PCIEX16_RX_N(5) PCIEX16_TX_P(4) PCIEX16_TX_N(4) PCIEX16_RX_P(4) PCIEX16_RX_N(4) PCIEX16_TX_P(3) PCIEX16_TX_N(3) PCIEX16_RX_P(3) PCIEX16_RX_N(3) PCIEX16_TX_P(2) PCIEX16_TX_N(2) PCIEX16_RX_P(2) PCIEX16_RX_N(2) PCIEX16_TX_P(1) PCIEX16_TX_N(1) PCIEX16_RX_P(1) PCIEX16_RX_N(1) PCIEX16_TX_P(0) PCIEX16_TX_N(0) PCIEX16_RX_P(0) n.c. PCIEX16_RX_N(0) n.c. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 160 PTCK SMBDAT PTDI PTDO P3V3 PTMS PTRST_N P3V3 Aux_3V3 P3V3 PCIE_Wake_N PCI RST_N Reserved PCIE_TX_P(1) PCIE_TX_N(1) PCIE_RX_P(1) PRSNT2_N PCIE_RX_N(1) PCIE_TX_P(2) Reserved PCIE_TX_N(2) PCIE_RXP(2) PCIE_RX_N(2) PCIE_TX_P(3) PCIE_TX_N(3) PCIE_RX_P(3) PCIE_RX_N(3) PCIE_TX_P(4) PCIE_TX_N(4) PCIE_RX_P(4) PCIE_RX_N(4) PRSNT2_N Reserved SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 161: Interrupt Assignment Of The Slot Connectors On The Bus Board
Host PCI-IRQ A to H is assigned to IRQ 16 to 23 permanently in APIC mode. Host PCI-IRQ A to H is assigned to IRQ 0 to 15 automatically in PIC mode by the BIOS. A specific assignment cannot be forced. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 162: Exclusive Pci Hardware Interrupt
If a conflict arises due to the assignment, it is signaled accordingly. The alarm must be acknowledged: Resources Conflict. Please re-select [ok] The interface that causes the conflict is automatically "disabled". For more information, please refer to the chapter "Assignment of interrupts". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 163: System Resources
DMA channels) are assigned dynamically by the Windows OS, depending on the hardware configuration, drivers and connected external devices. You can view the current configuration of system resources or possible conflicts with the following operating systems: Windows 7 Start > Enter "msinfo32" in the search function SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 164: System Resources Used By The Bios/Dos
Not used 02E8 02EF Reserved 02F8 02FF COM2 Switchable in Setup, then free 0300 031F Not used 0320 032F Not used 0330 033F Not used 0340 035F Not used 0360 0367 Not used 0370 0371 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 165 SATA RAID Controller 8C00 FEFF 29288 Not used for SATA RAID 8870 8897 PATA RAID Controller 8898 FEFF 30311 Not used for PATA RAID 1880 886F 28655 Not used FF00 FF0F EIDE bus master register SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 166 Host PCI-IRQ A to H is assigned to IRQ 16 to 23 permanently in APIC mode. Host PCI-IRQ A to H is assigned to IRQ 0 to 15 automatically in PIC mode by the BIOS. A specific assignment cannot be forced. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 167 Depends on memory configuration expansion and 32-bit OS E000 0000 FFEF FFFF PCIe Configuration Space FFF0 0000 FFFF FFFF 1 MB Firmware HUB 32 GB RAM expansion Optional memory allocation, depending on settings in BIOS Setup SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 168: Displays And Operator Panel
The device is reset when pins 1 and 2 (for example, by means of a pushbutton) are short- circuited. It remains in this state until the short-circuit is cleared. Note Contact Customer Support or the Repair Center for detailed information on pin assignments of the interfaces. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 169: Communication Processor Cp 1616 Onboard
The following diagram shows a typical application: CP 1616 onboard as PROFINET IO controller on the IO controller layer. The IO base controller user program runs on the PC. This program accesses the functions of the IO base user program interface. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 170 IO base user program interface. Data traffic is routed via the CP 1616 onboard communication processor to a PC as PROFINET IO controller, or to an S7-400 automation system with CP 443-1 over Industrial Ethernet. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 171: Firmware Loader
The firmware loader can use this information to check if the firmware is compatible to the device. Read the information provided along with the loader file, for example, in the readme file. This information is also displayed in the firmware loader when the FWL file is loaded. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 172 Note Ensure that the loader file you are using for the update is suitable for the version of firmware on your module. If you have any doubts, contact your local Siemens consultant. Note Be aware that aborting the loading process may result in an inconsistent state in your module.
Page 173: Further Actions In Step 7/Ncm Pc
This document describes the full list of BIOS Setup parameters for all devices and device configurations. Some submenus or parameters may not be included, depending on your order. The interface of your BIOS Setup can deviate from the figures in this document. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 174: Starting Bios Setup
BIOS or the operating system. Start BIOS Setup using the Setup Configuration Utility BIOS update Update BIOS from USB memory stick MEBx Start Intel Management Engine BIOS Extension Available as of Windows 8 or later SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 175: Bios Setup Menus
⑤ ● The key assignment at the bottom shows the function keys and control keys available in BIOS Setup. You can toggle between the menus with the "←" left and "→" right cursor keys. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 176: Exit Menu
Requirement: The parameters are saved prior to this with "Save Custom Defaults". Save Custom Defaults The currently configured Setup parameters are saved as a custom profile (see also "Load Custom Defaults"). Discard Changes All changes are discarded. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 177: Bios Update
BIOS update Check regularly if updates are available for download to your device. Additional information can be found on the Internet at the following address:After Sales Information system (http://www.siemens.com/asis). Noting down and restoring BIOS Setup settings NOTICE Irretrievable loss of data All BIOS Setup settings are deleted after the BIOS update.
Page 178: Bios Setup Settings
Onboard PROFINET Enabled PCI – MPI / DP Enabled Audio Auto Onboard Ethernet 1 (LAN 1, X1 P1) Enabled Onboard Ethernet 2 (LAN 2, X2 P1) Enabled Visible depending on the ordered device configuration SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 179 USB Port 6 (USB2 P6 front ) Enabled USB Port 8 (USB2 P8, internal) Enabled USB Port 9 (USB2 P9, internal) Enabled USB Port 10 (USB2 P10, internal) Enabled USB Port 11 (USB2 P11, internal) Enabled SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 180 Default settings Local settings TPM Status TPM Operation No Operation TPM Force Clear Disabled Set Supervisor Password Set User Password Power-on Password Disabled User Access Level Full Visible depending on the ordered device configuration SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 181 Local settings Boot Type Quick Boot Enabled Quiet Boot Enabled Network Stack Disabled PXE Boot capability Disabled Add Boot Options Auto USB Boot Enabled EFI Device First Enabled Boot Delay Time Automatic Failover Enabled SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 182: Alarm, Error And System Messages
The error messages output by system BIOS are listed below. For information on error messages output by the operating system or application programs, refer to the corresponding manuals. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 183 Contact Technical Support. Screen remains dark - cursor A data carrier is inserted in the ODD drive. In this case it can take flashes at top left several minutes until the BIOS power up is continued. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 184: Bios Beep Codes
Technical specifications 8.6 BIOS description 8.6.7.2 BIOS beep codes The following section lists the POST codes relevant to users in the sequence in which they occur. Contact Customer Support (http://www.siemens.de/automation/csi_en_WW) for information on all other POST codes. Meaning Description Remedy...
Page 185 Initialization of the last Service case boot to OS chipset before the OS Boot BDS_GO_LEGACY_BOOT Start to boot Legacy OS Boot Legacy OS Service case BDS_GO_UEFI_BOOT Start to boot UEFI OS Boot UEFI OS Service case SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 186 USB device driver initial Initialize USB device driver Service case BDS_NO_CONSOLE_ACTION Console device initial fail Initialization of the console Service case faulty BDS_DISPLAY_LOGO_SYSTEM_IN Display logo or system Display logo or system Service case information information SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 187 Loading of the variable Service case collection and reclaim memory operation PEI_PROGRAM_CLOCK_GEN Clock Generator Initial Initializations of the clock Service case generator PEI_IGD_EARLY_INITIAL Internal Graphic device First initialization of the Service case early initial, graphic connection PEI_IGDOpRegion SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 188 ● No RAM: 1 short beep long pause, cyclic, if possible ● Incorrect RAM pairing ECC/nonECC: 2 short beeps long pause, cyclic, if possible ● No Graphics Controller available: 3 long beeps, once, can be deactivated SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 189: Active Management Technology (Amt)
BIOS setup. Afterwards the Intel® Management Engine (Intel® ME) has to be activated and set for AMT. You make additional settings in the Management Engine: ● Configuring the network for access via AMT ● Creating a password SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 190: Overview Of Amt
The underscore _ and the space characters are valid password characters, however they do not increase password complexity. 9. Enable "Intel (R) AMT Configuration > Manageability Feature Selection". 10.Enable "Intel (R) ME General Settings > Activate Network Access". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 191: Advanced Settings
3. After the restart, a user prompt appears asking whether you really want to discard all the settings in the management engine: 4. Confirm with "Y". On a German keyboard, this means pressing the <Z> key. The device continues to boot with the factory settings of the management engine. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 192: Determining The Network Address
2. Select the value "KVM" for "User Consent". To allow a user with administrator privileges to avoid this code query, follow these steps: 1. Select "Intel(R) AMT Configuration > User Consent" in the MEBx. 2. Enable "Opt-in configurable from remote IT". SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 193: Technical Support
You can find additional information and support for the products described on the Internet at the following addresses: ● Technical support (http://www.siemens.de/automation/csi_en_WW) ● Support request form (http://www.siemens.com/automation/support-request) ● After Sales Information System SIMATIC IPC/PG (http://www.siemens.com/asis) ● SIMATIC Documentation Collection (http://www.siemens.com/simatic-tech-doku-portal) ● Your local representative (http://www.automation.siemens.com/mcms/aspa-db/en/Pages/default.aspx) ●...
Page 194: Troubleshooting
BIOS Setup. 2. Set the time and date in the setup menu. Although the BIOS setting is The backup battery is dead. Replace the backup battery. OK, the time and data are still wrong. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 195 5. In the following "Install Windows" dialog, click on "Repair your computer" or press the <R> key. The "System Recovery Options" dialog appears. The system is checked for errors. 6. Next, click "Repair and restart" SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 196 One module is not switched on Switch on both modules • • despite redundant Both modules are connected Connect modules to separate AC circuits • • power supply in so the same AC circuit case of power failure SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 197: Raid System And Device Startup
After changing the drive, System was booted without Reboot the system with a functioning drive. "unused" is indicated for the functioning drive. The relevant SATA port removable drive bay might not be switched on. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 198: Notes On The Use Of Third-Party Modules
PC. If the error no longer occurs, the Signal frequencies or signal • third-party expansion card was the cause of the fault. levels are not adhered to Replace this expansion card with a Siemens card or contact Different connector pin • the card supplier. assignments If the PC still crashes, contact your technical support team.
Page 199: Abbreviations
Term for the serial interface Communication Processor Communication computer Central Processing Unit Cathode Ray Tube Canadian Standards Association Canadian organization for tests and certifications according to own or binational standards (with UL / USA) standards SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 200 FAT 32 File Allocation Table 32-bit 32-bit file allocation table FBWF File-Based Write Filter Floppy disk Disk drive, 3.5" FQDN Fully qualified domain name Full name of a domain Front Side Bus Ground Chassis ground SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 201 Memory cells in which generally more than one bit per cell are saved MLFB Machine-readable product designation Micro Memory Card Memory card of the format 32 mm x 24.5 mm Multipoint-capable interface for programming devices SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 202 Random Access Memory Ring Input Incoming call Read-Only Memory RS 485 Reconciliation Sublayer 485 Bi-directional bus system designed for up to 32 nodes. Real Time Clock Real-time clock Reliable Transfer Service Request to send SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 203 ITU-T standardized recommendation for data transfer via serial ports. Positive supply voltage of integrated circuits Verein deutscher Elektrotechniker (Union of German Electrical Engineers) Video Graphics Array Video adapter which meets industrial standard Voltage Regulator Module SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 204 Wake on Local Area Network World Wide Web Execute Disable Capability Hardware implementation Extended Graphics Array Graphic standard, maximum resolution 1024x768 pixels. Zero Maintenance Cache Protection Module Maintenance-free cache unit for saving cache contents SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 205: Glossary
Boot disk A boot disk is a disk with a "Boot" sector. This can be used to load the operating system from the disk. Cache High-speed access buffer for interim storage (buffering) of requested data. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 206 . This is done either by copying the configuration files supplied with the module or by manual configuration using the configuration utility. Controller Integrated hardware and software controllers that control the functions of certain internal or I/O devices (for example, the keyboard controller). SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 207 (e.g. of the monitor, hard disk and CPU), by restricting their activity based on the current system or component load. Energy management is of particular importance for mobile PCs. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 208 Formatting deletes all data on a data medium. All data media must be formatted prior to their first use. Gender changer Using the gender changer (25-pin / 25-pin), the COM1/V24/AG interface of the SIMATIC PC family can be converted to the usual 25-pin male connector. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 209 Intel VT The Intel Virtualization Technology (IVT) is the implementation of a secure closed environment for applications. Special (visualization) software an a VT-capable processor is required for its use. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 210 Legacy USB support Support of USB devices (e.g. mouse, keyboard) on the USB ports without driver. License key The license key represents the electronic license stamp of a license. Siemens provides the license keys for protected software. License key disk The license key disk contains the authorizations or license keys required to enable protected SIMATIC software.
Page 211 CD drives can read packet-written CDs . There are restrictions to using this method in general data transfer. PATA Interface for hard disk drives and optical drives, with parallel data transmission rate up to 100 Mbps. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 212 (for example monitors, modems or printers). The user can plug in a peripheral and "play" it at once without manually configuring the system. A Plug&Play PC requires both a BIOS that supports Plug&Play and a Plug&Play expansion card. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 213 Restricted Access Location: Installation of the device in a production facility with restricted access, for example, a locked control cabinet. Recovery CD Contains the tools for configuring hard disks and the Windows operating system. Reset Hardware reset: Reset/restart of the PC using a button/switch. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 214 PC/PG) is defined. The device configuration of the PC/PG is preset with defaults. Changes must therefore be entered in the SETUP if a memory expansion, new modules or a new drive are added to the hardware configuration. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 215 Wake on Local area network. This function allows the PC to be started via the LAN interface. Warm restart The restart of a computer after a program was aborted. The operating system is loaded and restarted again. The CTRL+ ALT+ DEL hotkey can be used to initiate a warm restart. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 216 Zero Maintenance Cache Protection Module is a functional unit of the SAS Raid controller that stores the data in the cache of the controller in the case of a voltage failure. This functional unit is maintenance-free. SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 217: Index
Documentation and Drivers CD/DVD, 106 CE marking, 116 DPP, (DisplayPort) Certificates, 116 Drive Certifications and approvals, 115 Installing, 78, 82, 83 Changing the filter pad, 89 Removing, 83 Chipset, 124, 132 Drive cage, 76 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 218 Interface pinout Filter pad, 16 DVI, 142 Maintenance interval, 88 Interfaces, 16 Fire protection, 38 COM, 20, 133 Fire protection housing, 38 COM1, 136 Firewall, 55 DisplayPort, 145 Front door, 16, 89 DVI-I, 20 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 219 Lock for mains connector, 43, 48, 49 Initial commissioning, 54 LPT1, 125 Shutdown, 59 Updates, 106 Operator panel, 102 Installation, 168 Removal, 102 Marking Order no., 37 EC Declaration of Conformity, 116 Output voltage, 129 Memory, 132, 146 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 220 Retrofitting instructions, 67 Radiation, 31 RJ45 Ethernet, 45, 141 High frequency radiation, 31 RAID, 197 RAID controller Making known to the operating system, (See Safety information storage controllers) Storage, 36 RAID system Transportation, 36 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 221 System resources, 163 I/O address allocation, 164 Telescopic rails Mounting methods, 39 Technical specifications, 130 TEMP, 23 Temperature, 123 Temperature monitoring, 62 Temperature ranges Approved configuration versions, 67 Third-party expansion cards, 198 Tools, 88 SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
Page 222 Index SIMATIC IPC847D Operating Instructions, 01/2014, A5E32997454-AA...
