IMPORTANT: PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
Fine Mesh Part #1130-0102-09
Quantity
Description
1

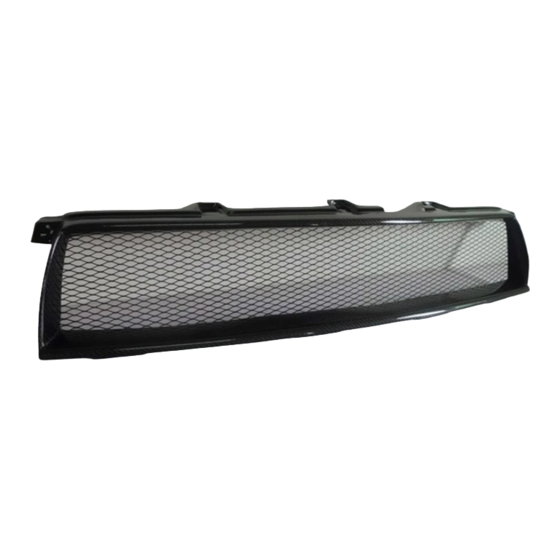

Upper Mesh Grille (includes):
12 Gage S.S. Polished Surround
Fine Mesh Section
Top Mounting Plate
Lower Retainer w/Pins
(10) #8-32 ESNA Half Nuts
1
Lower Grille Mesh Surround
1
Lower Grille Mesh Section
1
Hardware Kit
(components listed below):
(8) #8-32 ESNA Half Nuts
(4) .156" x 1" Vinyl Caps
(1') 3/4" x .045" Double Faced Tape
(8) 1.006" x .189" x .062" Black Plastic Washers
(1) Upper Grille Hole Location Template
(1) Emblem Plate
"Q" Part #1130-0185-09Q
Quantity
Description
1
Upper "Q" Grille (includes):
12 Gage S.S. Polished Upper "Q" Grille
Top Mounting Plate
Lower Retainer w/Pins
(10) #8-32 ESNA Half Nuts
1
12 Gage S.S. Polished Lower "Q" Grille
1
Hardware Kit
(components listed below):
(8) #8-32 ESNA Half Nuts
(4) .156" x 1" Vinyl Caps
(1') 3/4" x .045" Double Faced Tape
(8) 1.006" x .189" x .062" Black Plastic Washers
(1) Upper Grille Hole Location Template
(1) Emblem Plate
WARNING!
PLEASE HANDLE WITH CARE!
THE EDGES OF THE STAINLESS STEEL MESH &
GRILLE MAY BE SHARP!
2009 Toyota RAV-4
Stainless Steel
Mesh Grilles
L 30 G8P
Part No.
************
1130-0038-09
1130-0020-09
1130-0210-09
1130-0049-09
1999-0065-00
1130-0022-09
1130-0021-09
1130-1902-09
1999-0065-00
1999-0241-00
3004-9247-92
1999-0264-00
1130-0039-09
1297-0158-08
Part No.
************
1130-0184-09
1130-0210-09
1130-0049-09
1999-0065-00
1130-0183-09
1130-1902-09
1999-0065-00
1999-0241-00
3004-9247-92
1999-0264-00
1130-0039-09
1297-0158-08
Important information before you begin:
This E&G grille installation kit includes
grille hole location template(s) to drill
mounting holes in the vehicle. Before
marking or drilling any holes into the
vehicle, you MUST verify that the tem-
plate(s) provided in this kit match the
mounting pin locations on the grille(s).
2
2. Remove the two (2) factory screws and five
(5) factory push pins retaining the sides of
the bumper cover.
1
1. Open the hood and remove the factory push
pins retaining the black radiator support panel
cover and remove the cover.
3. Pull up on the outer corners of the bumper
cover and use a 10mm deep socket to remove
the two (2) bolts securing the upper brace.
Shop Tip:
Use a magnet to remove the bolts once they
are loose.
3
Advertisement
Related Manuals for Toyota RAV-4 2009
Summary of Contents for Toyota RAV-4 2009
- Page 1 IMPORTANT: PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE 2009 Toyota RAV-4 Stainless Steel Mesh Grilles L 30 G8P Fine Mesh Part #1130-0102-09 Important information before you begin: Quantity Description Part No. This E&G grille installation kit includes ************ Upper Mesh Grille (includes):...
- Page 2 4. Disconnect the electrical connectors from the horns 5. Remove the upper grille support bar from behind the 6. Remove the rubber weatherstrip from the clips mounted onto the top brace and remove the factory grille. Save for reinstallation. holding it to the top edges of the bumper cover. 10mm hex bolt from the center bracket (where shown, pull the grille forward to expose the bolt).
- Page 3 10. Carefully remove the factory grille from behind the 11. Remove the factory weatherstrip from across the 12. Remove the factory grille emblem by pushing in on bumper cover. The factory grille fits around the top of the factory grille and remove the clips that the clips and push the emblem off.
- Page 4 16. Carefully center the emblem assembly onto the 17. Reinstall the upper grille support, reusing the facto- 18. Carefully trim paint anything inside the grille opening ry hardware previously removed. Reconnect the with flat or semi-gloss black paint that would be visi- mesh grille and install a 1”...
- Page 5 25. Carefully drill through the marks made in the previous 22. Apply masking tape around the edges of the bumper 23. Cut out and align the upper grille lower mounting hole location template with the center line of the grille step with a .125”...
- Page 6 29. Reinstall the radiator support panel cover back 30. Carefully close the hood to once again check for onto the vehicle using the factory push fasteners. proper grille to hood clearance to make sure the radiator support panel cover did not push the assembled grille forward.
