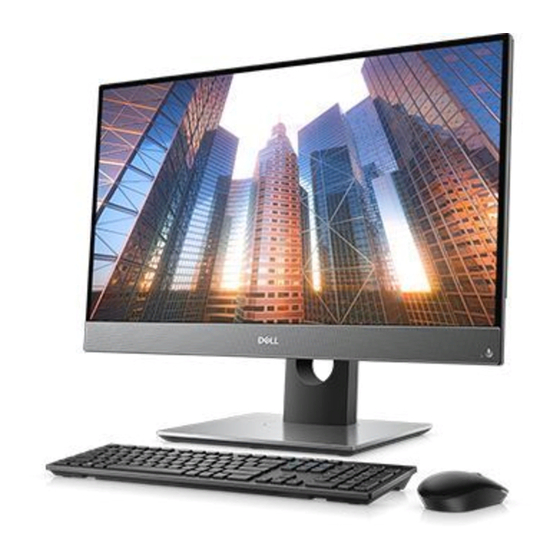

Dell OptiPlex 7760 All-in-One
Setup and specifications guide
Regulatory Model: W17C
Regulatory Type: W17C001

Advertisement

Table of Contents
loading

Summary of Contents for Dell OptiPlex 7760

  • Page 1 Dell OptiPlex 7760 All-in-One Setup and specifications guide Regulatory Model: W17C Regulatory Type: W17C001...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
  • Page 3: Table Of Contents

    Contents 1 Set up your computer.............................5 2 Chassis................................9 Front chassis view................................9 Back chassis view................................10 Left chassis view................................11 Right chassis view................................12 Bottom chassis view.................................12 Transform...................................12 Height Adjustable stand............................. 13 Articulating stand................................13 Pop-Up Camera - optional...............................14 3 System specifications..........................15 Processor...................................15 Memory....................................16 Storage....................................16...
  • Page 4 5 Software..............................37 Supported operating systems............................37 Downloading drivers.................................37 Intel chipset drivers................................38 Display adapter drivers..............................40 Audio drivers..................................40 Network drivers................................40 Camera drivers................................. 40 Storage drivers................................. 40 Security drivers................................. 41 Bluetooth drivers................................41 USB drivers..................................41 6 Getting help..............................42 Contacting Dell................................. 42 Contents...
  • Page 5: Set Up Your Computer

    Set up your computer Set up the stand. Height Adjustable stand Set up your computer...
  • Page 6 Articulating stand NOTE: The stand comes assembled in the box. Set up your computer...
  • Page 7 Set up the keyboard and mouse. NOTE: See the documentation that shipped with the keyboard and mouse. Route the cable through the stand, then connect the power cable. Height Adjustable stand Articulating stand Press the power button. Set up your computer...
  • Page 8 Set up your computer...
  • Page 9: Chassis

    Chassis Topics: • Front chassis view • Back chassis view • Left chassis view • Right chassis view • Bottom chassis view • Transform • Pop-Up Camera - optional Front chassis view Full high-definition (FHD) camera (optional) FHD infrared (IR) camera (optional) IR emitters (optional) Camera status light (optional) FHD camera (optional)
  • Page 10: Back Chassis View

    Speakers Power button/Power-status light 4 Mic Array Back chassis view Back cover Security lock slot Base cover Stand Base cover HDMI-out port (with discrete graphics card) HDMI-in port (optional) HDMI-out port (with integrated graphics card) DisplayPort Network port USB 3.1 Gen 1 ports with Power on/ Wake-up support USB 3.1 Gen 1 ports Audio out port Power connector port...
  • Page 11: Left Chassis View

    Left chassis view SD card reader USB 3.1 Gen 2 Type-C port Headset/Universal audio port USB 3.1 Gen 1 port with PowerShare Chassis...
  • Page 12: Right Chassis View

    Right chassis view Hard drive activity light Bottom chassis view Service Tag label Display Built-in Self Test button/Video input selection Transform Chassis...
  • Page 13: Height Adjustable Stand

    Height Adjustable stand Articulating stand Chassis...
  • Page 14: Pop-Up Camera - Optional

    Pop-Up Camera - optional NOTE: Extend the camera while using any camera function so that the camera is not blocked. Chassis...
  • Page 15: System Specifications

    Processor Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs.
  • Page 16: Memory

    Type Intel Core i5 - 8600 (6 Cores/9MB/6T/up to 4.3GHz/65W) Intel Core i7 - 8700 (6 Cores/12MB/12T/up to 4.6GHz/65W) Memory Table 2. Memory specifications Minimum memory configuration 4 GB (1 x 4GB module) Maximum memory configuration 32 GB Number of slots 2 SODIMM Maximum memory supported per slot 16 GB...
  • Page 17: Audio

    NOTE: Supports RAID 0 and 1 with M.2 and 2.5" HDD. Audio Table 5. Audio Integrated Realtek ALC3289 High Definition Audio High Definition Stereo support Number of channels Number of Bits / Audio resolution 16, 20, and 24-bit resolution Sampling rate (recording/playback) Support 44.1K/48K/96K/192 kHz sample rates Signal to Noise Ratio 98 dB DAC outputs, 92 dB for ADC inputs...
  • Page 18: Web Camera

    Web camera Table 8. Web camera(optional) Maximum Resolution 2.0 MP Camera type • • FHD + Infrared (IR) Video Resolution • FHD - 1080p • FHD + IR - 1080p + VGA Diagonal Viewing Angle • FHD - 74.9° • IR - 88°...
  • Page 19: Display

    HDMI 2.0 Out 1 Rear (Discrete graphics configurations) DisplayPort 1.2 1 Rear Universal Audio Jack 1 Side Line-Out for headphones or speakers 1 Rear Integrated Antenna Built-in Memory card reader Integrated SD-card slot Bluetooth Optional via WLAN Display Table 11. Display specifications Type •...
  • Page 20: Power

    • 4K UHD - 163 Pixel pitch • FHD - 0.3114 mm x 0.3114 mm • 4K UHD - 0.1554 mm x 0.1554 mm Color depth • FHD - 16.7 M • 4K UHD - 1.07 B Contrast ratio (min) •...
  • Page 21: Physical System Dimensions

    Climate Savers / 80Plus Compliant Energy Star 6.1 Qualified FEMP Standby Power Compliant Table 13. Thermal Dissipation Power Graphics Heat dissipation Voltage 240W Discrete gfx 240 * 3.4125 = 819 BTU/hr 100 to 240 VAC , 50 to 60 Hz , 3.6A/1.8 A Table 14.
  • Page 22 Table 15. System dimensions Non-touch chassis weight without stand (pounds / kilograms) 18.54 / 8.41 Touch chassis weight without stand (pounds / kilograms) 19.03 / 8.63 Non-touch chassis dimensions (system without stand): Height (inches / centimeters) 15.31 / 38.90 Width (inches / centimeters) 24.17 / 61.40 Depth (inches / centimeters) •...
  • Page 23: Environmental

    Environmental NOTE: For more details on Dell Environmental features, please to go to Environmental Attributes section. See your specific region for availability. Table 16. Environmental Recyclable packaging BFR/PVC—free chassis Vertical orientation packaging support Select countries MultiPack packaging Energy Efficient Power Supply...
  • Page 24: System Setup

    System setup System setup enables you to manage your desktop hardware and specify BIOS level options. From the System setup, you can: • Change the NVRAM settings after you add or remove hardware • View the system hardware configuration • Enable or disable integrated devices •...
  • Page 25: Navigation Keys

    Entering BIOS setup program Turn on (or restart) your computer. During POST, when the DELL logo is displayed, watch for the F2 prompt to appear, and then press F2 immediately. NOTE: The F2 prompt indicates that the keyboard is initialized. This prompt can appear very quickly, so you must watch for it, and then press F2.
  • Page 26: General Screen Options

    General screen options This section lists the primary hardware features of your computer. Option Description System Information • System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Tag, Ownership Date, Manufacture Date, and the Express Service Code. • Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory Channels Mode, Memory Technology, DIMM A Size, DIMM B Size.
  • Page 27: System Configuration Screen Options

    Option Description • Never Advanced Boot This option allows you the legacy option ROMs to load. By default, the Enable Legacy Option ROMs is disabled. Options • Restore Settings - Restores the default settings of the computer • Save Settings - Saves the settings of the computer •...
  • Page 28: Security Screen Options

    Option Description If USB port is enabled, device attached to this port is enabled and available for OS. If USB port is disabled, the OS cannot see any device attached to this port. The options are: • Enable USB Boot Support •...
  • Page 29 Option Description NOTE: Successful password changes take effect immediately. Default setting: Not set Internal HDD-0 Allows you to set, change or delete the system’s internal hard disk’s password. Password Default setting: Not set NOTE: Successful password changes take effect immediately. Strong Password Allows you to enforce the option to always set strong passwords.
  • Page 30: Secure Boot Screen Options

    Option Description NOTE: The Activate and Disable options will permanently activate or disable the feature and no further changes will be allowed Default setting: Deactivate Chassis Intrusion This field controls the chassis intrusion feature. The options are: • Disabled • Enabled Default setting: Disabled OROM Keyboard...
  • Page 31: Intel Software Guard Extensions Screen Options

    Option Description • • • If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The options are: • Save to File—Saves the key to a user-selected file • Replace from File—Replaces the current key with a key from a user-selected file •...
  • Page 32: Power Management Screen Options

    Option Description • C states Default setting: The option is enabled. Intel TurboBoost Allows you to enable or disable the Intel TurboBoost mode of the processor. • Enable Intel TurboBoost Default setting: The option is enabled. Power Management screen options Option Description AC Recovery...
  • Page 33: Post Behavior Screen Options

    Option Description • LAN Only • WLAN Only • LAN or WLAN • LAN with PXE Boot Block Sleep This option lets you block entering to sleep (S3 state) in operating system environment. Block Sleep (S3 state) Default setting: This option is disabled POST Behavior screen options Option Description...
  • Page 34: Virtualization Support Screen Options

    Option Description Enable MEBx Hotkey - enabled by default. Virtualization support screen options Option Description Virtualization Allows you to enable or disable the Intel Virtualization Technology. Enable Intel Virtualization Technology (default). VT for Direct I/O Enables or disables the Virtual Machine Monitor (VMM) from utilizing the additional hardware capabilities provided by Intel®...
  • Page 35: System Log Screen Options

    System Log screen options Option Description BIOS Events Allows you to view and clear the System Setup (BIOS) POST events. Advanced configuration options Option Description ASPM Allows you to set the ASPM level. • Auto (default) • Disabled • L1 Only System and setup password Table 17.
  • Page 36: Deleting Or Changing An Existing System Setup Password

    The computer reboots. Deleting or changing an existing system setup password Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked. To enter the System Setup, press F2 immediately after a power-on or reboot.
  • Page 37: Software

    Ubuntu 16.04 SP1 LTS (64bit) Downloading drivers Turn on the desktop. Go to Dell.com/support. Click Product Support, enter the Service Tag of your desktop, and then click Submit. NOTE: If you do not have the Service Tag, use the auto detect feature or manually browse for your desktop model.
  • Page 38: Intel Chipset Drivers

    Intel chipset drivers Verify if the Intel chipset drivers are already installed in the system. Software...
  • Page 39 Software...
  • Page 40: Display Adapter Drivers

    Display adapter drivers Verify if the drivers for the display adapter is already installed in the system. Audio drivers Verify if the audio drivers are already installed in the system. Network drivers Verify if network drivers are already installed in the system. Camera drivers Verify if the camera driver is already installed in the system.
  • Page 41: Security Drivers

    Verify if the storage drivers are already installed in the system. Security drivers Verify if the security drivers are already installed in the system. Bluetooth drivers Verify if the Bluetooth drivers are already installed in the system. USB drivers Verify if the USB drivers are already installed in the system. Software...
  • Page 42: Getting Help

    Dell product catalog. Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: Go to Dell.com/support.
