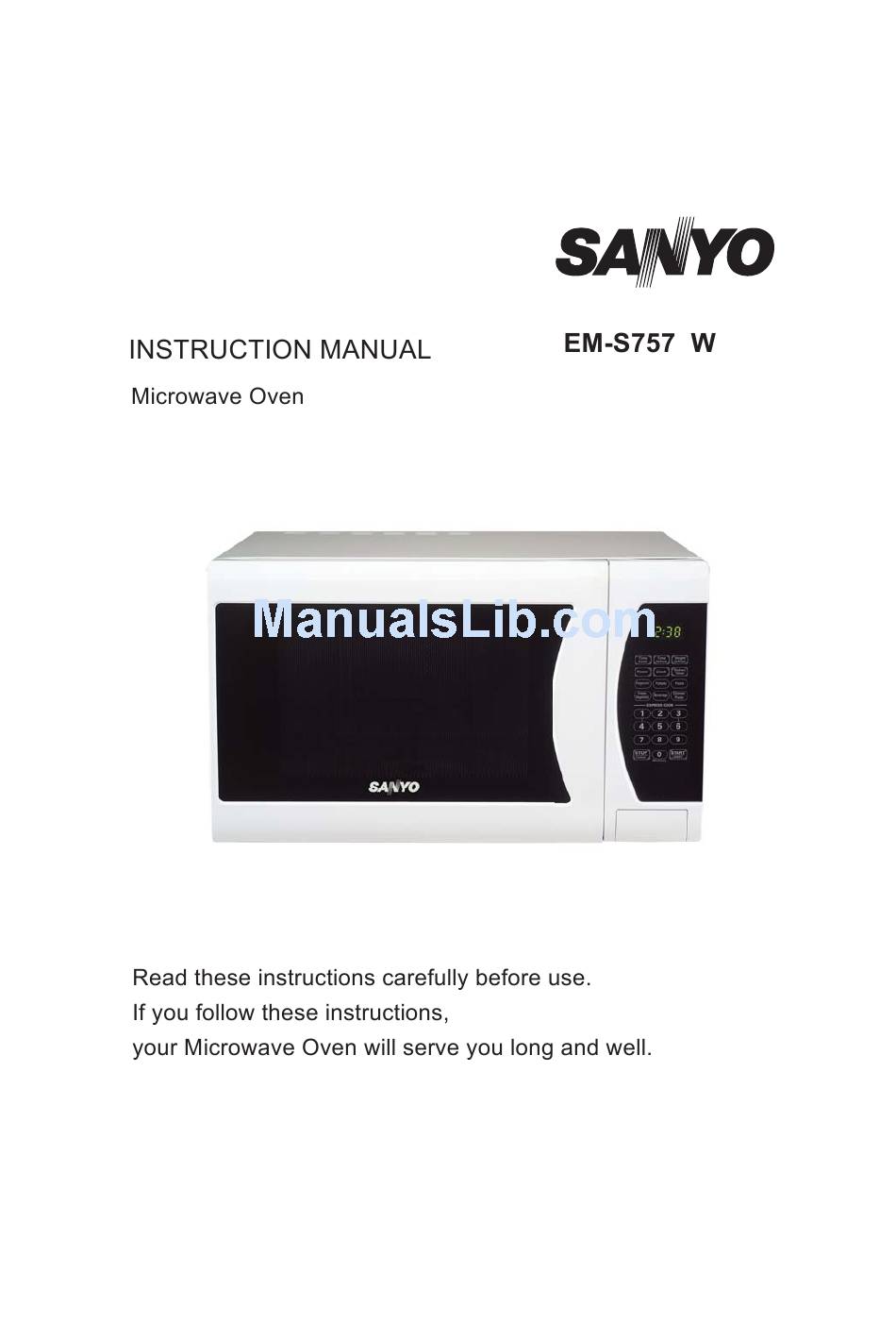

Sanyo EM-S7579W Instruction Manual

Sanyo microwave oven instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

9

Advertisement

Table of Contents
loading

Related Manuals for Sanyo EM-S7579W

Summary of Contents for Sanyo EM-S7579W

  • Page 2: Table Of Contents

    To reduce the risk of injury to persons Grounding installation Danger Warning Cleaning Caution Utensils Materials you can use in microwave oven Materials to be avoided in microwave oven SETTING UP YOUR OVEN Names of ven arts and ccessories Turntable installation Countertop installation Installation...

  • Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. Specifications Model: Power Source: Power Comsuption: Output Microwave: Oven Capacity: Turntable Diameter: Outside Dimensions (Wx x ): Net Weight: EM-S7579W 230V-240V~ 50Hz 1550W 1000W 315mm 530x397x320mm Approx. 16.5 kg...

  • Page 4: Important Safety Instructions

    7. Do not attempt to deep-fry in your microwave oven. 8. Do not attempt home canning in this microwave oven, as it is impossible to be sure all contents of the jar have reached boiling temperature.
  • Page 5 Stir the liquid both before and halfway through heating it. iii) Do not use straight-sided containers with narrow necks. iv) After heating, allow the container to stand in the microwave oven for a short time before removing the container.

  • Page 7: Save These Instructions

    SAVE THESE INSTRUCTIONS To Reduce the Risk of Injury to Persons Grounding Installation DA NGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WA RNING Electric Shock Hazard Improper use of the grounding can result in electric shock.

  • Page 8: Caution

    UTENSIL S See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

  • Page 9: Materials To Be Avoided In Microwave Oven

    Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity.

  • Page 10: Turntable Installation

    If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

  • Page 11: Operation

    OPERATION Control Panel and Features (10) (1) Time Cook (2) Time Defrost (3) Power (4) Clock (5) Auto menu: Popcorn,Potato,Pizza,Frozen vegetable,Beverage,Dinner plate (6) Number Buttons:0-9 (7) Weight Defrost (8) Kitchen Timer function (9) Stop/Cancel: clears all previous setting pressed before cooking starts. During cooking: press once to stop oven;...

  • Page 12: Operation

    OPERATION 1. Power Level 11 power levels are available. Level Power 100% Display PL10 2. Clock Setting (1) Press " CLOCK ", "00:00" will display. (2) Press the number keys and enter the current time. For example, time is 10:12 now, please press "1,0,1,2" in turn. (3) Press "...
  • Page 13 Example: to cook the food with 50% microwave power for 15 minutes. a. Press "TIME COOK" once."00:00" displays. b. Press "1","5","0","0" in order. c. Press "POWER"once,then press "5" to select 50% microwave power. d. Press "START/+30SEC." to start cooking. Note:1) In the process of cooking, if the " STOP/CANCEL" button is pressed or if there is no operation within 1 minute, the oven will go back to the former setting automatically.
  • Page 14 POPCORN a)Press " POPCORN " repeatedly until the number you wish appears in the display, "50","100" g will display in order. For example, press "POPCORN" once , "50" appears. b) Press " START/+30 SEC. " to cook, buzzer sounds once, LED displays the remaining cooking time.
  • Page 15 BEVERGAE a) Press " BEVERAGE " repeatedly until the number you wish appears in the display, "1","2","3" cup will display in order. One cup is about 120ml. For example, press "BEVERAGE" once , "1" appears. b) Press " START/+30 SEC. " to cook, buzzer sounds once, LED displays the remaining cooking time.
  • Page 16 14. MEMORY FUNCTION (1) Press "0/MEMORY" to choose memory 1-3 procedure. The LED will display 1,2,3. (2) If the procedure has been set, press " START/ +30 SEC." to use it. If not, continue to set the procedure. Only one or two stages can be set. (3) After finishing the setting, press "START/ +30 SEC."...
  • Page 17 16. INQUIRING FUNCTION (1) In cooking state, press " CLOCK ", the LED will display clock for three seconds. (2) In the microwave cooking state, press " POWER " to inquire microwave power level, and the current microwave power will be displayed. After three seconds, the oven will turn back to the previous state.

  • Page 18: Troubleshooting

    Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous.
