Chapter 3. Configuration
3.8

Adding a Third-Party IO-Device to a LAN

To add a third-party IO-Device to a LAN, in the Navigator right-click on the connected IC695PNC001 module
and select Add IO-Device. Select the module in the PROFINET Device Catalog and click Have GSDML:

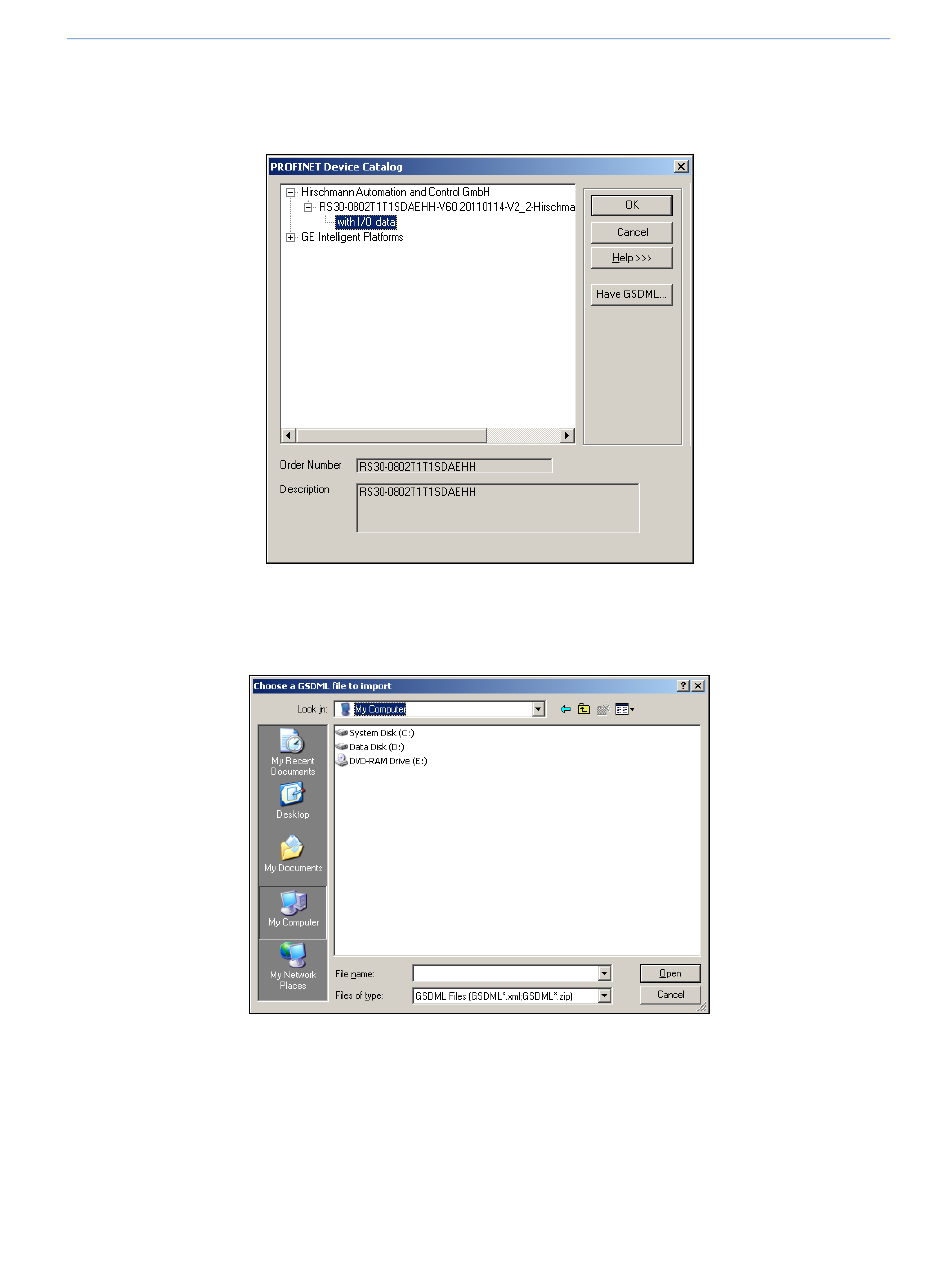

Figure 72: Selecting Third-Party Modules for Addition to LAN
To be included in the system configuration, any third-party IO-Device requires a GSDML file. The GSDML file for
the device must be present on the computer being used for the configuration.
Figure 73: Finding GSDML File for Third-Party Device
Provide a filename path to the file and click OK. The device is added to the configuration. Machine Edition
extracts necessary parameters from the GSDML file and makes the data available for editing within Machine
Edition.
