OWNER'S MANUAL

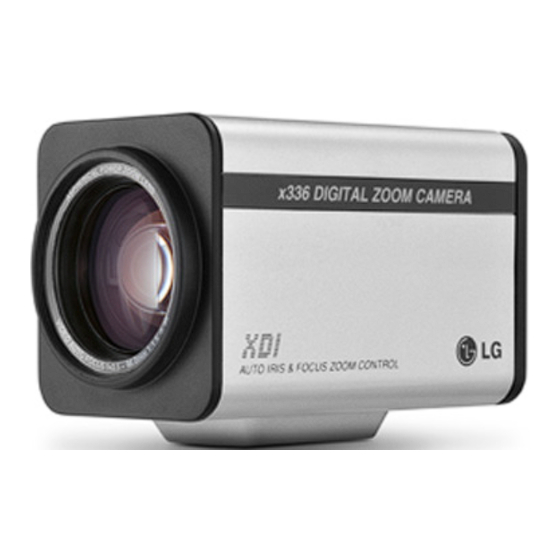

Color Video Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
LCZ2850-DN/LCZ2850-DP
LCZ2850 Series
*MFL69458112*
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Power Supply
This camera must always be operated a DC 12 V Certified/Listed, class 2 power supply only.
Handling of the unit
Be careful not to spill water or other liquids on the unit. Be cautions not to get combustible or
metallic material inside the body. If used with foreign matter inside, the camera is liable to fail or to
get cause of fire or electric shock.
• Remove dust or dirt on the surface of the lens with a blower.
• Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a small
quantity of neutral detergent then wipe dry.
• Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. They
may damage the surface finish and/or impair the operation of the camera.
Operating and storage location
Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid
operating or storing the unit in the following locations.
• Extremely hot or cold places (operating temperature -10 °C to 50 °C, however, we
recommend that the unit be used within a temperature range of 0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful electromagnetic radiation such as radio or TV
transmitters.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this
product in the end user.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces
or shall be provided with brushings.
Warning: Do not install this equipment in a confined space such as a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.
Caution: This installation should be made by a qualified service person and should conform to all
local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel
only.
Caution: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the apparatus.
Caution: It is permitted to use ancillary equipment (e.g. A UPS) to prevent the damage from mains
supply voltage reductions.
Specification
Item LCZ2850-DN LCZ2850-DP
Signal System NTSC PAL
Total Pixels number 520 000 Pixels 610 000 Pixels
Effective Pixels number 480 000 Pixels 570 000 Pixels
Image Device 4.5 mm (1/4 Type) Super HAD CCD II
ISP XDI-II
Lens x28 Zoom, F 1.5 (Wide End), F 3.7 (Tele End)
Digital Zoom X12
IRIS Control AUTO / MANUAL
Sync. System Internal
Scanning Frequency (H/V) 15.734 kHz / 59.94 Hz 15.625 kHz / 50 Hz
Horizontal Resolution 600 TV Lines
S/N Ratio 52 dB
B / W 0.01 lx (Sens-up OFF), 0.000 01 lx (Sens-up ON)
Minimum
Illumination
Color 0.2 lx (Sens-up OFF), 0.003 lx (Sens-up ON),
Video Output Signal 1 Vp-p Composite (75 Ω)
Day & Night AUTO / DAY / NIGHT / EXT
Backlight WDR / BLC / HSBLC / OFF
DNR 3D-DNR (Off/Low/Middle/High)
Disposal of your old appliance
1. This crossed-out wheeled bin symbol indicates that waste
electrical and electronic products (WEEE) should be disposed of
separately from the municipal waste stream.
2. Old electrical products can contain hazardous substances so
correct disposal of your old appliance will help prevent potential
negative consequences for the environment and human health.
Your old appliance may contain reusable parts that could be
used to repair other products, and other valuable materials that
can be recycled to conserve limited resources.
3. You can take your appliance either to the shop where you
purchased the product, or contact your local government waste
office for details of your nearest authorised WEEE collection
point. For the most up to date information for your country
please see www.lg.com/global/recycling
EuSP Ltd.
Herald Way Pegasus Business Park
Castle Donington, DE74 2TZ United Kingdom
Item LCZ2850-DN LCZ2850-DP
Electronic Shutter Speed 1/60 to 1/120 000 1/50 to 1/120 000
White Balance AUTO / ATW / ONE PUSH / MANUAL
Control Method RS-485
Power Source DC 12V
Power Consumption 3.6 W
Operation Temperature -10 ºC to 50 ºC
Storage Temperature -20 ºC to 60 ºC
Operation Humidity 0 % RH to 80 % RH
Storage Humidity 0 % RH to 85 % RH
Weight 420 g
Dimension (H x V x D) 57 mm x 69 mm x 109 mm
