PLC concepts
4.4 Data types

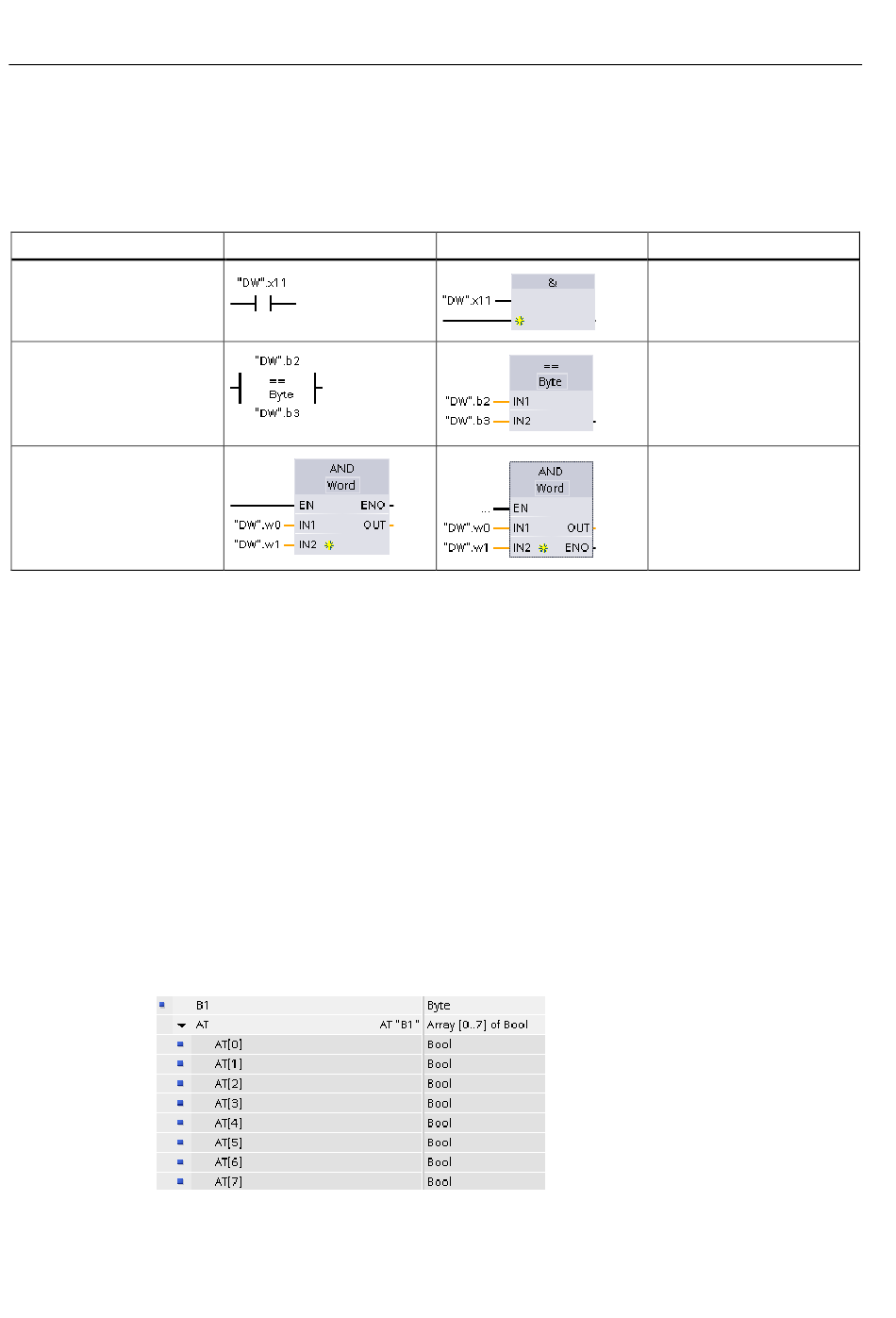

Examples
In the PLC tag table, "DW" is a declared tag of type DWORD. The examples show bit, byte,
and word slice access:
Bit access
Byte access
Word access
4.4.11

Accessing a tag with an AT overlay

The AT tag overlay allows you to access an already-declared tag of a standard access block
with an overlaid declaration of a different data type. You can, for example, address the
individual bits of a tag of a Byte, Word, or DWord data type with an Array of Bool.
Declaration
To overlay a parameter, declare an additional parameter directly after the parameter that is
to be overlaid and select the data type "AT". The editor creates the overlay, and you can
then choose the data type, struct, or array that you wish to use for the overlay.
Example
This example shows the input parameters of a standard-access FB. The byte tag B1 is
overlaid with an array of Booleans:
122
LAD FBD
System Manual, 03/2014, A5E02486680-AG
SCL
IF "DW".x11 THEN
...
END_IF;
IF "DW".b2 = "DW".b3
THEN
...
END_IF;
out:= "DW".w0 AND
"DW".w1;
S7-1200 Programmable controller
