EcoView™ Thermostat

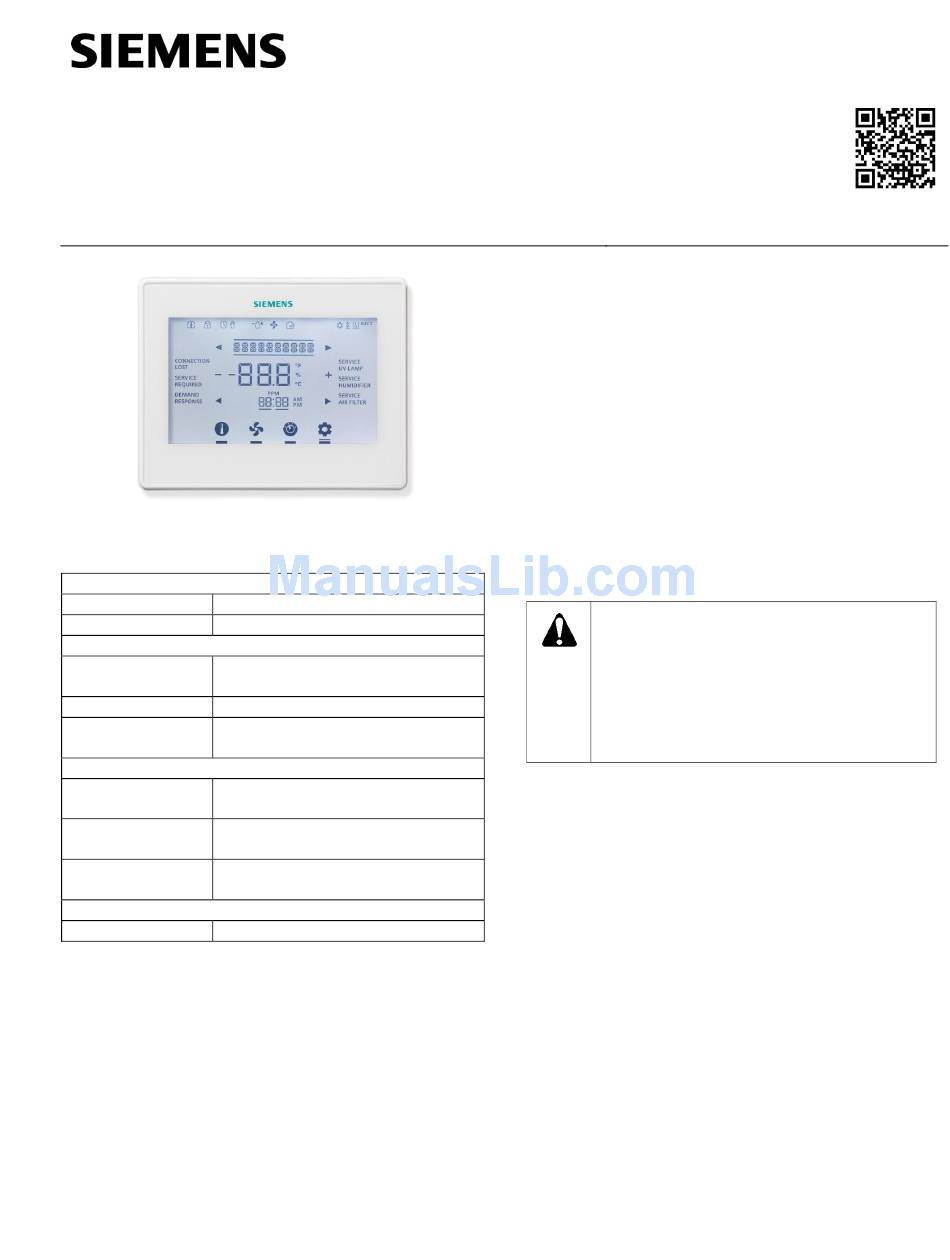

Figure 1. 97-004 Thermostat.
Product Specifications
System Compatibility
Conventional
Up to 3 Heating/3 Cooling
Heat Pumps
Up to 4 Heating/2 Cooling
Electrical Characteristics
24 Vac +/-20%, Class 2, 4A
Power Supply
max.
Power Usage
5 VA (maximum)
Output Relay
Pilot duty, 1A max. per output,
Ratings
4A max total
Ambient Limitations
Operating
23°F to 122°F (-5°C to 50°C)
Temperature
Storage/Shipping
-13°F to 158°F (-25°C to 70°C)
Temperature
Relative
Up to 95% (non-condensing)
Humidity
Enclosure
Rating
NEMA 1
NOTE: The 97-004 is not battery-powered. It requires
24 Vac power from the HVAC equipment at
terminals RH/RC and C.
Product Number
97-004
Item Number 129-906, Rev. EA
Para accede al documento en Español, escanee el código QR que se encuentra en la parte trasera del termostato.
Installation Instructions
Product Information
The EcoView Thermostat (97-004) is a wireless,
digital thermostat, designed for use with the
EcoView Energy Management System.
See the following documents for installation of other
EcoView system components:
·
EcoView™ 8 DO Module Installation and
Commissioning (129-565)
·
EcoView™Multi-phase Meter Installation
Instructions (129-563)
·
EcoView™ Touchscreen Installation and
System Start-up (129-562)
Caution Notations
CAUTION/ATTENTION
Equipment damage or loss of data may
occur if you do not follow a procedure as
specified.
Risque de dégâts matériels ou de perte de
données, en cas de non-respect des
procédures à suivre.
Required Tools
·
No. 1 Phillips screwdriver
·
1/8" flat-blade screwdriver
·
Drill with 1/8" drill bit
Expected Installation Time
15 minutes
Prerequisites
·
All work must be performed in accordance with
applicable codes and standards.
·
Use 18 gauge thermostat wire for equipment
connections.
·
22 gauge shielded cable is recommended for
remote sensor wiring. Do not exceed 150 feet.
·
To replace an existing thermostat, verify if 24
Vac is present between the RH/RC and C
terminals.
Document No. 129-906
July 20, 2016
Spanish Version
Page 1 of 18
Advertisement
Table of Contents
Related Manuals for Siemens EcoView 97-004
Summary of Contents for Siemens EcoView 97-004
-
Page 1: Product Information
Installation Instructions Document No. 129-906 July 20, 2016 Spanish Version EcoView™ Thermostat Product Information The EcoView Thermostat (97-004) is a wireless, digital thermostat, designed for use with the EcoView Energy Management System. See the following documents for installation of other EcoView system components: ·... -
Page 2: Installation
Locate the 24 Vac transformer or 24 Vac on the terminal strip on the HVAC unit. Attach a thermostat wire to the 24 Vac source. See Figure 3. Thermostat Display. the HVAC equipment schematics to verify the correct terminals. Page 2 of 18 Siemens Industry, Inc. -
Page 3: Thermostat Display
When the connection is restored, the thermostat will maintain control to the current setpoint until a new setpoint is sent from the touchscreen. Siemens Industry, Inc. Page 3 of 18... -
Page 4: Wiring Diagrams
Document No. 129-906 Installation Instructions July 20, 2016 Wiring Diagrams Figure 4. Wiring Schematic, Conventional System. Page 4 of 18 Siemens Industry, Inc. - Page 5 Document No. 129-906 Installation Instructions July 20, 2016 Figure 5. Wiring Schematic, Heat Pump. Figure 6. Wiring Schematic, Aux Output 3. Siemens Industry, Inc. Page 5 of 18...
-
Page 6: Setup Wizard
NOTE: If the screen is not touched for 30 the day. Press the day to select. seconds, the unit returns to the Home 5. Use the + and – icons to set the temperature screen. setpoints. Page 6 of 18 Siemens Industry, Inc. -
Page 7: Maintenance
To clear, touch the + icon and the display See EcoView™ Touchscreen Installation and changes from “-----“ to OFF. Commissioning (129-562) for instructions on linking the thermostat to the EcoView Touchscreen. Counter resets and reminder icons turn off. Siemens Industry, Inc. Page 7 of 18... - Page 8 Touch the center of the Home screen to access the room temperature screen. Press the Settings [ ] icon, and SERVICE displays. Page 8 of 18 Siemens Industry, Inc.
- Page 9 Y = Auto adjust for Daylight Savings Time Daylight adjustment is based on P112 DAYLT SAVE N = Does not auto adjust for Daylight Savings USA schedule. Savings Time * Included in Set-Up Wizard Siemens Industry, Inc. Page 9 of 18...
- Page 10 12 = 12-hour format P212 Clock Format CLOCK 24 = 24-hour format Number of seconds that backlight P213 Backlight LIGHT 0 to 99 seconds stays on after screen is touched. 0 = Always off. Siemens Industry, Inc. Page 10 of 18...
- Page 11 0 = Not Used Aux Output 1 - If system is P317 AUX OUT 1 1 = Humidification (OUT1) conventional with 3H 2 = Dehumidification +3C, AO1 is fixed as, Stage 3 cooling. Siemens Industry, Inc. Page 11 of 18...
- Page 12 Expert Level setup menu where return the unit to the Home screen. See Table 10 for both the Expert Level and Installer Level Expert Level parameter settings. passwords can now be set to new values. Siemens Industry, Inc. Page 12 of 18...
- Page 13 Heating will begin when temperature 1°F (0.5°C) to 1°F P511 Heating Deadband HT DEADBND falls below lower point of deadband and ceases 5°F (4.0°C) (0.5°C) when temperature rises above upper port of deadband. Siemens Industry, Inc. Page 13 of 18...
- Page 14 Display RSSI, average of last 15 P612 ZigBee RSSI RSSI Display Only only packets Display P613 ZigBee Pan ID PAN ID Display Only Display Pan ID only ZigBee Display P614 CHANNEL Display Only Display ZigBee Channel Channel only Siemens Industry, Inc. Page 14 of 18...
- Page 15 Humidity Setpoint: User adjustable to desired YES = Dehumidification relay is energized level in humidification mode. independently of heating and cooling relays. · Dehumidity Setpoint: User-adjustable to desired level in dehumidification mode. Siemens Industry, Inc. Page 15 of 18...
- Page 16 Night Night Setpoint Heat, °F Setpoint Cool, °F Time 6:00 10:00 8:00 10:00 8:00 10:00 NOTE: Individual Days, periods per day: Parameter 107 = 3; Parameter 108 = 2; Parameter 109 = F Siemens Industry, Inc. Page 16 of 18...
- Page 17 Duct-Mounted Temperature Sensor 10K Ohm, Type II NTC QFM2160U Duct-Mounted Temperature & Humidity Sensor 0-10V QAC2030 Outdoor Air Temperature Sensor 10K Ohm, Type II NTC QAD2030 Surface-Mount Pipe Temperature Sensor 10K Ohm, Type II NTC Siemens Industry, Inc. Page 17 of 18...
-
Page 18: Fcc And Ic Interference Requirements
(Per RSS-Gen Issue 3 [December 2010 Section 7.1.3]) FCC Note This device complies with Part 15 of the FCC rules. Changes or modifications not expressly approved by Siemens Industry Inc. could void the user’s (FCC Code of Federal Regulations Title 47 Part 15.21) authority to operate the equipment.
