Accu-Chek Softclix Instructions For Use

Lancet
Instructions for Use

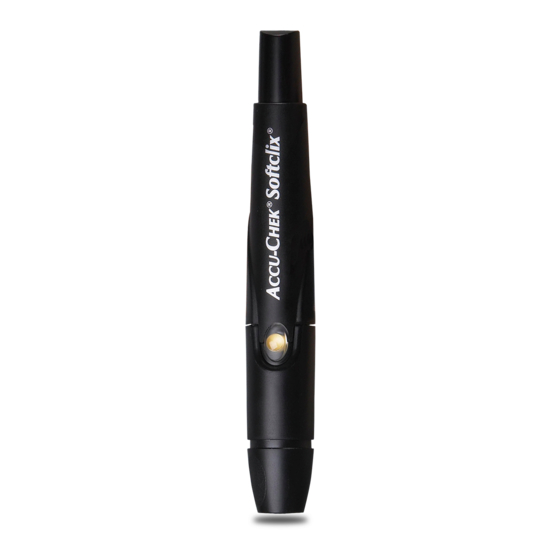

The ACCU-CHEK Softclix lancing device uses ACCU-CHEK Softclix
lancets to obtain a drop of blood from the fingertip. The penetration
depth can be selected to match any type of skin.
This cap is for fingertip testing only.
The clear cap is for testing on sites
other than the Fingertip (AST).
Do not use the clear cap for fingertip
testing.
Note: The ACCU-CHEK Softclix cap was not designed to be replaced
after each use. The ACCU-CHEK Softclix lancing device is intended
for use by a single person and is not suitable for testing different
persons with the same device as this may lead to infections.
pi_05104076001_01_EnUs_420x216.indd 1
Selecting the Depth
The depth on the ACCU-CHEK Softclix device may be adjusted by turning
the Comfort Dial. The current depth selection is shown in the center of
the depth indicator window. You can find the depth indicator window as
a semi-circular cutout on the ejector.
The ACCU-CHEK Softclix lanc-
ing device offers 11 depth set-
tings. The settings are shown
in the depth indicator window
by the numbers 1 to 5 with
additional levels marked with
dots to enable you to precisely
adjust to your individual skin type. The higher the number visible in the
depth indicator window, the greater the depth setting.
Note: If you are using the ACCU-CHEK Softclix lancing device for the first
time, start by selecting 1 or 2 to see if the amount of blood obtained
is enough to perform a test. If your skin is calloused or thick, you may
need to try a higher setting.
➊ To select the desired depth setting, turn the Comfort Dial so that the
desired setting is in the center of the depth indicator window.
➋ Select a new depth setting
by turning the Comfort Dial.
The cap will snap into a
new position, preventing
any accidental change of
the depth setting.
Performing a Fingerstick
➊ Pull off the cap of the
lancing device. If there is
already a lancet in the
device, remove it by
sliding the ejector
forward. Refer to the
selection called
"Removing the Lancet".
➋ Firmly insert a new ACCU-CHEK Softclix lancet in the lancet holder
until it snaps into place.
➌ Twist the protective cap on
the lancet several times
and pull gently to remove it.
➍ Snap on the cap after
lining up the notches.
The cap snaps easily
into place.
➎ Select the desired depth setting as instructed in the section
"Selecting the Depth".Then, press the plunger on the end of the
device all the way down, and you will hear a "click." When the device
is ready, you will see a yellow dot appear and remain in the center of
the clear release button.
➏ Now, wash your hands and dry them thoroughly. Also warm the
fingers to increase blood flow. If you are using alcohol wipes, make
sure your finger is completely dry before continuing.
➐ Grasp your finger near the area to be pricked and gently massage for
three seconds.
➑ Hold the lancing device
firmly against the side of
your fingertip, then press
the release button. Gently
squeeze your fingertip to
get a small drop of blood.
The best place to test on
the fingertip is the side,
because it has the best
blood supply, yet allows for
the least painful fingerstick. Any finger may be used for a fingerstick.
➒ Apply the drop to the test strip you are using.
➓ Immediately remove used lancet. To avoid accidental injury, do not
store lancet in device.
Removing the Lancet
➊ To remove the lancet, pull
off the cap of the ACCU-
CHEK Softclix device.
➋ Hold the meter so the lancet
points downward. Slide the
ejector forward to release
the lancet into a puncture-
proof container.
For least painful testing and to avoid infection, use a new lancet each
time you perform a fingerstick.
Getting Blood From A Site Other Than Your Fingertip
Testing on sites other than the fingertip is referred to as alternate site
testing (AST). These sites may be any of the following – palm, forearm,
upper arm, thigh, or calf. We suggest the palm as the non-fingertip test
site.
Please refer to your test strip insert or your blood glucose meter's
owner's booklet to see if your meter is designed to test blood glucose
from sites other than your fingertip as well as for specific AST testing
instructions.
IMPORTANT – There is a delay (lag time) in the delivery of blood glucose
to non-fingertip sites when compared to fingertip. Therefore, there is a
potential for a significant difference between fingertip and AST results.
The length of delay (lag time), is strongly impacted by lifestyle, foods
eaten, or any other event having impact on blood glucose levels. It is
important that people considering non-fingertip testing understand the
following:
Talk to your doctor if you are considering testing on other sites than
●
your fingertip.
AST testing is not recommended during periods of rapid decreases
●
or increases in blood glucose levels.
