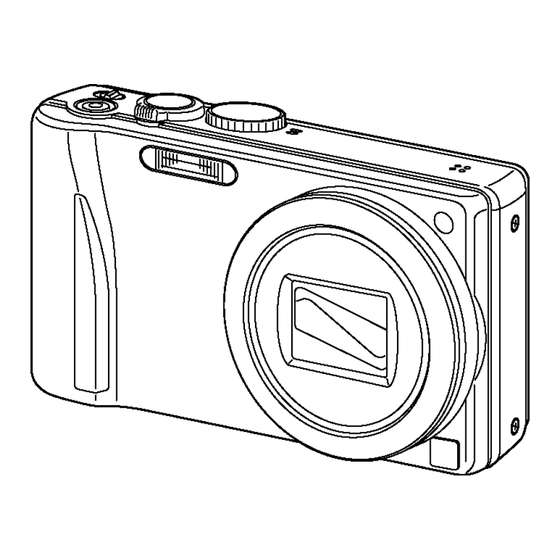

This Service Manual contains technical information which will help service personnel to understand and service the Digital Camera DMC-TZ25GW. The Digital Camera DMC-TZ25GW has been developed based on DMC-TZ25EG. Since this Service Manual does not cover the same part which is already described in the Service Manual for DMC-TZ25EG, when servicing, refer to the descriptions in the Service documents for DMC-TZ25EB/EE/EF/EG/EP/GC/GA/GN, ZS15P/PC/PU/GH/GK Order No.DSC1202004CE...
2 Service Navigation 2.1. How to Define the Model Suffix (NTSC or PAL model) There are six kinds of DMC-TZ25/ZS15, regardless of the colours. • a) DMC-ZS15P/PC • b) DMC-TZ25EB/EF/EG/EP/GW • c) DMC-TZ25EE • d) DMC-TZ25GN • e) DMC-ZS15GK • f ) DMC-TZ25GC/GA, ZS15GH/PU What is the difference is that the "INITIAL SETTINGS"...
2.1.2. INITIAL SETTINGS: After replacing the Main P.C.B., make sure to perform the initial settings after achieving the adjustment by ordering the following procedure in accordance with model suffix of the unit. 1. IMPORTANT NOTICE: Before proceeding Initial settings, be sure to read the following CAUTIONS. 2.
Page 5
When the unit is connected to PC with USB cable, it is detected as removable media. 1) As for your reference, major default setting condition is as shown in the following table. Default setting (After "INITIAL SETTINGS") MODEL VIDEO OUTPUT LANGUAGE DATE REMARKS DMC-TZ25GW English Date/Month/Year...
3 Replacement Parts List [ Packing Parts and Accessories Section ] Ref.No. Part No. Part Name & Description Remarks RPFW0057 CAMERA BAG VPK5262 PACKING CASE ----- BATTERY PACK VFF0971-S CD-ROM(SOFT/INSTRUCTION BOOK) VSK0772 AC ADAPTOR VQT4B41 BASIC O/I 1 (ENGLISH/CHINESE(TRADITIONAL)) K1HY08YY0025 USB CABLE W/PLUG VFC4297 HAND STRAP VPN7189...
