RUGGEDCOM RX5000
Installation Guide
• For 125/250 VDC rated equipment, an appropriately rated DC circuit breaker must be installed.
• It is recommended to provide a separate circuit breaker for each power supply module.
• Equipment must be installed according to applicable local wiring codes and standards.
The following sections describe how to connect power to the device:
• Section 2.2.1, "Installing/Removing Power Supplies"
• Section 2.2.2, "Connecting AC Power"
• Section 2.2.3, "Connecting DC Power"
Section 2.2.1

Installing/Removing Power Supplies

The RX5000 supports dual redundant AC and/or DC power supplies that can be installed in any combination.
Slots for the removable power modules are located on the rear panel of the device.

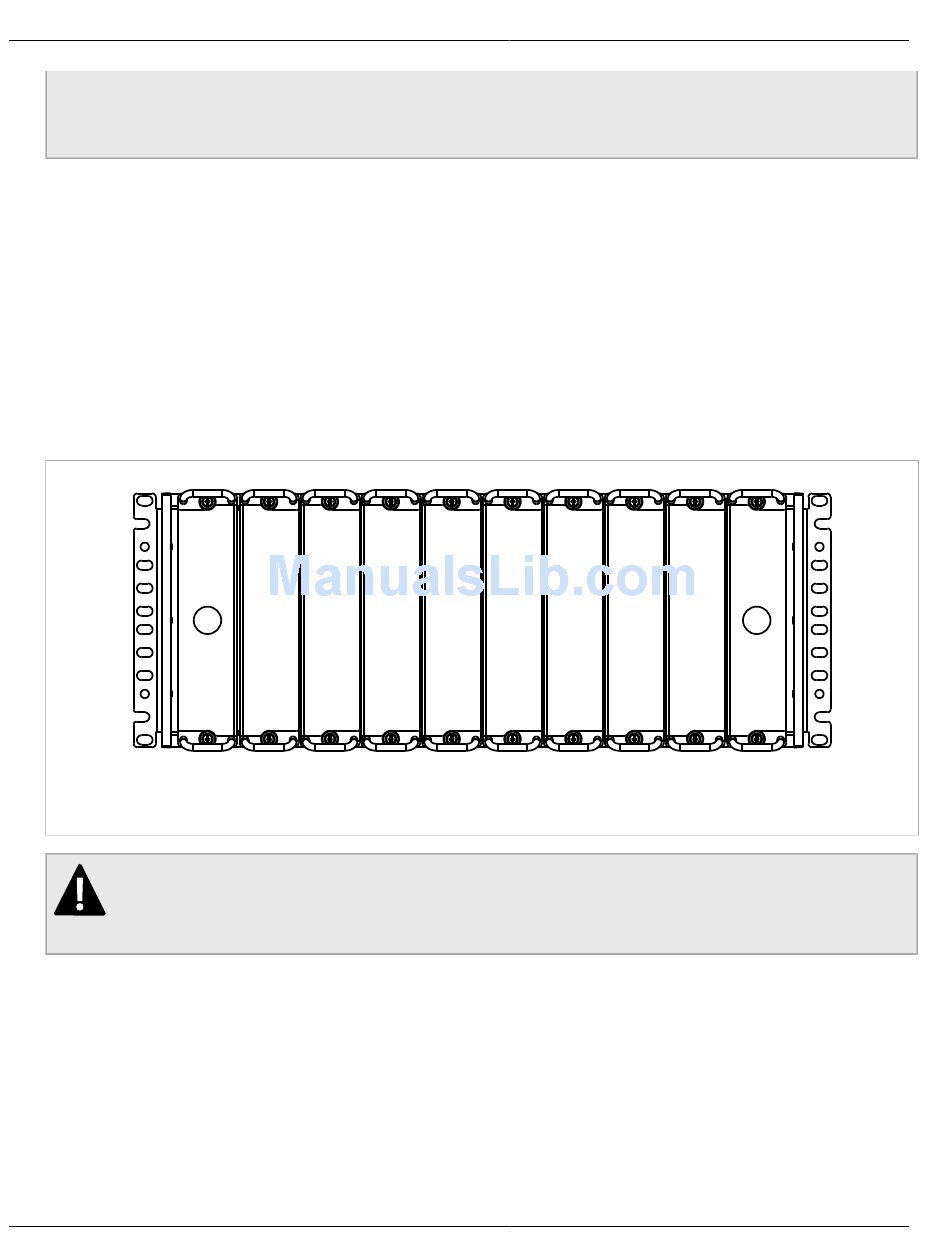

Figure 5: Power Module Slots
1. Slot PS1 2. Slot PS2
DANGER!
Electrocution hazard – risk of serious personal injury or death. The device may have two power
supplies equipped, which may be connected to separate power sources. Make sure all power sources
are isolated before servicing the power supplies.
The following sections describe how to install, remove and connect the power supplies:
• Section 2.2.1.1, "Installing a Power Supply"
• Section 2.2.1.2, "Removing a Power Supply"
Section 2.2.1.1

Installing a Power Supply

To install a power supply, do the following:
Installing/Removing Power Supplies
1
Chapter 2
Installing the Device
2
9
