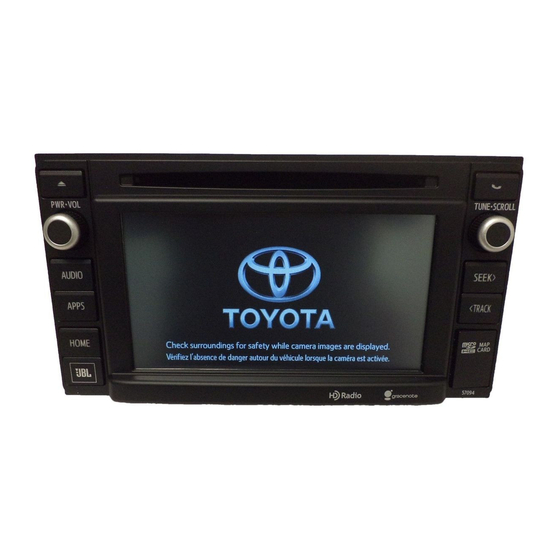

Page 1 2015 Entune Premium Audio ™ with Navigation and App Suite...
Page 2: Table Of Contents
Navigation Owner’s Manual. We strongly encourage you to review the Navigation Phone Compatibility Owner’s Manual, the quick reference guide and visit www.toyota.com/entune so you will have a ENTUNE - HOW TO GET STARTED better understanding of all your vehicles features and controls.
Page 3: What Is Entune
Apps identified by "™" or "®" are trademarks or registered trademarks of their respective companies and cannot be used without permission. See toyota.com/entune for the latest information regarding apps and services.
Page 4: Basic Overview
Click on the link embedded in the email to activate your account. www.myentune.com and Terms of Service Privacy Policy © 2011 Toyota Motor Sales, U.S.A., Inc. All information applies to U.S. vehicles only. CONNECT PHONE create a personal Entune See page 7 for instructions. App account using your computer.
Page 5: Connect A Bluetooth Phone
Before you begin using the voice recognition system, it is recommended that you access "Train Voice Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. The pairing process is quick and easy: all iPhone mobile digital devices and Recognition"...
Page 6: Calling By Voice Recognition
CALLING BY VOICE RECOGNITION CALLING BY VOICE RECOGNITION DIAL BY NUMBER DIAL BY NAME If you are able to successfully transfer your phone book, you can dial by name using voice recognition. Please say the name exactly as it is entered in your phone when in the telephone screen. If you have difficulty pairing your phone, or are unable to transfer your cell phone book, please refer to the cell phone manufacturer's user guide.
Page 7: Destination Input
DESTINATION INPUT DESTINATION INPUT BY ADDRESS BY ADDRESS From the home screen, touch the map. step step Input the house number and touch step Touch the desired street name. step Press and enter the desired State/ followed by Province. Input the city name. step step step...
Page 8: Note On Voice Recognition
DESTINATION INPUT DESTINATION INPUT - POINT OF INTEREST (POI) NOTE ON VOICE RECOGNITION POINT OF INTEREST BY NAME The navigation system's voice recognition feature will compare your spoken words with computer-generated word patterns preprogrammed in the database. If the system does not provide your intended match, please try a different pronunciation.
Page 9: Point Of Interest By Category - Voice Recognition
DESTINATION INPUT - POINT OF INTEREST (POI) DESTINATION INPUT - POINT OF INTEREST (POI) POINT OF INTEREST BY CATEGORY POINT OF INTEREST BY CATEGORY - VOICE RECOGNITION Quick Tip -You can search for many dining, hotel and fuel chains by name, e.g., "Find Nearby Starbucks." From the home screen, touch the map.
Page 10: Set Home
SET HOME SET HOME Press the Set Up icon on the Touch the desired city name. Input the street name and touch step step step step Touch faceplate followed by Quick Tip - Enter the street name without prefixes such as North or the letter N. The system will display the base street name without prefixes or suffixes on the next screen.
Page 11: Additional Features
ADDITIONAL NAVIGATION FEATURES ADDITIONAL NAVIGATION FEATURES OPERATION OF EMERGENCY SCREEN BEEP SETTING VOICE VOLUME SEARCH AREA Prior to inputting the desired address select the State/ PRESS SET UP ICON > PRESS SET UP ICON > PRESS > Province by pressing .
Page 12: Traffic
TRAFFIC TRAFFIC MY TRAFFIC ROUTES The Traffic App integrates with your navigation system to display continuously updated traffic information for over 100 markets. Just begin by pressing the APPS button and selecting My Traffic Routes lets you store favorite and previously traveled routes to check traffic conditions. To see traffic routes, touch TRAFFIC EVENT LIST AUTOMATICALLY AVOID TRAFFIC...
Page 13: Weather
WEATHER ENTUNE APP SUITE FEATURES The weather app allows you to access Doppler weather radar information. You can also check the weather Once your phone is connected via Bluetooth, Entune lets you access many useful apps. These are some of the top forecast for other cities.
Page 14 NOTES NOTES...
Page 15 00505-NAV14-ENPRE Printed in the USA 08/13...
Page 16 TABLE OF CONTENTS Information on the plug-in hybrid system and adjusting Before driving and operating features such as door locks, mirrors, and steering column When driving Driving, stopping and safe-driving information Interior Air conditioning and audio systems, as well as other in- features terior features for a comfortable driving experience Maintenance...
Page 17 TABLE OF CONTENTS Page Charging Charging procedures operation Plug-in Hybrid A service for plug-in hybrid vehicles Applications Basic Basic operating procedures operation Things you Things you need to know about the plug-in must know hybrid system The quick guide is not intended as a substitute for your “Owner’s Manual”.
Page 18 1. Charging operation How to charge Charging equipment and names ■ Charging indicator Charging port Charging inlet Charging cable Charging port lid PRIUS PHV_QG_OM47A73U_(U)
Page 19 1. Charging operation The names of each part of the charging cable ■ Charging connector Power indicator Latch release button Error warning indicator CCID (Charging Circuit Inter- Test button rupting Device) Reset button Plug : The shape of the plug differs in accordance with the voltage and the target region.
Page 20 1. Charging operation Confirm the following before charging ■ ● The parking brake is applied. ● Lights such as the headlights, emergency flashers and interior lights etc. are switched off. If these light switches are turned ON, then these features will consume electricity, and charging time will increase.
Page 21 If the error warning indicator does not come on even if the test but- ton is pressed, it is likely that the function is not operating correctly. Stop charging immediately and contact your Toyota dealer. PRIUS PHV_QG_OM47A73U_(U)
Page 22 1. Charging operation Press the charging port lid to STEP open. The charging inlet light will illumi- nate. Remove the charging connector STEP cap. Affix the cap to the cable. Insert the charging connector STEP into the charging inlet. When inserting, make sure not to press the latch release button.
Page 23 1. Charging operation Confirm that the charging indica- STEP tor is illuminated. (When the charging timer function is in use, the light will turn off several sec- onds after illuminating.) Charging will not start if the charging indicator does not illumi- nate when the charging connec- tor is inserted.
Page 24 1. Charging operation After charging ■ Pull charging connector STEP towards you while pressing the latch release button. If the charging connector is dis- connected during charging (while the charging indicator is on), charging will be interrupted. STEP Attach the charging connector cap. Close the charging port lid.
Page 25 1. Charging operation Charging timer function ■ By using the charging timer function, deterioration of the hybrid bat- tery (traction battery) charge can be suppressed, and off-peak elec- tricity can be used effectively. ● A charging time can be assigned by setting the charging start time or finish time.
Page 26 1. Charging operation Press the charging timer switch STEP to select a setting mode. Start time setting mode Finish time setting mode The mode will switch with each press charging timer switch. Adjust the set time using the time STEP adjustment button.
Page 27 1. Charging operation Turn the “POWER” switch off. STEP The charging timer indicator will start flashing. Connect the charging cable to the vehicle. STEP Check that the charging indicator ( P. 2) has come on. It will turn off after several seconds. If the indicator does not come on, re-insert the charging connector.
Page 28 1. Charging operation Displays shown on the multi-information display ■ Each type of information related to charging is displayed on the multi- information display. Time until charging is complete If the “POWER” switch is turned to ON mode during charging, the current charging status and the amount of time needed until charging is complete will be dis-...
Page 29 Check that the electrical leakage detection function operates properly by following the procedure below. In the unlikely event that the electrical leakage detection function does not operate properly, contact your Toyota dealer as soon as possible. Insert the charging cable into the outlet of the external power STEP source.
Page 30 1. Charging operation Safety functions ■ The hybrid system will not start while the charging cable is attached to ● the vehicle, even if the “POWER” switch is operated. If the charging cable is connected while the “READY” indicator is illumi- ●...
Page 31 1. Charging operation CAUTION When charging ■ Follow these points when charging. If you do not follow them, fire or electri- cal shock may occur, possibly resulting in death or serious injury. Connect to a power source suitable for charging. ●...
Page 32 1. Charging operation CAUTION When charging ■ When charging outdoors, make sure to connect to a weatherproof outlet ● for outdoor use. Also, if rain falls during charging, take care that rainwater does not run along the length of cable and enter the outlet. Do not insert the plug if the outlet is submerged in water or snow.
Page 33 1. Charging operation CAUTION Power sources precautions ■ Observe the following precautions. If you do not follow them, fire, electrical shock or damage may occur, possi- bly resulting in death or serious injury. Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit- ●...
Page 34 Do not touch the battery charger during charging, as it becomes hot. ● Do not disassemble, repair or modify the battery charger. ● If repair is necessary, consult your Toyota dealer. Routine inspection ■ Check the following points regularly. If use is continued without inspection, fire or electric shock may occur, possibly resulting in death or serious injury.
Page 35 ● Download of nearby charging stations to the map screen (Type A) ● View list of nearby charging stations and corresponding charging station information (such as voltage supported) (Type B) The function of Type B is a function added to Entune. For details about the function, refer to http://www.toyota.com/entune/. PRIUS PHV_QG_OM47A73U_(U)
Page 36 3. Basic operation How to operate the Remote Air Conditioning System Activating the Remote Air Conditioning System ■ Press and hold the operate the Remote Air Condi- tioning System. The system will shut off if a door is opened. The system can be stopped by pressing the twice.
Page 37 3. Basic operation How to operate unlocking and locking the doors Front door handles (including front passenger door handle if ■ equipped with entry function) Grip the driver’s door handle to unlock the door. Grip the passen- ger’s door handle to unlock all the doors.
Page 38 3. Basic operation Back door (vehicles with entry function of front and back ■ doors) Press the unlock button to unlock all the doors. The doors cannot be unlocked for 3 seconds after the doors are locked. Press the lock button to lock all the doors.
Page 39 3. Basic operation How to operate the power (ignition) switch Starting the hybrid system ■ Check that the charging cable is disconnected. STEP Check that the parking brake is set. STEP STEP Firmly depress the brake pedal. Check that the “POWER” switch indicator turns green. If the indica- tor does not turn green, the hybrid system cannot be started.
Page 40 3. Basic operation Stopping the hybrid system ■ STEP Stop the vehicle completely. Set the parking brake. STEP Shift the shift position to P. STEP Check that the shift position indi- cator shows P. Press the “POWER” switch. STEP The hybrid system will stop. Slowly release the brake pedal and check that the indicator on STEP the “POWER”...
Page 41 3. Basic operation Changing “POWER” switch modes ■ Modes can be changed by pressing the “POWER” switch with the brake pedal released. (The mode changes each time the switch is pressed.) The emergency flashers can be used. ACCESSORY mode Some electrical components such as the audio system can be used.
Page 42 3. Basic operation Shift lever operation Starting procedure ■ When the “READY” indicator STEP comes on, shift the shift position to D or R and release it with the brake pedal depressed. The D or R position is selected and the lever returns to its home position.
Page 43 3. Basic operation Stopping procedure ■ Stop the vehicle completely by STEP depressing the brake pedal and then apply the parking brake. Shift the shift position to P. STEP Check that the shift position indi- cator on the instrument cluster is in P, and release the brake pedal gently after applying the parking brake.
Page 44 3. Basic operation About engine braking ■ When shift position B is selected, releasing the accelerator pedal will apply engine braking. When the vehicle is driven at high speeds, compared to ordinary gaso- ● line-fueled vehicles, the engine braking deceleration is felt less than that of other vehicles.
Page 45 3. Basic operation How to operate the wipers and washers Windshield wipers and washer ■ Type A Intermittent wiper operation Low speed wiper operation High speed wiper operation Temporary operation Increases intermittent windshield wiper frequency Decreases intermittent windshield wiper frequency Washer/wiper dual operation Wipers operate automatically.
Page 46 3. Basic operation Type B Intermittent wiper operation Low speed wiper operation High speed wiper operation Temporary operation Increases intermittent windshield wiper frequency Decreases intermittent windshield wiper frequency Washer/wiper dual operation Wipers operate automatically. PRIUS PHV_QG_OM47A73U_(U)
Page 47 3. Basic operation Rear window wiper and washer ■ Type A Intermittent window wiper operation Normal window wiper opera- tion Washer/wiper dual operation Washer/wiper dual operation Type B Intermittent window wiper operation Normal window wiper opera- tion Washer/wiper dual operation Washer/wiper dual operation PRIUS PHV_QG_OM47A73U_(U)
Page 48 3. Basic operation Cruise control operation Set the vehicle speed ■ Press the “ON-OFF” button to activate the cruise control. Press the button again to deacti- vate the cruise control. Accelerate or decelerate the vehicle to the desired speed, and push the lever down to set the speed.
Page 49 3. Basic operation Canceling and resuming the constant speed control ■ Pulling the lever toward you cancels the constant speed control. The speed setting is also can- celed when brakes applied. Pushing the lever up resumes the constant speed control. ITO24P106 Resuming is available when the vehicle speed is more than...
Page 50 4. Things you must know Regenerative braking ■ In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery). The accelerator pedal is released while driving with the shift position in D ●...
Page 51 4. Things you must know When continually using EV mode only ■ After driving for approximately 124 miles (200 km) with the gasoline engine off, the gasoline engine may start for a short amount of time in order to pro- tect the system.
Page 52 Do not carry large amounts of water such as water cooler bottles in the ● vehicle. If water spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Toyota dealer. If the rear seat belt becomes separated from the guide, it could obstruct ●...
Page 53 Pictorial index Exterior Outside rear view mirrors Windshield wipers P. 305 P. 173 Hood P. 448 Fuel filler door P. 178 Front turn signal lights P. 259 Daytime running lights Fog lights P. 303 (for the U.S.A.) P. 300 Daytime running lights (for Canada) and headlights P.
Page 54 Back door P. 144 Rear window wiper P. 309 Rear window defoggers P. 381 Charging port P. 78 Side doors P. 138 Tires ●Rotation P. 481 Camera ●Replacement P. 454 License plate lights P. 297 ●Inflation pressure P. 627 ●Information P.
Page 55 Pictorial index Interior Head restraints P. 156 Seat belts P. 160 SRS front passenger airbag P. 187 Cup holders P. 394 Glove boxes P. 392 Armrest P. 405 Rear seats P. 153 SRS side airbags P. 187 Front seats P. 150 Floor mat P.
Page 56 Sun visors P. 398 Front interior/personal lights P. 389 Microphone P. 421 Assist grips P. 406 Rear interior light P. 390 SRS curtain shield airbags P. 187 “SOS” button P. 421 Auxiliary box P. 397 Vanity mirrors P. 399 Anti-glare inside rear view mirror P.
Page 57 Pictorial index Interior Window lock switch P. 175 Door lock switch P. 138 Inside lock button P. 138 Power window switches P. 175 PRIUS PHV_OM_OM47A11U_(U)
Page 58 AUX port/USB port P. 387 Console box P. 393 Power outlet P. 401 Cup holders P. 394 : Refer to “DISPLAY AUDIO SYSTEM OWNER’S MANUAL” or “NAVIGATION SYSTEM OWNER’S MANUAL”. PRIUS PHV_OM_OM47A11U_(U)
Page 59 Pictorial index Interior Seat heater switches P. 403 Power outlet P. 401 Auxiliary box P. 397 PRIUS PHV_OM_OM47A11U_(U)
Page 60 Pictorial index Instrument panel Windshield wipers and washer switch P. 305 SRS driver airbag P. 187 Rear window wiper and Horn P. 261 washer switch P. 309 Headlight switch P. 297 Gauges and meters P. 262 Turn signal lever Multi-information display P.
Page 61 Pictorial index Instrument panel Outside rear view mirror switches P. 173 Headlight cleaner switch P. 312 Fuel filler door opener P. 178 MPH or km/h button P. 264 Instrument panel light control dial P. 265 Hood lock release lever P. 448 PRIUS PHV_OM_OM47A11U_(U)
Page 62 “TRIP” button P. 272, 278 Climate remote control switches P. 375 Audio remote “DISP” button P. 272 1, 2 control switches 1, 2 Talk switch Cruise control switch P. 313 Dynamic radar cruise control 1, 2 Telephone switches switch P. 317 Vehicle-to-vehicle distance button P.
Page 63 Pictorial index Instrument panel Clock adjustment buttons P. 280 Charging timer switch P. 91 Head-up display switches P. 290 Power (ignition) switch P. 242 PRIUS PHV_OM_OM47A11U_(U)
Page 64 Air conditioning system P. 364 Rear window and outside rear view mirror defoggers switch P. 381 Emergency flasher switch P. 528 EV/HV mode selection switch P. 37 Eco drive mode switch P. 251 Power mode switch P. 251 Shift lever P.
Page 65 Pictorial index Luggage compartment Luggage compartment light P. 145 Luggage cover P. 410 Emergency tire puncture repair kit P. 574 Auxiliary box P. 409 Cargo hooks P. 409 PRIUS PHV_OM_OM47A11U_(U)
Page 66 PRIUS PHV_OM_OM47A11U_(U)
Page 67: For Your Information
Accessories, spare parts and modification of your Toyota A wide variety of non-genuine spare parts and accessories for Toyota vehi- cles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Toyota vehicle.
Page 68 ● SRS airbag system ● Seat belt pretensioner system Be sure to check with your Toyota dealer for precautionary measures or spe- cial instructions regarding installation of a mobile two-way radio system. High voltage parts and cables on the hybrid vehicles emit approximately the...
Page 69 ● Usage of data collected through Safety Connect (U.S. mainland only) If your Toyota has Safety Connect and if you have subscribed to those ser- vices, please refer to the Safety Connect Telematics Subscription Service Agreement for information on data collected and its usage.
Page 70 Event data recorder This vehicle is equipped with an event data recorder (EDR). The main pur- pose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 71 ● Disclosure of the EDR data Toyota will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained • In response to an official request by the police, a court of law or a govern- ment agency •...
Page 72 CAUTION General precautions while driving ■ Driving under the influence: Never drive your vehicle when under the influ- ence of alcohol or drugs that have impaired your ability to operate your vehi- cle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.
Page 73 In the event that your vehicle must be disposed of, the hybrid battery (traction battery) must be disposed of by your Toyota dealer or a qualified service shop. If the hybrid battery (traction battery) is not disposed of properly, it may cause electric shock that can result in death or serious injury.
Page 74 This is a warning against something which, if ignored, may cause damage to the vehicle or its equipment. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Toyota and its equipment.
Page 75 1-1. Plug-in hybrid system Plug-in hybrid system features The plug-in hybrid system is a system that has the features of both electric vehicles and hybrid vehicles. ● Electricity received by charging from an external power source can be used, and the vehicle can also be driven as an electric vehicle by driving over certain distances using only the electric motor (traction motor).
Page 76 1-1. Plug-in hybrid system When in EV mode ■ Driving using only the electric motor (traction motor) is possible (excluding certain situations, such as when accelerating sud- denly), but if the amount of charge remaining in the hybrid bat- tery (traction battery) becomes low, EV mode will be canceled. In order to prolong EV mode driving, observe the following: ●...
Page 77 1-1. Plug-in hybrid system When in HV mode ■ The vehicle can be used in the same way as a standard hybrid vehicle. In HV mode, controls are primarily carried out as follows in accordance with the driving conditions. ● The gasoline engine stops when the vehicle is stopped. ●...
Page 78 1-1. Plug-in hybrid system Plug-in hybrid system control The plug-in hybrid system features both EV mode and HV mode, which are switched automatically. When a sufficient amount of elec- tricity is remaining in the hybrid battery (traction battery) the vehicle can be driven as an electric vehicle in EV mode;...
Page 79 1-1. Plug-in hybrid system HV mode ■ If only a little electricity is remain- ing in the hybrid battery (traction battery) and the vehicle cannot be driven using the electric motor (traction motor) only, the electric motor (traction motor) and the gasoline engine will be used together.
Page 80 1-1. Plug-in hybrid system EV/HV mode selection switch You can manually switch between EV mode and HV mode when you want to conserve battery power in preparation for EV driving in city areas. Switching to HV mode when driving on a highway or when driving uphill is recommended in order to conserve battery power.
Page 81 1-1. Plug-in hybrid system Charging ( P. 85) In order to drive in EV mode, charge the hybrid battery (trac- tion battery) from an external power source before using your vehicle. If there is not enough charge remaining in the hybrid battery (traction battery), it is possible that the vehicle cannot be driven in EV mode or the distance that...
Page 82 1-1. Plug-in hybrid system Regenerative braking ■ In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery). The accelerator pedal is released while driving with the shift position in D ●...
Page 83 1-1. Plug-in hybrid system Refilling fuel ■ Plug-in hybrid vehicles can be driven using electricity charged from an exter- nal power source, however the gasoline engine that is provided on board as a power source for driving in HV mode needs to be filled with fuel. Check the fuel amount and refill immediately when the fuel level becomes low.
Page 84 1-1. Plug-in hybrid system When continually using EV mode only ■ After driving for approximately 124 miles (200 km) with the gasoline engine off, the gasoline engine may start for a short amount of time in order to pro- tect the system. Conditions in which the gasoline engine may not stop ■...
Page 85 1-1. Plug-in hybrid system Sounds and vibrations specific to a hybrid vehicle ■ There may be no engine sounds or vibration even though the vehicle is able to move. For safety, apply the parking brake and make sure to shift the shift position to P when parked.
Page 86 Maintenance, repair, recycling, and disposal ■ Contact your Toyota dealer regarding maintenance, repair, recycling and dis- posal. Do not dispose of the vehicle yourself. PRIUS PHV_OM_OM47A11U_(U)
Page 87 1-1. Plug-in hybrid system Plug-in hybrid system precautions Take care when handling the hybrid system, as it contains a high voltage system (about 650V at maximum) as well as parts that become extremely hot when the hybrid system is operating. Obey the caution labels attached to the vehicle.
Page 88 If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 89 ■ volt battery is disconnected The hybrid system may not start. In that case, try to start the system again. If the “READY” indicator does not come on, contact your Toyota dealer. Running out of fuel ■ When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the vehicle with at least enough gasoline to make the low fuel level warning light ( P.
Page 90 1-1. Plug-in hybrid system Electromagnetic waves ■ High voltage parts and cables on the hybrid vehicles incorporate electro- ● magnetic shielding, and therefore emit approximately the same amount of electromagnetic waves as conventional gasoline powered vehicles or home electronic appliances. Your vehicle may cause sound interference in some third party-produced ●...
Page 91 1-1. Plug-in hybrid system CAUTION High voltage precautions ■ The vehicle has high voltage DC and AC systems as well as a 12-volt sys- tem. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury. Never touch, disassemble, remove or replace the high voltage parts, ●...
Page 92 1-1. Plug-in hybrid system CAUTION Road accident cautions ■ If your vehicle is involved in an accident, observe the following precautions to reduce the risk of death or serious injury: Stop the vehicle in a safe place to prevent subsequent accidents. ●...
Page 93 Do not replace, dispose of, modify, or reuse the hybrid battery (traction bat- tery) and do not use it for anything other than its intended use. Contact your Toyota dealer for replacement or disposal. If the hybrid battery (traction battery) is replaced, disposed of, modify or...
Page 94 ● vehicle. If water spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Toyota dealer. If the rear seat belt becomes separated from the guide ( P. 154), it could ●...
Page 95 1-1. Plug-in hybrid system Energy monitor/consumption screen You can view the status of your hybrid system on the Display Audio system screen, the navigation system screen or the multi-informa- tion display. Display Audio system screen or navigation system screen Multi-information display Energy monitor Displays the flow of energy as it changes in accordance with driving conditions.
Page 96 1-1. Plug-in hybrid system Condition Display When the vehicle is powered by the electric motor (traction motor) When the vehicle is powered by both the gasoline engine and the electric motor (traction motor) When the vehicle is powered by the gasoline engine PRIUS PHV_OM_OM47A11U_(U)
Page 97 1-1. Plug-in hybrid system Condition Display When the vehicle is charging the hybrid battery (traction battery) When there is no energy flow Full Hybrid battery (traction battery) status These images are examples only, and may vary slightly from actual conditions. PRIUS PHV_OM_OM47A11U_(U)
Page 98 1-1. Plug-in hybrid system Navigation system Press “INFO APPS” or “INFO”. STEP Touch “Fuel Consumption” on STEP the “Information” screen. If the “Consumption” screen is displayed, touch “Energy”. PRIUS PHV_OM_OM47A11U_(U)
Page 99 1-1. Plug-in hybrid system Condition Display When the vehicle is powered by the electric motor (traction motor) When the vehicle is powered by both the gasoline engine and the electric motor (traction motor) When the vehicle is powered by the gasoline engine PRIUS PHV_OM_OM47A11U_(U)
Page 100 1-1. Plug-in hybrid system Condition Display When the vehicle is charging the hybrid battery (traction battery) When there is no energy flow Full Hybrid battery (traction battery) status These images are examples only, and may vary slightly from actual conditions. PRIUS PHV_OM_OM47A11U_(U)
Page 101 1-1. Plug-in hybrid system Multi-information display Press the “DISP” button to dis- play the energy monitor. Names and meaning of each icons ■ Gasoline engine Hybrid battery (traction bat- tery) Electric motor (traction motor) EV driving range Displays the approximate driving range using only the electric motor (traction motor) when in EV mode or when enough power is...
Page 102 1-1. Plug-in hybrid system Condition Display When the vehicle is powered by the electric motor (traction motor) The illustration shows the display when in EV mode. When the vehicle is powered by both the gasoline engine and the electric motor (traction motor) When the vehicle is powered by the gasoline engine When charging the hybrid bat-...
Page 103 1-1. Plug-in hybrid system Condition Display When the vehicle is charging the hybrid battery (traction battery) When there is no energy flow These images are examples only, and may vary slightly from actual conditions. PRIUS PHV_OM_OM47A11U_(U)
Page 104 1-1. Plug-in hybrid system Hybrid battery (traction battery) status ■ When driving in EV mode, the battery display will switch when the remaining charge display reaches one fifth of the total, and HV mode will be switched to when the level reaches 6 or below. The display when switching from EV mode to HV mode is different to the display when switching from HV mode to EV mode.
Page 105 1-1. Plug-in hybrid system Consumption screen Display Audio system Press “CAR”. If the “Energy Monitor” screen is displayed, touch “Consumption”. Fuel consumption in the past 30 minutes Cruising range ( P. 67) Regenerated energy in the past 30 minutes One symbol indicates 30 Wh. Up to 4 symbols are shown.
Page 106 1-1. Plug-in hybrid system Multi-information display Press the “DISP” button to dis- play the 5-minute or 1-minute fuel consumption display. Press and hold the “DISP” button to switch between 5-minute and 1-minute fuel consumption dis- plays. The display will alternate with each press of the button.
Page 107 1-1. Plug-in hybrid system EV indicator Eco Driving Indicator Light Average speed Average fuel consumption Use the displayed average fuel consumption as a reference. P. 273 :The current amount since the trip meter was reset will be displayed. These functions can be reset by pressing and holding the “TRIP”...
Page 108 1-1. Plug-in hybrid system Monthly fuel consumption record (multi-information display only) Press the “DISP” button to dis- play the monthly fuel consump- tion record. Displays the average fuel consumption for the previous 6 months. Average fuel consumption for the previous 6 months EV indicator Eco Driving Indicator Light Driving...
Page 109 1-1. Plug-in hybrid system Remaining hybrid battery (traction battery) charge display ■ The remaining charge display of the hybrid battery (traction battery) icon on the multi-information display switches in accordance with the remaining charge. ( P. 61) Resetting the consumption data ■...
Page 110 1-1. Plug-in hybrid system Cruising range ■ Displays the estimated distance that can be driven with the quantities of fuel and hybrid battery (traction battery) charge currently remaining. This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that dis- played.
Page 111 1-1. Plug-in hybrid system Plug-in hybrid vehicle driving tips For economical and ecological driving, pay attention to the following points: Using EV mode and HV mode effectively ■ Primarily using EV mode when driving in cities and using HV mode when driving on highways (or freeways) can help con- serve fuel and electricity.
Page 112 1-1. Plug-in hybrid system Highway driving ■ Control your speed and keep at a constant speed. Also, before stopping at a toll booth or similar, allow plenty of time to release the accelerator and gently apply the brakes. A greater amount of electrical energy can be retained when slowing down.
Page 113 1-1. Plug-in hybrid system Checking tire inflation pressure ■ Make sure to check the tire inflation pressure frequently. If there is improper tire inflation pressure in the tires, the driving range when in EV mode will become shorter, and fuel consumption when in HV mode will increase.
Page 114 1-1. Plug-in hybrid system EV driving range The EV driving range displayed on the multi-information display shows the approximate driving range in EV mode, and the actual dis- tance that can be driven may differ from that displayed. Displayed value ■...
Page 115 1-1. Plug-in hybrid system The estimated EV driving range may change significantly with each charging until the electricity consumption based on the recorded value is stable (for approximately the first month or two). However, this does not indicate a malfunction. When the air conditioning system is turned on, the estimated EV driving range is calculated to be approximately 10% shorter compared to when the air conditioning system is off in consider-...
Page 116 1-1. Plug-in hybrid system Tips for extending the distance that can be driven in EV mode The distance that can be driven in EV mode varies significantly depending on how the vehicle is driven, road conditions, the weather, the outside temperature, usage conditions of electrical components and the number of occupants.
Page 117 1-1. Plug-in hybrid system Display when charging is completed The following indicate that charging has been carried out properly. ● The charging indicator turns off ● “CHARGE RESULT: CHARGE COMPLETE” is displayed on the multi-information display when starting off ( P. 95) Regardless of the type of power source or whether the charging timer function is used, charging is completed if the above can be con- firmed.
Page 118 ● Download of nearby charging stations to the map screen (Type A) ● View list of nearby charging stations and corresponding charging station information (such as voltage supported) (Type B) The function of Type B is a function added to Entune. For details about the function, refer to http://www.toyota.com/entune/. PRIUS PHV_OM_OM47A11U_(U)
Page 119 1-1. Plug-in hybrid system Download of nearby charging stations to the map screen ■ POI icons of charging stations can be displayed on the map screen. Their location can also be set as a destination and used for route guidance. Press “INFO APPS”.
Page 120 1-1. Plug-in hybrid system Touch “Show on Map” to display STEP nearby charging stations on the map screen. To Hide POI icons ■ Touch “Show on Map”. STEP Touch “Charging Station Icons”. STEP The map screen will be displayed with the POI icons hidden. To display the POI icons again, touch “Charging Station Icons”...
Page 121 1-2. Charging Charging equipment This vehicle features equipment for connecting to an external power source. Charging equipment and names ■ Charging indicator Charging port Charging inlet Charging cable Charging port lid PRIUS PHV_OM_OM47A11U_(U)
Page 122 1-2. Charging The names of each part of the charging cable ■ Charging connector Power indicator Latch release button Error warning indicator CCID (Charging Circuit Inter- Test button rupting Device) Reset button Plug : The shape of the plug differs in accordance with the voltage and the target region.
Page 123 1-2. Charging Safety functions The CCID (Charging Circuit Interrupting Device) has the following safety features. Electrical leakage detection function ■ If an electrical leakage is detected during charging, the power source will be automatically interrupted, thus preventing fires or electrical shocks caused by electrical leakage. If the power source is interrupted, the error warning indicator will illumi- nate.
Page 124 CCID (Charging Circuit Interrupting Device). If a problem arises with the charging cable or the CCID (Charging Circuit Interrupting Device), stop charging immediately and contact your Toyota dealer. Do not subject the charging cable, charging connector, plug or CCID ●...
Page 125 1-2. Charging Power sources that can be used An external power source that fulfills the following criteria is nec- essary for charging this vehicle. Confirm this before charging. Power sources ■ ● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground- Fault Circuit-Interrupter (GFCI) and a circuit breaker.
Page 126 1-2. Charging The charging environment ■ For safe charging, the following charging equipment and settings are recom- mended. Weatherproof outlet ● When charging outdoors, connect the plug to a weatherproof outlet, and ensure that the plug remains waterproof while the plug is connected. Dedicated circuit ●...
Page 127 1-2. Charging CAUTION Power sources precautions ■ Observe the following precautions. If you do not follow them, fire, electrical shock or damage may occur, possi- bly resulting in death or serious injury. Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit- ●...
Page 128 1-2. Charging How to charge This vehicle has been designed to allow charging from an external power source using a charging cable for exclusive use with standard household AC outlets. However, the vehicle differs greatly from standard household electri- cal goods in the following ways, and incorrect usage could cause fire or electric shock, possibly leading to death or serious injury.
Page 129 1-2. Charging How to charge ■ Prepare the charging cable. STEP Insert the charging cable into STEP the outlet of the external power source. Make sure to hold the body of the plug and insert it firmly into the outlet. Check that the power indicator of the CCID (Charging Circuit Interrupting Device) is illumi-...
Page 130 If the error warning indicator does not come on even if the test button is pressed, it is likely that the function is not operating correctly. Stop charging immediately and con- tact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 131 1-2. Charging Press the charging port lid to STEP open. The charging inlet light will illu- minate. Remove the charging connec- STEP tor cap. Affix the cap to the cable. Insert the charging connector STEP into the charging inlet. When inserting, make sure not to press the latch release but- ton.
Page 132 1-2. Charging Confirm that the charging indi- STEP cator is illuminated. (When the charging timer function is in use, the light will turn off sev- eral seconds after illuminat- ing.) Charging will not start if the charging indicator does not illu- minate when the charging con- nector is inserted.
Page 133 1-2. Charging After charging ■ Pull the charging connector STEP towards you while pressing the latch release button. If the charging connector is disconnected during charging (while the charging indicator is on), charging will be inter- rupted. Attach the charging connector STEP cap.
Page 134 1-2. Charging Remove the plug from the out- STEP let when the charging equip- ment will not be used for a prolonged period of time. Hold the body of the plug when removing. Make sure to put the cable away immediately after discon- necting.
Page 135 1-2. Charging Setting the charging timer function ■ Stop the vehicle and press the STEP charging timer switch. The multi-information display will switch to the charging timer dis- play. To set the charging timer, the “POWER” switch can be in any mode.
Page 136 1-2. Charging Adjust the set time using the time STEP adjustment button. ( P. 280) Adjust hours. Adjust minutes. Round to the nearest hour. : e.g. 1:00 to 1:29 1:00 1:30 to 1:59 2:00 Press and hold the charging STEP timer switch.
Page 137 1-2. Charging Canceling the charging timer function ■ If the charging timer switch is pressed while the charging timer indicator is illuminated or flash- ing, the charging timer function will be canceled. Charging will commence immediately if the charging cable is connected to the vehicle.
Page 138 1-2. Charging Charging messages ■ The first time the “POWER” switch is turned to ON mode after charging is completed, a message detailing the results of the charging will be displayed. Also, if an operation which can- not be carried out is attempted during charging, a warning mes- sage will be displayed.
Page 139 1-2. Charging Safety functions ■ The hybrid system will not start while the charging cable is attached to ● the vehicle, even if the “POWER” switch is operated. If the charging cable is connected while the “READY” indicator is illumi- ●...
Page 140 1-2. Charging Charging timer function (finish time setting mode) ■ The finish time setting mode should only be used as a reference for the ● time at which charging will finish. Charging may not complete at the finish time depending on the effects of the electricity supply, temperature etc.
Page 141 1-2. Charging Charging time may increase ■ In the following situations, charging time may become longer than normal: In very hot or very cold temperatures. ● The vehicle is consuming a lot of electricity, for example, when the head- ● lights or emergency flashers switch is on.
Page 142 1-2. Charging CAUTION Caution while charging ■ People with implantable cardiac pacemakers or cardiac resynchronization therapy-pacemakers should keep away from the charging equipment and/or charging cables while the vehicle is charging. Charging may affect the operation of such devices. When charging ■...
Page 143 1-2. Charging CAUTION When charging ■ Wrapping 120 V charging cable while in-use is not recommended because ● cable may overheat. Failure to rewrap charging cable when not in-use could result in strangulation or tripping hazard. After connecting the charging cable, confirm that it is not bent. ●...
Page 144 In this event, stop charging immediately, remove the charging cable and contact your Toyota dealer. An accident may occur or damage may be inflicted if charging continues.
Page 145 1-2. Charging NOTICE When charging ■ Do not insert the plug into the charging inlet. The charging inlet may be damaged. After charging ■ After disconnecting the charging connector from the charging inlet, make ● sure to close the charging port lid. If the charging port lid is left open, water or foreign objects may enter the charging inlet, which could lead to vehicle damage.
Page 146 If charging does not commence even though the correct procedure has been carried out, and an error message is shown on the multi- information display, try the correction procedures listed in the table below. If you still cannot correct the problem, contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 147 Contact your building manager or an electrician. The charging cable connecting the CCID Stop charging immedi- (Charging Circuit Inter- ately, and contact your rupting Device) with Toyota dealer. the plug is damaged. PRIUS PHV_OM_OM47A11U_(U)
Page 148 Stop charging immediately and con- sult your Toyota dealer. The hybrid battery (traction battery) is already fully charged. PRIUS PHV_OM_OM47A11U_(U)
Page 149 1-2. Charging Situation Reason Correction procedure Turn the “POWER” switch to ON mode and An error has probably The charging indicator comply with the warn- occurred in the charg- flashes for 10 seconds ing message shown on ing system. the multi-information display.
Page 150 If the error warning indicator illuminates ● again, there may be a problem with the charging cable or the power source. Stop charging immediately and contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 151 Check that the electrical leakage detection function operates properly by following the procedure below. In the unlikely event that the electrical leakage detection function does not operate properly, contact your Toyota dealer as soon as possible. Insert the charging cable into the outlet of the external power STEP source.
Page 152 1-2. Charging CAUTION Routine inspection ■ Check the following points regularly. If use is continued without inspection, fire or electric shock may occur, possibly resulting in death or serious injury. The charging cable, plug, charging connector, CCID (Charging Circuit ● Interrupting Device) etc.
Page 153 1-3. Key information Keys The following keys are provided with the vehicle. Electronic keys • Operating the smart key system ( P. 113, 130) • Operating wireless remote control function ( P. 136) • Operating the Remote Air Conditioning System ( P.
Page 154 Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made at your Toyota dealer using the key number plate. ( P. 598) When riding in an aircraft ■...
Page 155 Toyota dealer. When a vehicle key is lost ■ If the key remains lost, the risk of vehicle theft increases significantly. Visit your Toyota dealer immediately with all remaining electronic keys that was provided with your vehicle. PRIUS PHV_OM_OM47A11U_(U)
Page 156 1-4. Opening, closing and locking the doors Smart key system (with entry function) The following operations can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.) Unlocks and locks the side doors ( P.
Page 157 1-4. Opening, closing and locking the doors Unlocking and locking the doors Front door handles (including front passenger door handle if equipped with entry function) Grip the driver’s door handle to unlock the door. Grip the passen- ger’s door handle to unlock all the doors.
Page 158 1-4. Opening, closing and locking the doors Back door (vehicles with entry function of front and back doors) Press the unlock button to unlock all the doors. The doors cannot be unlocked for 3 seconds after the doors are locked. Press the lock button to lock all the doors.
Page 159 1-4. Opening, closing and locking the doors Antenna location and effective range Antenna location ■ Vehicles with entry function of driver’s door Antennas outside cabin Antennas inside cabin Vehicles with entry function of front and back doors Antennas outside the cabin Antennas inside the cabin Antenna outside the luggage compartment...
Page 160 1-4. Opening, closing and locking the doors Effective range (areas within which the electronic key is ■ detected) Vehicles with entry function of driver’s door When locking or unlocking the door The system can be operated when the electronic key is within about 2.3 ft.
Page 161 1-4. Opening, closing and locking the doors Operation signals ■ A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) When the door cannot be locked by the lock sensor on the upper part ■...
Page 162 1-4. Opening, closing and locking the doors Alarm Situation Correction procedure Exterior alarm An attempt was made to Close all of the doors sounds once for lock the vehicle while a and lock the doors 5 seconds door is open again The “POWER”...
Page 163 1-4. Opening, closing and locking the doors Alarm Situation Correction procedure The electronic key has a Replace the electronic low battery key battery An attempt was made to Interior alarm start the hybrid system Start the hybrid sys- pings once without the electronic key tem with the elec- being present, or the elec-...
Page 164 1-4. Opening, closing and locking the doors Security feature ■ If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again. Switching the door unlock function ■ It is possible to set which doors the entry function unlocks. STEP Turn the “POWER”...
Page 165 1-4. Opening, closing and locking the doors Battery-saving function ■ The battery-saving function will be activated in order to prevent the elec- tronic key battery and the 12-volt battery from being discharged while the vehicle is not in operation for a long time. In the following situations, the smart key system may take some time to ●...
Page 166 1-4. Opening, closing and locking the doors Conditions affecting operation ■ The smart key system, wireless remote control and immobilizer system use weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart key system, wireless remote control and immobilizer system from operating properly.
Page 167 1-4. Opening, closing and locking the doors Note for the entry function ■ Even when the electronic key is within the effective range (detection ● areas), the system may not operate properly in the following cases: • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
Page 168 1-4. Opening, closing and locking the doors Note for locking the doors ■ Touching the door lock sensor while wearing gloves may delay or prevent ● lock operation. Remove the gloves and touch the lock sensor again. When the lock operation is performed using the lock sensor, recognition ●...
Page 169 1-4. Opening, closing and locking the doors Note for the unlocking function ■ A sudden approach to the effective range or door handle may prevent the ● doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.
Page 170 1-4. Opening, closing and locking the doors If the smart key system does not operate properly ■ Locking and unlocking the doors: Use the mechanical key. ( P. 599) ● Starting the hybrid system: P. 600 ● Electronic key battery depletion ■...
Page 171 1-4. Opening, closing and locking the doors Certification for the smart key system ■ For vehicles sold in the U.S.A. and Hawaii : For U.S. mainland only For vehicles sold in Canada PRIUS PHV_OM_OM47A11U_(U)
Page 172 ( P. 116) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Toyota dealer for details, such as the frequency of radio waves and timing of the emitted radio waves.
Page 173 1-4. Opening, closing and locking the doors Smart key system (without entry function) Starting and stopping the hybrid system can be performed simply by carrying the electronic key on your person, for example in your pocket. (The driver should always carry the electronic key.) PRIUS PHV_OM_OM47A11U_(U)
Page 174 1-4. Opening, closing and locking the doors Antenna location and effective range Antenna location ■ Antennas inside cabin Effective range (areas within which the electronic key is ■ detected) When starting the hybrid system or changing “POWER” switch modes The system can be operated when the electronic key is inside the vehicle.
Page 175 1-4. Opening, closing and locking the doors Conditions affecting operation ■ P. 123 Electronic key battery depletion ■ P. 127 To operate the system properly ■ Make sure to carry the electronic key when operating the system. Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly.
Page 176 1-4. Opening, closing and locking the doors Alarms and warning indicators ■ A combination of exterior and interior alarms are used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures in response to any warning message shown on the multi-information display.
Page 177 1-4. Opening, closing and locking the doors Alarm Situation Correction procedure The electronic key has a Replace the electronic low battery key battery An attempt was made to Interior alarm start the hybrid system Start the hybrid sys- pings once without the electronic key tem with the elec- being present, or the elec-...
Page 178 1-4. Opening, closing and locking the doors Certification for the smart key system ■ P. 128 CAUTION Caution regarding interference with electronic devices ■ P. 129 PRIUS PHV_OM_OM47A11U_(U)
Page 179 1-4. Opening, closing and locking the doors Wireless remote control The wireless remote control can be used to lock and unlock the vehi- cle. Locks all the doors Check that the door is securely locked. Check to see that all the side doors and back door are securely locked.
Page 180 1-4. Opening, closing and locking the doors Panic mode ■ When is pressed for longer than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle. To stop the alarm, press any button on the electronic key.
Page 181 1-4. Opening, closing and locking the doors Side doors The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch. Entry function (if equipped) ■ P. 113 Wireless remote control ■ P. 136 Door lock switch ■...
Page 182 1-4. Opening, closing and locking the doors Locking the front doors from the outside without a key Move the inside lock button to the lock position. STEP Close the door. STEP The door cannot be locked if the “POWER” switch is in ACCESSORY or ON mode, or the electronic key is left inside the vehicle.
Page 183 1-4. Opening, closing and locking the doors Automatic door locking and unlocking systems The following functions can be set or canceled: Function Operation Shift position linked Shifting the shift position out of P locks all door locking function doors. Shift position linked Shifting the shift position to P unlocks all door unlocking function doors.
Page 184 1-4. Opening, closing and locking the doors Shift the shift position to P or N, STEP and press and hold the door lock switch ( ) for about 5 seconds then release. The shift position corresponding to the desired function to be set are shown as follows.
Page 185 1-4. Opening, closing and locking the doors Using the mechanical key ■ The doors can also be locked and unlocked with the mechanical key. ( P. 599) If a wrong key is used ■ The key cylinder rotates freely to isolate inside mechanism. Customization ■...
Page 186 1-4. Opening, closing and locking the doors CAUTION To prevent an accident ■ Observe the following precautions while driving the vehicle. Failure to do so may result in a door opening and an occupant falling out, resulting in death or serious injury. Always use a seat belt.
Page 187 1-4. Opening, closing and locking the doors Back door The back door can be locked/unlocked and opened by the following procedures. Locking and unlocking the back door ■ Entry function P. 113 Wireless remote control P. 136 Door lock switch P.
Page 188 1-4. Opening, closing and locking the doors Luggage compartment light ■ The luggage compartment light turns on when the back door is opened with the luggage compartment light switch on. If the back door opener is inoperative ■ The back door can be unlocked from the inside. STEP Open the center deck board.
Page 189 1-4. Opening, closing and locking the doors CAUTION Caution while driving ■ Keep the back door closed while driving. ● If the back door is left open, it may hit near-by objects while driving or lug- gage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a seri- ous health hazard.
Page 190 1-4. Opening, closing and locking the doors CAUTION Operating the back door ■ Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in death or serious injury. Remove any heavy loads, such as snow and ice, from the back door ●...
Page 191 If a bicycle carrier or similar heavy object is attached to the back door, it ● may suddenly shut again after being opened, causing someone’s hands, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Toyota part is recommended. PRIUS PHV_OM_OM47A11U_(U)
Page 192 ● gloves or other fabric items. Damper stays Do not attach any accessories other ● than genuine Toyota parts to the back door. Do not place your hand on the damper ● stay or apply lateral forces to it. PRIUS PHV_OM_OM47A11U_(U)
Page 193 1-5. Adjustable components (seats, mirrors, steering wheel) Front seats Manual seat (if equipped) Seat position adjustment lever Seatback angle adjustment lever Vertical height adjustment lever (for driver’s side) PRIUS PHV_OM_OM47A11U_(U)
Page 194 1-5. Adjustable components (seats, mirrors, steering wheel) Power seat (if equipped for driver’s seat) Seat position adjustment switch Seatback angle adjustment switch Seat cushion (front) angle adjustment switch Vertical height adjustment switch Lumbar support adjustment switch Active head restraints When the occupant’s lower back presses against the seatback during a rear-end collision, the head restraint moves slightly for-...
Page 195 1-5. Adjustable components (seats, mirrors, steering wheel) Active head restraints ■ Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may make the inner struc- ture of the head restraint appear. This does not indicate a problem. During rear-end collision...
Page 196 1-5. Adjustable components (seats, mirrors, steering wheel) Rear seats The seatbacks can be folded down. Before folding down the seatbacks Park the vehicle in a safe place. STEP Apply the parking brake firmly and shift the shift position to P. ( P.
Page 197 1-5. Adjustable components (seats, mirrors, steering wheel) Folding down the seatbacks Fold the seatback down while pushing the lock release button. To return the rear seatbacks to their original positions, lift them up until they lock. Remove the seat belt from the guide ■...
Page 198 1-5. Adjustable components (seats, mirrors, steering wheel) CAUTION When folding the seatbacks down ■ Observe the following precautions. Failure to do so may result in death or serious injury. Do not fold the seatbacks down while driving. ● Stop the vehicle on level ground, set the parking brake and shift the shift ●...
Page 199 1-5. Adjustable components (seats, mirrors, steering wheel) Head restraints Head restraints are provided for all seats. Front seats Pull the head restraints up. Down Push and hold the lock release button when lowering the head Lock restraint. release button Rear center seat Down Pull up or push down the head restraint while pressing the...
Page 200 1-5. Adjustable components (seats, mirrors, steering wheel) Removing the head restraints ■ Front and rear center seats Pull the head restraint up while pressing the lock release button. Lock release button Foldable type rear outside seats Pull the head restraint up while pressing the lock release buttons.
Page 201 1-5. Adjustable components (seats, mirrors, steering wheel) Installing the head restraints ■ Front and rear center seats Align the head restraint with the installa- tion holes and push it down to the lock position. Press and hold the lock release button Lock when lowering the head restraint.
Page 202 1-5. Adjustable components (seats, mirrors, steering wheel) CAUTION Head restraint precautions ■ Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury. Use the head restraints designed for each respective seat. ●...
Page 203 1-5. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driv- ing the vehicle. Correct use of the seat belts ■ ● Extend the shoulder belt so that it comes fully over the shoulder, does come into contact with the...
Page 204 1-5. Adjustable components (seats, mirrors, steering wheel) Adjusting the seat belt shoulder anchor height (front seats) ■ Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click.
Page 205 1-5. Adjustable components (seats, mirrors, steering wheel) Pre-collision seat belts (front seats of vehicles with pre-collision system) If the system determines that a collision is unavoidable, the front seat belts will retract before the collision. ( P. 340) Emergency locking retractor (ELR) ■...
Page 206 Seat belt extender ■ If your seat belts cannot be fastened securely because they are not long enough, personalized seat belt extender is available from your Toyota dealer free of charge. PRIUS PHV_OM_OM47A11U_(U)
Page 207 Each seat belt should be used by one person only. Do not use a seat belt ● for more than one person at once, including children. Toyota recommends that children be seated in the rear seat and always ● use a seat belt and/or an appropriate child restraint system.
Page 208 1-5. Adjustable components (seats, mirrors, steering wheel) CAUTION Pregnant women ■ Obtain medical advice and wear the seat belt in the proper way. ( P. 160) Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occu- pants.
Page 209 If the pretensioner has activated, the SRS warning light will come on. In ● that case, the seat belt cannot be used again and must be replaced at your Toyota dealer. Adjustable shoulder anchor ■ Always make sure the shoulder belt is positioned across the center of your shoulder.
Page 210 Ensure that the belt and plate are locked and the belt is not twisted. ● If the seat belt does not function correctly, immediately contact your Toyota dealer. Replace the seat assembly, including the belts, if your vehicle has been ●...
Page 211 1-5. Adjustable components (seats, mirrors, steering wheel) CAUTION Using a seat belt extender ■ Do not wear the seat belt extender if you can fasten the seat belt without ● the extender. Do not use the seat belt extender when installing a child restraint system ●...
Page 212 1-5. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Hold the steering wheel and STEP push the lever down. Adjust to the ideal position by STEP moving the steering wheel horizontally and vertically.
Page 213 1-5. Adjustable components (seats, mirrors, steering wheel) Inside rear view mirror The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view in accordance with the driver’s seating posture. Adjusting the height of rear view mirror Adjust the height of the rear view mirror by moving it up and down.
Page 214 1-5. Adjustable components (seats, mirrors, steering wheel) Auto anti-glare inside rear view mirror (without garage door opener) Responding to the level of brightness of the headlights of vehicles behind, the reflected light is automatically reduced. Changing automatic anti-glare function mode ON/OFF When the automatic anti-glare function is in ON mode, the indi-...
Page 215 1-5. Adjustable components (seats, mirrors, steering wheel) To prevent sensor error (vehicles with auto anti-glare inside rear view ■ mirror) Without garage door opener To ensure that the sensors operate prop- erly, do not touch or cover them. With garage door opener CAUTION Caution while driving ■...
Page 216 1-5. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted using the switch. To select a mirror to adjust, STEP press the switch. Left Right To adjust the mirror, press the STEP switch. Right Down Left Folding the mirrors...
Page 217 1-5. Adjustable components (seats, mirrors, steering wheel) Mirror angle can be adjusted when ■ The “POWER” switch is in ACCESSORY or ON mode. When the mirrors are fogged up (vehicles with outside rear view mirror ■ defoggers) The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.
Page 218 1-6. Opening and closing the windows Power windows The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: One-touch closing Closing One-touch opening Opening : To stop the window partway, operate the switch in the oppo- site direction.
Page 219 If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after perform- ing the above procedure correctly, have the vehicle inspected by your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 220 1-6. Opening and closing the windows Customization ■ The one-touch closing operation can be disabled, except for the driver’s seat. (Customizable features P. 647) CAUTION Closing the windows ■ Observe the following precautions. Failing to do so may result in death or serious injury. The driver is responsible for all the power window operations, including the ●...
Page 221 1-7. Refueling Opening the fuel tank cap The fuel tank of your vehicle has a special structure, which requires a reduction in fuel tank pressure before refueling. After the opener switch has been pressed, it will take several seconds until the vehi- cle is ready for refueling.
Page 222 1-7. Refueling Turn the fuel tank cap slowly STEP to open. Hang the fuel tank cap on the STEP back of the fuel filler door. Closing the fuel tank cap After refueling, turn the fuel tank cap until you hear a click. Once the cap is released, it will turn slightly in the opposite direction.
Page 223 If the fuel filler door opener is inoperable ■ If the fuel filler door opener switch cannot be operated, contact your Toyota dealer. In the event that urgent refueling is required, follow the procedure below. Open the fuel filler door using the lever in STEP the luggage compartment.
Page 224 ● When replacing the fuel tank cap ■ Do not use anything but a genuine Toyota fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 225 1-7. Refueling NOTICE Refueling ■ Finish refueling within 30 minutes. If more than 30 minutes passes, the ● internal valve closes. In this condition, fuel may spill out if you continue to refuel the vehicle. About 5 minutes after the valve is closed, a message “CLOSE FUEL LID”...
Page 226 1-8. Theft deterrent system Immobilizer system The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if a key has not been previously regis- tered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. This system is designed to help prevent vehicle theft but does not guarantee absolute security against all vehicle thefts.
Page 227 1-8. Theft deterrent system Certifications for the immobilizer system ■ For vehicles sold in the U.S.A. and Hawaii For vehicles sold in Canada NOTICE To ensure the system operates correctly ■ Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guar- anteed.
Page 228 1-9. Safety information Correct driving posture Drive with a good posture as follows: Sit upright and well back in the seat. ( P. 150) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 229 1-9. Safety information CAUTION While driving ■ Do not adjust the position of the driver’s seat. ● Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. ●...
Page 230 1-9. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury. SRS front airbags SRS driver airbag/front passenger airbag Can help protect the head and chest of the driver and front pas-...
Page 231 1-9. Safety information SRS side and curtain shield airbags SRS side airbags Can help protect the torso of the front seat occupants SRS curtain shield airbags Can help protect primarily the head of occupants in the outer seats PRIUS PHV_OM_OM47A11U_(U)
Page 232 1-9. Safety information SRS airbag system components Front passenger airbag Seat belt pretensioners and force limiters “AIR BAG ON” and “AIR BAG OFF” indicator lights Side impact sensors (front door) Side airbags Driver’s seat belt buckle Curtain shield airbags switch Front passenger occupant Driver’s seat position sensor classification system (ECU...
Page 233 1-9. Safety information Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU) controls airbag deployment based on infor- mation obtained from the sensors etc. shown in the system compo- nents diagram above.
Page 234 1-9. Safety information SRS airbag deployment conditions (SRS front airbags) ■ The SRS front airbags will deploy in the event of an impact that exceeds ● the set threshold level (the level of force corresponding to an approxi- mately 12 - 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).
Page 235 1-9. Safety information Conditions under which the SRS airbags may deploy (inflate), other ■ than a collision The SRS front airbags and SRS curtain shield airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.
Page 236 1-9. Safety information Types of collisions that may not deploy the SRS airbags ■ (SRS side and curtain shield airbags) The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a collision from the side at certain angles, or a collision to the side of the vehicle body other than the passenger compartment.
Page 237 1-9. Safety information When to contact your Toyota dealer ■ In the following cases, contact your Toyota dealer as soon as possible. Any of the SRS airbags have been inflated. ● The front of the vehicle is damaged or ●...
Page 238 1-9. Safety information The surface of the seats with the side ● airbag is scratched, cracked, or other- wise damaged. The portion of the front pillars, rear pil- ● lars or roof side rail garnishes (padding) containing the curtain shield airbags inside is scratched, cracked, or other- wise damaged.
Page 239 1-9. Safety information CAUTION SRS airbag precautions ■ Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts ● properly.
Page 240 An infant or child who is too small to use a seat belt should be properly secured using a child restraint sys- tem. Toyota strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front passenger seat.
Page 241 1-9. Safety information CAUTION SRS airbag precautions ■ Do not sit on the edge of the seat or ● lean against the dashboard. Do not allow a child to stand in front of ● the SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 242 1-9. Safety information CAUTION SRS airbag precautions ■ Do not attach anything to or lean any- ● thing against areas such as the dash- board, steering wheel pad and lower portion of the instrument panel. These items can become projectiles when the SRS driver, front passenger and knee airbags deploy.
Page 243 If the areas where the SRS airbags are stored, such as the steering wheel ● pad and front and rear pillar garnishes, are damaged or cracked, have them replaced by your Toyota dealer. Do not place anything, such as a cushion, on the front passenger’s seat. ●...
Page 244 ■ Do not dispose of your vehicle or perform any of the following modifications without consulting your Toyota dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury. Installation, removal, disassembly and repair of the SRS airbags ●...
Page 245 1-9. Safety information Front passenger occupant classification system Your vehicle is equipped with a front passenger occupant classifica- tion system. This system detects the conditions of the front passen- ger seat and activates or deactivates the devices for the front passenger.
Page 246 1-9. Safety information Condition and operation in the front passenger occupant classification system Adult ■ “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights ON” SRS warning light Indicator/ warning light Front passenger’s seat belt reminder light flashing Front passenger airbag Side airbag on the front passenger seat Devices...
Page 247 1-9. Safety information Unoccupied ■ “AIR BAG ON” and “AIR BAG OFF” Not illuminated indicator lights Indicator/ warning light SRS warning light Front passenger’s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seat Activated Curtain shield airbag in the front passen- Devices ger side...
Page 248 1-9. Safety information : The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may rec- ognize him/her as a child depending on his/her physique and pos- ture.
Page 249 1-9. Safety information CAUTION Front passenger occupant classification system precautions ■ Observe the following precautions regarding the front passenger occupant classification system. Failure to do so may cause death or serious injury. Wear the seat belt properly. ● Make sure the front passenger’s seat belt plate has not been left inserted ●...
Page 250 SRS warning light may come on to indicate a malfunction of the front passenger occupant classification system. In this case, contact your Toyota dealer immediately. Child restraint systems installed on the rear seat should not contact the ●...
Page 251 1-9. Safety information Child restraint systems A child restraint system for a small child or baby must itself be prop- erly restrained on the seat with the LATCH anchors or the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 252 1-9. Safety information Types of child restraints Child restraint systems are classified into the following 3 types according to the age and size of the child. Rear facing Infant seat/convertible seat Forward facing Convertible seat Booster seat PRIUS PHV_OM_OM47A11U_(U)
Page 253 In an accident, the child can be crushed against the windshield, or between you and the vehicle’s interior. Toyota strongly urges the use of a proper child restraint system that con- ●...
Page 254 1-9. Safety information CAUTION Child restraint precautions ■ Never install a rear-facing child restraint system on the front passenger ● seat even if the “AIR BAG OFF” indicator light is illuminated. In the event of an accident, the force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the front passenger seat.
Page 255 1-9. Safety information CAUTION When children are in the vehicle ■ Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death.
Page 256 1-9. Safety information Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly secure child restraints to the seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not compatible with the LATCH (Lower Anchors and Tethers for Chil- dren) system.
Page 257 1-9. Safety information Installation with LATCH system STEP Widen the gap between the seat cushion and seatback slightly. Type A Latch the hooks of the lower STEP straps onto the LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor.
Page 258 1-9. Safety information Type B Latch the buckles onto the STEP LATCH anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor. For owners in Canada: The symbol on a child restraint system indicates the presence of a lower connector system.
Page 259 1-9. Safety information Installing child restraints using a seat belt (child restraint lock function belt) Rear facing Infant seat/convertible seat ■ Place the child restraint system STEP on the rear seat facing the rear of the vehicle. Run the seat belt through the STEP child restraint system and insert the plate into the buckle.
Page 260 1-9. Safety information While pushing the child restraint STEP system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place. After shoulder belt retracted to a point where there is no slack in the belt, pull the belt to check that it cannot be extended.
Page 261 1-9. Safety information Fully extend the shoulder belt STEP and then allow it to retract slightly in order to activate the ALR lock mode. Lock mode allows the seat belt to retract only. While pushing the child restraint STEP system into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
Page 262 1-9. Safety information Booster seat ■ Place the child restraint system STEP on the seat facing the front of the vehicle. Sit the child in the child restraint STEP system. Fit the seat belt to the child restraint system according to the manufacturer’s instruc- tions and insert the plate into the buckle.
Page 263 1-9. Safety information Removing a child restraint installed with a seat belt Press the buckle release button and fully retract the seat belt. Child restraint systems with a top tether strap Secure the child restraint system using a seat belt or the STEP LATCH anchors, and do the following.
Page 264 1-9. Safety information Non-foldable type outside seats Remove the head restraint. Center seat Adjust the head restraint to the upmost position. PRIUS PHV_OM_OM47A11U_(U)
Page 265 1-9. Safety information Open the anchor bracket cover, STEP latch the hook onto the anchor bracket and tighten the top tether strap. Make sure the top tether strap is securely latched. Outside only: Do the following. STEP Foldable type Adjust the head restraint to the downmost position.
Page 266 1-9. Safety information Laws and regulations pertaining to anchors ■ The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifica- tions can be used. This vehicle is designed to conform to the SAE J1819. CAUTION When installing a booster seat ■...
Page 267 1-9. Safety information CAUTION When installing a child restraint system ■ Only put a forward-facing child restraint ● system on the front seat when unavoid- able. When installing a forward-facing child restraint system on the front passenger seat, move the seat as far back as pos- sible even if the “AIR BAG OFF”...
Page 268 1-9. Safety information CAUTION Do not use a seat belt extender ■ If a seat belt extender is used when installing a child restraint system, the seat belt will not securely hold the child restraint system, which could cause death or serious injury to the child or other passengers in the event of sud- den braking, sudden swerving or an accident.
Page 269 1-9. Safety information PRIUS PHV_OM_OM47A11U_(U)
Page 270 2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driv- ing: Before starting the hybrid system ■ Check that the charging cable is disconnected. ( P. 96) Starting the hybrid system ■ P. 242 Driving ■...
Page 271 2-1. Driving procedures Parking the vehicle ■ STEP Stop the vehicle completely. Set the parking brake. ( P. 260) STEP Shift the shift position to P. ( P. 252) STEP Check that the shift position indicator shows P. ( P. 262) Press the “POWER”...
Page 272 Breaking in your new Toyota ■ To extend the life of the vehicle, observing the following precautions is rec-...
Page 273 2-1. Driving procedures Operating your vehicle in a foreign country ■ Comply with the relevant vehicle registration laws and confirm the availability of the correct fuel. ( P. 621) For efficient use ■ Shift the shift position to D when driving. ●...
Page 274 2-1. Driving procedures CAUTION When starting the vehicle ■ Always keep your foot on the brake pedal while stopped with the hybrid sys- tem operating. This prevents the vehicle from creeping. When driving the vehicle ■ Do not drive if you are unfamiliar with the location of the brake and accel- ●...
Page 275 Large amounts of exhaust in the vehi- cle can cause driver drowsiness and an accident, resulting in death or a serious health hazard. Have the vehicle inspected by your Toyota dealer immediately. Do not shift the shift position to P while the vehicle is moving.
Page 276 2-1. Driving procedures CAUTION Do not adjust the positions of the steering wheel, the seat, or the inside or ● outside rear view mirrors while driving. Doing so may result in a loss of vehicle control that can cause accidents, resulting in death or serious injury.
Page 277 If you hear a squealing or scraping noise (brake pad wear limit indica- ■ tors) Have your Toyota dealer check and replace the brake pads as soon as pos- sible. Rotor damage may result if the pads are not replaced when needed.
Page 278 2-1. Driving procedures CAUTION When the vehicle is stopped ■ Do not depress the accelerator pedal unnecessarily. ● If the vehicle is in any shift position other than P or N, the vehicle may accelerate suddenly and unexpectedly, causing an accident. Do not leave the vehicle with the hybrid system on for a long time.
Page 279 2-1. Driving procedures CAUTION When the vehicle is parked ■ Make sure to firmly apply the parking brake and shift the shift position to P. ● Failure to do so may cause the vehicle to move, or the vehicle to acceler- ate suddenly if the accelerator pedal is accidentally depressed.
Page 280 ● crack caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle inspected and repaired by your Toyota dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
Page 281 2-1. Driving procedures CAUTION When taking a nap in the vehicle ■ Always turn the hybrid system off. Otherwise, if you accidentally move the shift lever or depress the accelerator pedal, this could cause an accident or fire due to hybrid system overheating. Additionally, if the vehicle is parked in a poorly ventilated area, exhaust gases may collect and enter the vehicle, leading to death or a serious health hazard.
Page 282 2-1. Driving procedures NOTICE When driving the vehicle ■ Do not depress the accelerator and brake pedals at the same time during ● driving, as this may restrain driving torque. Do not use the accelerator pedal or depress the accelerator and brake ●...
Page 283 Engine damage caused by water immersion ● In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Toyota dealer check the following: Brake function ● Changes in quantity and quality of engine oil, transmission fluid for the ●...
Page 284 2-1. Driving procedures Power (ignition) switch Performing the following operations when carrying the electronic key on your person starts the hybrid system or changes “POWER” switch modes. Starting the hybrid system ■ Check that the charging cable is disconnected. ( P. 96) STEP Check that the parking brake is set.
Page 285 2-1. Driving procedures Check that the “READY” indicator is on. STEP If the “READY” indicator changes from a flashing light to a solid light and the buzzer sounds, the hybrid system is starting nor- mally. The vehicle will not move when the “READY” indicator is off. The vehicle can move when the “READY”...
Page 286 2-1. Driving procedures Changing “POWER” switch modes ■ Modes can be changed by pressing the “POWER” switch with the brake pedal released. (The mode changes each time the switch is pressed.) The emergency flashers can be used. ACCESSORY mode Some electrical components such as the audio system can be used.
Page 287 P. 124 If the hybrid system does not start ■ The immobilizer system may not have been deactivated. ( P. 183) ● Contact your Toyota dealer. The charging cable may be connected to the vehicle. ( P. 96) ● PRIUS PHV_OM_OM47A11U_(U)
Page 288 ■ If the “READY” indicator does not come on when you press the “POWER” switch with the shift position in P and the brake pedal depressed, contact your Toyota dealer immediately. If the hybrid system is malfunctioning ■ P. 539 If the electronic key battery is depleted ■...
Page 289 ■ The “POWER” switch will not be able to be turned off. In such a case, the switch can be turned off after applying the parking brake. Have the vehicle inspected by your Toyota dealer immediately. Ending display ■ When the “POWER” switch is turned off, each of the following will be dis- played on the multi-information display, and will extinguish after approxi- mately 30 seconds.
Page 290 Symptoms indicating a malfunction with the “POWER” switch ■ If the “POWER” switch seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction. Con- tact your Toyota dealer immediately. PRIUS PHV_OM_OM47A11U_(U)
Page 291 2-1. Driving procedures Hybrid transmission Select a shift position appropriate for the driving conditions. Shifting the shift lever ■ Shift lever Operate the shift lever gently and ensure correct shifting operation. Release the shift lever after each shifting operation to allow it to return to the position.
Page 292 2-1. Driving procedures Shift position indicator The position of the frame on the shift position indicator changes in accordance with the current shift position. When any shift position other than D or B is selected, the arrow toward B and B position indicator disappear from the shift position indicator. When selecting the shift position, make sure that the shift position has been changed to the desired position by checking the shift position indica- tor provided on the instrument cluster.
Page 293 2-1. Driving procedures Selecting a driving mode ■ The following modes can be selected to suit driving conditions: Eco drive mode Suitable for improving the fuel economy, because the torque cor- responding to the accelerator pedal depression amount can be generated more smoothly than it is in normal conditions and the operation of the air conditioning system (heating/cooling) will be minimized.
Page 294 2-1. Driving procedures P position switch When shifting the shift position to P ■ Fully stop the vehicle and set the parking brake, and then press the P position switch. When shift position changed to P, the indicator comes Check that the P position is illumi- nated on the shift position indica- tor.
Page 295 2-1. Driving procedures Operation of the air conditioning system in Eco drive mode ■ Eco drive mode controls the heating/cooling operations and fan speed of the air conditioning system to enhance fuel efficiency. ( P. 251) To improve air conditioning performance, adjust the fan speed or turn off Eco drive mode. For the shift positions ■...
Page 296 2-1. Driving procedures In addition, if an attempt is made to change the shift position by moving the shift lever or by pressing the P position switch in any of the following situa- tions, the buzzer will sound and the shifting operation will be disabled or the shift position will automatically change to N.
Page 297 2-1. Driving procedures Reverse warning buzzer ■ When shifting into R, a buzzer will sound to inform the driver that the shift position is in R. Automatically P position selection function ■ When the shift position is in a position other than P, pressing the “POWER” switch with the vehicle stopped completely will cause the shift position to change to P automatically, and then the “POWER”...
Page 298 2-1. Driving procedures When canceling Eco drive mode/power mode ■ Press the switch again. Also, power mode will be canceled automatically ● when the “POWER” switch is turned off. However, Eco drive mode will not be canceled automatically until the switch is pressed, even if the “POWER”...
Page 299 For the shift lever ■ Do not remove the shift lever knob or use anything but a genuine Toyota shift lever knob. Also, do not hang anything on the shift lever. Doing so could prevent the shift lever from returning to position, causing unexpected accidents to occur when the vehicle is in motion.
Page 300 If any of the following situations occurs, shift control system malfunctions are possible. Immediately stop the vehicle in a safe place on level ground, apply the park- ing brake, and then contact your Toyota dealer. When the “P LOCK MALFUNCTION” warning message appears on the ●...
Page 301 2-1. Driving procedures Turn signal lever The turn signal lever can be used to show the following intention of the driver: Right turn Left turn Lane change to the right (push and hold the lever partway) The right hand signals will flash until you release the lever.
Page 302 2-1. Driving procedures Parking brake To set the parking brake, fully depress the parking brake pedal with your left foot while U.S.A. Canada depressing the brake pedal with your right foot. (Depressing the pedal again releases the parking brake.) Parking brake engaged warning buzzer ■...
Page 303 2-1. Driving procedures Horn To sound the horn, press on or close to the mark. After adjusting the steering wheel ■ Make sure that the steering wheel is securely locked. The horn may not sound if the steering wheel is not securely locked. ( P.
Page 304 2-2. Instrument cluster Gauges and meters The units used on the display may differ depending on the target region. The following gauges and meters and display illuminate when the “POWER” switch is in ON mode: Fuel gauge Displays the quantity of fuel remaining in the tank. Speedometer Displays the vehicle speed.
Page 305 2-2. Instrument cluster Touch tracer display (if equipped) When the audio control switches, climate control switches, “DISP” button or “TRIP” button of the steering wheel are touched, the touch tracer display will appear in front of the gauges, with the touched button highlighted to allow the driver to identify the button that is being operated.
Page 306 2-2. Instrument cluster MPH or km/h button The speed units can be selected MPH or km/h. Press the button to switch the display between MPH and km/h. PRIUS PHV_OM_OM47A11U_(U)
Page 307 2-2. Instrument cluster Instrument panel light control When the headlight switch is turned on while the surrounding area is dark, the brightness of the instrument panel lights can be adjusted by turning the dial. Brighter Darker Brightness of the instrument panel light ■...
Page 308 2-2. Instrument cluster CAUTION To prevent an accident ■ Do not place anything or attach a sticker Instrument cluster in front of the instrument cluster. The item may obscure or obstruct the display, or could reflect off the display, possibly causing an accident.
Page 309 2-2. Instrument cluster Indicators and warning lights The indicator and warning lights on the instrument cluster and instrument panel inform the driver of the status of the vehicle’s vari- ous systems. For the purpose of explanation, the following illustration displays all indicators and warning lights illuminated.
Page 310 2-2. Instrument cluster Indicators ■ The indicators inform the driver of the operating state of the vehicle’s various systems. Turn signal indicator Eco Driving Indicator ( P. 259) Light ( P. 273) Headlight indicator “ECO MODE” ( P. 297) indicator ( P. 251) (U.S.A.) Tail light indicator Power mode indicator...
Page 311 Have the vehicle inspected by your Toyota dealer. : The light flashes to indicate that the system is operating.
Page 312 There may be a malfunction in a system if a light does not come on, or if the lights do not turn off. Have the vehicle inspected by your Toyota dealer.
Page 313 2-2. Instrument cluster Multi-information display The multi-information display presents the driver with a variety of driving-related data, including the clock. ● Energy monitor ( P. 52) ● Hybrid System Indicator ( P. 273) ● EV driving ratio indicator ( P. 276) ●...
Page 314 2-2. Instrument cluster Switching the display To switch the display, press “DISP” button. On vehicles with touch tracer dis- play, the steering switches opera- tion status is displayed on the instrument cluster for confirma- tion purposes. ( P. 263) To switch the odometer, trip meter and distance to empty, press “TRIP”...
Page 315 2-2. Instrument cluster Hybrid System Indicator Hybrid System Indicator displays the hybrid system operating condi- tion and provides Eco-friendly driving assistance in accordance with the driving conditions and the acceleration. Names and meaning of each icons ■ When EV Mode Hybrid battery (traction bat- tery) status ( P.
Page 316 2-2. Instrument cluster Reading Hybrid System Indicator ■ When EV Mode Charge area EV driving area Power area As shown below, the driving conditions of the vehicle can be con- firmed by checking the status of the indicator bar. Multi-information display Charge area: Shows that energy is being recovered via the regenera-...
Page 317 2-2. Instrument cluster When HV Mode Charge area Eco area Power area Hybrid Eco area As shown below, the driving conditions of the vehicle can be con- firmed by checking the status of the indicator bar. Hybrid System Indicator Charge area: Shows regenerative charging.
Page 318 2-2. Instrument cluster EV driving ratio indicator The ratio of the distance driven using only power charged from an external power source against other driving conditions is displayed on the EV driving ratio screen. Two separate EV driving ratios can be used: EV driving ratio (1) and EV driving ratio (2).
Page 319 2-2. Instrument cluster Meaning of each icons ■ Percentage driven in EV mode using the electric motor (trac- tion motor) only The percentage is shown as a green bar. Percentage driven in EV mode jointly using gasoline engine and in HV mode The percentage is shown as a red bar.
Page 320 2-2. Instrument cluster Resetting the data ■ Press and hold the “TRIP” button while the screen you want to reset is being displayed. The bar display, percent display, driving distance, electricity con- sumption and fuel consumption will be reset. Odometer/trip meter/distance to empty Switching the display ■...
Page 321 2-2. Instrument cluster Display items ■ ● Odometer Displays the total distance the vehicle has been driven. ● Trip meter Displays the distance the vehicle has been driven since the meter was last reset. Trip meters A and B can be used to record and display different dis- tances independently.
Page 322 2-2. Instrument cluster Clock The clock can be adjusted by pressing the buttons. Adjusts the hours. Adjusts the minutes. Rounds to the nearest hour. : e.g. 1:00 to 1:29 1:00 1:30 to 1:59 2:00 Setting up the displays Press the “DISP” button until the STEP “SETTINGS”...
Page 323 2-2. Instrument cluster Setting the calendar ■ Select “CALENDAR”. STEP Press and hold the “DISP” button to enter the setting mode. Select the date by pressing the STEP “DISP” or “TRIP” button. Press and hold the button to change the date continuously. If neither button is operated for approximately 5 seconds, the set- ting will be changed and the...
Page 324 2-2. Instrument cluster Switching the EV indicator and Eco Driving Indicator Light ■ activated or deactivated Select “EV/ECO”. STEP Press and hold the “DISP” button to enter the setting mode. Select “ON” or “OFF”. STEP Press and hold the “DISP” button to finish setting.
Page 325 2-2. Instrument cluster Switching the steering switch operation display on/off (if ■ equipped) Select “STEERING SWITCH”. STEP Press and hold the “DISP” button to enter the setting mode. Select “ON” or “OFF”. STEP Press and hold the “DISP” button to finish setting. PRIUS PHV_OM_OM47A11U_(U)
Page 326 2-2. Instrument cluster Selecting 12h/24h clock display ■ Select “CLOCK”. STEP Press and hold the “DISP” button to enter the setting mode. Select “12h” or “24h”. STEP Press and hold the “DISP” button to finish setting. PRIUS PHV_OM_OM47A11U_(U)
Page 327 2-2. Instrument cluster Selecting the language ■ Select “LANGUAGE”. STEP Press and hold the “DISP” button to enter the setting mode. Select the language you want to STEP read. Press and hold the “DISP” button to set the language. PRIUS PHV_OM_OM47A11U_(U)
Page 328 2-2. Instrument cluster Turning off the multi-information display ■ Select “SCREEN OFF”. STEP Press and hold the “DISP” button to enter the setting mode. Select “OFF”. STEP Press and hold the “DISP” button to turn off the multi-information display. To re-display the multi-information display, press the “DISP”...
Page 329 2-2. Instrument cluster System check display ■ After switching the “POWER” switch to ON mode, “welcome to PRIUS” is dis- played while system operation checked. When the system check is com- plete, the normal screen will return. Ending display ■ P.
Page 330 2-2. Instrument cluster Driving in Eco drive mode ■ The multi-information display will automatically switch the display to Hybrid System Indicator, regardless of which display is currently being shown. ( P. 273) Touch tracer display (if equipped) ■ The touch tracer display can be set to not display even if the steering ●...
Page 331 2-2. Instrument cluster Vacuum fluorescent display ■ Small spots or light spots may appear on the display. This phenomenon is characteristic of vacuum fluorescent displays, and there is no problem to continue using the display. NOTICE Steering switches ■ To prevent damage to the steering switches, observe the following precau- tions.
Page 332 2-2. Instrument cluster Head-up display The head-up display can be used to project vehicle speed and other information onto the windshield. Head-up display Display brightness will change automatically according to the brightness of the surrounding area. (Head-up display) main switch Turn-by-turn navigation switch (if equipped)
Page 333 2-2. Instrument cluster Head-up display contents ■ ● Speedometer Displays the vehicle speed. ● Hybrid System Indicator Provides assistance for Eco-friendly driving. ● Turn-by-turn navigation Displays a notification of upcoming intersections during navigation system route guidance. ( P. 294) ● Dynamic radar cruise control Displays the approach warning.
Page 334 2-2. Instrument cluster Switching the head-up display Display items can be switched by pressing the “HUD” main switch. Speedometer Displays the vehicle speed. Speedometer and Hybrid Sys- tem Indicator Displays Hybrid System Indicator under the speedometer. ( P. 273) When on, the indicator light on the “HUD”...
Page 335 2-2. Instrument cluster Setting up the display Setting the brightness ■ The brightness of the display is automatically adjusted in accor- dance with the brightness of the surrounding environment. How- ever, the brightness can also be manually adjusted in 5 stages. Darker Brighter The brightness can be manually...
Page 336 2-2. Instrument cluster Turn-by-turn navigation display (if equipped) When the vehicle approaches an intersection, the direction the vehicle should go is guided by the arrow. When the vehicle approaches an intersection, the route guidance will start and the distance to the intersection will also be dis- played.
Page 337 2-2. Instrument cluster When driving on snowy roads or in other bright environments ■ When the highest level of brightness has been reached, the display can be made even brighter by pressing and holding “ ” on the brightness control button.
Page 338 2-2. Instrument cluster CAUTION Before using the head-up display ■ Check that the position and brightness of the head-up display image does not interfere with safe driving. Incorrect adjustment of the image’s position or brightness may obstruct the driver’s view and lead to an accident, resulting in death or serious injury.
Page 339 2-3. Operating the lights and windshield wipers Headlight switch The headlights can be operated manually or automatically. Turning the end of the lever turns on the lights as follows: Type A The headlights, park- ing lights and so on turn on and off auto- matically (when the “POWER”...
Page 340 2-3. Operating the lights and windshield wipers Type B The daytime running lights turn on. side marker, parking, tail, license plate, daytime run- ning lights and instru- ment panel lights turn The headlights and all the lights listed above turn on. The daytime running lights turn off.
Page 341 2-3. Operating the lights and windshield wipers Type C The daytime running lights turn on. side marker, parking, tail, license plate, daytime run- ning lights and instru- ment panel lights turn The headlights and all the lights listed above (except day- time running lights) turn on.
Page 342 2-3. Operating the lights and windshield wipers Turning on the high beam headlights With the headlights on, push the lever away from you to turn on the high beams. Pull the lever toward you to the center position to turn the high beams off.
Page 343 2-3. Operating the lights and windshield wipers Headlight control sensor (if equipped) ■ The sensor may not function properly if an object is placed on the sensor, or any- thing that blocks the sensor is affixed to the windshield. Doing so interferes with the sensor detecting the level of ambient light and may cause the automatic headlight sys- ITO23P105...
Page 344 2-3. Operating the lights and windshield wipers Automatic headlight leveling system (if equipped) ■ The level of the headlights is automatically adjusted according to the number of passengers and the loading condition of the vehicle to ensure that the headlights do not interfere with other road users. Customization ■...
Page 345 2-3. Operating the lights and windshield wipers Fog light switch The fog lights secure excellent visibility in difficult driving condi- tions, such as in rain and fog. Type A Turns the fog lights Turns the fog lights : If equipped PRIUS PHV_OM_OM47A11U_(U)
Page 346 2-3. Operating the lights and windshield wipers Type B Turns the fog lights Turns the fog lights Fog lights can be used when ■ The headlights are on in low beam. NOTICE To prevent 12-volt battery discharge ■ Do not leave the lights on longer than necessary when the hybrid system is off.
Page 347 2-3. Operating the lights and windshield wipers Windshield wipers and washer When intermittent windshield wiper operation is selected, wiper intervals can be also adjusted. The wiper operation is selected by moving the lever as follows. Type A Intermittent wind- shield wiper opera- tion speed wind-...
Page 348 2-3. Operating the lights and windshield wipers Washer/wiper dual opera- tion The wipers will automatically operate a couple of times after the washer squirts. If the headlights are on, the headlight cleaner will operate once. Type B Intermittent wind- shield wiper opera- tion speed wind-...
Page 349 2-3. Operating the lights and windshield wipers Increases the intermittent windshield wiper frequency Decreases the intermittent windshield wiper frequency Washer/wiper dual opera- tion The wipers will automatically operate a couple of times after the washer squirts. If the headlights are on, the headlight cleaner will operate once.
Page 350 Do not operate the switch continually as the washer fluid pump may over- heat. When a nozzle becomes blocked ■ In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged. To prevent 12-volt battery discharge ■...
Page 351 2-3. Operating the lights and windshield wipers Rear window wiper and washer Turning the end of the lever turns on the rear window wiper and washer as follows: Type A Intermittent window wiper operation Normal window wiper operation Washer/wiper dual operation Washer/wiper dual...
Page 352 2-3. Operating the lights and windshield wipers Type B Intermittent window wiper operation Normal window wiper operation Washer/wiper dual operation Washer/wiper dual operation The rear window wiper and washer can be operated when ■ The “POWER” switch is in ON mode. If no washer fluid sprays ■...
Page 353 2-3. Operating the lights and windshield wipers NOTICE When the rear window is dry ■ Do not use the wiper, as it may damage the rear window. When the washer fluid tank is empty ■ Do not operate the switch continually as the washer fluid pump may over- heat.
Page 354 2-3. Operating the lights and windshield wipers Headlight cleaner switch Washer fluid can be sprayed on the headlights. Press the switch to clean the headlights. The headlight cleaners can be operated when ■ The “POWER” switch is in ON mode and the headlight switch is turned on. If equipped, the headlight switch is in the “AUTO”...
Page 355 2-4. Using other driving systems Cruise control Use the cruise control to maintain a set speed without depressing the accelerator pedal. Cruise control switch Indicators Setting the vehicle speed ■ Press the “ON-OFF” button to STEP activate the cruise control. Cruise control indicator will come on.
Page 356 2-4. Using other driving systems Adjusting the set speed ■ To change the set speed, operate the lever until the desired set speed is obtained. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction.
Page 357 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 358 2-4. Using other driving systems CAUTION To avoid operating the cruise control by mistake ■ Switch the cruise control off using the “ON-OFF” button when not in use. Situations unsuitable for cruise control ■ Do not use cruise control in any of the following situations. Doing so may result in loss of control and could cause an accident resulting in death or serious injury.
Page 359 2-4. Using other driving systems Dynamic radar cruise control Dynamic radar cruise control supplements conventional cruise con- trol with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehi- cles ahead.
Page 360 2-4. Using other driving systems Setting the vehicle speed (vehicle-to-vehicle distance con- ■ trol mode) Press the “ON-OFF” button to STEP activate the cruise control. Radar cruise control indicator will come on. Press the button again to deactivate the cruise control. Accelerate or decelerate the STEP vehicle to the desired speed,...
Page 361 2-4. Using other driving systems Adjusting the set speed ■ To change the set speed, operate the lever until the desired set speed is displayed. Increases the speed Decreases the speed Fine adjustment: Momentarily move the lever in the desired direction.
Page 362 2-4. Using other driving systems Changing the vehicle-to-vehicle distance ■ Pressing the button changes Preceding vehicle mark vehicle-to-vehicle dis- tance as follows: Long Medium Short The vehicle-to-vehicle distance is set automatically to long mode when the “POWER” switch is turned to ON mode. If a vehicle is running ahead of you, the preceding vehicle mark will also be displayed.
Page 363 2-4. Using other driving systems Canceling and resuming the speed control ■ Pulling the lever toward you cancels the cruise control. The speed setting is also can- celed when the brakes are applied. Pushing lever resumes the cruise control and returns vehicle speed ITO24P127 to the set speed.
Page 364 2-4. Using other driving systems Driving in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicles up to approximately 400 ft. (120 m) ahead, determines the current vehicle-to-vehicle following distance, and operates to maintain a suit- able following distance from the vehicle ahead.
Page 365 2-4. Using other driving systems Example of constant speed cruising When there are no vehicles ahead The vehicle travels at the speed set by the driver. The desired vehicle-to- vehicle distance can also be set by operating the vehicle-to-vehicle dis- tance control.
Page 366 2-4. Using other driving systems Approach warning When your vehicle is too close to a vehicle ahead, and sufficient automatic deceleration via the cruise control is not possible, the dis- play will flash and the buzzer will sound to alert the driver. An exam- ple of this would be if another driver cuts in front of you while you are following a vehicle.
Page 367 2-4. Using other driving systems Selecting conventional constant speed control mode Constant speed control mode differs from vehicle-to-vehicle distance control mode. When constant speed mode is selected, your vehicle will maintain a set speed regardless of whether or not there are other vehicles in the lane ahead.
Page 368 The windshield wipers are operating at high speed (when the wiper ● switch is set to the high speed windshield wiper operation position). If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 369 2-4. Using other driving systems Automatic cancelation of constant speed control ■ The cruise control will stop maintaining the vehicle speed in the following sit- uations: Actual vehicle speed is more than approximately 10 mph (16 km/h) ● below the set vehicle speed. At this time, the memorized set speed is not retained.
Page 370 2-4. Using other driving systems Warning lights, messages and buzzers for dynamic radar cruise con- ■ trol Warning lights, warning messages and buzzers are used to indicate a sys- tem malfunction or to inform the driver of the need for caution while driving. Certification ■...
Page 371 2-4. Using other driving systems CAUTION Before using dynamic radar cruise control ■ Do not overly rely on vehicle-to-vehicle distance control. Be aware of the set speed. If automatic deceleration/acceleration is not appropriate, adjust the vehicle speed, as well as the distance between your vehicle and vehicles ahead by applying the brakes etc.
Page 372 2-4. Using other driving systems CAUTION To avoid inadvertent cruise control activation ■ Switch the cruise control off using the “ON-OFF” button when not in use. Situations unsuitable for dynamic radar cruise control ■ Do not use dynamic radar cruise control in any of the following situations. Doing so may result in inappropriate speed control and could cause an acci- dent resulting in death or serious injury.
Page 373 2-4. Using other driving systems CAUTION When the sensor may not be correctly detecting the vehicle ahead ■ Apply the brakes (or accelerator pedal) as necessary when any of the follow- ing types of vehicles are in front of you. As the sensor may not be able to correctly detect these types of vehicles, the approach warning ( P.
Page 374 2-4. Using other driving systems CAUTION Handling the radar sensor ■ Observe the following to ensure the cruise control system can function effec- tively. Otherwise, the system may not function correctly and could result in an acci- dent. Keep the sensor and grille cover clean at all times. ●...
Page 375 2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following sys- tems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ABS (Anti-lock Brake System) ■...
Page 376 2-4. Using other driving systems Hill-start assist control ■ P. 338 PCS (Pre-Collision System) (if equipped) ■ P. 340 When the TRAC/VSC/ABS systems are operating The slip indicator light will flash while the TRAC/VSC/ABS sys- tems are operating. PRIUS PHV_OM_OM47A11U_(U)
Page 377 2-4. Using other driving systems Sounds and vibrations caused by the ABS, brake assist, VSC and ■ TRAC A sound may be heard from the engine compartment when the hybrid ● system is started, just after the vehicle begins to move, if the brake pedal is depressed forcefully or repeatedly, or 1-2 minutes after the hybrid sys- tem is stopped.
Page 378 2-4. Using other driving systems CAUTION The ABS does not operate effectively when ■ The limits of tire gripping performance have been exceeded (such as ● excessively worn tires on a snow covered road). The vehicle hydroplanes while driving at high speed on wet or slick road. ●...
Page 379 The ABS and VSC systems will not function correctly if different tires are installed on the vehicle. Contact your Toyota dealer for further information when replacing tires or wheels. Handling of tires and the suspension ■...
Page 380 2-4. Using other driving systems Hill-start assist control Hill-start assist control helps to prevent the vehicle from rolling backwards when starting on an incline or slippery slope. To engage hill-start assist con- trol, further depress the brake pedal when the vehicle is stopped completely.
Page 381 • The brake pedal has been depressed for more than approximately 3 minutes. If the slip indicator light comes on ■ It may indicate a malfunction in the system. Contact your Toyota dealer. CAUTION Hill-start assist control ■ Do not overly rely on the hill-start assist control. Hill-start assist control ●...
Page 382 2-4. Using other driving systems PCS (Pre-Collision System) When the radar sensor detects possibility of a frontal collision, the pre-collision systems such as the brakes and seat belts are automat- ically engaged to lessen impact as well as vehicle damage. Pre-collision seat belts (front seat belts only) ■...
Page 383 2-4. Using other driving systems Disabling pre-collision braking Pre-collision braking enabled Pre-collision braking disabled The “PCS” warning light will turn on when pre-collision braking is disabled. Radar sensor The radar sensor detects vehi- cles or other obstacles on or near the road ahead and deter- mines whether a collision is imminent based on the position, speed, and heading of the obsta-...
Page 384 2-4. Using other driving systems The pre-collision system is operational when ■ Pre-collision seat belts (operating conditions A): ● • Vehicle speed is greater than about 19 mph (30 km/h). • The system detects sudden braking or skidding. • The front occupants are wearing a seat belt. Pre-collision seat belts (operating conditions B): ●...
Page 385 2-4. Using other driving systems Conditions that may trigger the system even if there is no possibility of ■ a collision When there is an object by the roadside at the entrance to a curve ● When passing an oncoming vehicle on a curve ●...
Page 386 2-4. Using other driving systems Obstacles not detected ■ The sensor cannot detect plastic obstacles such as traffic cones. There may also be occasions when the sensor cannot detect pedestrians, animals, bicycles, motorcycles, trees, or snowdrifts. Situations in which the pre-collision system does not function properly ■...
Page 387 2-4. Using other driving systems Certification ■ For vehicles sold in the U.S.A. FCC ID: HYQDNMWR004 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 388 2-4. Using other driving systems CAUTION Limitations of the pre-collision system ■ The driver is solely responsible for safe driving. Always drive safely, taking care to observe your surroundings. Do not use the pre-collision system instead of normal braking operations under any circumstances.
Page 389 2-4. Using other driving systems CAUTION Cautions regarding the assist contents of the system ■ By means of alarms and brake control, the pre-collision system is intended to assist the driver in avoiding collisions through the process of LOOK- JUDGE-ACT. There are limits to the degree of assistance the system can provide, so please keep in mind the following important points.
Page 390 If the sensor moves even slightly off position, the system may become inaccurate or malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Toyota dealer. Do not disassemble the sensor. ●...
Page 391 2-5. Driving information Cargo and luggage Take notice of the following information about storage precau- tions, cargo capacity and load: ● Stow cargo and luggage in the luggage compartment whenever possible. ● Be sure all items are secured in place. ●...
Page 392 Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehicle. ( P. 354) Toyota does not recommend towing a trailer with your vehicle. Your vehicle is not designed for trailer towing. PRIUS PHV_OM_OM47A11U_(U)
Page 393 2-5. Driving information Calculation formula for your vehicle Cargo capacity Total load capacity (vehicle capacity weight) ( P. 618) When 2 people with the combined weight of A lb. (kg) are riding in your vehicle, which has a total load capacity (vehicle capacity weight) of B lb.
Page 394 2-5. Driving information CAUTION Things that must not be carried in the luggage compartment ■ The following things may cause a fire if loaded in the luggage compart- ment: Receptacles containing gasoline ● Aerosol cans ● Storage precautions ■ Observe the following precautions. Failure to do so may result in death or serious injury.
Page 395 2-5. Driving information CAUTION Secure all items in the occupant compartment, as they may shift and ● injure someone in the event of an accident or sudden braking. When you fold down the rear seats, long items should not be place ●...
Page 396 Seating capacity means the maximum number of occupants whose estimated average weight is 150 lb. (68 kg) per person. Towing capacity ■ Toyota does not recommend towing a trailer with your vehicle. Cargo capacity ■ Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 397 2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropri- ate to the prevailing weather conditions. Pre-winter preparations ■ ● Use fluids that are appropriate to the prevailing outside tem- peratures.
Page 398 2-5. Driving information Before driving the vehicle ■ Perform the following according to the driving conditions: ● Do not try to forcibly open a window or move a wiper that is frozen. Pour warm water over the frozen area to melt the ice. Wipe away the water immediately to prevent it from freezing.
Page 399 2-5. Driving information Selecting tire chains Use the tire chains of correct size and type. Use SAE Class “S” type radial tire chains except radial cable chains or V-bar type chains. Regulations on the use of tire chains Regulations regarding the use of tire chains vary depending on loca- tion and type of road.
Page 400 2-5. Driving information CAUTION Driving with snow tires ■ Observe the following precautions to reduce the risk of accidents. Failure to do so may result in a loss of vehicle control and cause death or serious injury. Use tires of the size specified. ●...
Page 401 NOTICE Repairing or replacing snow tires ■ Request repairs or replacement of snow tires from Toyota dealers or legiti- mate tire retailers. This is because the removal and attachment of snow tires affects the opera- tion of the tire pressure warning valves and transmitters.
Page 402 Trailer towing Toyota does not recommend towing a trailer with your vehicle. Toyota also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed for trailer towing or for the use of tow hitch mounted carriers.
Page 403 2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle ■ Do not tow your vehicle with the four wheels on the ground. PRIUS PHV_OM_OM47A11U_(U)
Page 404 2-5. Driving information PRIUS PHV_OM_OM47A11U_(U)
Page 405 3-1. Using the air conditioning system and defogger Air conditioning system Airflow and outlets are automatically adjusted according to the tem- perature setting. Outside temperature display ( P. 400) Fan speed Temperature Air outlet control button control button display Windshield Temperature Fan speed defogger button...
Page 406 3-1. Using the air conditioning system and defogger Using the automatic mode Press STEP The air conditioning system will begin to operate. Air outlets and fan speed are automatically adjusted according to the temperature set- ting. Press “▲” to increase the temperature and “▼” to decrease STEP the temperature on the Automatic mode indicator...
Page 407 3-1. Using the air conditioning system and defogger Changing the air outlets ■ Press The air outlets switch each time the button is pressed. Air flows to the upper body. ITO31P105 Air flows to the upper body and feet. PRIUS PHV_OM_OM47A11U_(U)
Page 408 3-1. Using the air conditioning system and defogger Mainly air flows to the feet. Air flows to the feet and the windshield defogger operates. Switching between outside air and recirculated air modes ■ Press The modes switches between (recycles air inside the vehicle) (introduces air from outside the vehicle) modes each time the button is pressed.
Page 409 3-1. Using the air conditioning system and defogger Defogging the windshield Press The air conditioning system con- trol operates automatically. (The gasoline engine may oper- ate during EV mode driving, depending on vehicle conditions.) Recirculated air mode will auto- matically switch to outside air mode.
Page 410 3-1. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Adjusting the air outlets ■ Center outlets Direct air flow to the left or right, up or down. Right and left side outlets Direct air flow to the left or right, up or down.
Page 411 3-1. Using the air conditioning system and defogger Opening and closing the air outlets ■ Center outlets Open the vent. Close the vent. Move the knob in the direction of the printed arrow until a click is heard. Right and left side outlets Open the vent.
Page 412 3-1. Using the air conditioning system and defogger Using the automatic mode ■ Fan speed is adjusted automatically in accordance with the temperature set- ting and ambient conditions, etc. As a result, the following may occur. Immediately after is pressed, the fan may stop for a while until ●...
Page 413 (For scheduled maintenance information, refer to the “Owner’s Manual Sup- plement/ Scheduled Maintenance Guide”.) When inspecting, cleaning and replacing the air conditioning filter, contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 414 3-1. Using the air conditioning system and defogger If air flow from the vents decreases dramatically ■ The filter may be clogged. Contact your Toyota dealer. Operation of the air conditioning system in Eco drive mode ■ In the Eco drive mode, the air conditioning system is controlled as follows to...
Page 415 3-1. Using the air conditioning system and defogger CAUTION To prevent the windshield from fogging up ■ Do not use during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.
Page 416 3-1. Using the air conditioning system and defogger Using the steering wheel climate remote control switches Some air conditioning features can be controlled using the switches on the steering wheel. Temperature control Outside air or recirculated air mode Adjusting the temperature setting Press “...
Page 417 3-1. Using the air conditioning system and defogger When operating the steering switches (vehicles with touch tracer dis- ■ play) The steering switches operation status is displayed on the instrument ● cluster for confirmation purposes. ( P. 263) Settings are shown on the multi-infor- ●...
Page 418 3-1. Using the air conditioning system and defogger Remote Air Conditioning System The Remote Air Conditioning System uses electrical energy stored in the hybrid battery (traction battery) and allows the air conditioning to be operated by remote control. If the Remote Air Conditioning System is used while the charging cable is connected to the vehicle, the reduction of charge in the hybrid battery (traction battery) will be suppressed to allow you to use electricity from an external power source.
Page 419 3-1. Using the air conditioning system and defogger Operating conditions ■ The system will only operate if all of the following conditions are met: The shift position is in P. ● The “POWER” switch is OFF. ● All doors are closed. ●...
Page 420 3-1. Using the air conditioning system and defogger Security feature ■ Any unlocked doors will be automatically locked when the system is operat- ing. The buzzer will beep and the emergency flashers flash when the doors have been locked or the system has been turned off. (The doors locked: Once;...
Page 421 3-1. Using the air conditioning system and defogger CAUTION Precautions for the Remote Air Conditioning System ■ Do not use the system if people are in the vehicle. ● • Even when the system is in use, the internal temperature may still reach a high level due to features such as the automatic shut-off.
Page 422 3-1. Using the air conditioning system and defogger Rear window and outside rear view mirror defoggers switch Defoggers are used to defog the rear window, and to remove rain- drops, dew and frost from the outside rear view mirrors (if equipped). Turns the rear window and outside rear view mirror defog- gers on/off...
Page 423 3-2. Using the audio system Audio system types Vehicles with Display Audio system Type A Type B Refer to the “DISPLAY AUDIO SYSTEM OWNER’S MANUAL”. PRIUS PHV_OM_OM47A11U_(U)
Page 424 3-2. Using the audio system Vehicles with a navigation system Canada Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”. Steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. For details, refer to the “DISPLAY AUDIO SYSTEM OWNER’S MANUAL”...
Page 425 3-2. Using the audio system ® About Bluetooth (vehicles with Display Audio system) ■ Bluetooth is a registered trade mark of Bluetooth SIG, Inc. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corpo- ration is under license.
Page 426 3-2. Using the audio system CAUTION Properly shielded a grounded cables and connectors must be used for con- nection to host computer and / or peripherals in order to meet FCC emission limits. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Page 427 3-2. Using the audio system CAUTION Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that neces- sary for successful communication.
Page 428 3-2. Using the audio system Using the AUX port/USB port This port can be used to connect a portable audio device and listen to it through the vehicle’s speakers. Open the console box lid. ( P. 393) STEP Connect the portable audio STEP device.
Page 429 3-3. Using the interior lights Interior lights list Rear interior light ( P. 390) Front interior/personal lights ( P. 389) Shift lever lighting “POWER” switch lighting Foot lights (if equipped) Front door courtesy lights PRIUS PHV_OM_OM47A11U_(U)
Page 430 3-3. Using the interior lights Front interior lights and personal lights Front interior lights Turns the lights off Turns the door position on Turns the lights on Personal lights Type A Turns the lights on/off Type B Turns the lights on/off PRIUS PHV_OM_OM47A11U_(U)
Page 431 3-3. Using the interior lights Rear interior light Rear interior light The light will turn on/off in con- junction with the front interior lights Turns the light on ITI34P133a Illuminated entry system ■ The lights automatically turn on/off according to “POWER” switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and whether the doors are opened/closed.
Page 432 3-4. Using the storage features List of storage features Bottle holders Auxiliary boxes Glove boxes Cup holders Console box CAUTION Items that should not be left in the storage spaces ■ Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: Glasses may be deformed by heat or cracked if they come into contact ●...
Page 433 3-4. Using the storage features Glove boxes Glove boxes Upper glove box Push the button. Lower glove box Push the button. Glove box light (lower glove box only) ■ The glove box light turns on when the tail lights are on. CAUTION While driving ■...
Page 434 3-4. Using the storage features Console box Console box Pull up the lever to release the lock. Lift the console box lid to open. CAUTION While driving ■ Keep the console box closed when not is use. In the event of sudden brak- ing or sudden swerving, an accident may occur due to an occupant being struck by the open console box or the items stored inside.
Page 435 3-4. Using the storage features Cup holders Cup holders Front (type A) Lift the lid. Front (type B) Rear (if equipped) Pull down the armrest. ITO35P113 PRIUS PHV_OM_OM47A11U_(U)
Page 436 3-4. Using the storage features Cup holders CAUTION Items unsuitable for the cup holder ■ Do not place anything other than cups or aluminum cans in the cup holders. Other items may be thrown out of the holders in the event of sudden braking, sudden swerving or an accident and cause injury.
Page 437 3-4. Using the storage features Bottle holders Bottle holders ITO35P121 CAUTION Items unsuitable for the bottle holder ■ Do not place anything other than pet bottles in the bottle holders. Other items may be thrown out of the holders in the event of sudden braking, sudden swerving or an accident and cause injury.
Page 438 3-4. Using the storage features Auxiliary boxes Auxiliary boxes Type A Type B Push the lid. The overhead console is useful temporarily storing small items. CAUTION While driving ■ Do not leave the overhead console open. Items may fall out and cause injury. Maximum storage weight (type B) ■...
Page 439 3-5. Other interior features Sun visors To set the visor in the for- ward position, flip it down. To set the visor in the side position, flip down, unhook, and swing it to the side. ITO36P101 PRIUS PHV_OM_OM47A11U_(U)
Page 440 3-5. Other interior features Vanity mirrors Slide the cover to open. The light turns on when the cover is opened. ITO36P103 NOTICE To prevent 12-volt battery discharge ■ Do not leave the vanity lights on for extended periods while the hybrid sys- tem is off.
Page 441 When stopped, or driving at low speeds (less than 16 mph [25 km/h]) ● When the outside temperature has changed suddenly (at the entrance/ ● exit of a garage, tunnel, etc.) When -- is displayed ■ The system may be malfunctioning. Take your vehicle to your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 442 3-5. Other interior features Power outlets The power outlets can be used for 12 V accessories that run on less than 10 A. Instrument panel Open the cover. Rear console box Open the cover. The power outlets can be used when ■...
Page 443 3-5. Other interior features NOTICE To avoid damaging the power outlets ■ Close the power outlet lid when the power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short cir- cuit. To prevent blown fuse ■...
Page 444 3-5. Other interior features Seat heaters Heats the left front seat Heats the right front seat HI: Strong LO: Weak The indicator light of the side you pressed (“HI” or “LO”) comes on. To stop operation, gently press the side of the button opposite the side that was pressed.
Page 445 3-5. Other interior features CAUTION Burns ■ Use caution when seating the following persons in a seat with the seat ● heater on to avoid the possibility of burns: • Babies, small children, the elderly, the sick and the physically chal- lenged •...
Page 446 3-5. Other interior features Armrest Pull the armrest down for use. ITO36P111 NOTICE To prevent damage to the armrest ■ Do not place too much strain on the armrest. : If equipped PRIUS PHV_OM_OM47A11U_(U)
Page 447 3-5. Other interior features Assist grips An assist grip installed on the ceiling can be used to support your body while sitting on the seat. CAUTION Assist grip ■ Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
Page 448 3-5. Other interior features Floor mats Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet. Insert the retaining hooks STEP (clips) into the floor mat eye- lets.
Page 449 ■ Do not use floor mats designed for other models or different model year ● vehicles, even if they are Toyota Genuine floor mats. Only use floor mats designed for the driver’s seat. ● Always install the floor mat securely using the retaining hooks (clips) pro- ●...
Page 450 3-5. Other interior features Luggage compartment features Cargo hooks ■ Raise the hook to use. The cargo hooks are provided for securing loose items. Auxiliary boxes ■ Center Lift the center deck board. Side Lift the side deck board to remove it.
Page 451 3-5. Other interior features Luggage cover ■ Pull out the luggage cover and secure it to the hook brackets. Removing the luggage cover Lift it up. PRIUS PHV_OM_OM47A11U_(U)
Page 452 3-5. Other interior features Stowing the luggage cover Remove the side deck boards STEP and open the center deck board. Flip the cover over from its STEP usage position so that the “TOP” mark is facing downward, and stow the cover. “TOP”...
Page 453 3-5. Other interior features CAUTION When the cargo hooks are not in use ■ To avoid injury, always return the cargo hooks to their stowed positions. Caution while driving ■ Keep the lid of each storage spaces closed while driving. In the event of sud- den braking or sudden swerving, an accident may occur due to an occupant being struck by an open auxiliary box or the items stored inside.
Page 454 3-5. Other interior features Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, secu- rity systems, and other devices. ® The garage door opener (HomeLink Universal Transceiver) is manufac- ®...
Page 455 3-5. Other interior features ® Programming HomeLink ■ Point the remote control trans- STEP mitter for the device 1 to 3 in. (25 ® to 75 mm) from the HomeLink buttons. ® Keep the HomeLink indicator light in view while programming. Press and hold one of the STEP ®...
Page 456 3-5. Other interior features ® Test the HomeLink operation by STEP pressing the newly programmed button. ® If a HomeLink button has been programmed for a garage door, check to see if the garage door opens and closes. If the garage door does not operate, see if your garage transmitter is of the rolling code type.
Page 457 3-5. Other interior features Programming a rolling code system (for U.S.A. owners) ■ If your device is rolling code equipped, follow the steps under the ® heading “Programming HomeLink ” before proceeding with the steps listed below. Locate the training button on the ceiling mounted garage door STEP opener motor.
Page 458 HomeLink buttons. Programming other devices ■ To program other devices such as home security systems, home door locks and lighting, contact your Toyota dealer for assistance. Reprogramming a button ■ ® The individual HomeLink buttons cannot be erased but can be reprogrammed.
Page 459 3-5. Other interior features ® Operating HomeLink ® ® Press the appropriate HomeLink button. The HomeLink indicator light should come on. ® The HomeLink compatible transceiver in your vehicle continues to send a signal for up to 20 seconds as long as the button is pressed. ®...
Page 460 3-5. Other interior features Before programming ■ Install a new battery in the remote control transmitter. ● The battery side of the remote control transmitter must be pointed away ● ® from the HomeLink button. Certification for the garage door opener ■...
Page 461 3-5. Other interior features CAUTION When programming a garage door or other remote control device ■ The garage door or other device may operate, so ensure people and objects are out of danger to prevent potential harm. Conforming to federal safety standards ■...
Page 462 Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is available at Toyota.com. All use of the Safety Con- nect service is subject to such then-applicable Terms and Condi- tions.
Page 463 After you have signed the Telematics Subscription Service Agreement and are enrolled, you can begin receiving services. A variety of subscription terms is available for purchase. Contact your Toyota dealer, call 1-800-25-TOYOTA (1-800-255-3987) or push the “SOS” button in your vehicle for further subscription details.
Page 464 ● during Safety Connect. Safety Connect is available beginning Fall 2009 on select Toyota models. ● Contact with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection avail- ability, and GPS satellite signal reception, which can limit the ability to reach the response center or receive emergency service support.
Page 465 ● Green indicator light flashing = Safety Connect call in process ● Red indicator light (except at vehicle start-up) = System malfunc- tion (contact your Toyota dealer) ● No indicator light (off) = Safety Connect service not active Safety Connect services Automatic Collision Notification ■...
Page 466 After fil- ing a police report, call the Safety Connect response center at 1- 800-25-TOYOTA (1-800-255-3987) and follow the prompts for Safety Connect to initiate this service. In addition to assisting law enforcement with recovery of a stolen...
Page 467 3-5. Other interior features Safety information for Safety Connect Important! Read this information before using Safety Connect. Exposure to radio frequency signals ■ The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio frequency (RF) signals.
Page 468 3-5. Other interior features Certification for Safety Connect ■ FCC ID: O6Y-CDMRF101 FCC ID: XOECDMRF101B FCC ID: N7NGTM2 FCC WARNING: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Expo- sure Guidelines in Supplement C to OET65.
Page 469 3-5. Other interior features PRIUS PHV_OM_OM47A11U_(U)
Page 470 4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condition: ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 471 4-1. Maintenance and care Note for a smart key system ■ If the door handle becomes wet while the electronic key is within the effec- tive range, the door may lock and unlock repeatedly. Place the key in a posi- tion 6 ft.
Page 472 4-1. Maintenance and care NOTICE To prevent paint deterioration and corrosion on the body and compo- ■ nents (aluminum wheels etc.) Wash the vehicle immediately in the following cases: ● • After driving near the sea coast • After driving on salted roads •...
Page 473 4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle’s interior and keep it in top condition: Protecting the vehicle interior ■ Remove dirt and dust using a vacuum cleaner. Wipe dirty sur- faces with a cloth dampened with lukewarm water.
Page 474 4-1. Maintenance and care Caring for leather areas ■ Toyota recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’s interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 475 4-1. Maintenance and care NOTICE Cleaning detergents ■ Do not use the following types of detergent, as they may discolor the vehi- ● cle interior or cause streaks or damage to painted surfaces: • Non-seat portions: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, and bleach •...
Page 476 It is recommended that genuine Toyota parts be used for repairs to ensure performance of each system. If non-Toyota parts are used in replacement or if a repair shop other than a Toyota dealer performs repairs, confirm the war- ranty coverage.
Page 477 Keep pressing the button until the trip meter indicates “000000” and the multi-information display indicates that the reset is complete. Allow inspection and repairs to be performed by a Toyota dealer ■ Toyota technicians are well-trained specialists and are kept up to date ●...
Page 478 4-2. Maintenance CAUTION If your vehicle is not properly maintained ■ Improper maintenance could result in serious damage to the vehicle and possible serious injury or death. Handling of the 12-volt battery ■ Engine exhaust, some of its constituents, and a wide variety of automobile ●...
Page 479 Booklet” “Owner’s Manual Supplement/Scheduled Maintenance Guide”. It is recommended that any problem you notice should be brought to the attention of your Toyota dealer or qualified service shop for advice. Engine compartment Items Check points Is the brake fluid at the correct...
Page 480 4-2. Maintenance Luggage compartment Items Check points 12-volt battery Check the connections. ( P. 476) Vehicle interior Items Check points • The accelerator pedal should Accelerator pedal move smoothly (without uneven pedal effort or catching). • When parked on a slope and the Hybrid transmission “Park”...
Page 481 4-2. Maintenance Items Check points • Do the head restraints move Head restraints smoothly and lock securely? • Do the indicators and buzzers Indicators/buzzers function properly? Lights • Do all the lights come on? • Does the parking brake pedal move smoothly? Parking brake •...
Page 482 4-2. Maintenance Vehicle exterior Items Check points Doors • Do the doors operate smoothly? • Does the engine hood lock sys- Engine hood tem work properly? • There should not be any signs of Fluid leaks fluid leakage after the vehicle has been parked.
Page 483 4-2. Maintenance Charging equipment Items Check points • Check that the electrical leakage Charging cable detection function operates prop- erly. ( P. 108) CAUTION If the hybrid system is operating ■ Turn the hybrid system off and ensure that there is adequate ventilation before performing maintenance checks.
Page 484 The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/ M test and may need to be repaired. Contact your Toyota dealer to service the vehicle. Your vehicle may not pass the I/M test in the following situa- ■...
Page 485 Brake fluid level ( P. 472) • Rag or paper towel • Funnel (used only for adding brake fluid) • “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol-based non-silicate, non- amine, non-nitrite and non-borate coolant with long-life hybrid organic acid technology For the U.S.A.:...
Page 486 4-3. Do-it-yourself maintenance Items Parts and tools • “Toyota Genuine Motor Oil” or equivalent Engine oil level ( P. 465) • Rag or paper towel • Funnel (used only for adding engine oil) • Fuse with same amperage rating Fuses ( P.
Page 487 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions. When working on the engine compartment ■ Make sure that the indicator on the “POWER” switch and the “READY” ●...
Page 488 4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release STEP lever. The hood will pop up slightly. Pull up the auxiliary catch STEP lever and lift the hood. PRIUS PHV_OM_OM47A11U_(U)
Page 489 4-3. Do-it-yourself maintenance Hold the hood open by insert- STEP ing the supporting rod into either of the slots. Use the forward slot to open the hood normally, or use the rearward slot when the hood needs to be opened wide. CAUTION Pre-driving check ■...
Page 490 4-3. Do-it-yourself maintenance NOTICE When closing the hood ■ Be sure to return the support rod to its clip before closing the hood. Closing the hood without returning the support rod properly could cause the hood to bend. PRIUS PHV_OM_OM47A11U_(U)
Page 491 4-3. Do-it-yourself maintenance Positioning a floor jack When raising your vehicle with a floor jack, position the jack cor- rectly. Improper placement (such as under rear suspension etc.) may damage your vehicle or cause injury. Front ■ Rear ■ ITO43P106 PRIUS PHV_OM_OM47A11U_(U)
Page 492 4-3. Do-it-yourself maintenance CAUTION When raising your vehicle ■ Make sure to observe the following precautions to reduce the possibility of death or serious injury: Lift up the vehicle using a floor jack ● such as the one shown in the illustra- tion.
Page 493 4-3. Do-it-yourself maintenance CAUTION Do not raise the vehicle while someone is in the vehicle. ● When raising the vehicle, do not place any object on top of or underneath ● the floor jack. When raising the vehicle, do not set the ●...
Page 494 4-3. Do-it-yourself maintenance Replacing the tire When raising your vehicle with a jack, position the jack correctly. Improper placement may damage your vehicle or cause injury. Before jacking up the vehicle ■ ● Stop the vehicle on a hard, flat surface. ●...
Page 495 4-3. Do-it-yourself maintenance Taking out and storing the jack and tools Taking out the jack and tools ■ Move the driver’s seat to the fully forward position. ( P. 150) STEP Remove the tool box lid. STEP Remove 2 claws and pull the lid. Unhook the tightening strap and take out the jack.
Page 496 4-3. Do-it-yourself maintenance Take out the wheel nut wrench. Storing the jack and tools ■ Store the jack and tools in a reverse way as taking out the STEP jack. After storing the jack, make sure it is securely held by the tight- ening strap.
Page 497 4-3. Do-it-yourself maintenance Replacing a tire Chock the tires. STEP Tire position Wheel chock positions Left-hand side Behind the rear right-hand side tire Front Right-hand side Behind the rear left-hand side tire Left-hand side In front of the front right-hand side tire Rear Right-hand side In front of the front left-hand side tire...
Page 498 4-3. Do-it-yourself maintenance Remove the cover from the end STEP of the jack. Turn the tire jack portion “A” by STEP hand until the notch of the jack is in contact with the jack point. Raise the vehicle until the tire is STEP slightly raised off the ground.
Page 499 4-3. Do-it-yourself maintenance Installing a tire Remove any dirt or foreign mat- STEP ter from the wheel contact sur- face. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, and the tire may come off the vehicle.
Page 500 4-3. Do-it-yourself maintenance Firmly tighten each nut two or STEP three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) Stow the tire jack and all tools. STEP After completing the tire change ■...
Page 501 4-3. Do-it-yourself maintenance CAUTION Using the tire jack ■ Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading to death or serious injury. Observe the following precautions: Do not use the tire jack for any purpose other than replacing tires or ●...
Page 502 • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Toyota dealer. • When installing the wheel nuts, be sure to install the wheel nuts with the tapered ends facing inward.
Page 503 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 504 4-3. Do-it-yourself maintenance Engine compartment Engine coolant reservoir Brake fluid reservoir ( P. 469) ( P. 472) Engine oil level dipstick Fuse box ( P. 499) ( P. 465) Radiator ( P. 471) Engine oil filler cap Condenser ( P. 471) ( P.
Page 505 4-3. Do-it-yourself maintenance Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. Checking the engine oil ■ Park the vehicle on level ground. After warming up the engine STEP and turning off the hybrid system, wait more than 5 minutes for the oil to drain back into the bottom of the engine.
Page 506 4-3. Do-it-yourself maintenance Flat dipstick Normal Excessive The shape of the dipstick may dif- fer depending on the type of vehi- cle or engine. Non-flat dipstick Normal Excessive The shape of the dipstick may dif- fer depending on the type of vehi- cle or engine.
Page 507 4-3. Do-it-yourself maintenance Make sure to check the oil type and prepare the items needed before adding oil. Engine oil selection P. 623 Oil quantity 1.6 qt. (1.5 L, 1.3 Imp.qt.) (Low Full) Items Clean funnel Remove the oil filler cap by turning it counterclockwise. STEP Add engine oil slowly, checking the dipstick.
Page 508 ● not dispose of used oil and filters in household trash, in sewers or onto the ground. Call your Toyota dealer, service station or auto parts store for information concerning recycling or disposal. Do not leave used engine oil within the reach of children.
Page 509 4-3. Do-it-yourself maintenance Coolant The coolant level is satisfactory if it is between the full (“FULL” or “F”) and low (“LOW” or “L”) lines on the reservoir when the hybrid system is cold. Engine coolant reservoir Reservoir cap “FULL” line “LOW”...
Page 510 ■ Visually check the radiator, hoses, engine/power control unit coolant reser- voir caps, drain cock and water pump. If you cannot find a leak, have your Toyota dealer test the cap and check for leaks in the cooling system. CAUTION When the hybrid system is hot ■...
Page 511 Check the radiator and condenser and clear away any foreign objects. If either of the above parts is extremely dirty or you are not sure of their condition, have your vehicle inspected by your Toyota dealer. CAUTION When the hybrid system is hot ■...
Page 512 4-3. Do-it-yourself maintenance Brake fluid Checking fluid level ■ The brake fluid level should be between the “MAX” and “MIN” lines on the tank. Adding fluid ■ Push the tab in and lift the cover off. ITO43P152 Make sure to check the fluid type and prepare the necessary item. Fluid type FMVSS No.116 DOT 3 or SAE J1703 brake fluid Items...
Page 513 4-3. Do-it-yourself maintenance Brake fluid can absorb moisture from the air ■ Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency. Use only newly opened brake fluid. CAUTION When filling the reservoir ■ Take care as brake fluid can harm your hands and eyes and damage painted surfaces.
Page 514 4-3. Do-it-yourself maintenance Washer fluid Open the lid. STEP Check the washer fluid level on STEP the level gauge. “NORMAL” “LOW” If the washer fluid level is at STEP “LOW”, add washer fluid. PRIUS PHV_OM_OM47A11U_(U)
Page 515 4-3. Do-it-yourself maintenance CAUTION When adding washer fluid ■ Do not add washer fluid when the hybrid system is hot or operating as washer fluid contains alcohol and may catch fire if spilled on the engine etc. NOTICE Do not use any fluid other than washer fluid ■...
Page 516 4-3. Do-it-yourself maintenance 12-volt battery Location ■ The 12-volt battery is located in the right-hand side of lug- gage compartment. Removing the 12-volt battery cover ■ Open the center deck board. ( P. 409) STEP Remove the side deck board. STEP Remove the auxiliary box.
Page 517 4-3. Do-it-yourself maintenance Remove the 12-volt battery STEP maintenance cover. Exterior ■ Make sure that the 12-volt battery terminals are not corroded and that there are no loose connections, cracks, or loose clamps. Terminals Hold-down clamp Before charging ■ When charging, the 12-volt battery produces hydrogen gas which is flamma- ble and explosive.
Page 518 Restart the hybrid system, depress the brake pedal, and confirm that it is ● possible to shift into each shift position. If the system will not start even after multiple attempts at all methods above, contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 519 4-3. Do-it-yourself maintenance CAUTION Chemicals in the 12-volt battery ■ The 12-volt battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious injury, take the following precautions while working on or near the 12-volt battery: Do not cause sparks by touching the 12-volt battery terminals with tools.
Page 520 Use a 12-volt battery designed for this vehicle. Failure to do so may cause gas (hydrogen) to enter the passenger compartment, causing a fire or explo- sion. For replacement of the 12-volt battery, contact your Toyota dealer. NOTICE When charging the 12-volt battery ■...
Page 521 Tire rotation ■ Rotate the tires in the order shown. To equalize tire wear and extend tire life, Toyota recom- mends that tire rotation is Front carried out at the same inter- val as tire inspection. Do not fail to initialize the tire...
Page 522 Have tire pressure warning valve and transmitter ID codes registered by your Toyota dealer. ( P. 484) Initializing the tire pressure warning system The tire pressure warning system must be initialized in the fol- ■...
Page 523 4-3. Do-it-yourself maintenance How to initialize the tire pressure warning system ■ Park the vehicle in a safe place and turn the “POWER” switch STEP off. Initialization cannot be performed while the vehicle is moving. Adjust the tire inflation pressure to the specified cold tire infla- STEP tion pressure level.
Page 524 A tire goes flat repeatedly or cannot be properly repaired due to the ● size or location of a cut or other damage. If you are not sure, consult with your Toyota dealer. Replacing tires and wheels ■ If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly.
Page 525 4-3. Do-it-yourself maintenance Maximum load of tire ■ Check that the maximum load of the replacement tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater. For the GAWR, see the Certification Label.
Page 526 If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Toyota dealer. When operating the tire pressure warning reset switch, the tire pres- ●...
Page 527 4-3. Do-it-yourself maintenance Certification for tire pressure warning system ■ For vehicles sold in the U.S.A. and Hawaii MODEL/FCC IDs: Transmitter: PAXPMV107J Receiver: HYQ13BDE NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 528 Do not mix tires of different makes, models or tread patterns. ● Also, do not mix tires of remarkably different treadwear. Do not use tire sizes other than those recommended by Toyota. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply ●...
Page 529 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 530 4-3. Do-it-yourself maintenance Tire inflation pressure Tire inflation pressure ■ The recommended cold tire inflation pressure and tire size are displayed on the tire and loading information label. ( P. 627) PRIUS PHV_OM_OM47A11U_(U)
Page 531 4-3. Do-it-yourself maintenance Inspection and adjustment procedure ■ Tire valve Tire pressure gauge Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the gauge gradations. STEP If the tire inflation pressure is not at the recommended STEP level, adjust the pressure.
Page 532 Reduced safety ● Damage to the drive train ● If a tire needs frequent inflating, have it checked by your Toyota dealer. Instructions for checking tire inflation pressure ■ When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 533 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance ■ Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury: Excessive wear ● Uneven wear ● Poor handling ●...
Page 534 ● Bent wheels that have been straightened Aluminum wheel precautions ■ ● Use only Toyota wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 535 4-3. Do-it-yourself maintenance When replacing wheels ■ The wheels of your vehicle are equipped with tire pressure warning valves and transmitters that allow the tire pressure warning system to provide advance warning in the event of a loss in tire inflation pressure. Whenever wheels are replaced, tire pressure warning valves and trans- mitters must be installed.
Page 536 Because tire repair or replacement may affect the tire pressure warn- ● ing valves and transmitters, make sure to have tires serviced by your Toyota dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Toyota dealer.
Page 537 4-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is depleted. You will need the following items: ■ ● Flathead screwdriver ● Lithium battery CR1632 Replacing the battery ■ Take out the mechanical key. STEP Remove the cover.
Page 538 4-3. Do-it-yourself maintenance Use a CR1632 lithium battery ■ Batteries can be purchased at your Toyota dealer, local electrical appli- ● ance shops or camera stores. Replace only with the same or equivalent type recommended by the ● manufacturer. Dispose of used batteries according to local laws.
Page 539 4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the “POWER” switch off. STEP Vehicles with Solar Ventilation System: Turn the Solar Ventilation System off and make sure not to operate the Remote Air Condi- tioning System.
Page 540 4-3. Do-it-yourself maintenance Remove the fuse. STEP Only type A fuse can be removed using the pullout tool. Check if the fuse is blown. STEP Type A Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating.
Page 541 4-3. Do-it-yourself maintenance Type B Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating. The amper- age rating can be found on the fuse box lid. Type C Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating.
Page 542 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings Engine compartment ■ FUSE Ampere Circuit Air conditioning system Electric cooling fans Electric cooling fans FUEL OPN 7.5A Fuel filler door opener S-HORN No circuit ENG W/P Cooling system ABS MAIN 7.5A Anti-lock brake system NO.2 H-LP CLN...
Page 543 4-3. Do-it-yourself maintenance FUSE Ampere Circuit IGCT PCU, IGCT NO.2, IGCT NO.3 DC/DC-S Inverter and converter Shift control system, P position P CON MAIN 7.5A switch 7.5A Power management system ECU-B2 7.5A Smart key system, hybrid system MAYDAY/DCM MAYDAY/DCM PIMR Charge system TURN &...
Page 544 4-3. Do-it-yourself maintenance FUSE Ampere Circuit Electric power steering H-LP RH LO Right-hand headlight (low beam) Inverter and converter Hybrid system, shift control sys- tem, power management system, IGCT NO.2 multiport fuel injection system/ sequential multiport fuel injection system MIR HTR Outside rear view mirror defoggers RAD NO.1 Audio system, navigation system...
Page 545 4-3. Do-it-yourself maintenance FUSE Ampere Circuit SPARE Spare fuse SPARE Spare fuse SPARE 7.5A Spare fuse Multiport fuel injection system/ EFI MAIN sequential multiport fuel injection system, cooling system, EFI NO.2 BATT FAN Battery cooling fan Multiport fuel injection system/ sequential multiport fuel injection system, MET, IGN, power man- agement system...
Page 546 4-3. Do-it-yourself maintenance Left side instrument panel ■ 9 10 15 16 17 18 23 24 25 26 27 28 29 30 20 21 ITO43P133 FUSE Ampere Circuit Power outlets Multiplex communication system, outside rear view mirrors, driver ECU-ACC support system, audio system, navigation system PWR OUTLET Power outlets...
Page 547 4-3. Do-it-yourself maintenance FUSE Ampere Circuit P FR DOOR Power windows D FR DOOR Power windows DOOR RR Power windows DOOR RL Power windows S/ROOF No circuit Electric cooling fans, multiplex ECU-IG NO.1 communication system, vehicle proximity notification system Driver support system, Pre-Colli- sion System, inside rear view mir- ror, garage door opener, yaw rate &...
Page 548 4-3. Do-it-yourself maintenance FUSE Ampere Circuit Brake system, driver support sys- tem, multiport fuel injection sys- tem/sequential multiport fuel injection system, SRS airbag sys- tem, front passenger occupant classification system (ECU and sensors), power management sys- tem, smart key system, front pas- senger’s seat belt reminder light Air conditioning system, personal light, transmission, P position...
Page 549 The fuses are designed to blow, protecting the wiring harness from damage. When replacing light bulbs ■ Toyota recommends that you use genuine Toyota products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-genuine parts or parts not designed for this vehicle may be unusable.
Page 550 4-3. Do-it-yourself maintenance NOTICE Before replacing fuses ■ Have the cause of electrical overload determined and repaired by your Toyota dealer as soon as possible. PRIUS PHV_OM_OM47A11U_(U)
Page 551 You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. As there is a danger that components may be damaged, we recommend that replacement is carried out by your Toyota dealer. Preparing for light bulb replacement ■...
Page 552 4-3. Do-it-yourself maintenance Rear bulb locations ■ Rear turn signal light License plate lights Back-up light Replacing light bulbs Headlight low beams (halogen headlights) ■ STEP Turn the bulb base counterclock- wise. PRIUS PHV_OM_OM47A11U_(U)
Page 553 4-3. Do-it-yourself maintenance Unplug connector while STEP pressing the lock release. ITO43P163 Replace the light bulb, and install STEP the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert. Turn and secure the bulb base. STEP Shake the bulb base gently to check that it is not loose, turn the...
Page 554 4-3. Do-it-yourself maintenance Headlight high beams (including daytime running lights for ■ Canada) Turn the bulb base counterclockwise. STEP Vehicles with halogen headlights Vehicles with LED headlights Unplug connector while STEP pressing the lock release. ITO43P165 PRIUS PHV_OM_OM47A11U_(U)
Page 555 4-3. Do-it-yourself maintenance Replace the light bulb, and install STEP the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert. Turn and secure the bulb base. STEP Shake the bulb base gently to check that it is not loose, turn the headlights on once and visually confirm that no light is leaking through the mounting.
Page 556 4-3. Do-it-yourself maintenance Parking lights (halogen headlights) ■ Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP ITO43P167 When installing, reverse the steps listed. STEP PRIUS PHV_OM_OM47A11U_(U)
Page 557 4-3. Do-it-yourself maintenance Front side marker lights ■ Turn the bulb base counterclockwise. STEP Vehicles with halogen headlights Vehicles with LED headlights Remove the light bulb. STEP ITO43P167 When installing, reverse the steps listed. STEP PRIUS PHV_OM_OM47A11U_(U)
Page 558 4-3. Do-it-yourself maintenance Fog lights (if equipped) ■ Remove the fender liner bolt and STEP clip and pull down the fender liner. Unplug connector while STEP pressing the lock release. Turn the bulb base counterclock- STEP wise. PRIUS PHV_OM_OM47A11U_(U)
Page 559 4-3. Do-it-yourself maintenance When installing, reverse the steps listed. STEP After installing the bulb base, shake the bulb base gently to check that it is not loose. Insert the clip. PRIUS PHV_OM_OM47A11U_(U)
Page 560 4-3. Do-it-yourself maintenance Front turn signal lights ■ Remove the fender liner bolt and clip and pull down the fender STEP liner. ( P. 518) For the U.S.A. Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP PRIUS PHV_OM_OM47A11U_(U)
Page 561 4-3. Do-it-yourself maintenance For Canada Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP ITO43P144 When installing, reverse the steps listed. STEP Insert the clip. PRIUS PHV_OM_OM47A11U_(U)
Page 562 4-3. Do-it-yourself maintenance Rear turn signal lights and back-up lights ■ Open the back door and remove STEP the cover. To prevent damage, cover the tip of the screwdriver with a rag. Turn the bulb base counterclock- STEP wise. Rear turn signal light Back-up light Remove the light bulb.
Page 563 4-3. Do-it-yourself maintenance License plate lights ■ Open the back door and remove STEP the cover. To prevent damage, cover the tip of the screwdriver with a rag. Turn the bulb base counterclock- STEP wise. ITO43P149 Remove the light bulb. STEP ITO43P150 When installing, reverse the steps listed.
Page 564 (except for Canada) consist of a number of LEDs. If any of the LEDs burn out, take your vehicle to your Toyota dealer to have the light replaced. Condensation build-up on the inside of the lens ■...
Page 565 4-3. Do-it-yourself maintenance CAUTION Replacing light bulbs ■ Be sure to stop the hybrid system and turn off the lights. Do not attempt to ● replace the bulb immediately after turning off the lights. The bulbs become very hot and may cause burns. Do not touch the glass portion of the light bulb with bare hands.
Page 566 4-3. Do-it-yourself maintenance PRIUS PHV_OM_OM47A11U_(U)
Page 567 5-1. Essential information Emergency flashers The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc. Press the switch. All the turn signal lights will flash. To turn them off, press the switch once again.
Page 568 In the following situations, it is not possible to be towed by another vehicle using cables or chains, as the front wheels may be locked due to the parking lock. Contact your Toyota dealer or a commercial towing service. ● There is a malfunction in the shift control system. ( P. 552) ●...
Page 569 5-1. Essential information Towing with a sling-type truck Do not tow with a sling-type truck to prevent body damage. Towing with a wheel-lift type truck From the front Release the parking brake. From the rear Use a towing dolly under the front wheels.
Page 570 5-1. Essential information Using a flatbed truck If your Toyota is transported by a flatbed truck, it should be tied down at the locations shown in the illustration. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45 .
Page 571 5-1. Essential information Emergency towing If a tow truck is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing eyelet. This should only be attempted on hard surfaced roads for short distances at low speeds.
Page 572 5-1. Essential information Tighten down the towing eyelet STEP securely using a wheel nut wrench or hard metal bar. Securely attach a cable or chain to the towing eyelet. STEP Take care not to damage the vehicle body. Enter the vehicle being towed and start the hybrid system. STEP If the hybrid system does not start, turn the “POWER”...
Page 573 5-1. Essential information CAUTION Observe the following precautions. Failure to do so may result in death or serious injury. When towing the vehicle ■ Be sure to transport the vehicle with the front wheels raised or with all four wheels raised off the ground.
Page 574 5-1. Essential information NOTICE To prevent damage to the vehicle when towing using a wheel-lift type ■ truck When raising the vehicle, ensure adequate ground clearance for towing at the opposite end of the raised vehicle. Without adequate clearance, the vehicle could be damaged while being towed.
Page 575 5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Toyota dealer as soon as possible. Visible symptoms ■ ● Fluid leaks under the vehicle (Water dripping from the air conditioning after use is normal.)
Page 576 If a light comes on or flashes, but then goes off, this does not necessarily indicate a malfunction in the system. However, if this continues to occur, have the vehicle inspected by your Toyota dealer. Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
Page 577 Stop the vehicle immediately. The following warning indicates the possibility of damage to the vehi- cle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning light Warning light/Details Charging system warning light Indicates a malfunction in the vehicle’s charging system...
Page 578 5-2. Steps to take in an emergency Have the vehicle inspected by your Toyota dealer immediately. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately.
Page 579 5-2. Steps to take in an emergency Warning light Warning light/Details Pre-collision system warning light Indicates a malfunction in the pre-collision system The warning light will operate as follows, even when the system is not malfunctioning: • The light will flash quickly when the system is operating. ( P.
Page 580 5-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning light goes off. Correction Warning light Warning light/Details procedure Open door warning light (warning buzzer) Check that all the Indicates that a door is doors are closed.
Page 581 • Flat tire ( P. 454) tion pressure is adjusted, have the system checked by your Toyota dealer. When the light comes on after blinking for 1 Have the system minute: checked by your Malfunction in the tire Toyota dealer.
Page 582 5-2. Steps to take in an emergency : Open door warning buzzer: The open door warning buzzer sounds to alert one or more of the doors is not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]). : Seat belt warning buzzer: The driver’s and front passenger’s seat belts reminder sounds to alert the driver and front passenger that his or her seat belt is not fastened.
Page 583 The malfunction indicator lamp will go off after several driving trips. If the malfunction indicator lamp does not go off even after several trips, con- tact your Toyota dealer as soon as possible. When the tire pressure warning light comes on ■...
Page 584 If there is a lot of snow or ice on the vehicle, particularly around the ● wheels or wheel housings If non-genuine Toyota wheels are used (Even if you use Toyota ● wheels, the tire pressure warning system may not work properly with some types of tires.)
Page 585 If both the ABS and the brake system warning lights remain on ■ Stop your vehicle in a safe place immediately and contact your Toyota dealer. The vehicle will become extremely unstable during braking, and the ABS system may fail, which could cause an accident resulting in death or serious injury.
Page 586 5-2. Steps to take in an emergency CAUTION If the tire pressure warning light comes on ■ Be sure to observe the following precautions. Failure to do so could cause a loss of vehicle control and result in death or serious injury. Stop your vehicle in a safe place as soon as possible.
Page 587 5-2. Steps to take in an emergency CAUTION As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system (TPMS-tire pressure warning system) that illuminates a low tire pressure telltale (tire pressure warning light) when one or more of your tires is significantly under-inflated.
Page 588 5-2. Steps to take in an emergency CAUTION TPMS (tire pressure warning system) malfunctions may occur for a vari- ety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS (tire pressure warning system) from functioning properly.
Page 589 If any of the warning light turns on again after performing the fol- lowing actions, contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 590 A buzzer sounds and a warning message is shown on the multi-infor- mation display. The following warnings indicate the possibility of dam- age to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Toyota dealer. Warning message Details (U.S.A.)
Page 591 Have the vehicle inspected immediately. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Toyota dealer immediately. Warning message Details Indicates a malfunction in the shift control system.
Page 592 5-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the LED headlight system. (If equipped) Indicates a malfunction in the pre-collision system. (Flashes) A buzzer also sounds. (If equipped) Indicates a malfunction in the radar cruise control sys- tem.
Page 593 If you continue to use the vehicle in this state, you will soon become unable to restart the hybrid sys- tem. Have the hybrid battery (traction battery) inspected by your Toyota dealer immediately. Indicates that restarting of the hybrid system is not possible.
Page 594 5-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning message turns off. Correction Warning message Details procedure Indicates that all maintenance according to the driven dis- tance on the maintenance schedule should be per-...
Page 595 5-2. Steps to take in an emergency Correction Warning message Details procedure • Check the grille • Indicates that the pre-collision and the sensor and system is not currently func- clean them if they tional because the grille or the are dirty.
Page 596 5-2. Steps to take in an emergency Correction Warning message Details procedure Indicates that there is a high possibility of a frontal collision, or that the pre-collision braking function is operating. Slow the vehicle by A buzzer also sounds. applying the (Flashes brakes.
Page 597 5-2. Steps to take in an emergency Correction Warning message Details procedure When stopping the vehicle for a long period of time, shift The hybrid battery (traction the shift position to battery) is low. P. The hybrid bat- A buzzer also sounds. tery (traction bat- (Flashes) tery) cannot be...
Page 598 5-2. Steps to take in an emergency Correction Warning message Details procedure Indicates that the accelerator Release the accel- pedal is depressed while the erator pedal and shift position is in N. shift the shift posi- A buzzer also sounds. tion to D or R.
Page 599 5-2. Steps to take in an emergency Correction Warning message Details procedure Tighten the fuel The fuel filler door has been tank cap and close left open. the fuel filler door. Close the charging The charging port lid is open. port lid.
Page 600 5-2. Steps to take in an emergency Other displayed messages Carrying out the corresponding action turns the message off. Correction Displayed message Details procedure EV mode cannot be switched A buzzer also sounds. Use the EV mode The reason why EV mode when it becomes cannot be used is shown available.
Page 601 5-2. Steps to take in an emergency Have the malfunction repaired immediately. If any of the following warnings is displayed when a hybrid system start operation is performed, perform the appropriate action accord- ing to the warning message display. Correction Warning message Details procedure...
Page 602 5-2. Steps to take in an emergency Have the malfunction repaired immediately. After taking the specified steps to correct the suspected problem, check that the warning message and light turn off. Interior Exterior Correction Warning message Details buzzer buzzer procedure The electronic Confirm key is not...
Page 603 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The driver’s door is opened and closed Turn the while the elec- “POWER” tronic key is out- switch to side the OFF or detection range Once 3 times confirm...
Page 604 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The electronic key has been taken outside Turn the the vehicle and “POWER” the doors have switch to Contin- been locked Once OFF and uous without first lock the...
Page 605 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An attempt to lock the doors has been made using the smart key system while the elec- tronic key is inside the vehi- cle. (vehicles Take the with entry func- electronic...
Page 606 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure The driver’s door is opened and closed while the elec- • Shift the tronic key is out- shift posi- side the tion to P. Contin- Contin- detection range...
Page 607 5-2. Steps to take in an emergency Interior Exterior Correction Warning message Details buzzer buzzer procedure An open door has been Press the closed and the “POWER” “POWER” switch Once switch has been while turned twice to applying the ACCES- (Flashes) SORY mode brakes.
Page 608 5-2. Steps to take in an emergency NOTICE While the engine oil level warning is displayed ■ Continued engine operation with low engine oil will damage the engine. Engine oil maintenance message ■ The warning message is based on the projected driving range after engine oil maintenance message is reset.
Page 609 “POWER” switch is turned to ON mode after charging has completed (when the vehicle’s charging indicator has turned off). If one of the following messages is displayed, follow the correction proce- dures. If the message displays again after following the correction procedure, contact your Toyota dealer. Correction Message Details procedure...
Page 610 • The charging connector has been disconnected Stop charging immedi- ately, and contact your Charging has been inter- Toyota dealer. rupted by a malfunction Also, driving is possible in the charging system. when the hybrid system has been started.
Page 611 5-2. Steps to take in an emergency Correction Message Details procedure Switch the electrical appliance OFF, and restart charging by fol- lowing the procedure on P. 85. Charging has been If the message is still stopped because of the displayed, the 12-volt high energy consumption battery may have a low of electrical compo-...
Page 612 Charging has been ing station (other than a stopped because of a Toyota dealer), try charg- problem with the charg- ing with a genuine Toyota ing cable. charging cable. If the message is still displayed, contact your Toyota dealer.
Page 613 After temporarily repair- ing the tire with the kit, have the tire repaired or replaced by your Toyota dealer. Before repairing the tire ■...
Page 614 5-2. Steps to take in an emergency Emergency tire puncture repair kit components ■ Bottle Stickers Hose Air release cap PRIUS PHV_OM_OM47A11U_(U)
Page 615 5-2. Steps to take in an emergency Compressor Air pressure gauge Compressor switch Power plug PRIUS PHV_OM_OM47A11U_(U)
Page 616 5-2. Steps to take in an emergency Before performing emergency repair Check the degree of the tire damage. A tire should only be repaired with the emergency tire puncture repair kit if the damage is caused by a nail or screw passing through the tire tread.
Page 617 5-2. Steps to take in an emergency In the following cases, the tire cannot be repaired with the emer- ■ gency tire puncture repair kit. Contact your Toyota dealer. When the tire is damaged due to driving without sufficient air pres- ●...
Page 618 5-2. Steps to take in an emergency Taking out the emergency tire puncture repair kit Lift the side deck board. STEP Unhook the tightening strap. STEP Take out the emergency tire puncture repair kit. PRIUS PHV_OM_OM47A11U_(U)
Page 619 5-2. Steps to take in an emergency Emergency repair method Take out the repair kit from the plastic bag. STEP Remove the valve cap from the STEP valve of the punctured tire. Remove the air release cap from STEP the hose. You will use the air release cap again.
Page 620 5-2. Steps to take in an emergency Connect the hose to the valve. STEP Screw the end of the hose clockwise as far as possible. Make sure that the compressor STEP switch is off. Remove the rubber stopper from STEP the compressor.
Page 621 5-2. Steps to take in an emergency Connect the power plug to the power outlet socket. ( P. 401) STEP Instrument panel Rear console box PRIUS PHV_OM_OM47A11U_(U)
Page 622 Remove any dirt and moisture from the wheel before attaching the sticker. If you are unable to apply the stickers, inform the nearest Toyota dealer that sealant has been applied to the puncture when having the tire repaired or replaced. PRIUS PHV_OM_OM47A11U_(U)
Page 623 5-2. Steps to take in an emergency Check the specified tire inflation pressure. STEP Tire inflation pressure is specified on the label on the driver’s side pillar as shown. ( P. 627) ITO52P163 Start the hybrid system. ( P. 242) STEP To inject the sealant and inflate STEP...
Page 624 5-2. Steps to take in an emergency Inflate the tire until the specified STEP air pressure is reached. The sealant will be injected and the pressure will spike to 44 psi (300 kPa, 3.1 kgf/cm or bar) or 58 psi (400 kPa, 4.1 kgf/cm bar), then gradually...
Page 625 Turn the com- pressor switch off and con- tact your Toyota dealer. • If the tire inflation pressure exceeds the specified air pressure, let out some air to adjust the tire inflation pres- sure.
Page 626 5-2. Steps to take in an emergency Attach the air release cap to the STEP end of the hose. If the air release cap is not attached, the sealant may leak and the vehicle may get dirty. Temporarily store the bottle in the luggage compartment while STEP it is connected to the compressor.
Page 627 If the tire inflation pressure is under 19 psi (130 kPa, 1.3 kgf/ or bar): The puncture cannot be repaired. Contact your Toyota dealer. If the tire inflation pressure is 19 psi (130 kPa, 1.3 kgf/cm or bar) or higher, but less than...
Page 628 Store the bottle in the luggage compartment while it is con- STEP nected to the compressor. Taking precautions to avoid sudden braking, sudden accelera- STEP tion and sharp turns, drive carefully at under 50 mph (80 km/h) to the nearest Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 629 5-2. Steps to take in an emergency If the tire is inflated to more than the specified air pressure ■ STEP Disconnect the hose from the valve. Install the air release cap to the end of STEP the hose and push the protrusion on the air release cap into the tire valve to let some air out.
Page 630 The sealant stored in the emergency tire puncture repair kit can be ● used only once to temporarily repair a single tire. If the sealant has been used and needs to be purchased, contact your Toyota dealer. The sealant can be used when the outside temperature is from -40°F ●...
Page 631 5-2. Steps to take in an emergency CAUTION Do not drive the vehicle with a flat tire ■ Do not continue driving with a flat tire. Driving even a short distance with a flat tire can damage the tire and the wheel beyond repair.
Page 632 5-2. Steps to take in an emergency CAUTION When fixing the flat tire ■ Stop your vehicle in a safe and flat area. ● Do not touch the wheels or the area around the brakes immediately ● after the vehicle has been driven. After the vehicle has been driven, the wheels and the area around the brakes may be extremely hot.
Page 633 5-2. Steps to take in an emergency CAUTION Driving to spread the liquid sealant evenly ■ Observe the following precautions to reduce the risk of accidents. Failing to do so may result in a loss of vehicle control and cause death or serious injury.
Page 634 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Toyota dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 635 5-2. Steps to take in an emergency If the hybrid system will not start Reasons for the hybrid system not starting vary depending on the situation. Check the following and perform the appropriate proce- dure: The hybrid system will not start even though the correct ■...
Page 636 ● One or both of the 12-volt battery terminals may be discon- nected. ● The 12-volt battery may be discharged. ( P. 601) Contact your Toyota dealer if the problem cannot be repaired, or if repair procedures are unknown. Emergency start function...
Page 637 5-2. Steps to take in an emergency If you lose your keys New genuine keys can be made by your Toyota dealer using the other key and the key number stamped on your key number plate. PRIUS PHV_OM_OM47A11U_(U)
Page 638 5-2. Steps to take in an emergency If the electronic key does not operate properly If communication between the electronic key and vehicle is inter- rupted ( P. 123) or the electronic key cannot be used because the battery is depleted, the smart key system and wireless remote con- trol cannot be used.
Page 639 5-2. Steps to take in an emergency Starting the hybrid system Depress the brake pedal. STEP Touch the Toyota emblem side of STEP electronic “POWER” switch. If any of the doors is opened or closed while the key is being...
Page 640 The following procedures may be used to start the hybrid system if the vehicle’s 12-volt battery is discharged. You can also call your Toyota dealer or a qualified repair shop. If you have a set of jumper (or booster) cables and a second vehi- cle with a 12-volt battery, you can jump start your vehicle by follow- ing the steps below.
Page 641 5-2. Steps to take in an emergency STEP Connect the jumper cables according to the following procedure: Connect a positive jumper cable clamp to the exclusive jump starting terminal on your vehicle. Connect the clamp on the other end of the positive cable to the positive (+) battery terminal on the second vehicle.
Page 642 ON mode. Make sure the “READY” indicator comes on. If the indicator STEP light does not come on, contact your Toyota dealer. Once the hybrid system has started, remove the jumper STEP cables in the exact reverse order from which they were con- nected.
Page 643 5-2. Steps to take in an emergency Starting the hybrid system when the 12-volt battery is discharged ■ The hybrid system cannot be started by push-starting. To prevent 12-volt battery discharge ■ Turn off the headlights and the audio system while the hybrid system is ●...
Page 644 5-2. Steps to take in an emergency CAUTION Avoiding 12-volt battery fires or explosions ■ Observe the following precautions to prevent accidentally igniting the flam- mable gas that may be emitted from the 12-volt battery: Make sure each jumper cable is connected to the correct terminal and that ●...
Page 645 CAUTION After charging the 12-volt battery ■ Have the 12-volt battery inspected at your Toyota dealer as soon as possi- ble. If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to emit a malodorous gas, which may be detrimental to the health of passengers.
Page 646 Carefully lift the hood. After the hybrid system has STEP cooled down sufficiently, inspect the hoses and radiator core (radiator) for any leaks. Radiator Cooling fans If a large amount of coolant leaks, immediately contact your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 647 (The fans may not operate in freezing temperatures.) If the fans are not operating: STEP Stop the hybrid system immediately and contact your Toyota dealer. If the fans are operating: Have the vehicle inspected at the nearest Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 648 (radiator) for any leaks. Radiator Cooling fans If a large amount of coolant leaks, immediately contact your Toyota dealer. The coolant level is satisfactory if STEP it is between the “F” and “L” lines on the reservoir.
Page 649 If the message does not disappear: Stop the hybrid system and contact your Toyota dealer. If the message is not displayed: The hybrid system temperature has dropped and the vehi- cle may be driven normally.
Page 650 5-2. Steps to take in an emergency CAUTION To prevent an accident or injury when inspecting under the hood of ■ your vehicle If steam is seen coming from under the hood, do not open the hood until ● the steam has subsided. The engine compartment may be very hot, caus- ing serious injuries such as burns.
Page 651 5-2. Steps to take in an emergency NOTICE When adding engine/power control unit coolant ■ Wait until the hybrid system has cooled down before adding engine/power control unit coolant. When adding coolant, do so slowly. Adding cool coolant to a hot hybrid sys- tem too quickly can cause damage to the hybrid system.
Page 652 5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt or snow: Set the parking brake and shift the shift position to P. Stop STEP the hybrid system.
Page 653 5-2. Steps to take in an emergency NOTICE To avoid damage to the hybrid transmission and other components ■ Avoid spinning the wheels and depressing the accelerator pedal more ● than necessary. If the vehicle remains stuck even after these procedures are performed, ●...
Page 654 5-2. Steps to take in an emergency If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following pro- cedure: Steadily step on the brake pedal with both feet and firmly STEP...
Page 655 5-2. Steps to take in an emergency CAUTION If the hybrid system has to be turned off while driving ■ Power assist for the steering will be lost, making the steering wheel heavier to turn. Decelerate as much as possible before turning off the hybrid system. PRIUS PHV_OM_OM47A11U_(U)
Page 656 6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 176.4 in. (4480 mm) Overall width 68.7 in. (1745 mm) Overall height 58.7 in. (1490 mm) Wheelbase 106.3 in. (2700 mm) Front 60.0 in. (1525 mm) Tread Rear 59.8 in.
Page 657 The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Toyota. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel.
Page 658 6-1. Specifications Engine number ■ The engine number is stamped on the engine block as shown. Engine Model 1.8 L 4-cylinder (2ZR-FXE) Type 4-cylinder in line, 4-cycle, gasoline Bore and stroke 3.17 3.48 in. (80.5 88.3 mm) Displacement 109.7 cu.in. (1798 cm Valve clearance Automatic adjustment (engine cold)
Page 659 6-1. Specifications Fuel Fuel type Unleaded gasoline only Octane Rating 87 (Research Octane Number 91) or higher Fuel tank capacity 10.6 gal. (40 L, 8.8 Imp.gal.) (Reference) NOTICE Notice about fuel ■ For plug-in hybrid vehicles, fuel may remain in the tank for a long time and undergo changes in quality depending on the how the vehicle is used.
Page 660 6-1. Specifications Electric motor (Traction motor) Type Permanent magnet motor Maximum output 60 kW Maximum torque 153 ft•lbf (207 N•m, 21.1 kgf•m) Hybrid battery (traction battery) Type Lithium-ion battery Voltage 3.7 V/cell Capacity 21.5 Ah Quantity 56 cells Overall voltage 207 V Lubrication system Oil capacity...
Page 661 6-1. Specifications Engine oil selection ■ “Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity. Oil grade: ILSAC GF-5 multigrade engine oil Recommended viscosity: SAE 0W-20...
Page 662 6-1. Specifications How to read oil container label: The International Lubricant Specification Advisory Committee (ILSAC) Certification Mark is added to some oil containers to help you select the oil you should use. PRIUS PHV_OM_OM47A11U_(U)
Page 663 Power control 2.2 qt. (2.1 L, 1.8 Imp.qt.) unit Use either of the following: • “Toyota Super Long Life Coolant” • Similar high-quality ethylene glycol-based non- Coolant type silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technol- Do not use plain water alone.
Page 664 If replacement is necessary, contact your Toyota dealer. NOTICE Transmission fluid type ■ Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the transmission of your vehicle. PRIUS PHV_OM_OM47A11U_(U)
Page 665 6-1. Specifications Brakes Pedal clearance 3.03 in. (77 mm) Min. Pedal free play 0.04 0.24 in. (1.0 6.0 mm) Brake pad wear limit 0.04 in. (1.0 mm) Parking brake lining wear limit 0.04 in. (1.0 mm) 11 clicks Parking brake pedal travel Fluid type SAE J1703 or FMVSS No.
Page 666 6-1. Specifications Light bulbs Light Bulbs Bulb No. Type Halogen headlights Low beam High beam 9005 LED headlights High beam 9005 Fog lights Front turn signal lights WY21W Exterior Front side marker lights Parking lights (halogen headlights) Rear turn signal lights WY21W Back-up lights W21W...
Page 667 In very few cases, driveability problems may be caused by the brand of gas- oline you are using. If driveability problems persist, try changing the brand of gasoline. If this does not correct the problem, consult your Toyota dealer. PRIUS PHV_OM_OM47A11U_(U)
Page 668 ● clean and/or keep clean intake systems, per EPA’s lowest additives con- centration program. Toyota strongly recommends the use of Top Tier Detergent Gasoline. For ● more information on Top Tier Detergent Gasoline and a list of marketers, please go to the official website www.toptiergas.com.
Page 669 ■ Some gasoline contains an octane enhancing additive called MMT (Methyl- cyclopentadienyl Manganese Tricarbonyl). Toyota does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected. The malfunction indicator lamp on the instrument cluster may come on. If this happens, contact your Toyota dealer for service.
Page 670 6-1. Specifications NOTICE Notice on fuel quality ■ Do not use improper fuels. If improper fuels are used, the engine will be ● damaged. Do not use leaded gasoline. ● Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction.
Page 671 6-1. Specifications Tire information Typical tire symbols Tire size ( P. 635) DOT and Tire Identification Number (TIN) ( P. 634) Location of treadwear indicators ( P. 481) Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire.
Page 672 6-1. Specifications Load limit at maximum cold tire inflation pressure ( P. 485) Maximum cold tire inflation pressure ( P. 627) This means the pressure to which a tire may be inflated. Uniform tire quality grading For details, see “Uniform Tire Quality Grading” that follows. Typical DOT and Tire Identification Number (TIN) DOT symbol Tire...
Page 673 6-1. Specifications Tire size Typical tire size information ■ The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height to section width) Tire construction code (R = Radial, D = Diagonal) Wheel diameter (inches) Load index (2 digits or 3 digits) Speed symbol...
Page 674 6-1. Specifications Tire section names Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer PRIUS PHV_OM_OM47A11U_(U)
Page 675 U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Toyota vehicles with information on uniform tire quality grading. Your Toyota dealer will help answer any questions you may have as you read this information. DOT quality grades ■...
Page 676 6-1. Specifications Traction AA, A, B, C ■ The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
Page 677 6-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been Cold tire inflation pres- parked for three hours or more, or has not sure been driven more than 1 mile or 1.5 km under that condition The maximum cold inflated pressure to which a Maximum inflation...
Page 678 6-1. Specifications Tire related term Meaning 150 lb. (68 kg) times the number of occupants Normal occupant specified in the second column of Table 1 that weight follows Distribution of occupants in a vehicle as speci- Occupant distribution fied in the third column of Table 1 below The combined weight of installed regular pro- duction options weighing over 5 lb.
Page 679 6-1. Specifications Tire related term Meaning The load on an individual tire that is determined Vehicle maximum load by distributing to each axle its share of the on the tire maximum loaded vehicle weight, and dividing by two The load on an individual tire that is determined by distributing to each axle its share of curb Vehicle normal load weight, accessory weight, and normal occu-...
Page 680 6-1. Specifications Tire related term Meaning Cord The strands forming the plies in the tire The parting of cords from adjacent rubber com- Cord separation pounds Any parting within the tread, sidewall, or inner- Cracking liner of the tire extending to cord material A pneumatic tire with an inverted flange tire and rim system in which the rim is designed with rim flanges pointed radially inward and the...
Page 681 6-1. Specifications Tire related term Meaning (a) The sidewall that contains a whitewall, bears white lettering, or bears manufac- turer, brand, and/or model name molding that is higher or deeper than the same Intended outboard molding on the other sidewall of the tire, or sidewall (b) The outward facing sidewall of an asym- metrical tire that has a particular side that...
Page 682 6-1. Specifications Tire related term Meaning The linear distance between the exteriors of the sidewalls of an inflated tire, including eleva- Overall width tions due to labeling, decorations, or protective bands or ribs A tire intended for use on passenger cars, mul- tipurpose passenger vehicles, and trucks, that Passenger car tire have a gross vehicle weight rating (GVWR) of...
Page 683 6-1. Specifications Tire related term Meaning The linear distance between the exteriors of the sidewalls of an inflated tire, excluding ele- Section width vations due to labeling, decoration, or protec- tive bands That portion of a tire between the tread and Sidewall bead The parting of the rubber compound from the...
Page 684 6-1. Specifications Tire related term Meaning Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear indicators designed to give a visual indication of the (TWI) degrees of wear of the tread The fixture used to hold the wheel and tire Wheel-holding fixture assembly securely during testing...
Page 685 Toyota dealer. Some function settings are changed simultaneously with other functions being customized. Contact your Toyota dealer for further details. Customizable features Vehicles with a Display Audio system: Settings that can be...
Page 686 6-2. Customization Custom- Default Item Function ized setting setting Smart key Smart key system system Select doors to Driver’s ( P. 113) All doors unlock door Wireless remote – – control Driver’s door unlocked in All doors Unlocking 1-step, all unlocked Wireless operation...
Page 687 6-2. Customization Custom- Default Item Function ized setting setting Operation signals – (Emergency flashers) Level 1 to 6 Smart key Operation system signals Level 7 (Buzzers) ( P. 113) and wire- less remote Time elapsed control before ( P. 136) automatic door lock function is 60 seconds...
Page 688 6-2. Customization Custom- Default set- Item Function ized ting setting Driver’s door unlocked in All doors Unlocking using 1-step, all unlocked in – a key doors 1-step unlocked in 2-step Speed-detecting automatic door lock function Door lock ( P. 138, Shifting the shift 599) position to any...
Page 689 6-2. Customization Custom- Default set- Item Function ized ting setting The one-touch Power closing operation windows – – except for ( P. 175) driver’s seat Time elapsed before lights turn 15 seconds – seconds 30 seconds Operation when the doors are –...
Page 690 6-2. Customization Custom- Default set- Item Function ized ting setting Sensor sensitiv- ity for darkening the brightness of the meter, navi- gation system -2 to +2 – – and instrument panel depend- ing on the out- side brightness Meter and instrument Sensor sensitiv- panel...
Page 691 6-2. Customization Custom- Default set- Item Function ized ting setting Push once Push twice Operation using Push and the “A/C” button Push and hold for 0.8 – – on the wireless hold for 2.4 seconds remote control seconds Remote Air Condition- Push once ing System...
Page 692 6-2. Customization Custom- Default set- Item Function ized ting setting Reverse Operation sig- warning nals (Buzzer) Beeps Beeps – – buzzer when shifting repeatedly once ( P. 255) into R Seat belt Vehicle speed reminder linked seat belt – – ( P.
Page 693 6-3. Initialization Items to initialize The following items must be initialized for normal system operation after such cases as the 12-volt battery being reconnected, or mainte- nance being performed on the vehicle. Item When to initialize Reference Message indicating maintenance is After the maintenance is performed P.
Page 694 6-3. Initialization PRIUS PHV_OM_OM47A11U_(U)
Page 695 If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-331-4331). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 696 Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English. PRIUS PHV_OM_OM47A11U_(U)
Page 697 PRIUS PHV_OM_OM47A11U_(U)
Page 698 SRS airbag instructions for Canadian owners (in French) PRIUS PHV_OM_OM47A11U_(U)
Page 699 PRIUS PHV_OM_OM47A11U_(U)
Page 700 PRIUS PHV_OM_OM47A11U_(U)
Page 701 PRIUS PHV_OM_OM47A11U_(U)
Page 702 PRIUS PHV_OM_OM47A11U_(U)
Page 703 PRIUS PHV_OM_OM47A11U_(U)
Page 704 PRIUS PHV_OM_OM47A11U_(U)
Page 705 PRIUS PHV_OM_OM47A11U_(U)
Page 706 PRIUS PHV_OM_OM47A11U_(U)
Page 707 PRIUS PHV_OM_OM47A11U_(U)
Page 708 PRIUS PHV_OM_OM47A11U_(U)
Page 709 PRIUS PHV_OM_OM47A11U_(U)
Page 710 Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING Air Conditioning Anti-lock Brake System Automatic Locking Retractor APGS Advanced Parking Guidance System CCID Charging Circuit Interrupting Device Child Restraint System DISP Display Economy/Ecology Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering Electric Vehicle GAWR Gross Axle Weight Ratings...
Page 711 Abbreviation list ABBREVIATIONS MEANING Light Emitting Diode Methylcyclopentadienyl Manganese Tricarbonyl M + S Mud and Snow MTBE Methyl Tertiary Butyl Ether On Board Diagnostics Pre-Collision System Plug-in Hybrid Vehicle Power Supplemental Restraint System Tire Identification Number TPMS Tire Pressure Monitoring (Warning) System TRAC Traction Control Treadwear Indicator...
Page 712 Alphabetical index Alphabetical index Antenna ........432 Automatic air conditioning Anti-lock brake system ... 333 system ........364 Armrest ........405 ABS ...........333 Assist grips ......406 Active head restraint ....151 Audio input ......387 Air conditioning system Audio remote control Automatic air conditioning switches system ........364...
Page 713 Alphabetical index Back door Camera Back door ......144 Care Smart key system....113 Exterior........430 Wireless remote control..136 Interior ........433 Back-up lights Seat belts ......434 Replacing light bulbs .... 511 Cargo capacity ......354 Wattage ........ 628 Cargo hooks ......409 Battery CD player Checking ......
Page 714 Alphabetical index Child restraint system Child-protectors....... 139 Booster seats, definition..208 Cleaning Booster seats, installation ..216 Exterior........430 Convertible seats, Interior........433 definition ......208 Seat belts ......434 Convertible seats, Clock ......... 280 installation......216 Condenser ........ 471 Front passenger occupant Console box ......393 classification system ...202 Cooling system Infant seats, definition ...208...
Page 715 Alphabetical index Daytime running light Eco drive mode switch ....251 system ........300 Electric power steering ...333 Deck board....... 409 Electronic key Defogger If the electronic key does not Rear window......381 operate properly....599 Side mirrors ......381 Replacing battery ....497 Dimensions......
Page 716 Alphabetical index Engine Floor mats ........ 407 Accessory mode....244 Fluid Compartment ......464 Brake........627 Hood........448 Washer........474 How to start the hybrid Fog lights system ........242 Replacing light bulbs..... 511 Identification number.....620 Switch ........303 If the hybrid system will not Wattage.........
Page 717 Alphabetical index Garage door opener....413 I/M test........444 Gauges ........262 Identification Glove boxes......392 Engine ........620 Vehicle ........619 Ignition switch......242 Hands-free system Illuminated entry system..388 (for cellular phone) Immobilizer system....183 Hazard lights Indicator lights ......267 Switch........528 Initialization Head restraints Items to initialize....655 Adjustment ......
Page 718 Alphabetical index Language ........285 Maintenance License plate lights Do-it-yourself Replacing light bulbs .....511 maintenance ....... 445 Wattage.........628 General maintenance.... 439 Light bulbs Maintenance data ....618 Replacing ......511 Maintenance Wattage.........628 requirements....... 436 Lights Maintenance data..... 437 Emergency flasher switch ..528 Meter Fog light switch .....303 Instrument panel light...
Page 719 Alphabetical index Odometer ......... 278 Radar cruise control system ........317 Engine oil......465 Radiator ........471 Opener Radio Back door ......144 Radio data system Fuel filler door....... 178 Hood........448 Rear seats Outside rear view mirrors Adjustment ......153 Adjusting and folding .... 173 Folding down......154 Outside rear view mirror Rear turn signal lights...
Page 720 Alphabetical index Safety Connect......421 Service reminder Seat belt reminder light ...541 indicators ......267 Seat belts Shift lever Adjusting the seat belt...161 Transmission......249 Automatic Locking Retractor Side airbags ......187 (ALR) ........162 Side marker lights Child restraint system Replacing light bulbs..... 511 installation......213 Switch ........
Page 721 Alphabetical index Switch Tail lights Audio remote control switches Switch........297 Cruise control switch .... 313 Talk switch Driving mode select Telephone switch switch ......... 251 Theft deterrent system Eco drive mode switch ..251 Immobilizer system ....183 Emergency flasher switch ..528 Tire inflation pressure .....490 EV/HV mode selection Tire information...
Page 722 Alphabetical index Tonneau cover ......410 Warning buzzers Tools .........454 Brake system ......537 Total load capacity....354 Open door ......541 Touch tracer display....263 Seat belt reminder....541 Towing Warning lights Dinghy towing......361 Anti-lock brake system Emergency towing....532 (ABS) ........539 Trailer towing......360 Automatic headlight leveling TRAC .........333...
Page 723 Alphabetical index Warning messages ....550 Washer Checking ......474 Preparing and checking before winter ...... 355 Switch......305, 309 Washing and waxing....430 Weight Cargo capacity ..... 354 Load limits ......354 Weight ........618 Wheels........494 Window glasses ...... 175 Window lock switch ....
Page 724 What to do if... What to do if... If you have a flat tire A tire punctures P. 574 P. 596 If the hybrid system will not start Immobilizer system P. 183 The hybrid system does not start If the 12-volt battery is P.
Page 725 What to do if... ■ Warning lights Master warning light ABS warning light P. 542 Brake system warning light (red indicator) P. 539 Electric power steering system warning light P. 537 P. 539 Charging system Pre-collision system warning light warning light P.
Page 726 What to do if... Driver’s belt reminder Radar cruise control light indicator light P. 540 P. 541 Open door warning light Tire pressure warning light P. 541 P. 542 Low fuel level warning light P. 541 Front passenger’s seat belt reminder light P.
Page 727 What to do if... PRIUS PHV_OM_OM47A11U_(U)
Page 728 Engine oil capacity qt. (L, Imp.qt.) (Drain and refill With filter 4.4 (4.2, 3.7) reference) Without filter 4.1 (3.9, 3.4 Toyota Genuine Motor Oil or equivalent Engine oil type Oil grade: ILSAC GF-5 multigrade engine oil P. 622 PRIUS PHV_OM_OM47A11U_(U)

Toyota Entune 2015 Manual

Screen Configurations

Traffic Event List

Predictive Traffic Map

Automatically Avoid Traffic

Quick Links

Summary of Contents for Toyota Entune 2015

Page 2: Table Of Contents

Page 3: What Is Entune

Page 4: Basic Overview

Page 5: Connect A Bluetooth Phone

Page 6: Calling By Voice Recognition

Page 7: Destination Input

Page 8: Note On Voice Recognition

Page 9: Point Of Interest By Category - Voice Recognition

Page 10: Set Home

Page 11: Additional Features

Page 12: Traffic

Page 13: Weather

Page 67: For Your Information

Toyota Entune 2015 Manual

Screen Configurations

Traffic Event List

Predictive Traffic Map

Automatically Avoid Traffic

Quick Links

Related Manuals for Toyota Entune 2015

Summary of Contents for Toyota Entune 2015

Table of Contents
