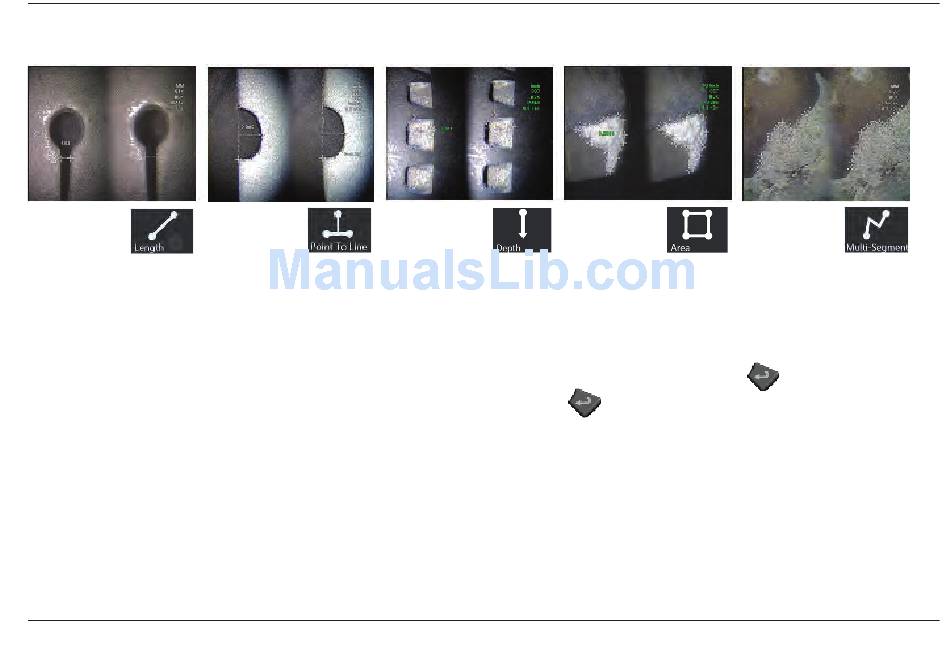

Stereo Measurement Types
This section specifically addresses cursor placement for each type of stereo measurement.
Description:
Linear (Point-to-
Point)
Cursor Placement:
Place both cursors
07/30/2014
Description: Description:
The perpendicular The perpendicular
distance from a distance between a
point to a line surface and a point
above or below it.
Cursor Placement:
Used to evaluate changes due to
wear, misalignment, and other
Place the first two cursors to
causes.
define a reference line. Place the
third cursor at the perpendicular
Negative measurements indicate
distance you want to measure that the point lies below the plane.
Positive measurements indicate
that it lies above
Cursor Placement:
Place the first three cursors to
define a reference plane. Place the
fourth cursor at the perpendicular
distance you want to measure.
Note: Depth measurements
taken at a low accuracy index
are particularly sensitive to the
matching cursor's position. If the
accuracy index is low, increase it
by bringing the probe tip closer. If
you cannot increase the accuracy
index, place cursors so that they
yield high match strengths, and
verify your accuracy.
(Click here to learn more about the
Stereo Mode Measurement Procedure).
Description: Description:
The surface The length of a
area contained nonlinear feature
within multiple or indication.
cursors placed around a feature or
Cursor Placement:
indication.
Place two or more measurement
Cursor Placement:
cursors (up to 24) to create
Place three or more cursors (up to segments along the feature.
24) around the edge of the area
When finished, select Done or press
you want to measure.
When finished, select Done or press
twice. The area closes.
twice. The line is finalized.
