Quick Start Guide
00825-0100-4530, Rev FB
June 2016
™
Rosemount
5300 Series
Superior Performance Guided Wave Radar Level and
Interface Transmitter

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 5300 Series

Summary of Contents for Emerson Rosemount 5300 Series

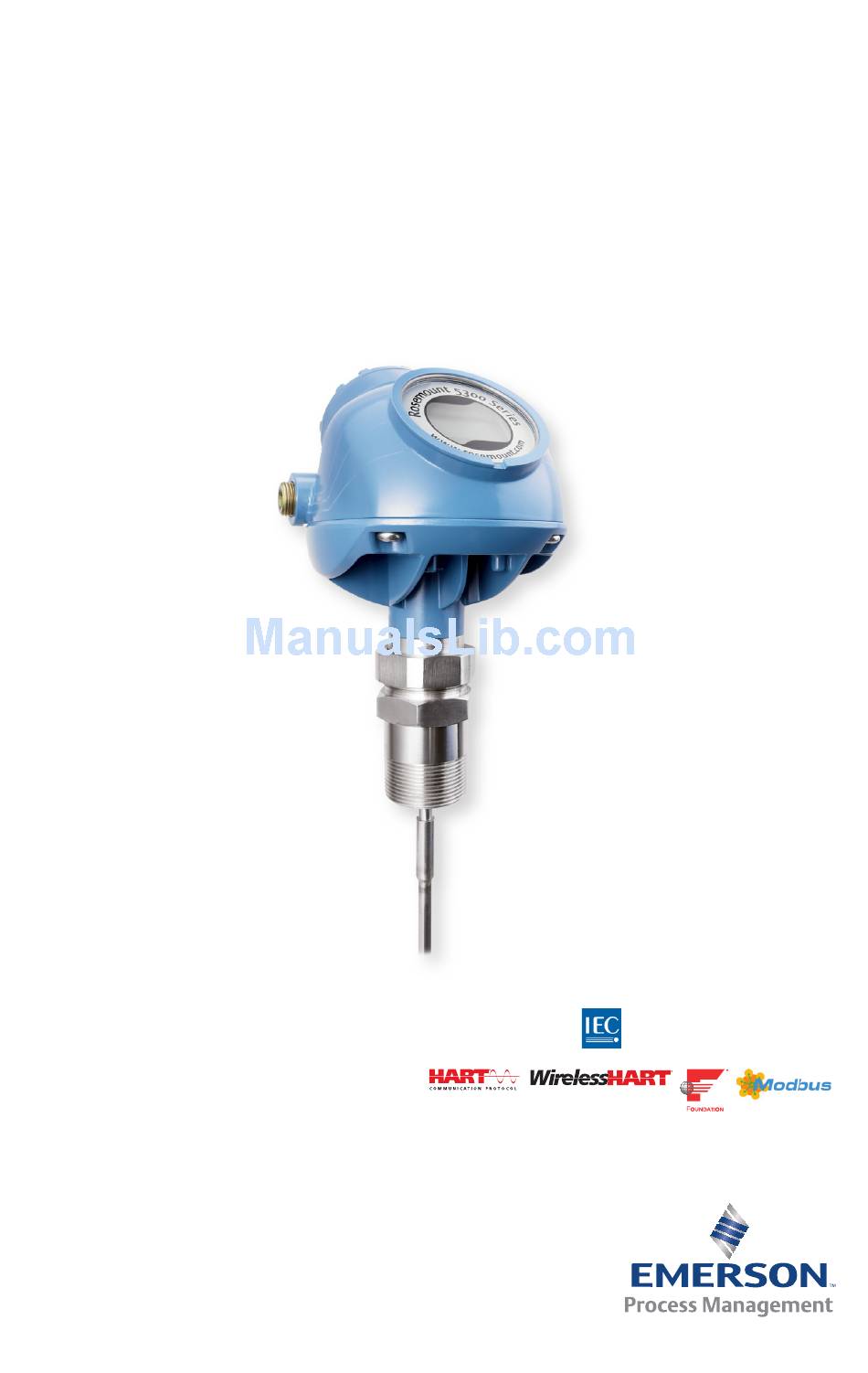

  • Page 1 Quick Start Guide 00825-0100-4530, Rev FB June 2016 ™ Rosemount 5300 Series Superior Performance Guided Wave Radar Level and Interface Transmitter...

  • Page 2: Table Of Contents

    Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical  shock. Make sure the main power to the Rosemount 5300 Series Transmitter is off and the lines to any other  external power source are disconnected or not powered while wiring the transmitter.

  • Page 3: Confirm System Readiness (4-20 Ma Only)

    Quick Start Guide June 2016 2.0 Confirm system readiness (4-20 mA only) 2.1 Confirm HART revision capability If using HART-based control or asset management systems, confirm the HART 7 capability of such systems prior to commissioning and installation. Not all systems are capable of communicating with the HART Revision 7 protocol.

  • Page 4: Mount Transmitter On Tank

    June 2016 Quick Start Guide 3.0 Mount transmitter on tank For flexible single lead probes ordered with weight unmounted (option code WU), refer to section “Adjust probe length” on page 20 before mounting the transmitter. 3.1 Threaded / flange / Tri Clamp tank connection Step 1: Seal and protect the threads Use anti-seize paste or PTFE tape according to your site procedures.

  • Page 5: Quick Start Guide June

    Quick Start Guide June 2016 Step 2: Continued... Tri Clamp BSP/G Gasket Gasket Step 3: Adjust display orientation (optional) Step 4: Tighten the nut Torque 30 Lbft (40 Nm)
  • Page 6 June 2016 Quick Start Guide 3.2 Remote housing Step 1: Carefully remove the transmitter Step 2: Mount the probe on tank Gasket Step 3: Mount the remote connection on the probe Torque 30 Lbft (40 Nm)
  • Page 7 Quick Start Guide June 2016 Step 4: Mount the bracket to the pipe Horizontal pipe Vertical pipe Step 5: Fasten the housing support Step 6: Mount the transmitter head Torque 30 Lbft (40 Nm)
  • Page 8 June 2016 Quick Start Guide 3.3 Bracket mounting Step 1: Mount the bracket to the pipe/wall On pipe Horizontal pipe Vertical pipe On wall Use screws suitable for the purpose. Step 2: Mount the transmitter with probe to the bracket...

  • Page 9: Connect The Wiring

    Quick Start Guide June 2016 4.0 Connect the wiring 4.1 Cable selection Use shielded twisted pair wiring (18-12 AWG). For the RS-485 bus, use shielded twisted pair wiring, preferably with an impedance of 120  (typically 24 AWG). 4.2 Cable gland/conduit For explosion-proof/flameproof installations, only use cable glands or conduit entry devices certified explosion-proof or flameproof.
  • Page 10 June 2016 Quick Start Guide Step 4: Pull the cable through cable gland/conduit Adapters are required if M20 glands are used. Step 5: Connect the cable wires See the wiring diagrams on page 13-16. Step 6: Ensure proper grounding Make sure grounding is done (including IS ground inside Terminal compartment) according to Hazardous Locations Certifications, national and local electrical codes.
  • Page 11 Quick Start Guide June 2016 Signal cable shield grounding Make sure the instrument cable shield is: trimmed close and insulated from touching the transmitter housing.  continuously connected throughout the segment.  connected to a good earth ground at the power supply end. ...
  • Page 12 June 2016 Quick Start Guide Step 8: Tighten the cable gland Apply PTFE tape or other sealant to the threads. Note Make sure to arrange the wiring with a drip loop. Step 9: Mount the cover Make sure the cover is fully engaged to meet Explosion-proof requirements. Step 10: Lock the cover with the locking screw Required for ATEX, IECEx, NEPSI, INMETRO, and TIIS installations only.
  • Page 13 A. Field Communicator B. Approved IS barrier (for Intrinsically Safe installations only) C. HART modem D. Current meter E. Load resistance (≥250  F. Power supply Note Rosemount 5300 Series Transmitters with Flameproof/explosion-proof output have a built-in barrier; no external barrier needed.
  • Page 14 June 2016 Quick Start Guide Load limitations For HART communication, a minimum loop resistance of 250  is required. For maximum loop resistance, see Figure Figure 4. Maximum Loop Resistance Intrinsically safe installations R( 1400 1200 1000 Operating region Non-hazardous and Non-sparking/energy limited installations R(...
  • Page 15 Figure 5. Wiring Diagram A. Field Communicator B. Approved IS barrier (for Intrinsically Safe installations only) C. F Fieldbus modem OUNDATION D. Power supply Note Rosemount 5300 Series Transmitters with Flameproof/explosion-proof output have a built-in barrier; no external barrier needed.

  • Page 16: Power Consumption

    If it is the last transmitter on the bus,  connect the 120  termination resistor. HART - HART + Power supply 120  120  RS-485 Bus Note Rosemount 5300 Series Transmitters with Flameproof/Explosion-proof output have a built-in barrier; no external barrier needed.

  • Page 17: Configure

    Quick Start Guide June 2016 5.0 Configure Basic configuration can easily be done either with Rosemount Radar Master, a ™ ™ Field Communicator, the AMS Suite, DeltaV , or any other DD (Device Description) or DTM compatible host system. For advanced configuration features, Rosemount Radar Master is recommended.
  • Page 18 June 2016 Quick Start Guide 5.2 AMS Device Manager or Field Communicator Step 1: Connect to device AMS Device Manager 1. Start AMS Device manager. 2. Select View > Device Connection View. 3. In the Device Connection View, double-click the modem icon. 4.

  • Page 19: Safety Instrumented Systems (4-20 Ma Only)

    1. Applicable to “Liquid Product Level” and “Solid Product Level” measurement modes. 2. Applicable to “Interface Level with submerged” and “Product Level and Interface Level” measurement modes. 6.0 Safety Instrumented Systems (4-20 mA only) For Safety Certified installations, refer to the Rosemount 5300 Series Reference Manual.

  • Page 20: Adjust Probe Length

    June 2016 Quick Start Guide 7.0 Adjust probe length This section describes how to adjust the length of flexible single lead probes with weight unmounted (option code WU). For other probe types, refer to Section 3 in the Rosemount 5300 Reference Manual.
  • Page 21 Quick Start Guide June 2016 Step 3: Mark where to cut the probe Step 4: Slide the weight up Step 5: Cut the probe at the mark...
  • Page 22 June 2016 Quick Start Guide Step 6: Fasten the weight Hand tighten, hard (see table for torque value) Weight material Torque (Nm) Stainless steel Alloy C-276 Alloy 400 Duplex 2205 Step 7: Update transmitter configuration to the new probe length Probe length: Probe length...

  • Page 23: Product Certifications

    Quick Start Guide June 2016 8.0 Product certifications Rev 2.0 8.1 EU conformity The EU declaration of conformity can be found on page 35. The most recent revision of the EU declaration of conformity can be found at EmersonProcess.com/Rosemount 8.2 Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that the design meets the basic electrical, mechanical, and fire protection requirements by a nationally recognized test laboratory (NRTL) as accredited by the Federal...
  • Page 24 June 2016 Quick Start Guide Special Conditions for Safe Use (X): 1. Potential Electrostatic Charging Hazard - The enclosure contains non-metallic material. To prevent the risk for electrostatic sparking the plastic surface should only be cleaned with a damp cloth. 2.
  • Page 25 Quick Start Guide June 2016 30 V 130 mA 7.26 nF Entity parameters HART 30 V 300 mA 1.3 W Entity parameters Fieldbus IF FISCO Certificate: 1514653 Standards: CSA C22.2 No.0-M91, CSA C22.2 No.25-1966, CSA C22.2 No.30-M1986, CSA C22.2 No.94-M91, CSA C22.2 No.142-M1987, CSA C22.2 157-92, CAN/CSA C22.2 No.
  • Page 26 June 2016 Quick Start Guide Special Conditions for Safe Use (X): 1. The intrinsically safe circuits do not withstand the 500V AB test as specified in EN 60079-11:2012 clause 6.4.13. 2. Potential ignition hazards by impact or friction need to be considered according to EN 60079-0:2012 clause 8.3 (for EPL Ga and EPG Gb), when the transmitter enclosure and antennas exposed to the exterior atmosphere of the tank, is made with light metals containing aluminium or titanium.
  • Page 27 Quick Start Guide June 2016 Special Conditions for Safe Use (X): 1. The transmitter circuits does not withstand 500V AC dielectric strength test according to EN 60079-11 clause 6.3.13 due to earth connected transient suppressing devices. Appropriate measures have to be considered by installation. 42.4 V 23 mA 7.25 nF...
  • Page 28 June 2016 Quick Start Guide 30 V 130 mA 0 μF Negligible Entity parameters HART 30 V 300 mA 1.5 W 4.95 nF Negligible Entity parameters Fieldbus IG IECEx FISCO Certificate: IECEx NEM 06.0001X Standards: IEC 60079-0:2011, IEC 60079-1:2014-06, IEC 60079-11:2011; IEC 60079-26:2014, IEC 60079-31:2013 Markings: Ex ia IIC T4 Ga (-50°C ...
  • Page 29 Quick Start Guide June 2016 8.8 Brazil E2 INMETRO Flameproof Certificate: NCC 14.2258 X Standards: ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-1:2009 + Errata 1:2011, ABNT NBR IEC 60079-11:2013, ABNT NBR IEC 60079-26:2008 + Errata 1:2009, ABNT NBR IEC 60079-31:2011 Markings: Ex d ia IIC T4 Gb/Ga (-40 °C ...
  • Page 30 June 2016 Quick Start Guide 8.9 China E3 China Flameproof Certificate: GYJ16.1095X Standards: GB 3836.1/2/4/20-2010, GB 12476.1/5-2013, GB 12476.4-2010 Markings: Ex d ia IIC T4 Ga/Gb (-40°C  Ta  +60°C/+70°C) Ex tD A20 IP 66/67 T69°C /T79°C (-40°C  Ta  +60°C/+70°C) Special Conditions for Safe Use (X): 1.
  • Page 31 Quick Start Guide June 2016 8.10Technical Regulations Customs Union (EAC) EM Technical Regulations Customs Union (EAC) Flameproof Certificate: RU C-SE.AA87.B.00108 Markings: Ga/Gb Ex d ia IIC T1….T4 X, (-40°C  Ta  +60°C/+70°C) Special Conditions for Safe Use (X): 1. See certificate for special conditions. IM Technical Regulations Customs Union (EAC) Intrinsic Safety Certificate: RU C-SE.AA87.B.00108 Markings: 0Ex ia IIC T1...T4 Ga X, (-50°C ...
  • Page 32 June 2016 Quick Start Guide 8.13 India Flameproof Certificate: P333021/1 Markings: Ex ia d IIC T4 Special Conditions for Safe Use (X): 1. See certificate for special conditions. Intrinsically safe Certificate: P314493/1 Markings: Ex ia IIC T4 Ga/Gb Ex ia/ib IIC T4 Special Conditions for Safe Use (X): 1.
  • Page 33 Quick Start Guide June 2016 8.16 Additional Certifications SBS American Bureau of Shipping (ABS) Type Approval Certificate: 15-LD1340199 Intended Use: For use on ABS Classed Vessels and Offshore Facilities in accordance with ABS rules and International Standards. SBV Bureau Veritas (BV) Type Approval Certificate: 22378_B0 BV Requirements: Bureau Veritas rules for classification of steel ships.
  • Page 34 June 2016 Quick Start Guide 8.18 Conduit plugs and adapters IECEx Flameproof and Increased Safety Certificate: IECEx FMG 13.0032X Standards: IEC60079-0:2011, IEC60079-1:2007, IEC60079-7:2006-2007 Markings: Ex de IIC Gb ATEX Flameproof and Increased Safety Certificate: FM13ATEX0076X Standards: EN60079-0:2012, EN60079-1:2007, IEC60079-7:2007 II 2 G Ex de IIC Gb Markings: Table 3.

  • Page 35: Eu Declaration Of Conformity

    Quick Start Guide June 2016 8.19 EU Declaration of Conformity Figure 7. Rosemount 5300 EU Declaration of Conformity EU Dec clarat tion of f Con formi No: 5300 Rosemount t Tank Rad dar AB Layoutväge en 1 S-435 33 M MÖLNLYCK Sweden declare...
  • Page 36 June 2016 Quick Start Guide EU Dec clarat tion of f Con formi No: 5300 C Directive e (2014/30 0/EU) EN 61326-1 :2013 ATEX X Directiv ve (2014/3 34/EU) Nemko 04A ATEX1073X Intrinsic Sa afety (Hart@ @ 4-20mA Equi ipment Grou up II, Categ ory 1G, Ex ia IIC T4 G...
  • Page 37 Quick Start Guide June 2016 EU Dec clarat tion of f Con formi No: 5300 Nemko 10A ATEX1072 Type of pro otection N, Non-spark king (Hart@ @ 4-20mA): Equipment G Group II, C ategory 3G, , Ex nA ic I IIC T4 Gc Equipment G Group II, C...
  • Page 38 June 2016 Quick Start Guide EU Dec clarat tion of f Con formi No: 5300 ATEX X Notified d Body fo r EU Typ pe Examin nation Cer rtificates and Type e Exam mination C Certificate [Notified B Body Numbe er: 0470] Nemko AS P.O.Box 73...
  • Page 39 Quick Start Guide June 2016 List of Model Parts with China RoHS Concentration above MCVs 含 含 有 管控物 超 的部件型号列表 China RoHS Hazardous Substances / 有害物 Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers 部件名称 汞...
  • Page 40 Standard Terms and Conditions of Sale can be found at www.Emerson.com/en-us/pages/Terms-of-Use.aspx +65 6777 0947 The Emerson logo is a trademark and service mark of Emerson Electric Co. Enquiries@AP.EmersonProcess.com AMS, DeltaV, Rosemount, and the Rosemount logotype are trademarks of Emerson Process Management.
