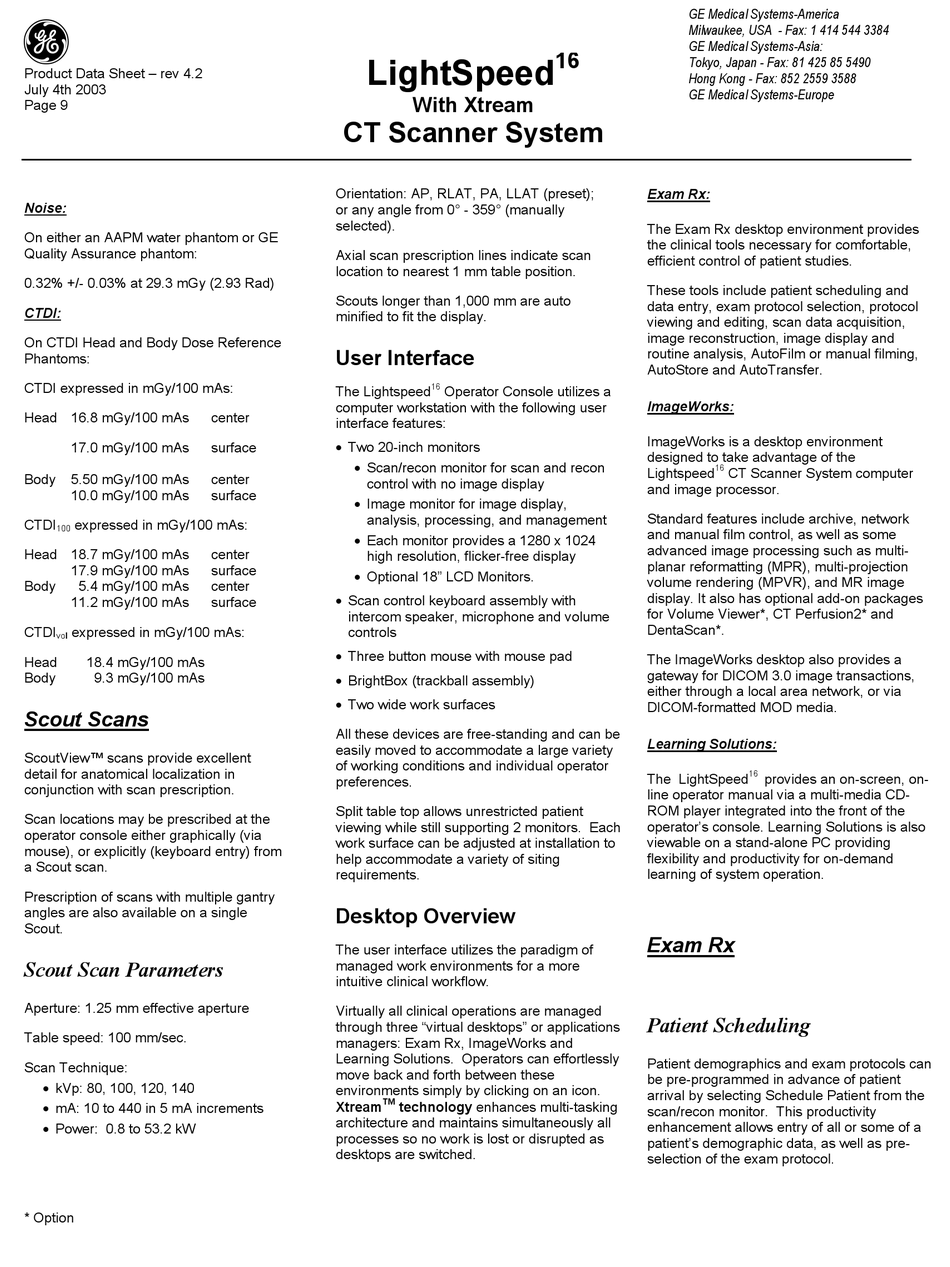

Noise:
On either an AAPM water phantom or GE
Quality Assurance phantom:
0.32% +/- 0.03% at 29.3 mGy (2.93 Rad)
CTDI:
On CTDI Head and Body Dose Reference
Phantoms:
CTDI expressed in mGy/100 mAs:
Head 16.8 mGy/100 mAs
17.0 mGy/100 mAs
Body 5.50 mGy/100 mAs
10.0 mGy/100 mAs
CTDI expressed in mGy/100 mAs:
100
Head 18.7 mGy/100 mAs
17.9 mGy/100 mAs
Body 5.4 mGy/100 mAs
11.2 mGy/100 mAs
CTDI expressed in mGy/100 mAs:
vol
Head 18.4 mGy/100 mAs
Body 9.3 mGy/100 mAs
Scout Scans
ScoutView™ scans provide excellent
detail for anatomical localization in
conjunction with scan prescription.
Scan locations may be prescribed at the
operator console either graphically (via
mouse), or explicitly (keyboard entry) from
a Scout scan.
Prescription of scans with multiple gantry
angles are also available on a single
Scout.
Scout Scan Parameters
Aperture: 1.25 mm effective aperture
Table speed: 100 mm/sec.
Scan Technique:
• kVp: 80, 100, 120, 140
• mA: 10 to 440 in 5 mA increments
• Power: 0.8 to 53.2 kW
* Option
LightSpeed
CT Scanner System
Orientation: AP, RLAT, PA, LLAT (preset);
or any angle from 0° - 359° (manually
selected).
Axial scan prescription lines indicate scan
location to nearest 1 mm table position.
Scouts longer than 1,000 mm are auto
minified to fit the display.

User Interface

The Lightspeed
computer workstation with the following user
center
interface features:
• Two 20-inch monitors
surface
• Scan/recon monitor for scan and recon
center
control with no image display
surface
• Image monitor for image display,
analysis, processing, and management
• Each monitor provides a 1280 x 1024
center
high resolution, flicker-free display
surface
• Optional 18" LCD Monitors.
center
• Scan control keyboard assembly with
surface
intercom speaker, microphone and volume
controls
• Three button mouse with mouse pad
• BrightBox (trackball assembly)
• Two wide work surfaces
All these devices are free-standing and can be
easily moved to accommodate a large variety
of working conditions and individual operator
preferences.
Split table top allows unrestricted patient
viewing while still supporting 2 monitors. Each
work surface can be adjusted at installation to
help accommodate a variety of siting
requirements.

Desktop Overview

The user interface utilizes the paradigm of
managed work environments for a more
intuitive clinical workflow.
Virtually all clinical operations are managed
through three "virtual desktops" or applications
managers: Exam Rx, ImageWorks and
Learning Solutions. Operators can effortlessly
move back and forth between these
environments simply by clicking on an icon.
TM
Xtream
architecture and maintains simultaneously all
processes so no work is lost or disrupted as
desktops are switched.
16
With Xtream
16
Operator Console utilizes a
technology enhances multi-tasking
GE Medical Systems-America
Milwaukee, USA - Fax: 1 414 544 3384
GE Medical Systems-Asia:
Tokyo, Japan - Fax: 81 425 85 5490
Hong Kong - Fax: 852 2559 3588
GE Medical Systems-Europe
Exam Rx:
The Exam Rx desktop environment provides
the clinical tools necessary for comfortable,
efficient control of patient studies.
These tools include patient scheduling and
data entry, exam protocol selection, protocol
viewing and editing, scan data acquisition,
image reconstruction, image display and
routine analysis, AutoFilm or manual filming,
AutoStore and AutoTransfer.
ImageWorks:
ImageWorks is a desktop environment
designed to take advantage of the
16
Lightspeed CT Scanner System computer
and image processor.
Standard features include archive, network
and manual film control, as well as some
advanced image processing such as multi-
planar reformatting (MPR), multi-projection
volume rendering (MPVR), and MR image
display. It also has optional add-on packages
for Volume Viewer*, CT Perfusion2* and
DentaScan*.
The ImageWorks desktop also provides a
gateway for DICOM 3.0 image transactions,
either through a local area network, or via
DICOM-formatted MOD media.
Learning Solutions:
16
The LightSpeed provides an on-screen, on-
line operator manual via a multi-media CD-
ROM player integrated into the front of the
operator's console. Learning Solutions is also
viewable on a stand-alone PC providing
flexibility and productivity for on-demand
learning of system operation.
Exam Rx
Patient Scheduling
Patient demographics and exam protocols can
be pre-programmed in advance of patient
arrival by selecting Schedule Patient from the
scan/recon monitor. This productivity
enhancement allows entry of all or some of a
patient's demographic data, as well as pre-
selection of the exam protocol.
