SERVICE MANUAL
Ver. 1.4 2006. 05
• The tuner and CD sections have no adjustments.
AUDIO POWER SPECIFICATIONS (US, Canadian model)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD Player section
Signal-to-noise ratio:
120 dB
Frequency response:
10 – 20,000 Hz
Wow and flutter:
Below measurable limit
Tuner section
FM
Tuning range
CDX-GT10W/GT100 (US, Canadian):
87.5 – 107.9 MHz
CDX-GT100 (AEP, UK):
87.5 – 108.0 MHz
CDX-GT150/GT150S:
87.5 – 108.0 MHz (at 50 kHz step)
87.5 – 107.9 MHz (at 200 kHz step)
FM tuning interval
CDX-GT150/GT150S:
50 kHz/200 kHz switchable
Antenna terminal:
External antenna connector
Intermediate frequency: 10.7 MHz/450 kHz
Usable sensitivity:
9 dBf
Selectivity:
75 dB at 400 kHz
Signal-to-noise ratio:
67 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz:
0.5 % (stereo), 0.3 % (mono)
Separation:
35 dB at 1 kHz
Frequency response:
30 – 15,000 Hz
Sony Corporation
9-879-863-05
2006E04-1
eVehicle Division
© 2006. 05
Published by Sony Techno Create Corporation
CDX-GT10W/GT100/

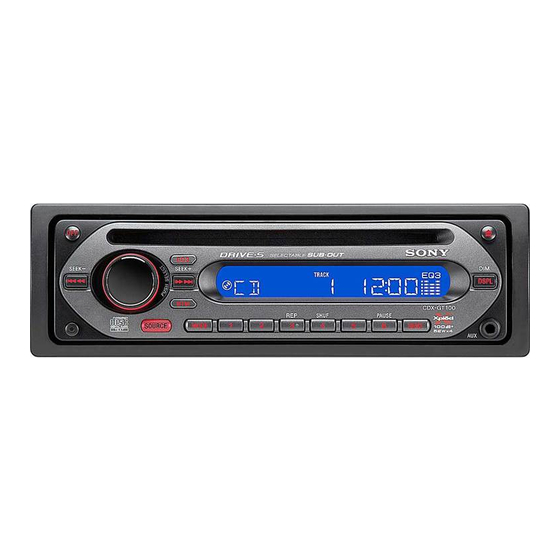

(Photo: CDX-GT100)
Model Name Using Similar Mechanism
CD Drive Mechanism Type
Optical Pick-up Name
SPECIFICATIONS
AM (CDX-GT10W/GT100 (US, Canadian)/GT150/GT150S)
Tuning range
Antenna terminal:
Intermediate frequency: 10.7 MHz/450 kHz
Sensitivity:
MW/LW (CDX-GT100 (AEP, UK))
Tuning range:
Aerial terminal:
Intermediate frequency: 10.7 MHz/450 kHz
Sensitivity:
Power amplifier section
Outputs:
Speaker impedance:
Maximum power output: 52 W × 4 (at 4 ohms)
FM/AM COMPACT DISC PLAYER
CDX-GT10W/GT100: US,CND/GT150/GT150S
FM/MW/LW COMPACT DISC PLAYER
GT150/GT150S
US Model
Canadian Model
CDX-GT10W/GT100
AEP Model
UK Model
E Model
Chinese Model
CDX-GT150/GT150S
NEW
MG-611XE-186//C
MG-611XE-186//Q
KSS1000E
CDX-GT10W/GT100 (US, Canadian):
530 – 1,710 kHz
CDX-GT150/GT150S:
531 – 1,602 kHz (at 9 kHz step)
530 – 1,710 kHz (at 10 kHz step)
External antenna connector
30 µV
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
External aerial connector
MW: 30 µV, LW: 40 µV
Speaker outputs (sure seal connectors)
4 – 8 ohms
(CDX-GT10W/GT100 (US, Canadian)/GT150)
45 W × 4 (at 4 ohms) (CDX-GT100 (AEP, UK)/GT150S)
– Continued on next page –
CDX-GT100: AEP,UK
CDX-GT100
