PQQW13469ZA.fm 1 ページ ２００４年６月７日　月曜日　午後２時２３分

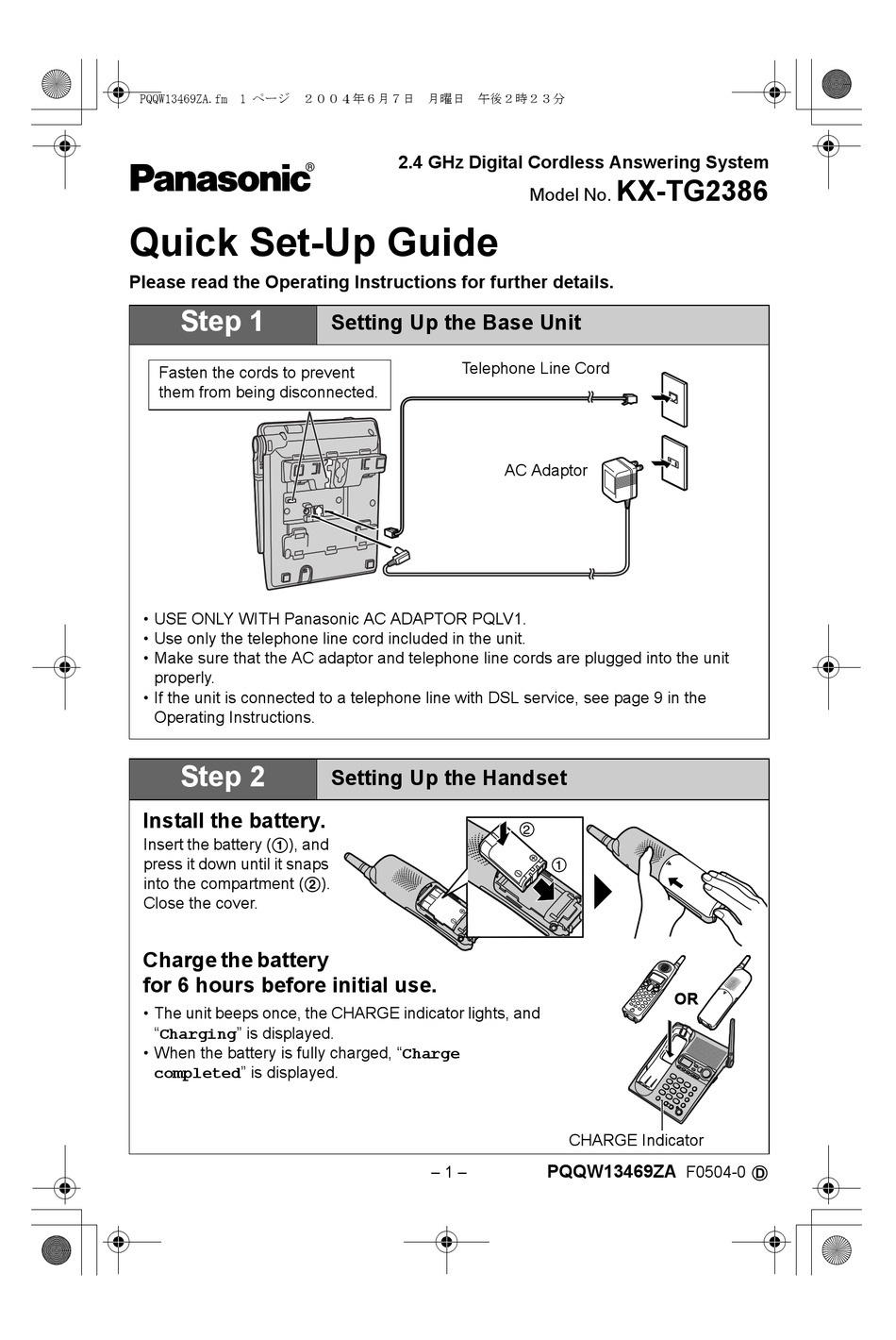

Quick Set-Up Guide
Please read the Operating Instructions for further details.
Step 1
Fasten the cords to prevent
them from being disconnected.
• USE ONLY WITH Panasonic AC ADAPTOR PQLV1.
• Use only the telephone line cord included in the unit.
• Make sure that the AC adaptor and telephone line cords are plugged into the unit
properly.
• If the unit is connected to a telephone line with DSL service, see page 9 in the
Operating Instructions.
Step 2
Install the battery.
Insert the battery (1), and
press it down until it snaps
into the compartment (2).
Close the cover.
Charge the battery
for 6 hours before initial use.
• The unit beeps once, the CHARGE indicator lights, and
"Charging" is displayed.
• When the battery is fully charged, "Charge
completed" is displayed.
2.4 GHz Digital Cordless Answering System

Setting Up the Base Unit

Telephone Line Cord

Setting Up the Handset

– 1 –
KX-TG2386
Model No.
AC Adaptor
2
1
CHARGE Indicator
PQQW13469ZA
OR
F0504-0 D

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TG2386

Summary of Contents for Panasonic KX-TG2386

  • Page 1: Setting Up The Base Unit

    AC Adaptor • USE ONLY WITH Panasonic AC ADAPTOR PQLV1. • Use only the telephone line cord included in the unit. • Make sure that the AC adaptor and telephone line cords are plugged into the unit properly.

  • Page 2: Setting Date And Time

    PQQW13469ZA.fm 2 ページ ２００４年６月７日　月曜日　午後２時２３分 Step 3 Setting Date and Time Press [MENU]. Scroll to “Date and time” by Date and time pressing [d] or [B], then press Back Select the soft key (Select). Enter 2 digits each for the Date:| 1 2.31.2004 month, day, and year.

  • Page 3: Subscription Service

    PQQW13469ZA.fm 3 ページ ２００４年６月７日　月曜日　午後２時２３分 Step 5 Subscription Service In order to use Caller ID, Call Waiting or Call Waiting Caller ID, you must first subscribe to the desired service. For more information, contact your telephone company. If you want to use the Call Waiting Caller ID feature, but it does not function at all.

  • Page 4: Base Unit

    PQQW13469ZA.fm 4 ページ ２００４年６月７日　月曜日　午後２時２３分 Location of Controls Base unit [ERASE] – Individual message: [ANSWER ON] Press during playback. Press to turn on/off the Answering System. – All messages: Press twice. – Greeting: Press after pressing [GREETING CHECK] [GREETING CHECK]. Press to check the greeting message.

  • Page 5: Using Phone Book

    PQQW13469ZA.fm 5 ページ ２００４年６月７日　月曜日　午後２時２３分 Handset soft keys Two soft keys are used to select functions displayed directly above each key. Functions displayed above the keys will Talk 00-00-32 change depending on the state of use. (VE) Mute On this sample display, “ (VE)” and “Mute ” are displayed above soft keys.
  • Page 6 PQQW13469ZA.fm 6 ページ ２００４年６月７日　月曜日　午後２時２３分 Using Caller List Please make sure that you have already subscribed to Caller ID service. a) Viewing the Caller List Press the soft key (Rcvd calls), then press [d] to search the Caller List. (Refer to page 38 in the Operating Instructions for details.) b) Calling Back from the Caller List Press [C] or [s] while you are viewing a phone number to call back.

  • Page 7: Listening To Messages

    PQQW13469ZA.fm 7 ページ ２００４年６月７日　月曜日　午後２時２３分 Listening to Messages a) Playing Back New Message When the NEW MESSAGE indicator FLASHES on the base unit, press [MESSAGE/SLOW TALK]. b) Playing Back Old Message When the NEW MESSAGE indicator DOES NOT FLASH, press [MESSAGE/SLOW TALK]. Using Other Useful Features a) Message Alert The Ringer/Message Alert indicator on the handset will flash slowly...
  • Page 8 PQQW13469ZA.fm 8 ページ ２００４年６月７日　月曜日　午後２時２３分...
