Motorola PRO2150 User Manual

Hide thumbs Also See for PRO2150:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Quick Reference Manual
™
PRO2150
Portable Radio
User Guide

Advertisement

Table of Contents
loading

Related Manuals for Motorola PRO2150

Summary of Contents for Motorola PRO2150

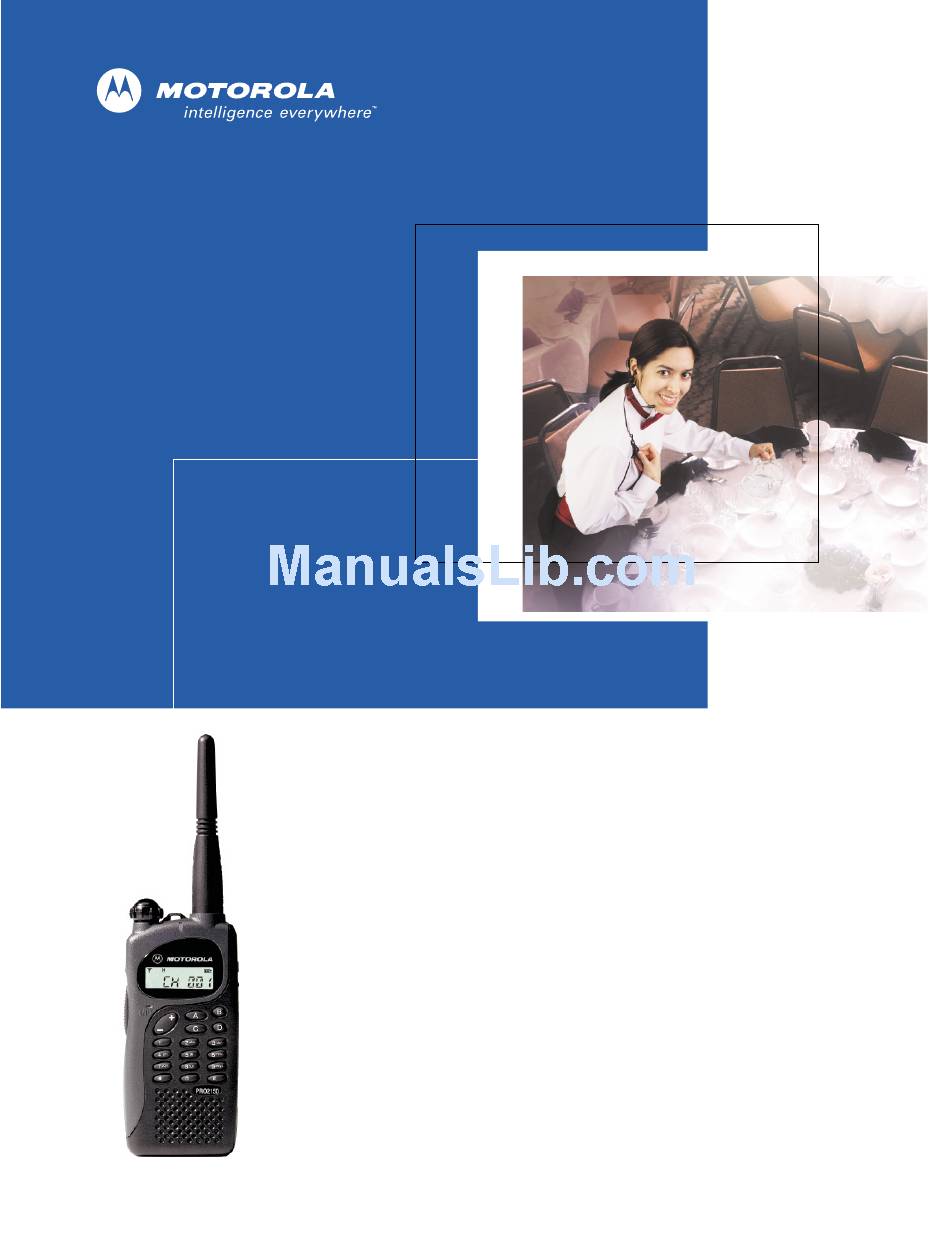

  • Page 1 ™ PRO2150 Portable Radio User Guide...

  • Page 3: Table Of Contents

    Table of Contents Product Safety and RF Exposure Compliance ...........iii Radio Overview ....................1 Parts of the PRO2150 Portable Radio......................1 Programming Mode ............................ 4 Entering Programming Mode......................4 Exiting Programming Mode ......................4 Accessing Programming Mode Parameters ..................4 Radio Features ....................7 Scan ................................
  • Page 4 Table of Contents This Page Intentionally Left Blank June 28, 2002 99R85451E01...

  • Page 5: Product Safety And Rf Exposure Compliance

    Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal non-exclusive license to use that arises by operation of law in the sale of a product.
  • Page 6 This Page Intentionally Left Blank June 28, 2002 99R85451E01...

  • Page 7: Radio Overview

    Radio Overview Parts of the PRO2150 Portable Radio LED Indicators LED Color State Indication Illuminated Radio is transmitting. Blinking Battery voltage is low. Green Illuminated Radio is receiving. On/Off and Volume Knob • If the radio is off, turn this knob clockwise to turn the radio on.
  • Page 8 Parts of the PRO2150 Portable Radio Side of Radio Accessory Connector Programming Port • Used to connect compatible acces- • Lower port of the radio. sories to your radio. • Used by dealers, to program your radio. Display • Displays selected channel, programming parameters, status messages and any error or information messages.
  • Page 9 Parts of the PRO2150 Portable Radio Programmable Buttons (A, B, C, D) • The following functions can be assigned as short press (press and release) or long press (press and hold for 1 second): Button Function Toggles display between Channel Number and Channel Alias.

  • Page 10: Programming Mode

    Programming Mode Programming Mode This mode allows you to change feature parameters to enhance the use of your radio. Entering Programming Mode If your radio is turned on, turn it off. Press and hold the Monitor button, and turn on your radio. You will hear a ringing tone which indicates that your radio has entered Programming Mode.
  • Page 11 Programming Mode Feature Range Remarks Backlight Select LGT-AUTO, LGT-TOGL Selecting LGT-TOGL makes the Backlight button a (LGT-XXXX) toggle to control the ON/OFF status of the display backlight. Selecting LGT-AUTO causes the backlight to automatically extinguish if there is no keypress for more than five seconds.
  • Page 12 Programming Mode This Page Intentionally Left Blank June 28, 2002 99R85451E01...

  • Page 13: Radio Features

    Radio Features Scan Scan allows you to monitor multiple channels and receive calls that are transmitted on them. Two types of scan are supported: Normal Scan and Priority Scan. Normal Scan searches all channels sequentially in the radio’s scan list, whereas Priority Scan allocates 50% of the scanning time to the Priority Channel (the first channel in the designated scan list).

  • Page 14: Entering Phone Mode

    Entering Phone Mode Entering Phone Mode Phone Mode allows you to dial DTMF digits without having to press and hold the PTT. • Press the Phone Mode button to enter Phone Mode. You can now press the keypad buttons to send out DTMF digits.

  • Page 15: Radio Assembly

    Radio Assembly Attaching and Removing the Battery Battery Clasp Grooves Battery Slots Removing the Battery 1. Slide the battery clasp away from the radio. 2. Slide the battery downward. 3. Pull the battery away from the radio. Attaching the Battery 1.

  • Page 16: Attaching And Removing The Antenna

    Attaching and Removing the Antenna Attaching and Removing the Antenna Antenna Connector Threaded End of Antenna Removing the Antenna 1. Turn the antenna in a counter-clockwise direction until it disengages from the radio. Attaching the Antenna 1. Fasten the antenna to the radio by placing the threaded end of the antenna into the Antenna Connector.

  • Page 17: Attaching And Removing The Belt Clip

    Attaching and Removing the Belt Clip Attaching and Removing the Belt Clip Release Mounting Grooves Removing the Belt Clip 1. Insert the end of a key between the release tab and the back surface of the radio. 2. Lift the release tab. 3.

  • Page 18: Charging The Battery

    Charging the Battery Charging the Battery Programming Port Dust Cover 1. Turn off your radio, if it is turned on. It is highly recommended that the radio be turned off while charging. 2. Lift the Dust Cover covering the Accessory Connector (A/C). 3.

  • Page 19: Warranty

    Product Accessories One (1) Year Motorola, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance with the terms of this warranty. Replaced parts or boards are warranted for the balance of the original applicable warranty period.

  • Page 20: June

    Warranty service will be provided by Motorola through one of its authorized warranty service locations. If you first contact the company which sold you the Product (e.g., dealer or communication service provider), it can facilitate your obtaining warranty service.

  • Page 21: June

    A. that MOTOROLA will be notified promptly in writing by such purchaser of any notice of such claim; B. that MOTOROLA will have sole control of the defense of such suit and all negotiations for its settlement or compromise; and C.
  • Page 22 MOTOROLA Communication Products This Page Intentionally Left Blank June 28, 2002 99R85451E01...
  • Page 24 Motorola, Inc. 8000 West Sunrise Boulevard Ft. Lauderdale, FL 33322 MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their respective owners. © Motorola, Inc. 2002.
