Toyota 4RUNNER2016 Quick Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

4RUNNER
2 0 1 6
QUICK REFERENCE GUIDE

Advertisement

Table of Contents
loading

Related Manuals for Toyota 4RUNNER2016

Summary of Contents for Toyota 4RUNNER2016

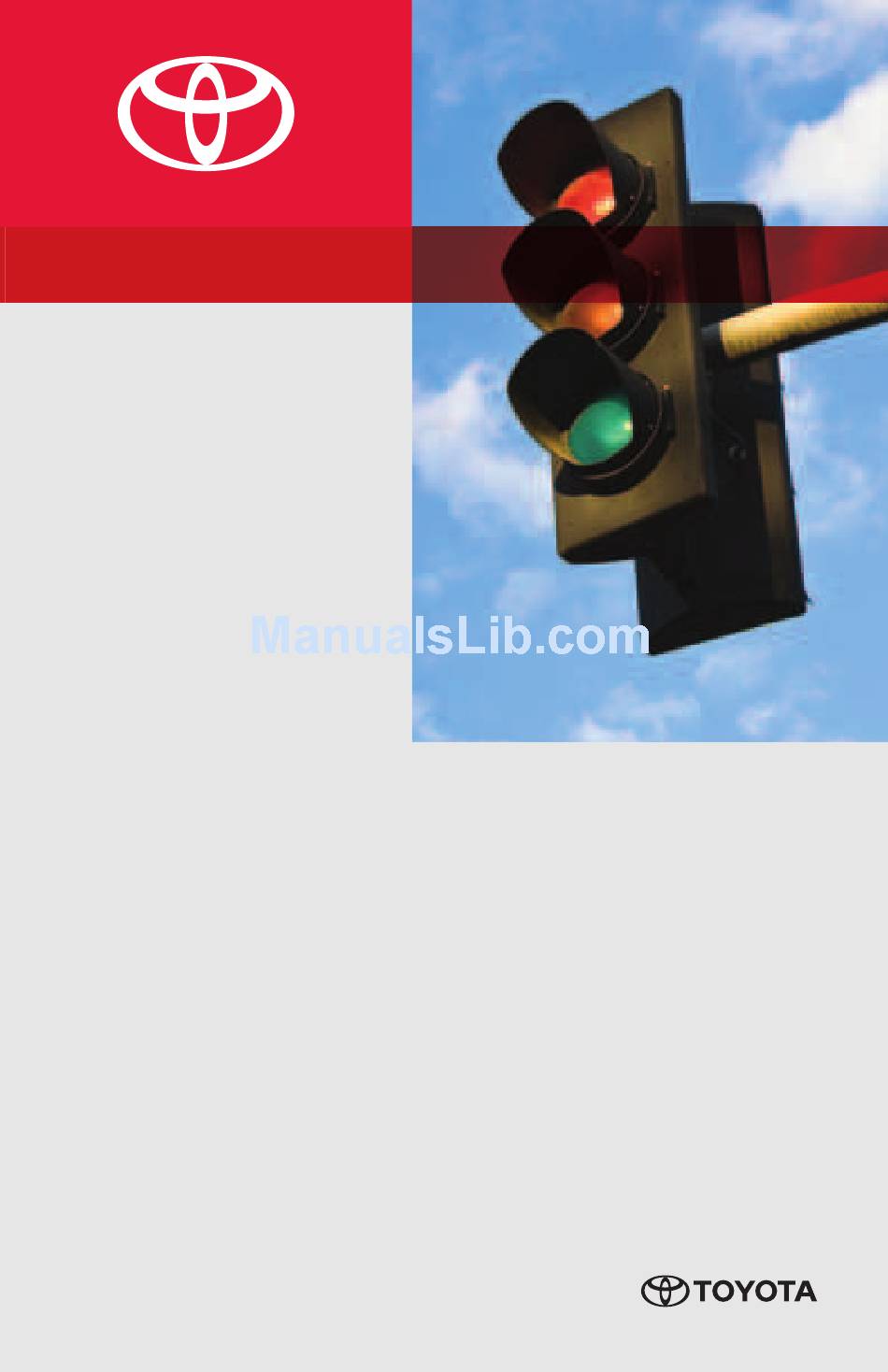

  • Page 1 4RUNNER 2 0 1 6 QUICK REFERENCE GUIDE...
  • Page 2 Your dealership and the entire staff of Toyota Motor Sales, U.S.A., Inc. wish you many years of satisfied driving in your new 4Runner. A word about safe vehicle operations This Quick Reference Guide is not a full description of 4Runner operations.

  • Page 3: Table Of Contents

    Seat belts-Shoulder belt anchor Spare tire & tools Star Safety System 26-27 Tire Pressure Monitoring (warning) System Visit your Toyota dealer for information on customizing this feature. Programmable by customer. Refer to the Owner’s Manual for instructions and more information. ® HomeLink...

  • Page 4: Steering Wheel Audio Controls

    OVERVIEW Instrument panel Steering wheel controls Manual Air Conditioning Automatic Air Center console box Steering wheel audio controls Voice command button Telephone switches Cruise control “DISP” switch Back window and outside rearview mirror defogger switch VSC off switch Active traction control switch Downhill Assist Control system (DAC) switch Rear differential lock switch Multi-terrain Select switch...
  • Page 5 Overhead console instrument panel Type A Type B Conditioning Part-time 4WD Part-time 4WD/full-time 4WD Power outlet Front-wheel drive control lever Front-wheel drive control switch /Four-wheel drive control switch “ENGINE START STOP” button (Smart Key) Ignition switch (standard key) Tilt and telescopic steering lock release Hood release Power outside rearview mirror controls Instrument panel light control...

  • Page 6: Instrument Cluster

    Arrow direction indicates fuel tank door position If indicator does not turn off within a few seconds of starting engine, there may be a malfunction. Have vehicle inspected by your Toyota dealer. For details, see “SRS airbags” Section 1-1, 2016 Owner’s Manual.
  • Page 7 Low Tire Pressure Warning Headlight low/high beam indicator Turn signal indicator Front fog light indicator Power steering system warning Multi-terrain select indicator Engine immobilizer/Theft deterrent system indicator Smart Key system warning Unengaged Park warning light Crawl Control indicator Low speed four-wheel drive indicator Center differential lock indicator Vehicle Stability Control OFF indicator Four-wheel drive indicator...

  • Page 8: Fuel Tank Door And Cap

    OVERVIEW Fuel tank door and cap Store Pull NOTE: Tighten until one click is heard. If the cap is not properly sealed, Check Engine “ ” indicator may illuminate. Keyless entry Locking Without Smart Key system With Smart Key system Push Unlocking Without Smart Key system...

  • Page 9: Smart Key System 1

    Smart Key system (if equipped) Start function Green indicator ON Push NOTE: Carry the electronic key to enable start function. Gear shift lever must be in Park and brake pedal depressed. Power (without starting engine) Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will change the operation mode in succession from: ACCESSORY Accessories such as the radio will operate.

  • Page 10: Engine Maintenance

    OVERVIEW Hood release Push lever to the left and raise hood Pull Engine maintenance Windshield and back window washer fluid tank Power steering fluid reservoir Engine oil level dipstick Engine coolant reservoir Engine oil filler cap NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.

  • Page 11: Automatic Transmission

    FEATURES/OPERATIONS Auto lock/unlock Automatic door locks can be programmed to operate in four different modes, or turned OFF. -Doors lock when shifting from Park. -Doors lock when the vehicle speed is approximately 12 mph or higher. -Doors unlock when shifting into Park. -Doors unlock when the driver’s door is opened within 10 seconds after turning the “ENGINE START STOP”...

  • Page 12: Four-Wheel Drive

    FEATURES/OPERATIONS Four-wheel drive (if equipped) Part-time four-wheel drive models Type A Push “UNLOCK” button and then push and turn the selector. High speed (2WD) High speed (4WD) Shift to “H4” with speed below 50 mph. Type B Neutral Low speed (4WD) Stop vehicle, shift to “N”...

  • Page 13: Seat Adjustments-Front

    Seat adjustments-Front Manual seat Power seat Seatback angle Seat position (forward/backward) Driver seat: seat position, cushion angle and height Passenger seat: seat position (forward/backward) Seatback angle Lumbar support (driver side only) Seat adjustments-Second row seats Vehicles with third row seats Vehicles without third row seats Seat position (forward/backward) Seatback angle...

  • Page 14: Seats-Folding Down Second Row Seats

    FEATURES/OPERATIONS Seats-Folding down second row seats Without third row seats (3) Fold down (2) Lower (1) Push (4) Stow (6) Push down (7) Fold down (5) Pull up With third row seats (2) Lower (1) Push (3) Stow (4) Pull up (5) Fold down...

  • Page 15: Seats-Head Restraints

    Seats-Stowing third row seats (if equipped) From inside (2) Pull up (1) Stow (4) Pull up (3) Pull up (5) Fold down From outside (1) Stow (2) Pull up (3) Pull up (4) Fold down Seats-Returning third row seats (if equipped) (3) Raise (2) Pull (1) Raise...

  • Page 16: Clock

    FEATURES/OPERATIONS Clock H- Hour set M- Minute set Windows Driver side Window lock switch Down Automatic operation Push the switch completely down or pull it completely up and release to fully open or close. To stop the window partway, operate the switch in the opposite direction.

  • Page 17: Light Control-Instrument Panel

    Window-Back window Operating from inside Operating from outside With Smart Key system Close Open Close Push and hold Open Without Smart Key system Window lock switch Open Close Turn and hold Light control-Instrument panel Brightness control VSC OFF button VSC OFF The VSC OFF button is used to switch between modes related to the TRAC, VSC and Auto LSD (2WD) functions.
  • Page 18 FEATURES/OPERATIONS Lights & turn signals Headlights Type A Type B Headlights Headlights Parking lights Parking lights Auto DRL ON Type C Type D Headlights Headlights Parking lights Parking lights DRL ON DRL ON Low beam High beam flasher High beam Automatic light cut off system Will automatically turn lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.

  • Page 19: Cruise Control

    Windshield wipers & washers Front Type A Type B Adjust frequency* Adjust frequency* Single wipe Single wipe Interval wipe Interval wipe Slow Slow Fast Fast Pull to wash and wipe Pull to wash and wipe * Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.

  • Page 20: Air Conditioning/Heating

    FEATURES/OPERATIONS Air Conditioning/Heating Automatic Air Conditioning Temperature selector (driver side) Fan speed Air Conditioning ON/OFF Recirculate cabin air (fresh air when OFF) Temperature selector (front passenger side) “DUAL” button Indicator ON: Separate temperature settings for driver and passenger. Indicator OFF: Synchronize temperature settings for driver and passenger. Rear window and outside rearview mirror defoggers Airflow vent In “...

  • Page 21: Automatic Running Boards

    Seat ventilators/heaters (if equipped) Front seats With ventilators Heater only Front passenger’s seat Ventilation Heat Driver’s seat ® Garage door opener (HomeLink (if equipped) ® Garage door openers manufactured under license from HomeLink * can be programmed to operate garage doors, estate gates, security lighting, etc. Refer to the Owner’s Manual for more details.

  • Page 22: Audio

    FEATURES/OPERATIONS Audio (if equipped) Refer to the “Navigation System Owner’s Manual” and “2016 Entune™ Audio Quick Reference Guide” for instructions and more information. Push to Entune™ Audio Plus with Connected Navigation App access Bluetooth Touch screen display hands-free system Eject CD Turn to tune radio stations manually or...

  • Page 23: Power Outlets-120V Ac

    USB/AUX port Type A Type B By inserting a mini plug into the USB/AUX port, you can listen to music from a portable audio device through the vehicle’s speaker system while in USB/AUX mode. Refer to the “Navigation System Owner’s Manual” for instructions and more information.

  • Page 24: Power Outlets-12V Dc

    FEATURES/OPERATIONS Power outlets-12V DC Center panel Console box Outside Inside Luggage compartment Luggage compartment (with the 120V AC outlet) (without the 120V AC outlet) NOTE: Designed for car accessories. Ignition switch/“ENGINE START STOP” switch must be in the “ACC” or “ON” position to be used.

  • Page 25: Door Locks

    SAFETY AND EMERGENCY FEATURES Door locks Unlock Lock Seat belts Take up slack Too high Keep as low on hips as possible NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly, the Automatic locking retractor (ALR) will prevent it from being re-extended beyond that point, unless fully retracted again.

  • Page 26: Doors-Child Safety Locks

    Correctly adjusting tire inflation will turn off the light after a few minutes. If the light does not turn off, have the system checked by your Toyota dealer. Refer to the Owner’s Manual for more details. Doors-Child safety locks...

  • Page 27: Spare Tire & Tools

    Spare tire & tools Tool location Tool bag Jack Spare tire Removing the spare tire (1) Assemble the jack handle. (2) Insert the jack handle end through the opening in the bumper, and into the lowering screw. (3) Turn the jack handle counterclockwise. Refer to the Owner’s Manual for tire changing and jack positioning procedures.
  • Page 28 Traction Control helps maintain traction on loose gravel and wet, icy, or uneven surfaces by applying brake force to the spinning wheel(s). Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip. TRAC limits engine output and applies the brakes to the spinning wheel. This transfers power to the wheels that still have traction to help keep you on track.

  • Page 29: Floor Mat Installation

    Floor mat installation There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle has model-specific floor mats. Installation is easy. To keep your floor mat properly positioned, follow these steps: •...
  • Page 30 ® BLUETOOTH DEVICE PAIRING SECTION 28 28...
  • Page 31 Entune™ touch screen system Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all Android mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk”...
  • Page 32 Bluetooth on your Entune head unit. Please follow the instructions below to pair your Bluetooth enabled phone to your Entune system. STEP 6 STEP 7 STEP 8 On your Toyota Vehicle Select ADD, to add your Select BLUETOOTH Entune Multimedia Head Unit, phone device Select SETUP BUTTON on the Home Screen.
  • Page 33 2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  • Page 34 Pairing for iPhone Entune™ touch screen system Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk”...
  • Page 35 Your smartphone is now Once paired, Entune will you can now select your paired with Entune. attempt to connect audio and TOYOTA VEHICLE in contacts on your phone. Bluetooth Settings. You may need to enter the provided Bluetooth PIN on your phone.
  • Page 36 2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  • Page 37 Pairing for Windows Phone and Entune™ touch screen system Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and easy: all Windows Phone mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk”...
  • Page 38 Bluetooth® on your Entune head unit. Please follow the instructions below to pair your Bluetooth enabled phone to your Entune system. STEP 6 STEP 7 STEP 8 On your Toyota Vehicle Select ADD, to add your Select BLUETOOTH Entune Multimedia Head Unit, phone device Select SETUP BUTTON on the Home Screen.
  • Page 39 2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
  • Page 40 NOTES 38 38...
  • Page 41 NOTES 39 39...
  • Page 42 NOTES 40 40...
  • Page 43 NOTES...
  • Page 44 CUSTOMER EXPERIENCE CENTER 1-800-331-4331 Printed in U.S.A. 8/15 15-TCS-08592 00505QRG164RUN...
