SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL

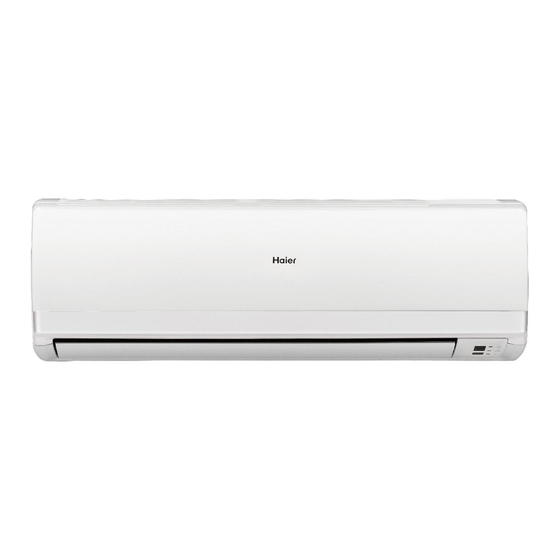

AS09GN3ERA
AS12GN3ERA
AS18GN3ERA
AS09GB2HRA
AS12GB2HRA
AS18GD2HRA
AS24GF2HRA
Please read this operation manual before using the air conditioner.
Keep this operation manual for future reference.
0010565110
Índice
COMPONENTES E FUNÇÕES
FUNCIONAMENTO
INSTALAÇÃO DA UNIDADE INTERIOR
MANUTENÇÃO
CUIDADOS
RESOLUÇÃO DE PROBLEMAS
Contents
PARTS AND FUNCTIONS
OPERATION
INDOOR UNIT INSTALLAION
MAINTENANCE
CAUTIONS
TROUBLE SHOOTING
Contenido
PARTES Y FUNCIONES
FUNCIONAMIENTO
INSTALACIÓN DE LA UNIDAD INTERIOR
MANTENIMIENTO
PRECAUCIONES
RESOLUCIÓN DE PROBLEMAS
Indice
PARTI E FUNZIONI
FUNZIONAMENTO
INSTALLAZIONE UNITÀ INTERNA
MANUTENZIONE
AVVERTENZE
RISOLUZIONE DEI PROBLEMI
Table des matières
ÉLÉMENTS ET FONCTIONS
UTILISATION
INSTALLATION DE L'UNITÉ INTÉRIEURE
ENTRETIEN
MISES EN GARDE
DÉPANNAGE
1
2
5
8
9
10
11
12
15
18
19
20
21
22
25
28
29
30
31
32
35
38
39
40
41
42
45
48
49
50
Advertisement
Table of Contents
Related Manuals for Haier AS09GN3ERA
Summary of Contents for Haier AS09GN3ERA
-
Page 1: Operation Manual
RESOLUÇÃO DE PROBLEMAS Contents PARTS AND FUNCTIONS OPERATION INDOOR UNIT INSTALLAION MAINTENANCE CAUTIONS TROUBLE SHOOTING Contenido PARTES Y FUNCIONES FUNCIONAMIENTO INSTALACIÓN DE LA UNIDAD INTERIOR AS09GN3ERA MANTENIMIENTO PRECAUCIONES AS12GN3ERA RESOLUCIÓN DE PROBLEMAS AS18GN3ERA Indice AS09GB2HRA AS12GB2HRA PARTI E FUNZIONI FUNZIONAMENTO AS18GD2HRA INSTALLAZIONE UNITÀ... - Page 2 Cuidados AVISO Por favor ligue ao departamento de vendas/assistência técnica para a instalação. Não tente instalar o aparelho de ar condicionado sozinho porque a instalação incorreta pode causar choque elétrico, fogo e fuga de água. AVISO Se notar alguma anormalidade como uma Garanta de forma segura que a instalação Use uma fonte de energia pequena queimadura, pare imediatamente...
- Page 3 Há muitas fontes de aquecimento ou 11. Não insira nenhum sensor na válvula de encaixe de 3 vias. demasiadas pessoas no espaço durante a operação de refrigeração? Haier Endereço:No.1 Haier Road,Hi-tech Zone,Qingdao 266101 P.R.China Contactos: T EL +86-532-8893-6943;FAX +86-532-8893-1010 Website: www.haier.com...
-
Page 4: Parts And Functions
Parts and Functions Remote controller Indoor Unit Additional functions display Supplemented electrical Operation mode QUIET SLEEP HEALTH TURBO heating Remote controller Inlet Air Purifying Filter (inside) 9. QUIET button 10. HEAT button 11. COOL button Inlet grille 12. AUTO button Emergency 13. -
Page 5: Emergency Operation
Operation Base Operation Emergency operation and test operation Emergency Operation: Use this operation only when the remote controller is defective or lost, and with function of emergency running, air conditoner Remote controller can run automatically for a while. When the emergency operation switch is pressed, the " Pi " sound is heard once, which means the start of this operation. -
Page 6: Sleep Operation
Operation Sleep Operation 4. In FAN mode It has no SLEEP function. Press button to enter additional options, when 5.Set the wind speed change when sleeping cycle display to will flash. And then press If the wind speed is high or middle before setting for the enter to sleep function. - Page 7 Operation EUROPEAN REGULATIONS CONFORMITY FOR THE MODELS Timer On/Off On-Off Operation All the products are in conformity with the following European provision: 1.After unit starts, select your desired operation mode. 2.Press TIMER button to change TIMER mode. Every - Low Voltage Directive 2006/95/EC time the button is pressed, display changes as follows: Remote controller: -Electomagnetic CompatibilitY 2004/108/EC...
-
Page 8: Indoor Unit Installaion
Indoor Unit Installaion Necessary Tools for Installation Power Source Torque wrench Driver Before inserting power into receptacle, check the voltage without (17mm,22mm,26mm) Nipper fail. Pipe cutter Hacksaw The power supply is the same as the corresponding nameplate. Flaring tool Hole core drill Install an exclusive branch circuit of the power. -
Page 9: Indoor Unit Installation
Indoor Unit Installation ・ [ Left Left-rear piping ] Fitting of the Mounting Plate and Positioning of the wall Hole In case of left side piping, cut away, with a nipper, the lid for left piping. In case of left-rear piping, bend the pipes according to the piping When the mounting plate is first fixed direction to the mark of hole for left-rear piping which is marked on heat insulation materials. - Page 10 When connecting the cable after installing the indoor unit 1. Insert from outside the room cable into left side of the wall Lean Damage of flare Crack Partial Too outside hole, in which the pipe has already existed. 2. Pull out the cable on the front side, and connect the cable On Drainage making a loop.
