D-Link DSL-2650U Quick Installation Manual

D-Link DSL-2650U Quick Installation Manual

3g/adsl/ethernet router with wi-fi and built-in switch
Hide thumbs Also See for DSL-2650U:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Installation Guide
DSL-2650U
3G/ADSL/Ethernet Router with Wi-Fi
and Built-in Switch

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-2650U

Summary of Contents for D-Link DSL-2650U

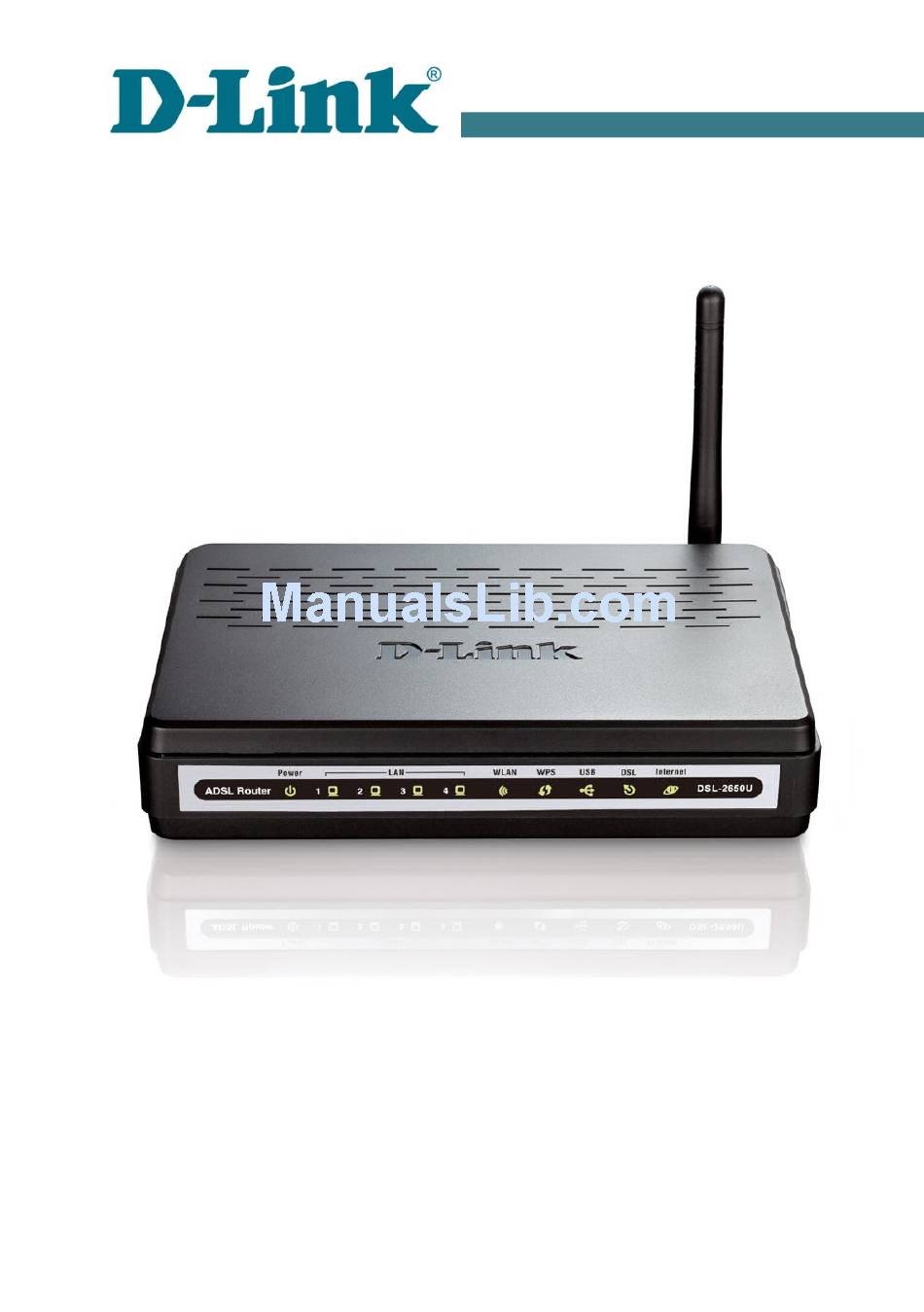

  • Page 1 Quick Installation Guide DSL-2650U 3G/ADSL/Ethernet Router with Wi-Fi and Built-in Switch...

  • Page 2: Before You Begin

    • If any of the items are missing, please contact your reseller. The “User Manual” and “Quick Installation Guide” documents in Russian and English are available on D-Link website (see ftp.dlink.ru/pub/ADSL/DSL- 2650U/Description/). Using a power supply with a different voltage rating than the one included will cause damage and void the warranty for this product.

  • Page 3: System Requirements And Equipment

    DSL-2650U Quick Installation Guide System Requirements and Equipment A computer with any operating system that supports a web browser. • A web browser to access the web-based interface of the router: Windows • Internet Explorer, Mozilla Firefox, or Opera. A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

  • Page 4: Supported Usb Modems

    DSL-2650U Quick Installation Guide Supported USB Modems GSM modems: Huawei E150 • Huawei E1550 • Huawei E160G • Huawei E169G • Huawei E220 • ZTE MF112 • ZTE MF626 • ZTE MF627. • CDMA modems Airplus MCD-650 • Airplus MCD-800 •...

  • Page 5: Pc With Ethernet Adapter

    DSL-2650U Quick Installation Guide CONNECTING TO PC PC with Ethernet Adapter 1. Make sure that your PC is powered off. 2. Connect an Ethernet cable between any of four Ethernet ports located on the back panel of the router and the Ethernet port of your PC.
  • Page 6 DSL-2650U Quick Installation Guide Obtaining Address Automatically in OS Windows XP 1. Click the Start button and proceed to the Control Panel > Network and Internet Connections > Network Connections window. 2. In the Network Connections window, right-click the relevant Local Area Connection icon and select the Properties line in the menu displayed.
  • Page 7 DSL-2650U Quick Installation Guide 4. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 5. Click the ОК button in the connection properties window. Now your computer is configured to obtain an IP address automatically.
  • Page 8 DSL-2650U Quick Installation Guide Obtaining Address Automatically in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 9 DSL-2650U Quick Installation Guide 6. Select the Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. Click the OK button. 7. Click the OK button in the connection properties window. Now your computer is configured to obtain an IP address automatically.

  • Page 10: Pc With Wi-Fi Adapter

    DSL-2650U Quick Installation Guide PC with Wi-Fi Adapter 1. To connect via 3G network: connect your USB modem to the USB port located on the back panel of the router. If you need to connect or change a USB modem to another one when the router is powered on, power off the router, connect the modem to the USB port, and power on the router.

  • Page 11: Configuring Wi-Fi Adapter In Os Windows Xp

    3. Search for available wireless networks. 4. In the opened Wireless Network Connection window, select the wireless network DSL-2650U and click the Connect button. After that the Wireless Network Connection Status window appears. If you perform initial configuration of the router via Wi-Fi connection,...

  • Page 12: Configuring Wi-Fi Adapter In Os Windows 7

    DSL-2650U Quick Installation Guide Configuring Wi-Fi Adapter in OS Windows 7 1. Click the Start button and proceed to the Control Panel window. 2. Select the Network and Sharing Center section. (If the Control Panel has the category view (the Category value is selected from the View by...
  • Page 13 Quick Installation Guide 6. In the opened window, in the list of available wireless networks, select the wireless network DSL-2650U and click the Connect button. 7. Wait for about 20-30 seconds. After the connection is established, the network icon will be displayed as the signal level scale.

  • Page 14: Configuring Router

    DSL-2650U Quick Installation Guide CONFIGURING ROUTER Connecting to Web-based Interface 1. Start a web browser. 2. In the address bar of the web browser, enter the IP address of the router (by default, the following IP address is specified: 192.168.1.1). Press the Enter key.
  • Page 15 To get back to the quick settings page from any Wizard or web-based interface menu section, left-click the D-Link logo in the top left corner of the page. The web-based interface of the router is multilingual. Select a needed language from the menu displayed when the mouse pointer is over the Language caption.

  • Page 16: Configuring Connection To The Internet

    DSL-2650U Quick Installation Guide Configuring Connection to the Internet You should configure your WAN connection in accordance with data provided by your Internet service provider (ISP). Make sure that you have obtained all necessary information prior to configuring your WAN connection.
  • Page 17 DSL-2650U Quick Installation Guide 5. Specify a name for your connection (any name for easier identification) in the Name field. In the PPP section, enter authorization data provided by your operator (the username (login) in the Username field and the password in the Password and Password confirmation fields), or select the Without authorization checkbox if authorization is not required.

  • Page 18: Adsl Wan Connection

    DSL-2650U Quick Installation Guide ADSL WAN Connection 1. Go to the Net / WAN page and click the Add button. In the General settings section, from the Provider drop-down list, leave the Manually value. From the Connection Type drop-down list, select the needed value.
  • Page 19 DSL-2650U Quick Installation Guide 8. For the IPoA and Static IP connection types, fill in the IP Address, Netmask, and Gateway IP address fields in the IP section. 9. Deselect the NAT checkbox in the Miscellaneous section if your ISP requires you to disable the network address translation function.

  • Page 20: Ethernet Wan Connection

    DSL-2650U Quick Installation Guide Ethernet WAN Connection 1. Go to the Advanced / Interface grouping page. 2. Select the choice corresponding to the LAN port that will be used as the WAN port of the Ethernet WAN port radio button, and click the Save button.
  • Page 21 DSL-2650U Quick Installation Guide 8. For the PPPoE connection type, enter authorization data provided by your ISP in the PPP section (the username (login) in the Username field and the password in the Password and Password confirmation fields). If these data have not been provided by your ISP, select the Without authorization checkbox.

  • Page 22: Configuring Wan Backup Function

    DSL-2650U Quick Installation Guide Configuring WAN Backup Function 1. Go to the Net / WAN page and create the main WAN connection. In the General settings section, select the Enable checkbox. 2. On the Net / WAN page, create the reserve WAN connection. In the General settings section, deselect the Enable checkbox.
  • Page 23 DSL-2650U Quick Installation Guide 4. In the Primary connection settings section, from the Connection name drop-down list, select a WAN connection which will be used as the main one. 5. In the Reserve connection settings section, from the Connection name drop-down list, select a WAN connection which will be used as the reserve one.

  • Page 24: Configuring Local Area Network

    DSL-2650U Quick Installation Guide Configuring Local Area Network Go to the Net / LAN page. If needed, change the IP address of the router's LAN interface and the mask of the local subnet in the IP Address and Netmask fields. Then click the Save button.

  • Page 25: Configuring Wireless Network

    DSL-2650U Quick Installation Guide Configuring Wireless Network By default, the wireless network of the router is open (it requires no password to access it). To avoid unauthorized access to your wireless local area network, change the default settings of the router.

  • Page 26: Changing Administrator Password

    DSL-2650U Quick Installation Guide Changing Administrator Password It is highly recommended to change the administrator password upon initial configuration. This helps you to improve your network security. 1. Go to the System / Administrator password page. 2. Enter a new password for the administrator account in the Password and Confirmation fields.

  • Page 27: Technical Support

    Quick Installation Guide TECHNICAL SUPPORT You can find software updates and user documentation on our website. D-Link provides its customers with free support within the product's warranty period. Customers can contact the technical support group by phone or by e- mail/Internet.
