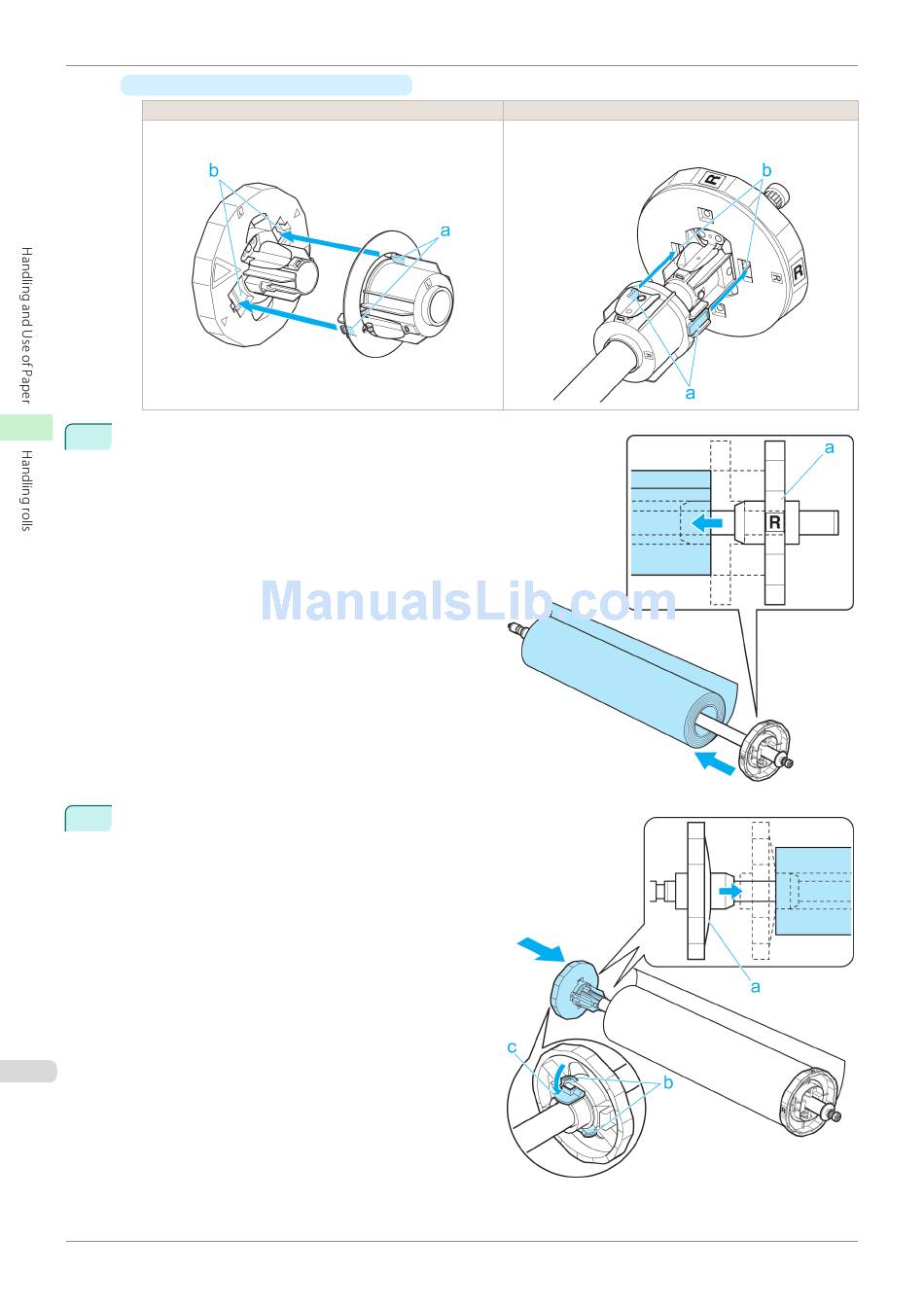

Attaching the Roll Holder to Rolls
• Using rolls with a 3-inch paper core
Align the tips (a) of the 3-Inch Paper Core Attachment L with
the holes (b) of the Holder Stopper and insert it firmly.
3
With the edge of the roll paper facing forward as
shown, insert the Roll Holder from the right of the roll.
Insert it firmly until the roll touches the flange (a) of the
Roll Holder, leaving no gap.
4
Insert the Holder Stopper from the left in the Roll
Holder as shown. Holding it at the position shown (b),
push it firmly in until the flange (a) of the Holder Stop-
per touches the roll. Lock the Holder Stopper lever (c)
by pushing it down toward the shaft side.
338
Holder Stopper (Left Side) Roll Holder (Right Side)
Align the tips (a) of 3-Inch Paper Core Attachment R with
the holes (b) of the Roll Holder and insert it firmly.
