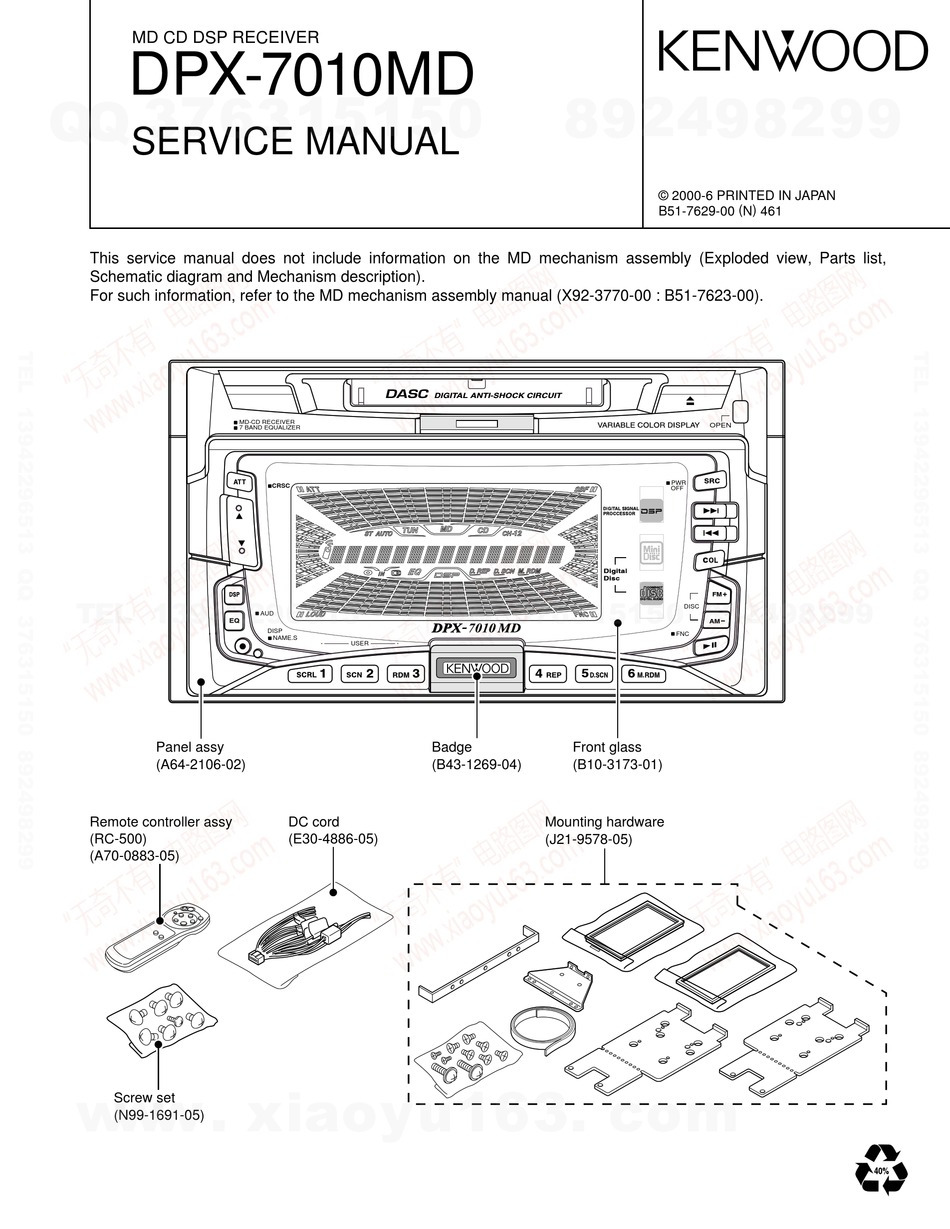

MD CD DSP RECEIVER
DPX-7010MD
QQ
3 7 63 1515 0
SERVICE MANUAL
This service manual does not include information on the MD mechanism assembly (Exploded view, Parts list,
Schematic diagram and Mechanism description).
For such information, refer to the MD mechanism assembly manual (X92-3770-00 : B51-7623-00).
TE
L 13942296513
Panel assy
(A64-2106-02)
Remote controller assy
(RC-500)
(A70-0883-05)
www
Screw set
.
(N99-1691-05)
MD CD RECEIVER
7 BAND EQUALIZER
CRSC
AUD
DISP
NAME.S
USER
DC cord
(E30-4886-05)
x
ao
u163
y
i
2 9
8
Q Q
3
6 7
1 3
1 5
Badge
Front glass
(B43-1269-04)
(B10-3173-01)
Mounting hardware
(J21-9578-05)
co
.
9 4
2 8
© 2000-6 PRINTED IN JAPAN
B51-7629-00 ( N ) 461
OPEN
PWR
OFF
0 5
8
2 9
9 4
2 8
DISC
FNC
m
9 9
9 9

Advertisement

loading

Related Manuals for Kenwood DPX-7010MD

Summary of Contents for Kenwood DPX-7010MD

  • Page 1 MD CD DSP RECEIVER DPX-7010MD 3 7 63 1515 0 SERVICE MANUAL © 2000-6 PRINTED IN JAPAN B51-7629-00 ( N ) 461 This service manual does not include information on the MD mechanism assembly (Exploded view, Parts list, Schematic diagram and Mechanism description).
  • Page 2 DPX-7010MD 3 7 63 1515 0 BLOCK DIAGRAM L 13942296513 u163...

  • Page 3: Microcomputer's Terminal Description

    DPX-7010MD 3 7 63 1515 0 MICROCOMPUTER’S TERMINAL DESCRIPTION System Microcomputer M30622MCAA58FP (X14 : IC1) Pin Name Description Processing Operation DSP_RVDT DSP data output terminal DSP_CLK DSP clock output terminal DSP_REDY DSP write request terminal DSP_RST DSP reset terminal DATAH...
  • Page 4 DPX-7010MD 3 7 63 1515 0 MICROCOMPUTER’S TERMINAL DESCRIPTION Pin Name Description Processing Operation PN_SCCON Communication control between panel microcomputer CD_MSTOP CD mechanism microcomputer stop terminal L: Mechanism stop CD_LO/EJ CD loading/eject control terminal CD_MOTOR CD loading motor control terminal...
  • Page 5 DPX-7010MD 3 7 63 1515 0 MICROCOMPUTER’S TERMINAL DESCRIPTION Panel Microcomputer M30220MA-101GP (X25 : IC1) Pin Name Description Processing Operation Not used L: Fixed PWM_CONT_R Red LED brightness control H: On Not used L: Fixed PWM_CONT_B Blue LED brightness control...
  • Page 6 DPX-7010MD 3 7 63 1515 0 MICROCOMPUTER’S TERMINAL DESCRIPTION Pin Name Description Processing Operation SEG34 Ground 94~127 SEG33~SEG0 128~131 COM3~COM0 LCD drive reference voltage LCD drive reference voltage (2/3 x VL3) LCD drive reference voltage (1/3 x VL3) Ground 138,139...
  • Page 7 PC BOARD (COMPONENT SIDE VIEW) (FOIL SIDE VIEW) 3 7 6 3 1 5 1 5 0 X25-8610-00 (J74-1069-12) X13-9810-00 (J74-1063-12) X13-9810-00 (J74-1063-12) X25-8610-00 (J74-1069-12) DOWN DOWN CP10 CP10 R26 R28 1 3 9 4 2 2 9 6 5 1 3 CP2 R3 VOL- VOL-...
  • Page 8 3 7 6 3 1 5 1 5 0 PC BOARD (COMPONENT SIDE VIEW) X14-6320-21 (J74-1065-32) X14-6320-21 Address Address C341 C241 R342 R242 R341 R241 C509 C502 C510 C508 C515 C507 C607 R605 C240 C504 R611 C500 R634 R503 C609 C244 C621 C516...
  • Page 9 PC BOARD (FOIL SIDE VIEW) 3 7 6 3 1 5 1 5 0 X14-6320-21 (J74-1065-32) X14-6320-21 Address Address C341 C241 R342 R242 R341 R241 C509 C502 C510 C508 C515 C507 C607 R605 C240 C504 R611 R634 C500 R503 C609 C244 C621 C516...
  • Page 10 3 7 6 3 1 5 1 5 0 (FOIL SIDE) PC BOARD (COMPONENT SIDE VIEW) X32-4820-00/0-01 (J74-1077-02) X32-4820-00/0-01 (J74-1077-02) /MUTEL /MUTEL LO/EJ LO/EJ MOTOR MOTOR /MUTER /MUTER A.5V A.5V LOAD LOAD SLED+ SLED+ EJECT/SLED- EJECT/SLED- I G O S.GND S.GND SPDL- SPDL-...
  • Page 11 (X32-4820-01) 3 7 6 3 1 5 1 5 0 5.0V 1000P 1.2Vpp 8.2K PLLF C24 0.022 IREF CSEL 0.1V R34 68K TEST1 10u6.3 4.8V TEST2 0.8Vpp DSLF R35 100K IOSEL 5.0V KMS-242B NRST BCLK LRCK OPTICAL 2.4V SRDATA PICKUP VREF 2.4V SUBC...
  • Page 12 : 2SB1565 IC16 R108 PH-MUTE Q21,22 : 2SA1906 DC CORD : 2SB1565F R102 2.2K (E30-4886-05) DSP RST CTRLO : 2SD1766 Q108 DPX-7010MD R103 100 Q100 : DTA124EK 0V/5.0V 7.2V DATA H C110 R147 Q101,107 : DTC114YK OUT4+ R166 0.01 14.4V 0V/5.0V...
  • Page 13 3 7 6 3 1 5 1 5 0 REAR/NF FRONT CD/MD-CH CN DAP202K DA204K MUTE DA221 R406 C341 C241 C343 C243 DATA 1200P 1200P 1200P 1200P 2.7K A GND D403 R341 R241 R344 R244 DATA Q302 Q202 R405 C446 Q301 Q201 4.7K...
  • Page 14 (X25-8610-00) 3 7 6 3 1 5 1 5 0 PRE 3 E. Q REMOCON ED1 LCD DOWN PRE 4 DISP VOL+ CP6 47K CP7 47K PRE 5 PRE 1 VOL- ILL +B ILL GND PN SC CON CP2 100 PN MC DATA PN SC DATA PN CTS...

  • Page 15: Exploded View (Mechanism)

    DPX-7010MD 3 7 63 1515 0 EXPLODED VIEW (MECHANISM) M1.7x2.5 N09-4249-05 ø2x3.5 N09-4172-05 M1.7x4 N09-4202-05 M2x2 N38-2020-46 ø2x6 N09-4294-05 WASHER ø1.2 N19-2023-04 WASHER ø1.6 N19-2058-04 WASHER ø1.6 N19-2093-04 M2x2 N39-2020-46 405A L 13942296513 DPU1 u163 X32-4820-01 Parts with the exploded numbers larger than 700 are not supplied.

  • Page 16: Exploded View (Unit)

    DPX-7010MD 3 7 63 1515 0 EXPLODED VIEW (UNIT) X13-9810-00 L 13942296513 X25-8610-00 X14-6320-21 FPC1 M2.6x3.5 (BLK) N09-1492-05 M2.6x3.5 N09-4389-05 M3x4 (BLK) N30-3004-45 M3x14 N30-3014-46 M2.6x6 (BLK) N32-2606-45 M2x2.5 N39-2025-46 ø2x5 (BLK) N80-2005-45 ø3x6 N83-3006-46 ø2x6 N80-2006-46 u163 ø2x8 (BLK) N80-2008-45 ø3x10...

  • Page 17: Parts List

    DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. Desti- Desti- Ref. No.
  • Page 18 DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. SUB-CIRCUIT UNIT (X13-9810-00) Teile ohne Parts No. werden nicht geliefert.
  • Page 19 DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. SYNTHESIZER UNIT (X14-6320-21) Teile ohne Parts No. werden nicht geliefert.
  • Page 20 DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. SYNTHESIZER UNIT (X14-6320-21) Teile ohne Parts No. werden nicht geliefert.
  • Page 21 DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No. werden nicht geliefert. SYNTHESIZER UNIT (X14-6320-21)
  • Page 22 DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. SWITCH UNIT (X25-8610-00) Teile ohne Parts No. werden nicht geliefert.
  • Page 23 DPX-7010MD 3 7 63 1515 0 PARTS LIST ∗ New parts Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. CD PLAYER UNIT (X32-4820-01) Teile ohne Parts No. werden nicht geliefert.
  • Page 24 DPX-7010MD 3 7 63 1515 0 PARTS LIST / SPECIFICATIONS ∗ New parts Parts without Parts No. are not supplied. Item Specifications Les articles non mentionnes dans le Parts No. ne sont pas fournis. Frequency Range 87.5MHz~108.0MHz (50kHz) Teile ohne Parts No. werden nicht geliefert.
